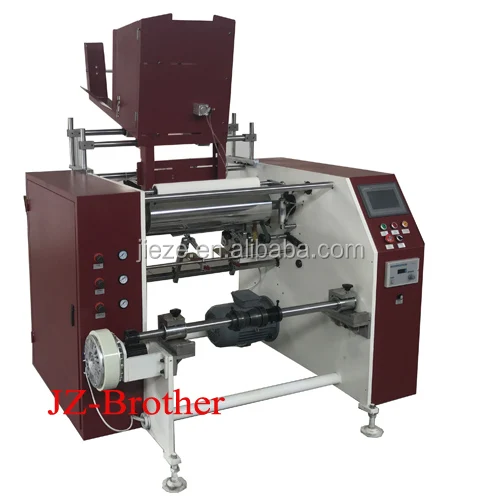

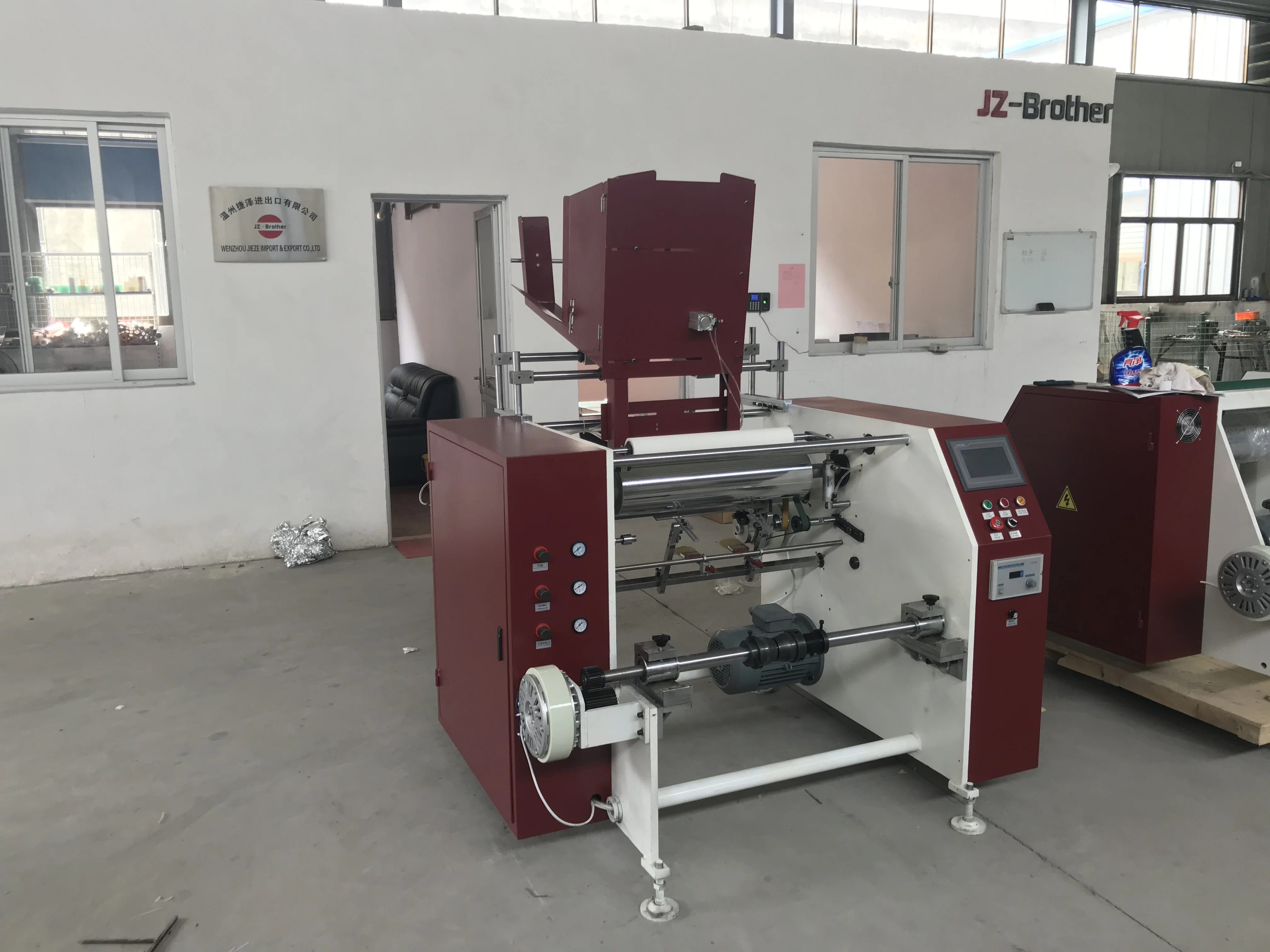

Rewinding Machine Manufacturer Produces Stable High Speed Slitting And Aluminum Foil Rewinder

Product Overview

Description







 The automatic machine designed for the rapid converting of wax paper from longer jumbo roll into shorter small roll.

The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.

1- High speed rewinding from 0-180m/min

2- 4-station rewinding shaft, improve the rewinding efficiency.

3- Auto exchanging, auto glue coating, easy operation

4- PLC control, touch screen operation, friendly HMI system.

5- CE certification and one year quality guarantee.





Model	JZ-450L-4
Width of material	100-450mm
Thickness of material	7-50micro
Speed	0-400m/min
Tension control	Magnetic brake
Material loading	Air shaft
Paper core ID for unwinder	3”
Paper core ID for rewinder	1-2"
Power of motor	2.2kw









 Advantage:



1. Machine structure is simple, easy operation, easy maintenance.

2. Easy adjusting to fit different length of paper core.

3. Auto exchanging and keep it continuous running.

4. Easy to set the different length in touch screen directly,high length precision.

5. Low noisy, low power consumption, uniform winding.
