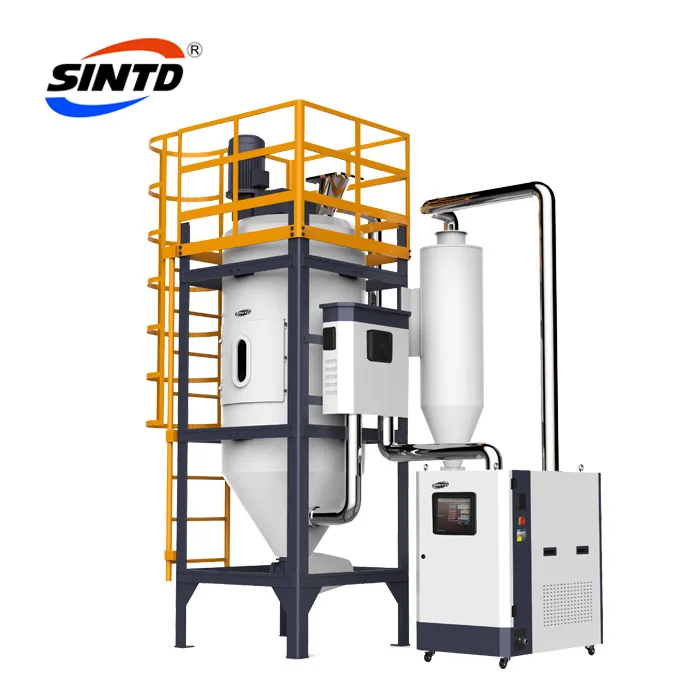

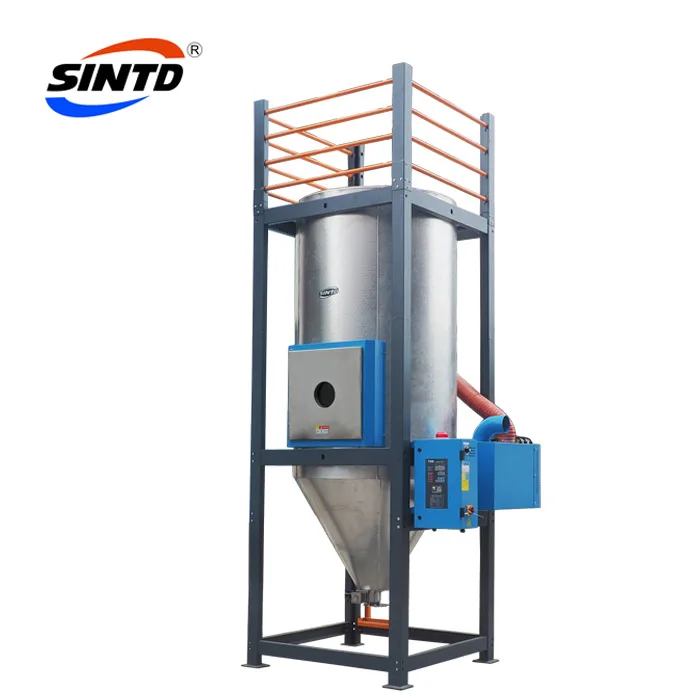

industrial drying machine crystallizer PET crystallizer

Product Overview

Description

Wholesale Closed-loop Drying-effect Improving PET Crystallizer

       PET material is well-used in textile fiber,food and chemical packaging tape stripes,industry thread,heat-resistant dishware.Air bubble and chapping will take place due to its high moisture content.With this drying demand and the development on plastic industry,SINTD provides a series of secured and reliable drying and dehumidifying technologies for PET molding and other PET product manufacturers,SINTD'S PET system had great technology to meet various application needs.

1:Bottle and blank making.

2:Thermal forming film and sheet making.

3:Strapping tape and industrial yarns making.

4:Tubing making.

5:Waste recovery making.





Specification:

Model	TCR-160U	TCR-450U	TCR-900U	TCR-1600U	TCR-2500U
Heating power(KW)	12	24	48	96	128
Motor power(KW)	0.55	0.22	3	7.5	15
Blending motor power(KW)	0.25	1.1	1.5	1.5	4
Max throughput	50	150	300	500	750
Hopper capacity(U)	160	450	900	1600	2500
H(MM)	2380	3850	4450	5350	5670
H1(MM)	280	720	1040	860	1270
H2(MM)	380	1060	1185	1260	1270
W(MM)	1040	2370	2890	3570	4050
W1(MM)	1140	1440	1930	2190	2350
W2(MM)	...	800	800	800	800
ΦA(INCH)	3	5	6	8	8
ΦB(INCH)	4	4	5	5	5
Net weight(KW)	235	500	865	2290	2790



Notes:

1:Above maximum processing capacity is based on uncrystallized PET material of 0.85kg-L in desity and 3-5mm in diameter.

2:Power:3 phase,400VAC,50Hz.

3:We reserve the right to change specifications without prior notice.





Features:

1:Fixed speed of agitator makes materials not lump together during the crystallization;

2:Simplify and improve drying efficiency;

3:Materials and can be dried under high temperature to improve drying efficiency;

4:Cyclone dust collector is standard,which is applied to dust-rich place, can effectively reduce the load on filter bag, and reduce the number of times of filter bag cleaning,thus extend the life span of the filter bag.

5:With double overheat protectors, it can reduce the possibility of either mechannical or man-made problem.

6:Equipped with totary valve with good sealing performance,which can output crystallized material accurately.

7:Equipped with material level switch, which can detect material level accurately and make operation reliable.

8:Equipped with nagative pressure tester to imdediately test the ventilation of the filter,give an alarm when the nagative pressure is higher than the setting value, clean the filter to avoid blockage.



Accessory option:

1:Can be used with dehumidifiers for direct processing.

2:Auto loader,hopper receiver,magnetic base,suction box are optional for material conveying.

3:External pipeline is optional with the stainless steel configuration.



Working principle:

Once material filling starts, heat blower starts up and material heating begins, control cabinet would stop sending signals to auto loader when material filling amount is higher than material level switch.Then material heating lasts for a while,when temperature sensing  needle detects the value of reaching the set crystallized temperature,material would be conveyed out via feeding device,meanwhile, as material level in hopper lowers gradually, filling device starts to supply the un-crystallized material accordingly to realize the continuous crystallization process.When temperature sending needle detects the temperature value of stopping material conveying, feeding device halts.If temperature rises again to reach the set crystallized temperature,feeding device will be activated to work so that the continuous crystallization process can be realized through this kind of circle.
