1.Feature and Description

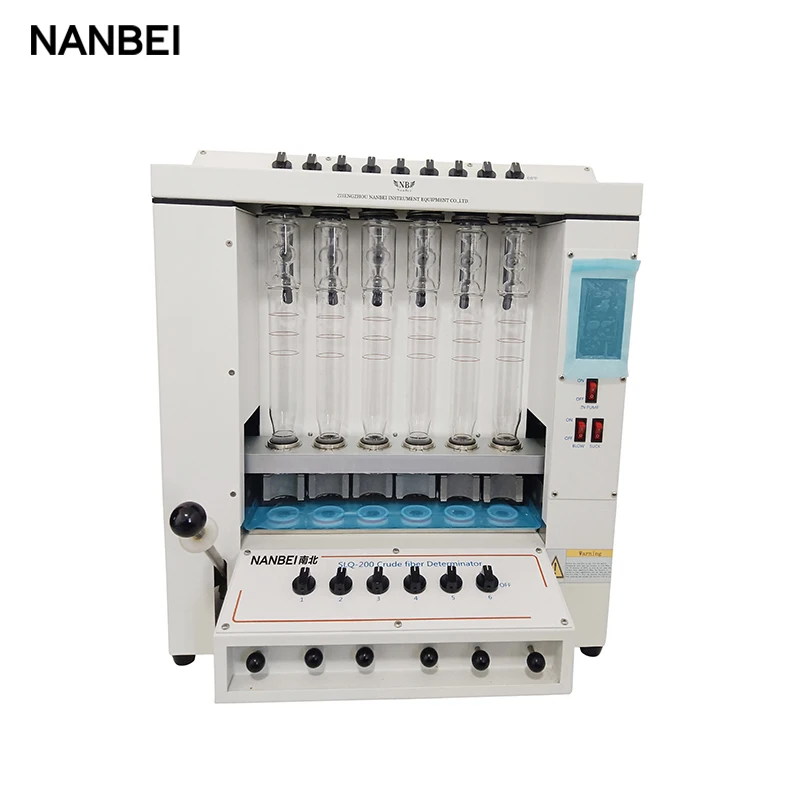

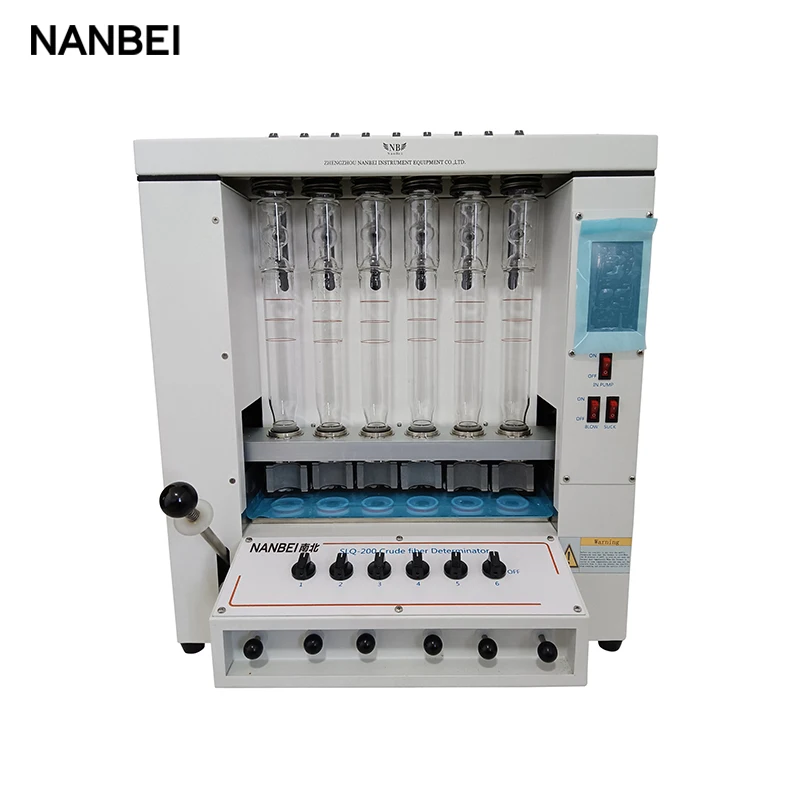

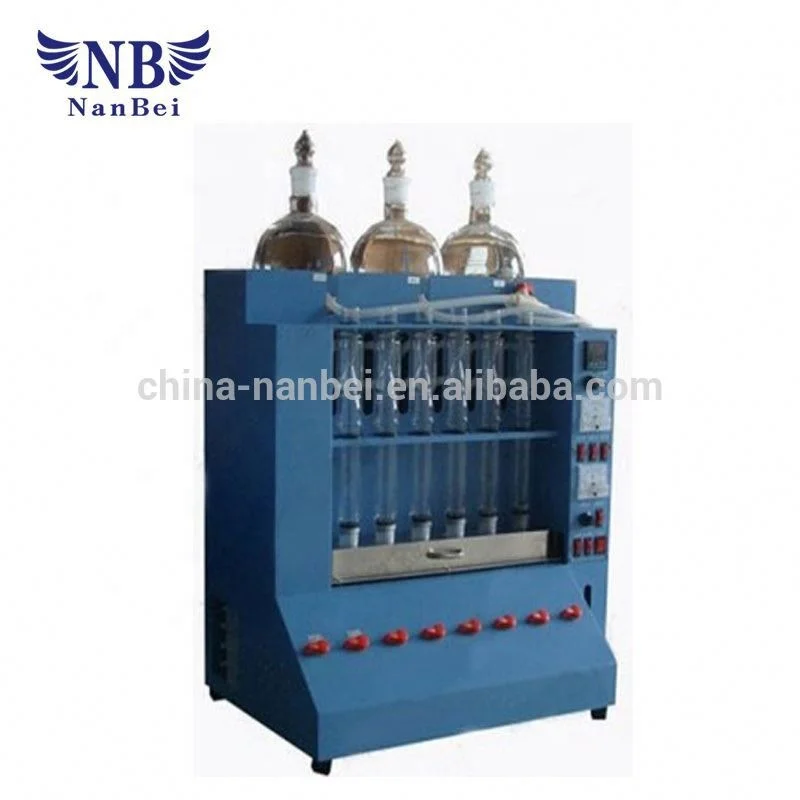

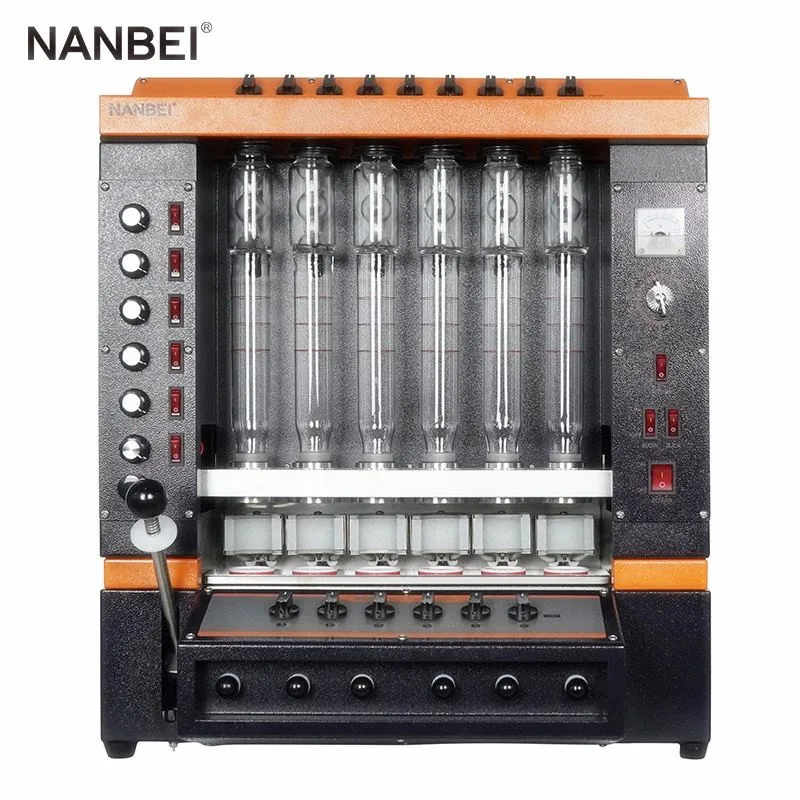

SLQ-200 crude fiber analyzer is based on the principle of acid-alkali washing method, and integrates acid-alkali treatment and washing, which uses fully enclosed electric heating, liquid adding, digestion, suction filtration, and washing methods to determine the crude fiber content. The sample does not need to be transferred during operation, and the crude fiber in the substance can be decomposed. The heating output power can be adjusted by the program according to the actual need temperature, so as to achieve the goal of accuracy and speed. SLQ-200 crude fiber analyzer is suitable for the determination of crude fiber, lignin, cellulose and hemicellulose in grain, feed, food and other agricultural and sideline products.


Product name | Crude fiber analyzer |
Measuring range | 1~100% |
Sample quantity | Max 6pcs at a time |
Sampe weighing | 0.5~3g |
Measuring accuracy | Repeatability≤0.4% |
Measuring time | ≤90min |
Heating method | Semicircle type silicon carbide heating, individual thermostat |
Sealing type | Up and down the isolation of tetrafluoroethylene |
Liquid adding type | Injection pressure |
Reagent heating type | Adjustable automatic thermostat, over temperature protection |
Corrosion resistance | Acid and acetone, etc. |
Dispaly | 4.3” touch screen |
Temperature controlling method | Auto/Manual,heating power can be adjusted free |
Temperature controlling range | Ambient temperature~400℃ |
Power supply | 220(V)±10%,50~60HZ |
Power | 2700W |
Dimension | 560×340×640(mm) |
Weight | 40kg |
![]() | ![]() |
![]() | ![]() |


Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1. Warranty : 1 year
2. We supply free part for quality problem in warranty
3. Long life technical support and service
