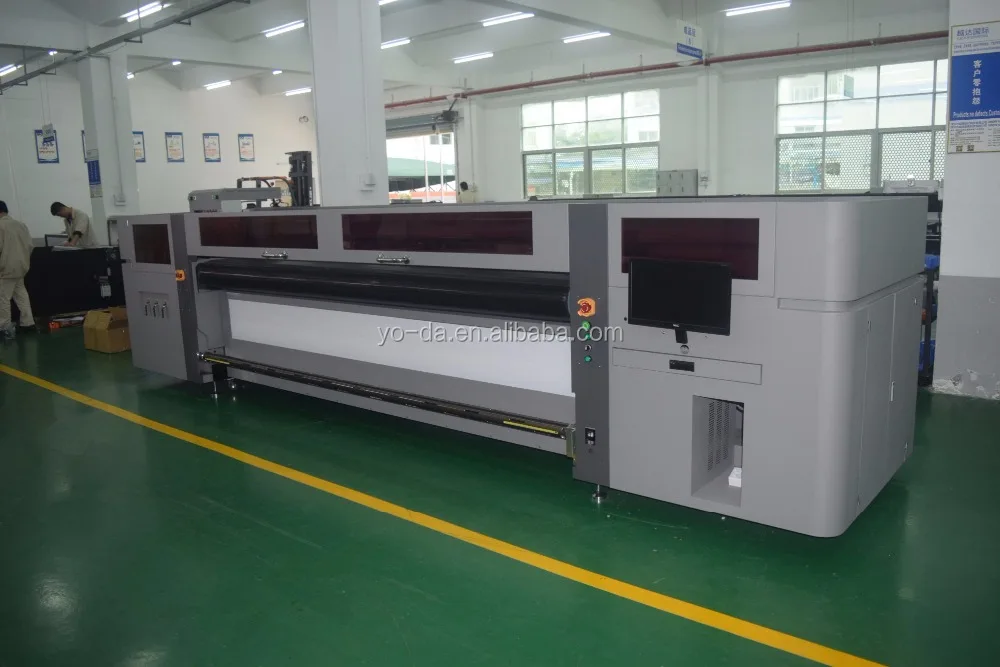

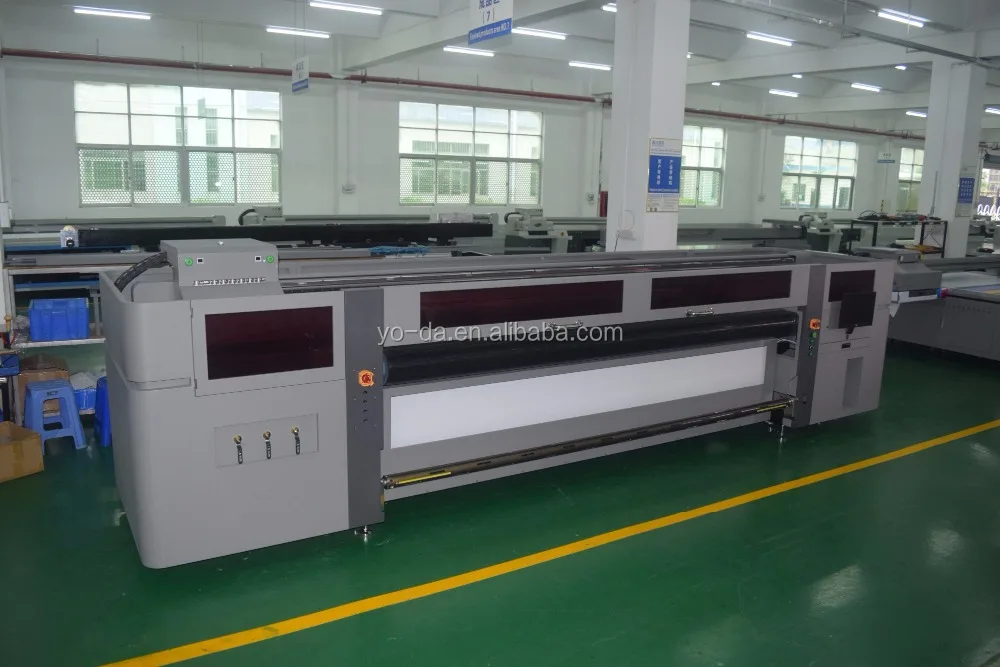

YOTTA’s YD-H3200KJ hybrid UV printer is our latest dual purpose production. Equipped with 3-8 industrial Kyocera KJ4A print heads, the number of which can be depended on your demands, the YD-H3200KJ can print rigid and flexible media with the fast speed of maximum 100m²/h (4 Pass). With print resolution of 635×2400dpi, large print width of 3200mm, this hybrid UV LED printer with ultra high speed is specially designed for advertising and high-end custom printing.
SPECIFICATIONS FOR YD-F3200KJ HYBRID PRINTER | ||||||
Print head | Print head | Kyocera | KJ4A | |||
Number of heads | 2-8 | pcs | ||||
Print resolution | 600*2400 | dpi | ||||
Main performance | Print width | 3200 | mm | |||
Print color | CMYKWV,Lc,Lm | Optional | ||||
Materials thickness | 100 | mm | ||||
Operation system | RIP software | Photoprint | ||||
Input format | PDF,JPEG,TIFF,EPS... | |||||
Power requirement | 220v/AC | |||||
size | Printer size | 5800*1550*1500 | mm | |||
Package size | 6100*1790*1660 | mm | ||||




1) Industrial Kyocera print heads
2) Dual function machine.
3) Double negative pressure system
4) High Precise metal encoder grating
5) Constant tension control.
6) New media positioning device.
7) Anti-collision device.
8) UV LED curing system

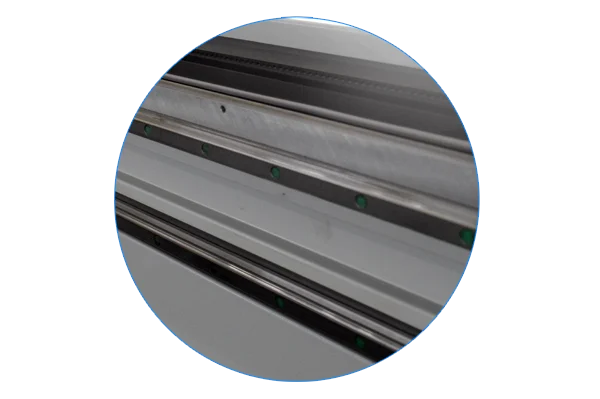

Due to the fast speed of Ricoh head industrial printer, imported double high quality and high precision HIWIN guide rail to make carriage working more stable.

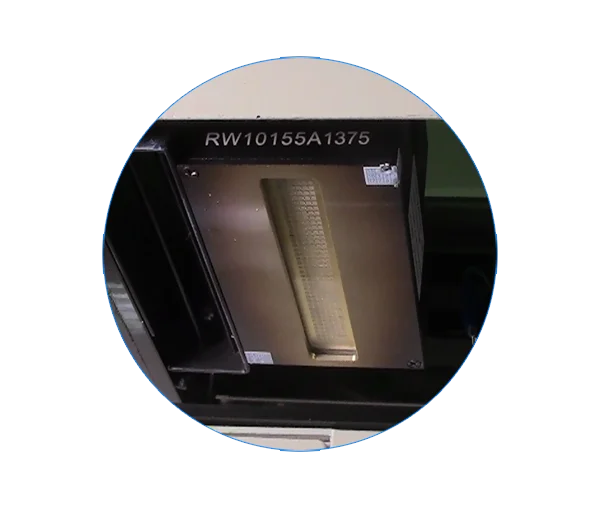

All our printer uses imported UV LED lamp, it is more eco-friendly and lower power consumption than mercury lamp.; the life time is more than 30,000-50,000 hours, but the life time of mercury lamp is 5000.What’s more, the light of UV LED lamp is very soft and it is no harmful to human.

High performance, lower noise, precise positing and durable; significantly improve ink landing precision. Reduce ribbon generation.
Packaging | ||
Size | 5800*1550*1500mm | |
Weight | 2050kg | |
Packaging Details | Wooden case: 6100*1790*1660 mm | |
