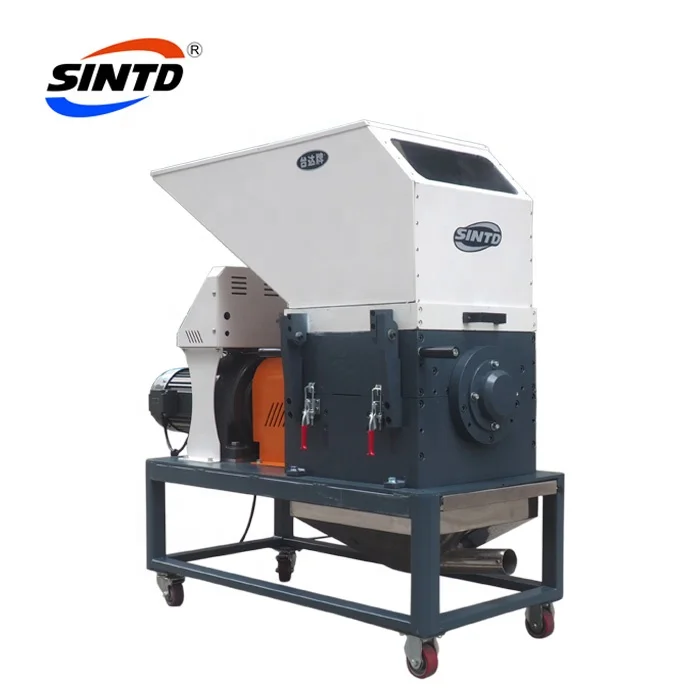

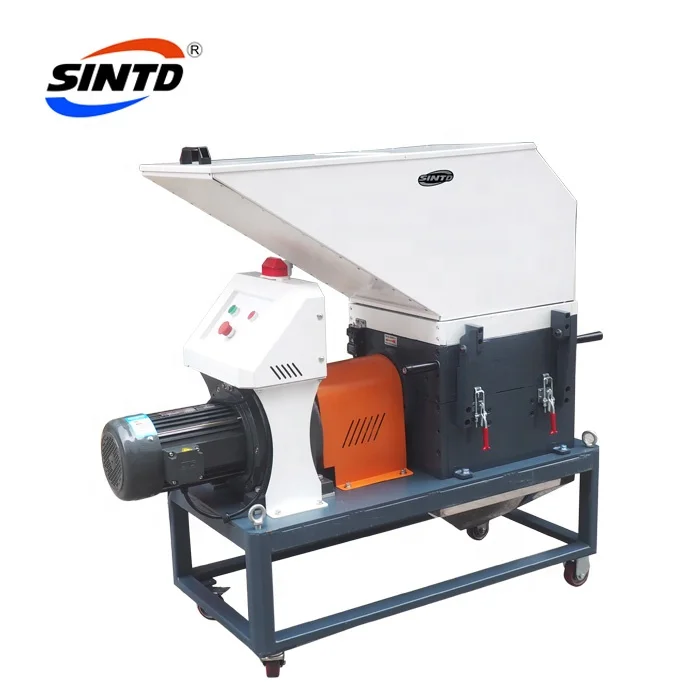

Plastic material Stainless Steel Screenless Recycled Granulator Machine

Product Overview

Description

Stainless Steel Screenless Granulator



Features:

1:Japan-made gear motor features steady performance, long service life and high torque.

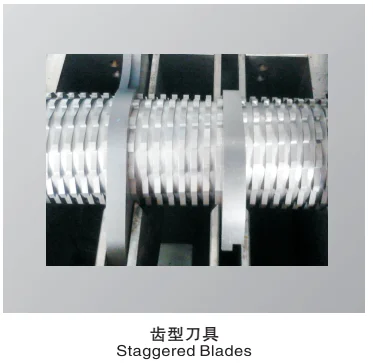

2:Teeth cutters and cutting blades are integrally fitted in one cutting chamber.

3:"Euro" style appearance, compact in size and easy to access for cleaning and maintenance.

4:Transparent PC feeding hopper.

5:Screenless design,well-proportioned size of regrinds and least amount of dusts,Regrinds could be used with virgin materials.



TG-4050

Motor Power(KW)	0.75
Motor Speed (rpm)	24.2
Material of Teeth Cutters	SKD11
Number of Teeth Cutters	2
Number of Claw	1
Cutting Chamber (mm)	400*450
Max. Throughout Capacity (kg/hr)	25
Noise Level (Db (A)	73
30s instant recycling	Optional
Regrind Conveyor	Optional
Dust Separator	Optional
Manual Storage Bin	Optional



Note:

1:"O" stands for oftions;

2:For stainless steel made feed port and manual storage bin,plus"R" at model behind;

3:Max capacity of the machine is subject to the size and composition of the material;

4:Noise level will vary with different matetials'

5:SKD 11 is material code number of Japaness JIS standard.

6:Teeth cutter blades with 5mm width as standard,6mm as optional;

7:In order to avoid plastic blades,all of the materials should be carried out at room temperature crushed;

8:Power supply:3phase 370VAC 50Hz.
