Product Overview
Description
Computerized high-end shuttle multi-needle quilting machine
YXS-128-2C
Product Description
It is widely used for quilting clothes,handbags,shoes,quilts,comforter and cushion etc.
Specification:
Product Name | High Speed Computerized Shuttle Lock Stitch Multi-needle Quilting Machine |
Model | YXS-128-2C |
Size(L*W*H) | 6100*1200*1700mm |
Weight | 4800kg |
Quilting width | 3200mm |
Needle bar space | 2C 76.2(3") |
Quilting thickness | 50mm |
Rolling speed | 500-800r/min |
Output | 0-195m/hour |
Needle type | #16,#19 |
X-axis movement | 254mm |
Needle space | 25.4mm |
Stitch | 2-6mm |
Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
Power | 4KW |
Special feature:
1.Adopt the advanced computer and mechanistic technology.
2.The needle bar running with neddle bar frame,no need to add extra lube and avoid the materials be
soiled by lube.
3.Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4.Sadding rack and roller are drivern by servo equipment.
5.Principal axis uses the frequency conversion device.
6.Adjust speed by computer and the speed can reach 800r/min,the stitch can be set between
2mm-6mm.
7.360° randon quilting and limitless multi-span and independent quilting.
8.Compensation function,an effective solution for looping pattern with thick material.
9.Advanced and practical testing upper thread broken techniques,the machine is auto-stop when
thread is broken.
10.The infrared system ,make your operate more safe.
11.Pattern editing is easy to learn.
12.Ringing notice when start machine.

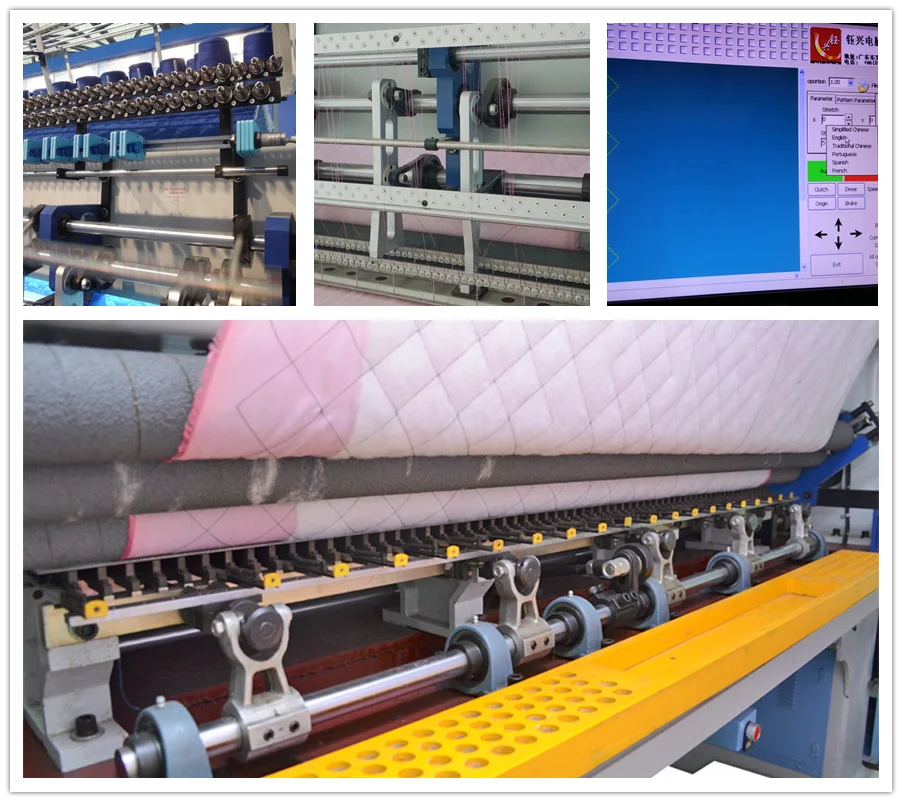

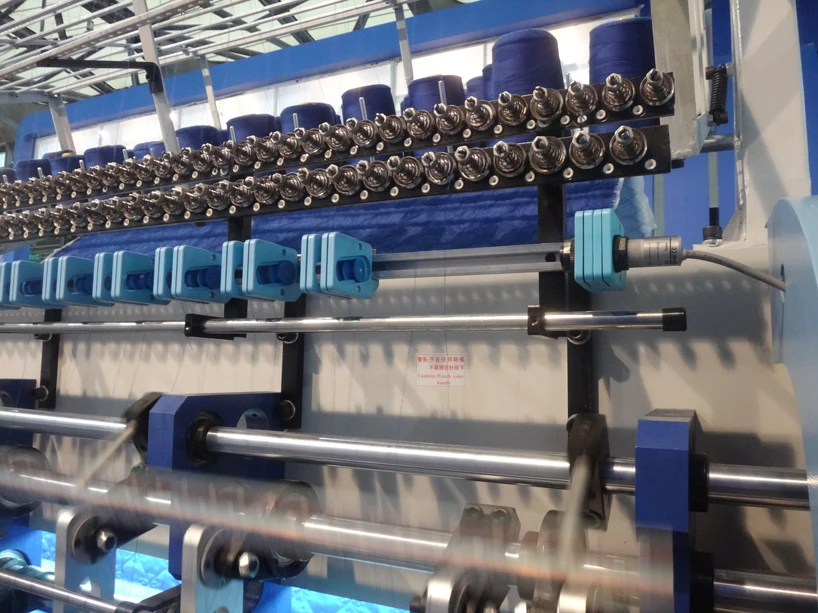

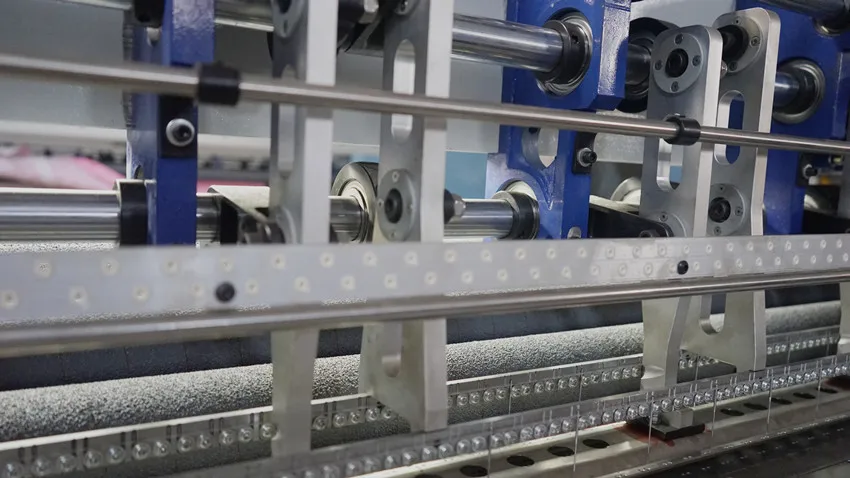

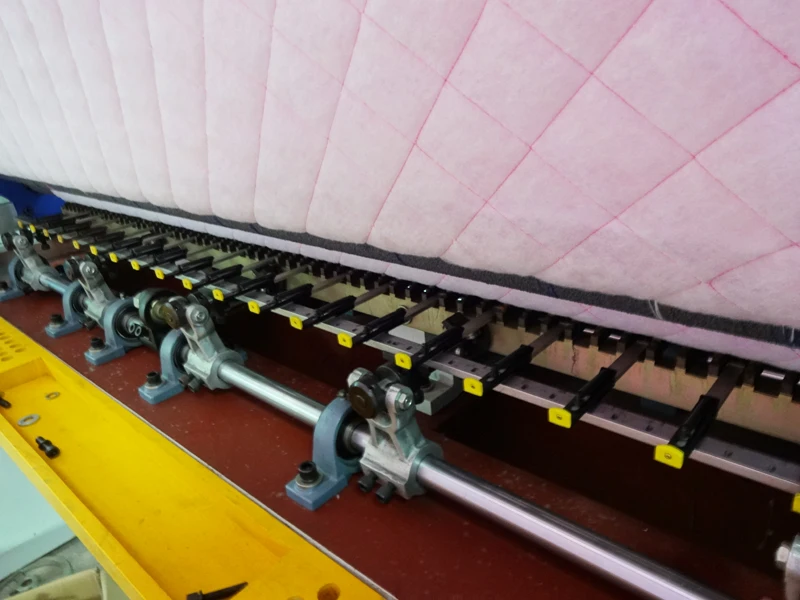

Important machine parts:
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
Certificates:
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.

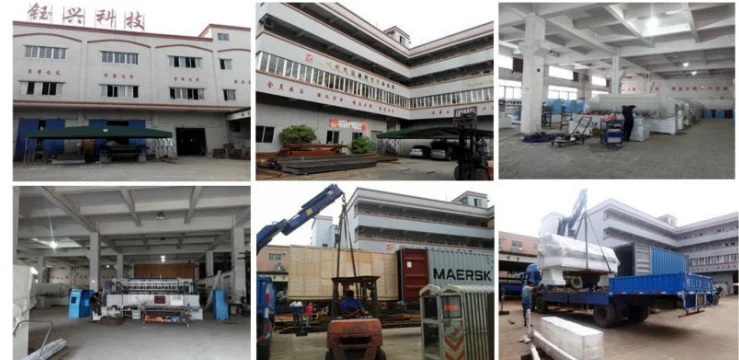

Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding
machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and
Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City
Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive
market,we make progress and get innovation constantly.We firmly believe high quality and good
service are the best support for users' trust.
Welcome to visit our factory!!^_^
