Product Overview

Description



Product Description

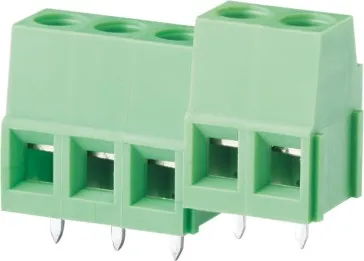

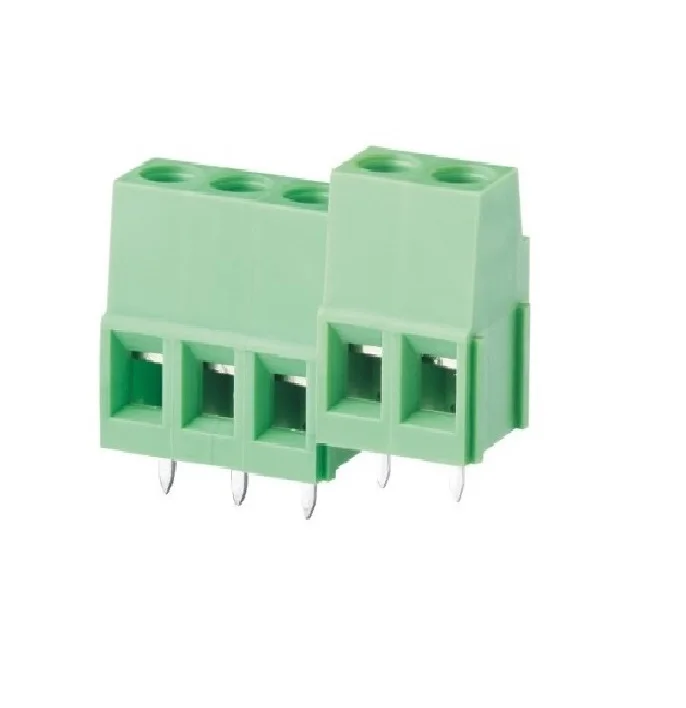

WANJIE TERMINAL BLOCK


Pitch: 5.0mm 5.08mm


Color: Green


Certificate:UL CE


Rated voltage: 300V


Rated Current: 15A


Housing: PA66 94V-0

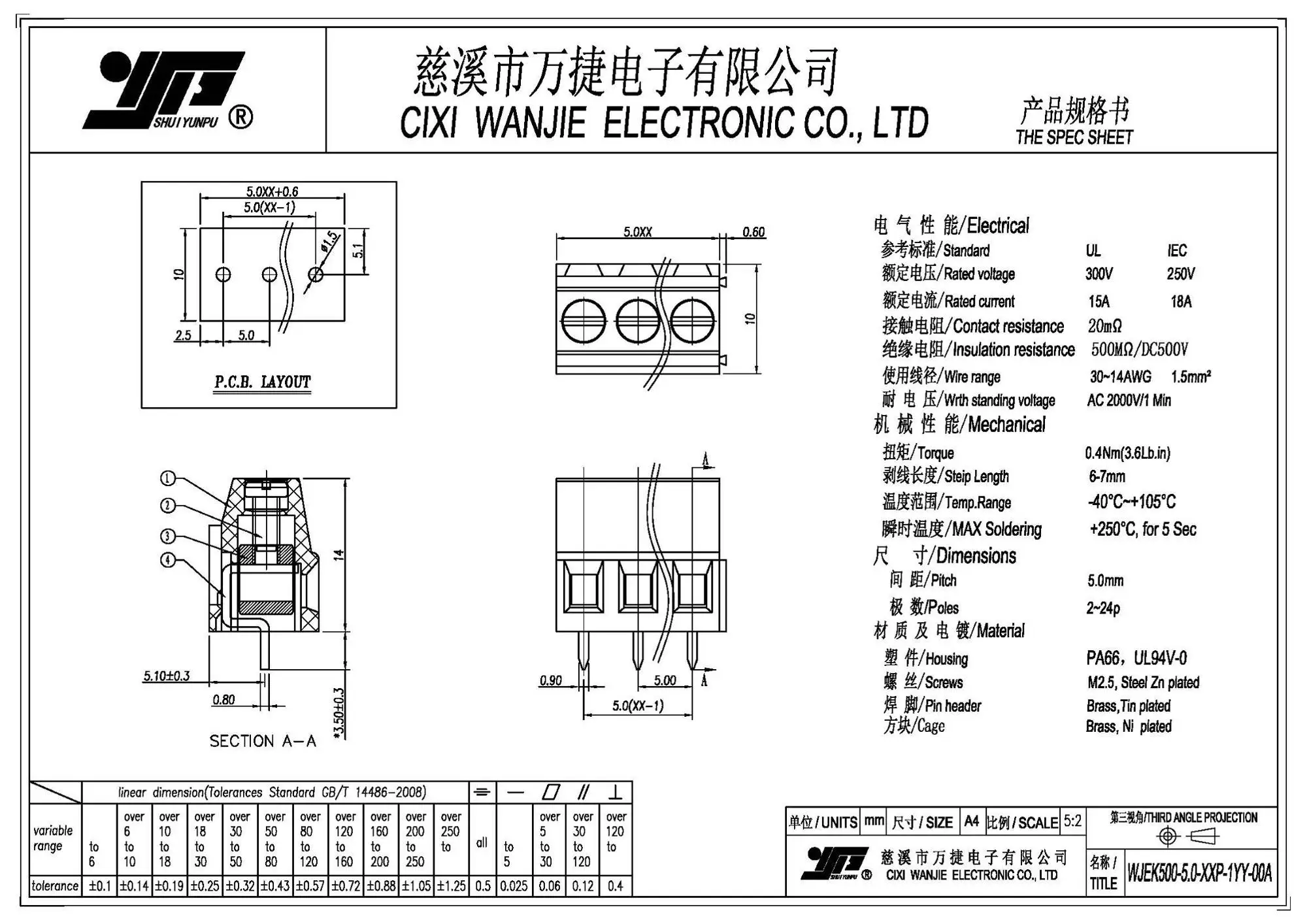

WJEK500   WJEK508








UL/CUL
























Use Group








BCD

Rate Voltage [V]








300-300

Rated Current [A]








15-10

Wire Range [AWG]






30~14

Dielectric Voltage-Withstand






1.6KV


IEC




























Overvoltage Category








IIIIIIII

Contamination Class








322

Rated Voltage [V]








250400630

Rated Current [A]








242424

Impulse withstand voltage [KV]








444

Conductor cross section[solid/flexible] [mm²]






0.5~2.5


Material




















Insulation Material






PA66

Flame relardant rating






UL94V-0

Conductor Material






Copper alloy

Plating of conductor surface






Sn plated


Other Data
































Pitch/Poles [mm]/[P]






5.0,5.08/2~24

Stripping Length [mm]






6~7

Screw/Torque(Max)[N.m]






M2.5/0.4

Operating temperature [℃]






-40~+105

Soldering temperature






260℃/5S

Pin dimensions [mm]






0.8*0.9

PCB Hole Diameter [mm]






Ø1.5
