Product Overview
Description
Product Overview
Linkwell electric panel fan and filter
Ventilation filter and fan filter

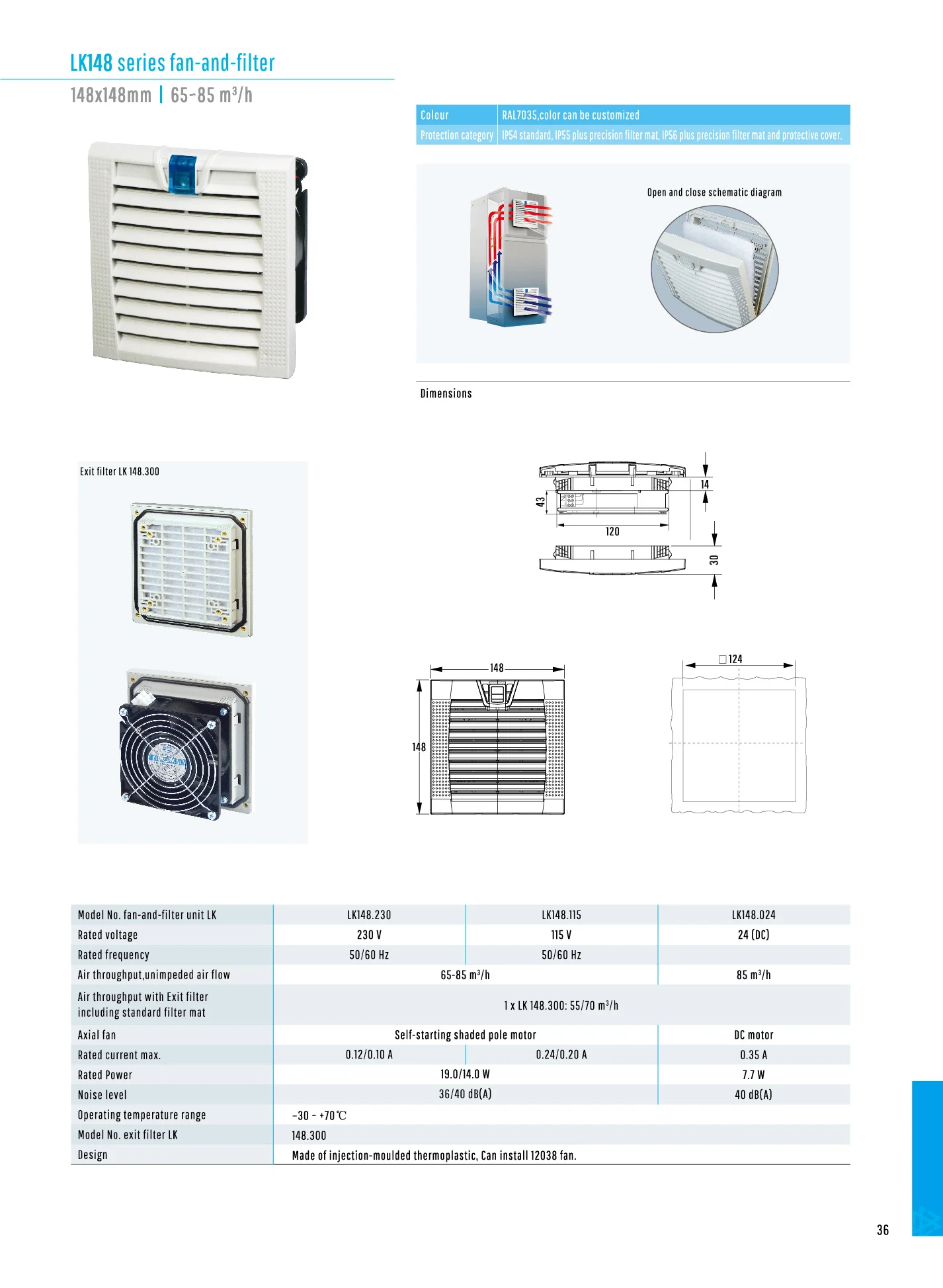

LK148 series fans and filters
IP54 filter and fan
L1K48
IP54 IP55 Filter with fan AC/DC
LK148.230/115V AC
LK148.024 DC
IP54 Filter only
LK148.300
Product Features
Brand Name | LINKWELL | ||||
Model No.: | LK148 | ||||
Ventilation shutter: | New ABS | ||||
Voltage range | 230V,115V AC, 24V DC available | ||||
Available color | RAL7035 or RAL7032 | ||||
Protection degree: | IP54 IP55 | ||||
Application for: | Ventilation of control cabinets, enclosures and housings | ||||
Fan motor: | According to ROHS | ||||
With Exit filter: | LK148.300 | ||||
Certificate: | CE ROHS UL | ||||
Producct Advantage
EFFICIENT
Wide range fan with super air flow Ultra-thin ventilation shutter grille design create 50% increase on the air circulation
ENVIRONMENTAL
Made of Flame-retardant ABS with low smoke flammability rating UL94 V-0
PRACTICAL
Improvement of fan installation distance to filter and reasonable design of air room are proved to be better aerodynamics and less air pressure loss and eliminate heat accumulation
CARE-FREE
High protection class IP54 with micro fiber filter pad fully protected the cabinet enclosures against mechanical damage, dust and granules, moisture, dampness etc.
FAST INSTALLATION
Tool-less insert and screw installation. Safe and quick replacement of filter pad even during operation. Easy connection of power supply
SEAMLESS
Heat-resistant seal loop polyurethane gasket assures long term seal
IP54 PROTECTION

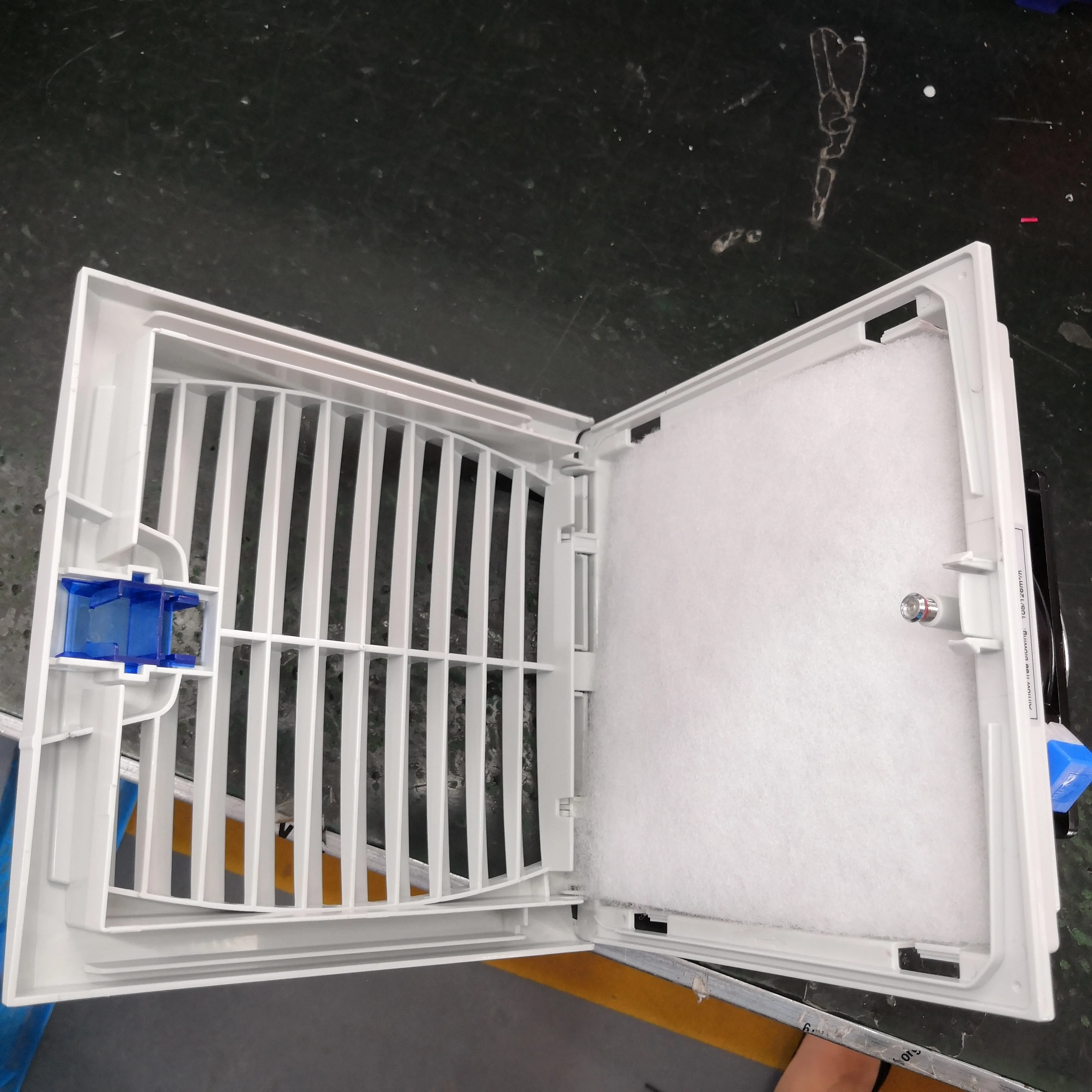

Ventilation shutter rain proof capability and non-woven fiber filter pad not only prevent mechanical damage but also fully protected cabinet enclosure against dust and granules (which is bigger than 10 microns), moisture, dampness etc.
AIR DIRECTION CHANGEABLE A/P | clients can choose blow or suck air direction through reversing fans installation simply | ||||
SAFE | Excellent Impedance protected Axial Fan motor according to ROHS with insulation B class. | ||||
Product Application
It is generally used for the Ventilation of control cabinets, enclosures and housings, providing complete electronic protection (fully protected against reverse polarity, short circuit,over-current, over-voltage and reverse), forming safe and clean condition for the switch gear board and normal operation of automation industry.

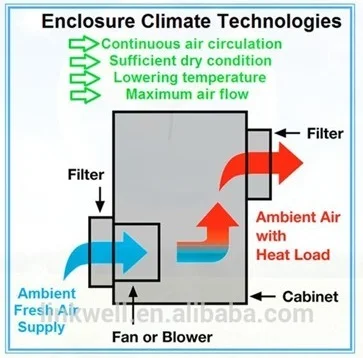

The ultra-thin filter not only serve as an air inlet for clean air in low temperature, but also as an air outlet for heat load.
About US
Linkwell Electric(Shanghai) Co., Ltd. Located in Shanghai China, is mainly dealing with medium and low voltage electrical products for switch gear and automation industry, such as panel filter and fan, panel heaters, thermostat and hygrostat for panels, wiring accessories etc. Through decades’ effort and development, Linkwell has become a group company with several factories by entirely holding or partially holding, not only self production but also few trading to provide one stop solution for panel builders.
Main Clients
Certificates
Fair Show
FAQ
4. FAQ
Q1 : Are you trading company or manufacturer ?
A1: We are factory specializing in Thermal and Terminal solution for 8 years.
Q2: Where is the location for Linkwell Electric?
A2: Our Head company in Shanghai, Factory in Kunshan, closed to shanghai.
Q3: Could we ask for samples and catalogs?
A3: Yes, Our E-catalogs may be downloaded from www.linkwell.org
And we could provide samples to your test.
Q4: Can you make customized products or packing?
A4: Of course, we have a technical team with rich experience in OEM producing. We can also make customized model according to
provided samples. Package can be customized as demanded.
Q5: How long is the production time?
A5: Usually it takes about 2-3 weeks upon receipt of order advance payment.
Q6: How about the after-sale service? What's the warranty terms?
A6: Our sales people and engineers will always ask you to solve problems. Quality warranty is 1 year
