Milling Digital Readout 3 Axis Cnc Machinery Machine Controller with ATC 8537101101 64MB Memory 400*245*120mm CN;GUA Hotels SZGH
- Category: CNC Controller >>>
- Supplier: Shenzhen Guanhong Automation Co. Ltd.
Share on (60724974537):
Product Overview
Description

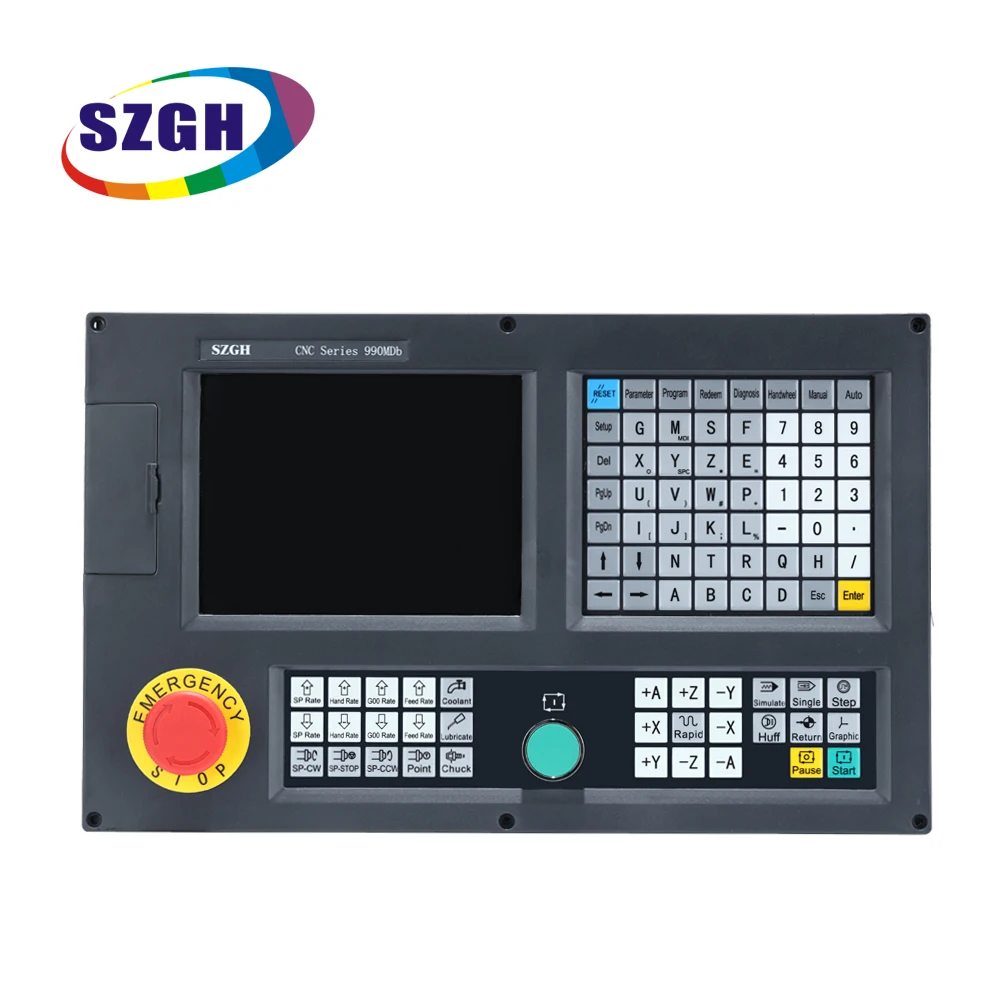

mini 3 axis CNC milling machine control system
Product Description
SZGH-CNC990MDb-3 is three axis milling CNC system with 8 inch LCD, high performance and specialized in application of Drilling &Milling machine, adopt standard international G code edit program, support macro and automation operation function. Usually applied in big milling equipment.
Feature:
1) 8 Inch color LCD display (800X600)
2) Elastic trapping
3) ATC function and PLC function
4) Network transmission
5) ARM 9 CPU
6) 3D simulation preview
7) Support 4 axis servo/stepper motor control
8) Position feedback function
10) Display in Chinese, English etc.,
11) Maximum any 4 axis linear continuous interpolation
12) It is mircosoft-program.it is similar to PLC. Can do a lot of logic control and axes control .maximum 6axies controls
13) Support feeding axis function
14) Rapid traverse
15) Be able to adjustment from F0-150%,total 15 levels, real time, rapid traverse and feeding are use the same switch
16) Interpolation mode: linear, arc and spiral interpolation and rigid tapping
17) Use linear type acceleration and deceleration by symmetrical
18) Spindle override: 0-150% total 15 levels, real-time adjustment
19) Support tool function : such as:
Tool length compensation
Tool radius compensation
Tool wearing compensation
Tool life management
20) Precision backlash compensation and Pitch error compensation in memory type
21) RS232 and USB communication function:
RS232: Files of part program and parameter, etc can be transmitted in two-way, DNC real-time processing, support serial ports of system software upgrade.
USB: File operation, directly processing files, system software upgrade in flash disc.
22) Support Safety function, as following:
Emergency stop
Hardware travel limit
Software travel limit
Data restoring and recovering

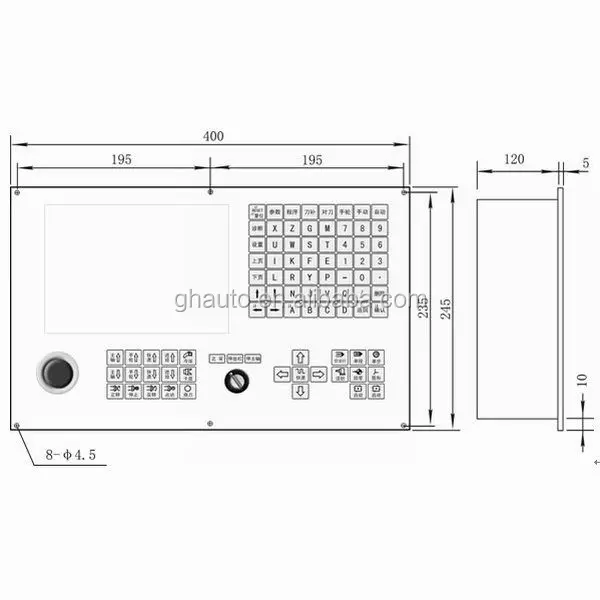

Dimension

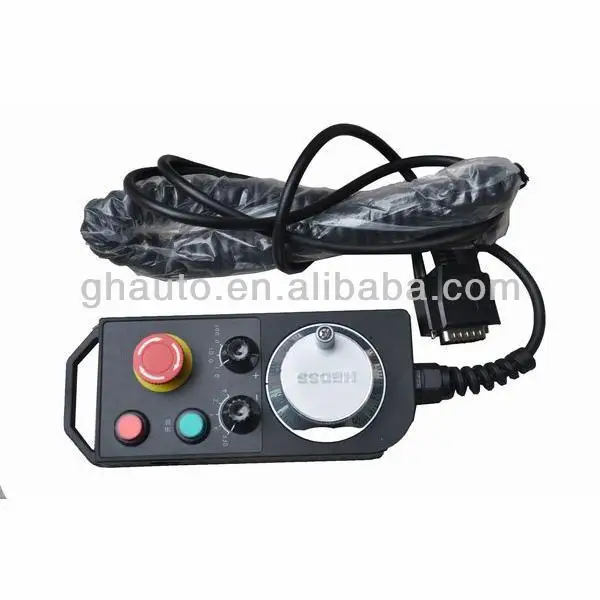

Optional Spare Parts:
(Hand-held box / MPG)

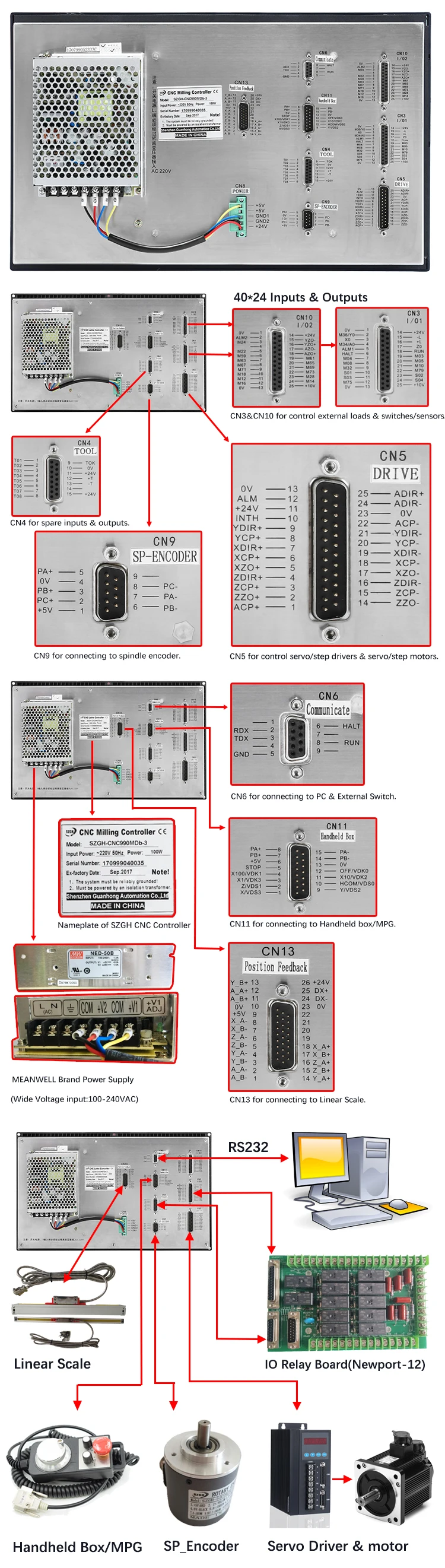

Product Picture
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
Our Services
• Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
• Lowest package prices -Always offer lower price than other companies.
• Professional technical engineer team- possible fastest response and support to client’ application demand.
• Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.
• Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
• Free payment mode by T/T, L/C, western union and Paypal can be available.
We can provide total control system!
