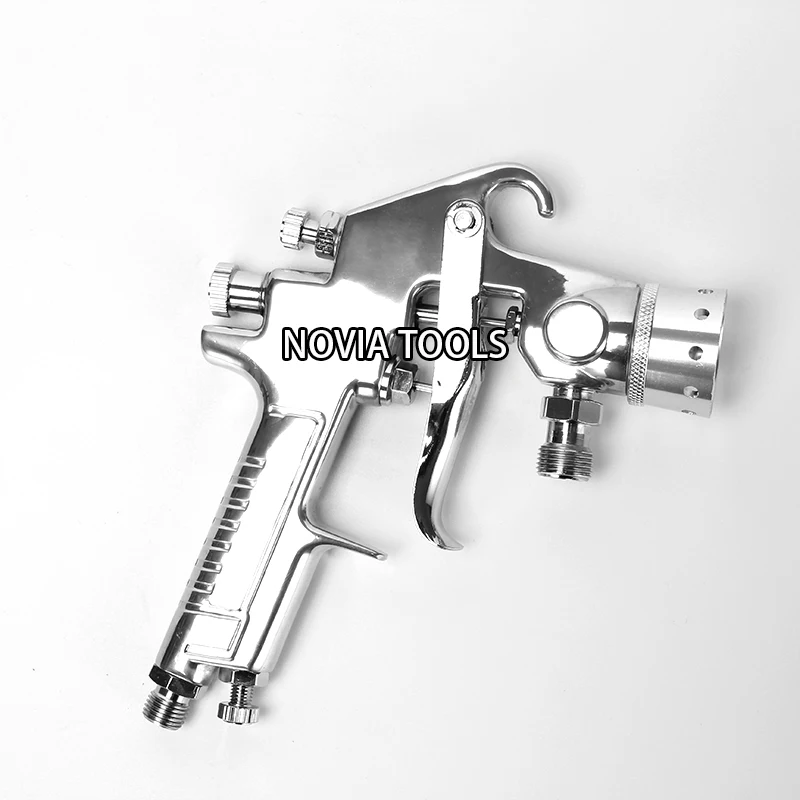

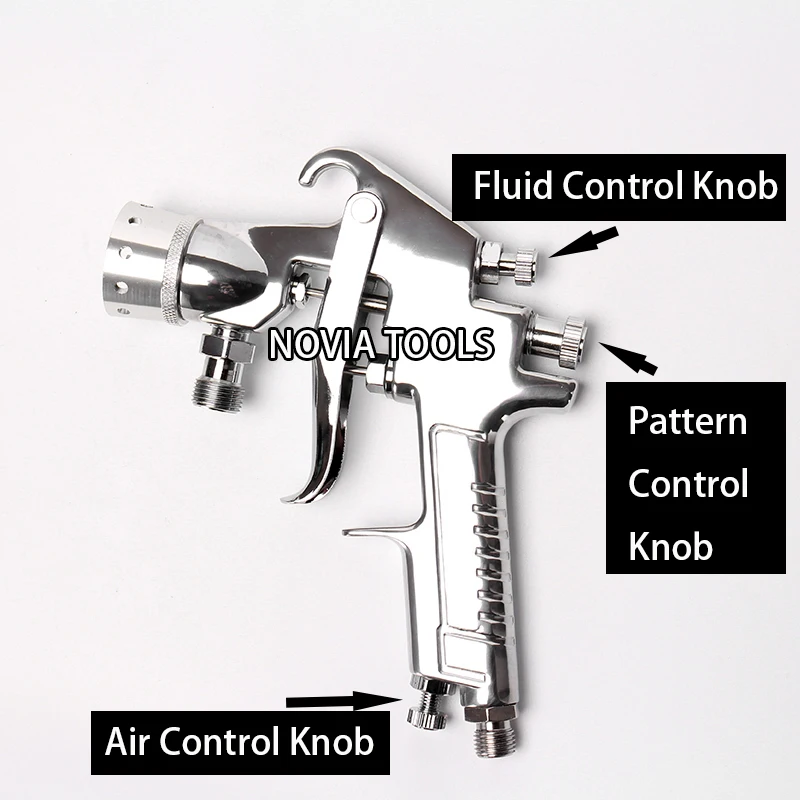

Water-in-Water Multi-Colour marble effect air spray gun
Type of pressure
Preesure feed
Fluid Nozzle orifice
2.0,2.5,3.0,3.5,4.0mm
Operating pressure
3.5 Bar 50 PSI
Atomizing air pressure
1.5 Bar
Air consumption
325 L/Min

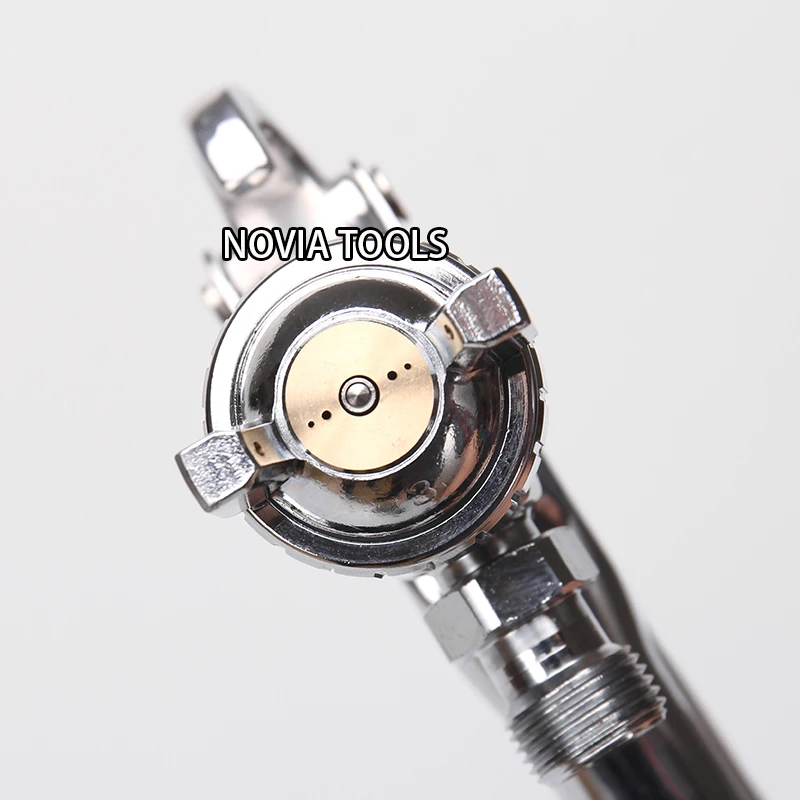

Applied air cap

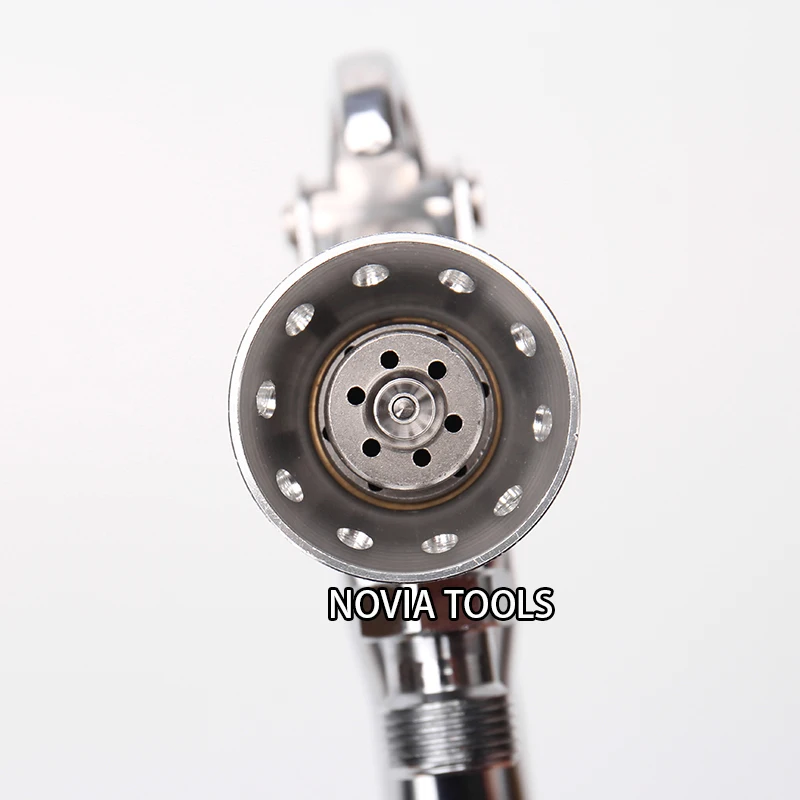

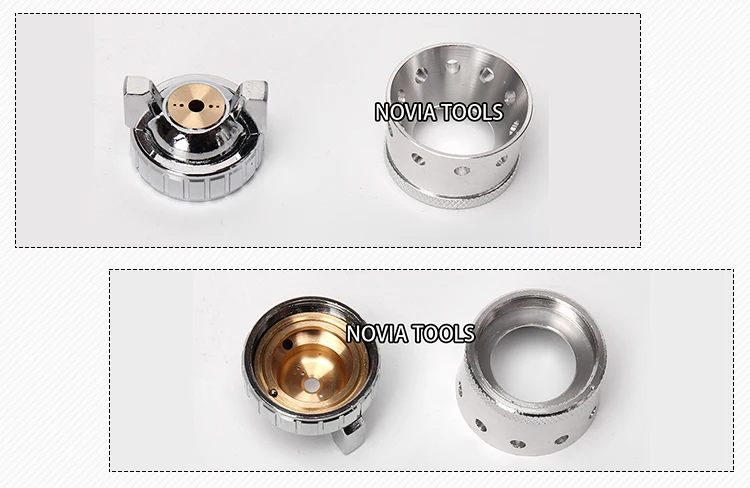

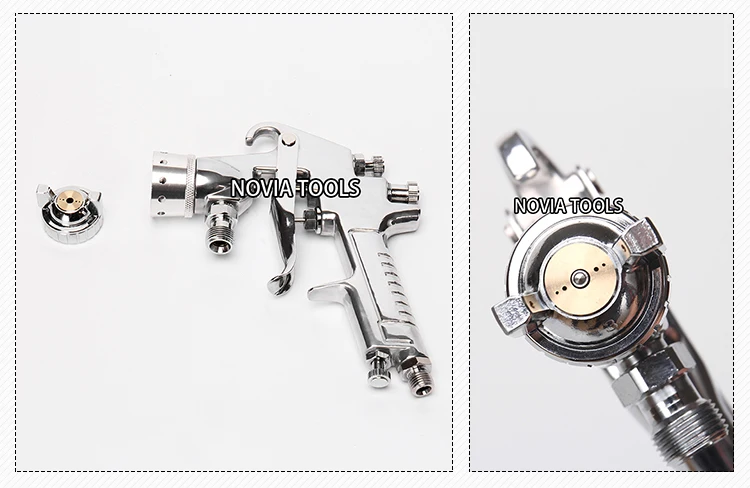

6 holes air cap,normal air cap
Product Application
This hign pressure heavy duty spray gun is designed for medium and high viscosity materials, such as automotive lacquer polyurethanes, catalyzed lacquers, glues, enamels,, etc
Water-in-water spraying
Extended from the previous oil-in-water,water-in-oil spraying,
In the same system of two or more aqueous coatings coexist together,but imcompatible due to
the principle of the different surface tension caused by the presence of protective gel.
Multi-Color pattern system using various lance ions and various organic chemical cross-linking
in the polymer additives to form a gel, the gel is an elastomer which is soft and hard particles
adjustable, suitable for all patterns.
Advantage of water-in-water spraying
1.decorative effect and simulation of the surface made out of marble can do more than 95%
2.Low cost,a coating made out of the true stone cost only 10% of marble per square
3.enviromentally friendly,waterborne paint is no solvent release,won't pollute the enviroment
4 construction convenient,can be applied in the field.
Comparision of this gun with other guns

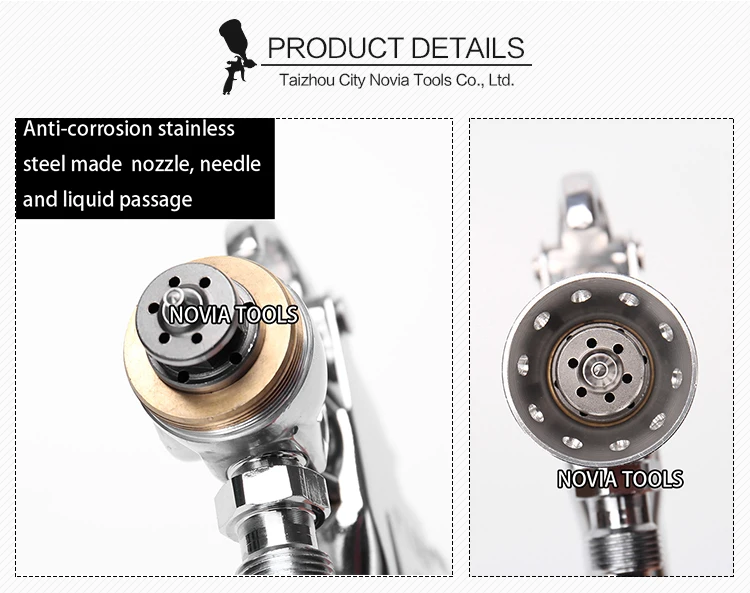

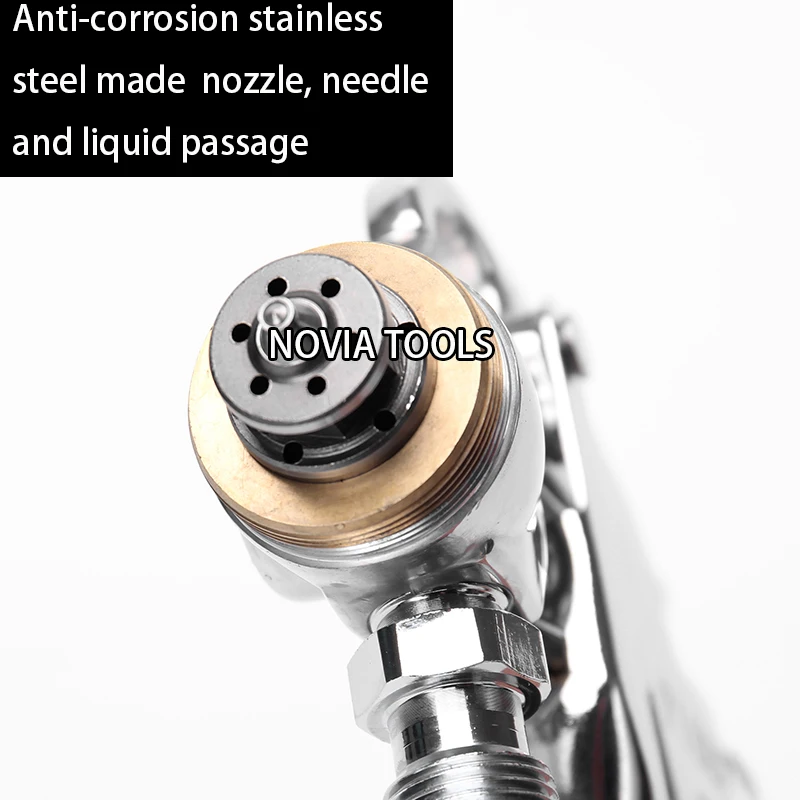

1.The nozzle, needle and liquid passage of it are made of 316 stainless steel ,it is very anti-corrosion, can spray a variety of corrosive paint.
2.Uniform fluid.
3.As manufactured by machine after birthed from the mold, it is of good quality.
4.Due to plating process, it has longer using life without oxidization.
5.CNC finishing atomizing air cap.
Application
All kinds of surface pattern coating,such as latex, metallic paint, fluorocarbon coating,multi-color coating,true
stone coating,art paint,granite paint, Imitation stone paint
