small size and low noise SHR series high speed mixers mixing machine
- Category: >>>
- Supplier: Suzhou Caivi Plastic Machinery Co. Ltd.
Share on (60725005922):
Product Overview
Description

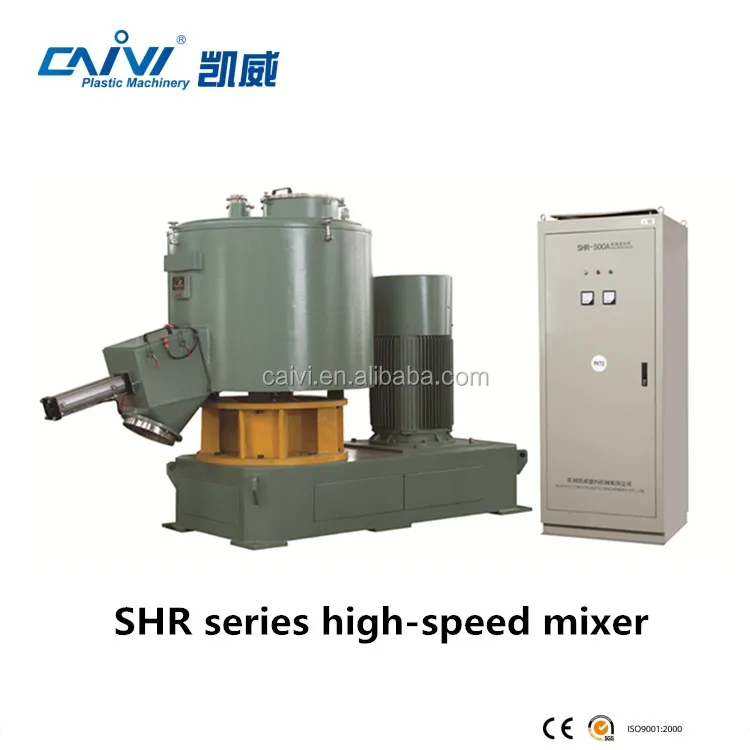

small size and low noise SHR series high-speed mixers mixing machine
Features of product:
SHR series mixers adopt advanced design and can be operated easily,safety and reliably.they have small size,light,high efficiency,low energy consumption and low noise.it is an ideal choice for you to buy such devices.
Hot Mixer Technical parameter:
Model | Capacity(L) | Effective capacity | Motor(kw) | Shaft speed (rpm) | Heating method | Unload method |
SHR-5A | 5 | 3 | 1.1 | 1400 | Self-friction | hand |
SHR-10A | 10 | 7 | 3 | 2000 | ||
SHR-50A | 50 | 35 | 7/11 | 750/1500 | electric | pneumatic |
SHR-100A | 100 | 75 | 14/22 | 650/1300 | ||
SH-200AR | 200 | 150 | 30/42 | 475/950 | ||
SHR-300A | 300 | 225 | 40/55 | 475/950 | ||
SHR-500A | 500 | 375 | 47/67 | 430/860 | ||
SHR800A | 800 | 600 | 83/110 | 370/740 | ||
SHR200C | 200 | 150 | 30/42 | 650/1300 | ||
SHR300C | 300 | 225 | 47/67 | 475/950 | Self-friction | pneumatic |
Cooling Mixer Technical parameter:
Model | Capacity(L) | Effective capacity | Motor(kw) | Shaft speed (rpm) | Cooling method | Unload method |
SHL-200A | 200 | 130 | 7.5 | 200 | water cooling | pneumatic |
SHL-500A | 500 | 330 | 11 | 130 | ||
SHL-800A | 800 | 500 | 15 | 100 | water cooling | pneumatic |
SHL-1000A | 1000 | 650 | 15 | 100 | ||
SHL-1600A | 1600 | 1000 | 30 | 70 |

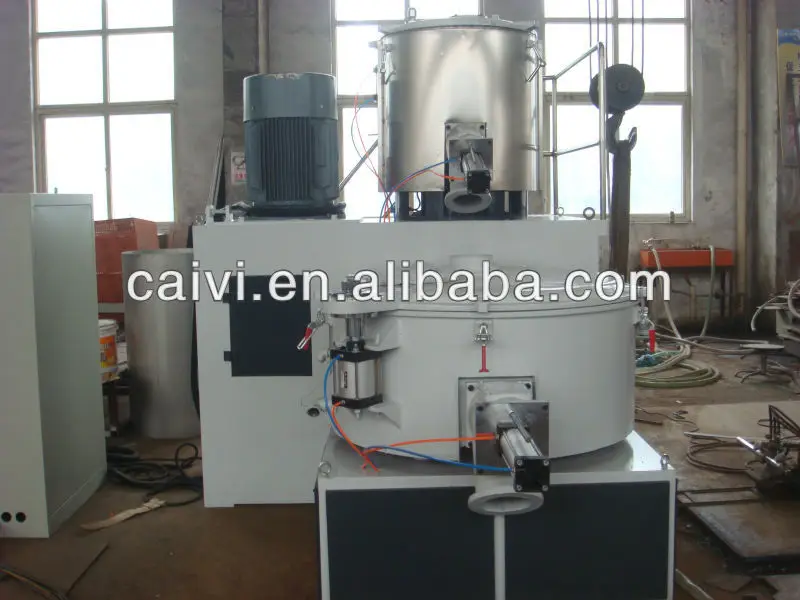

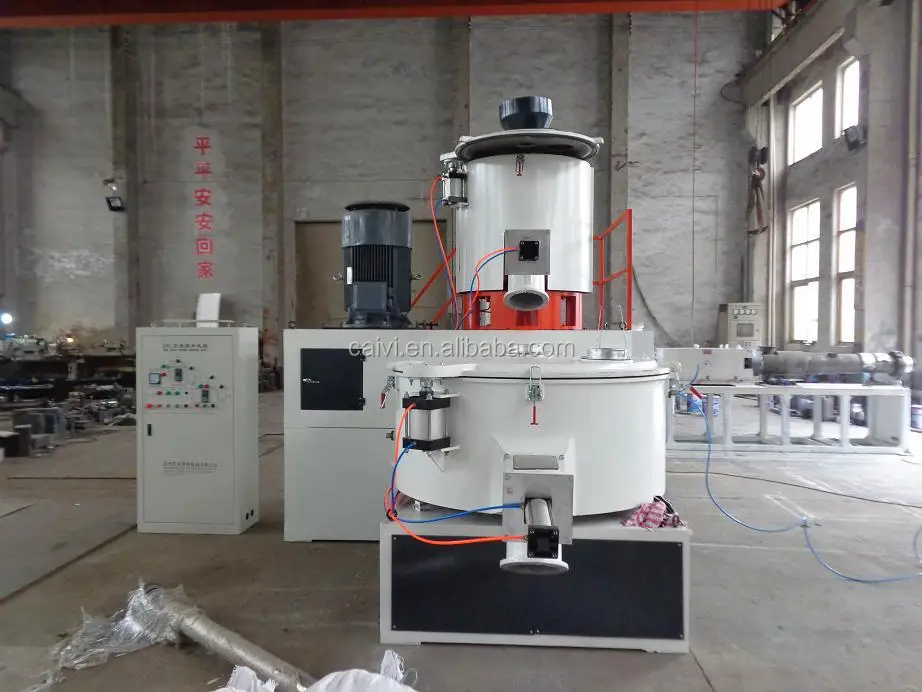

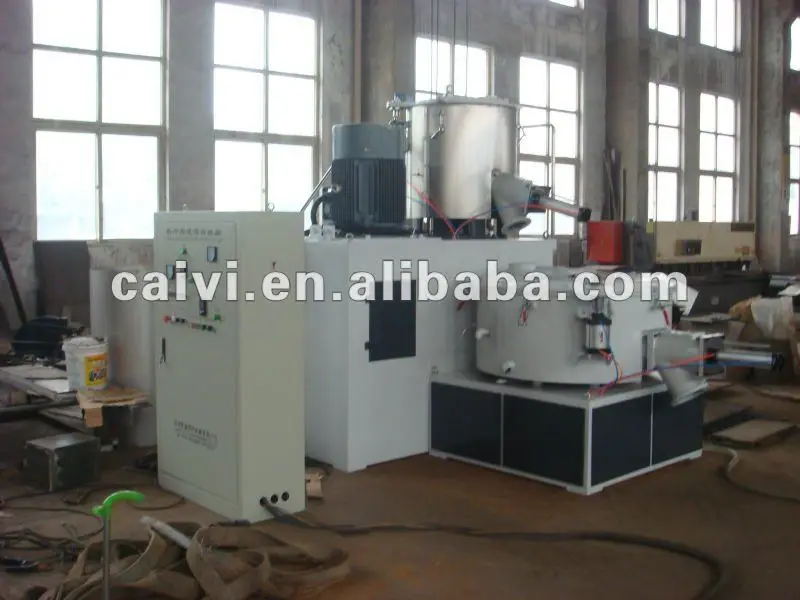

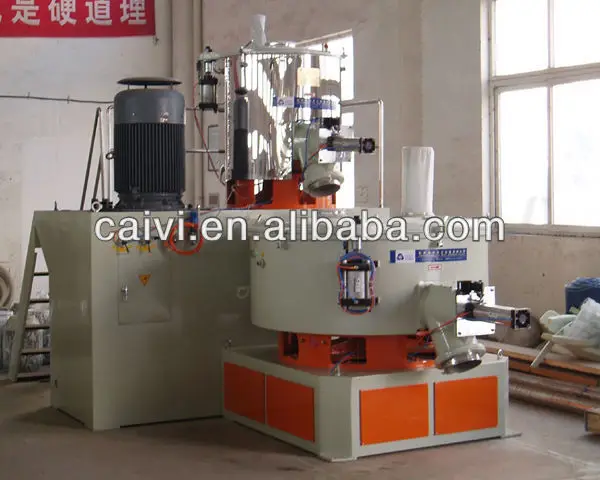

Mixer Unit Technical parameter:
Moel | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
Total capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effcientoolum (L) | 65/130 | 130/320 | 200/400 | 350/640 | 500/1100 |
Motor power KW | 14/22/7.5 | 30/42/11 | 40/50/15 | 47/67/15 | 60/90/18.5 |
Paddle Speed | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 | 370/740/50 |
Water consumption | 3T/H | 4T/H | 4T/H | 5T/H | 6T/H |
Heat.colling way | electric self-friction water cooling | electric self-friction water cooling | electric self-friction water cooling | electric self-friction water cooling | electric water cooling |
Mixing time(min) | 8-10 | ||||
Outline dimensionmm | 2500 ×2000×2200 | 4500 ×2200×2500 | 4500 ×2200×2500 | 4600 ×3000×4000 | 4800 ×3800×6500 |
Weightkg | 3T | 3.5T | 3.5T | 4.5T | 6T |
Product Pictures:
Exhibition Show:
Shipping Show:
For more information, please contact us without any hesitation,
Welcome to our facotry to check your Mixing Machine
