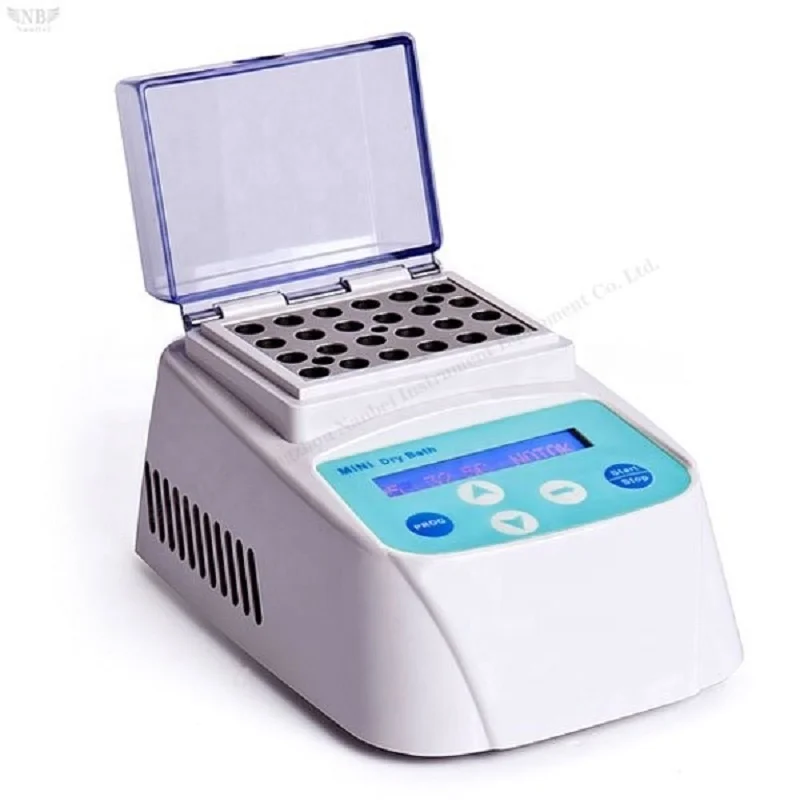

Laboratory automatic digital mini bath incubator for sale

Product Overview

Description

High accuracy digital mini bath incubator for lab using

Product description:
The mini dry bath is a micro-processor controlled heating block with heater (heating types) or semiconductor refrigeration (cooling types) technology. It adapts onboard use, smart, light and convenient for movement, suit for any kind of occasions. The type 100F is with fan for heat dissipation, which makes temperature down much faster than nature cooling.
Product features
1. Unique designed. Smart and light, convenient movement, suit for various occasions.
2. LCD simultaneously display setting and actual time and  temperature. Temperature calibration function.
3. Automatic fault detection function with buzzer alarm.
4. 24V DC input power, built-in over-temperature protection device.
5. Various of blocks for optional choice. Convenient for replacement. Easy cleaning and disinfection.

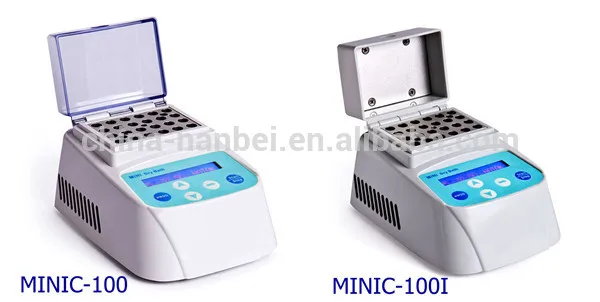

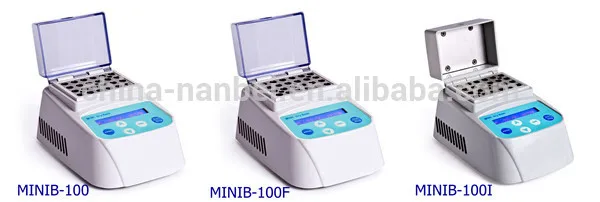

MINI series dry bath incubator:





Technical parameters



Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T.+5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy @100°C	≤±0.5°C
Block Temp Difference @40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp.	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T.-20°C
Net Weight:	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

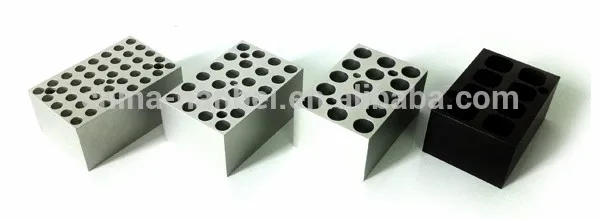

Exchangeable blocks for Mini series



Type	Dimension	Description	Remark
MINI-A	0.2ml tube	40×0.2ml	8x0.2ml strip
MINI-B	0.5ml tube	24×0.5ml
MINI-C	1.5ml tube	15×1.5ml
MINI-D	2.0ml tube	15×2.0ml
MINI-E	cuvette	8~12.5×12.5mm
MINI-F	15ml tube	4x15ml	cover cannot be closed
MINI-G	50ml tube	2x50ml	cover cannot be closed

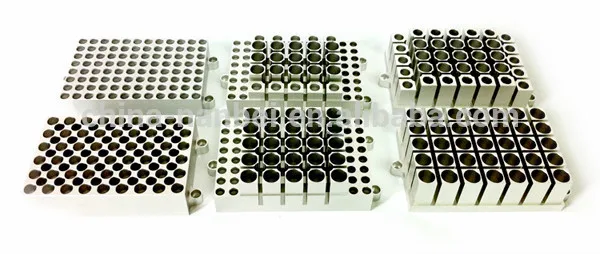

Customized blocks

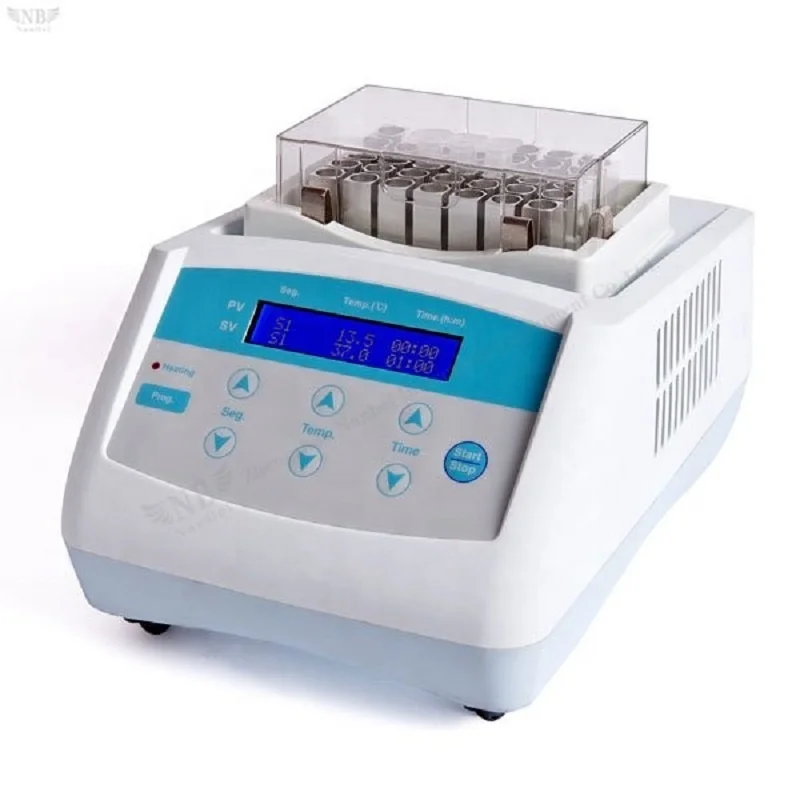

 Other model we can supply as follows:

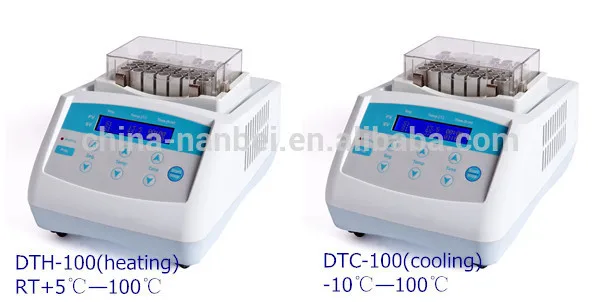

DTH100 and DTC100 picture

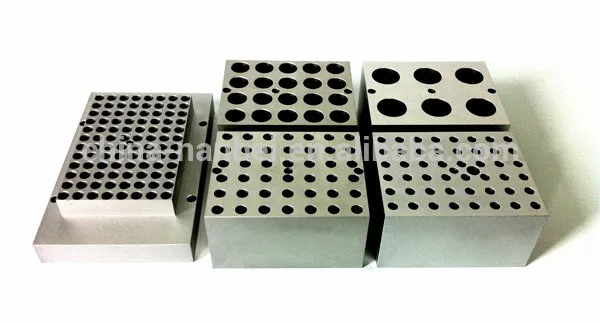

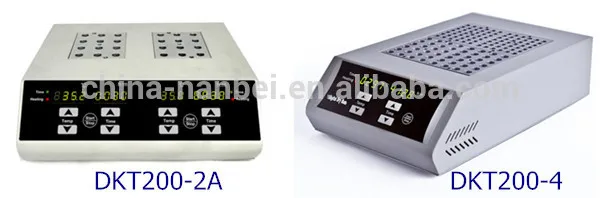

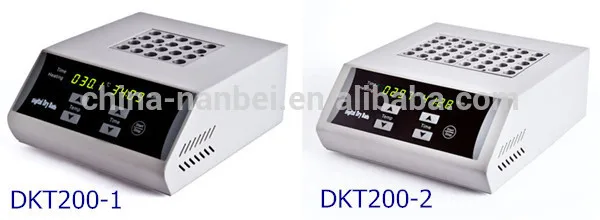

DKT series dry bath incuator
