XD8 4 New Design ore jigging gold mining machinery price from China

Product Overview

Description

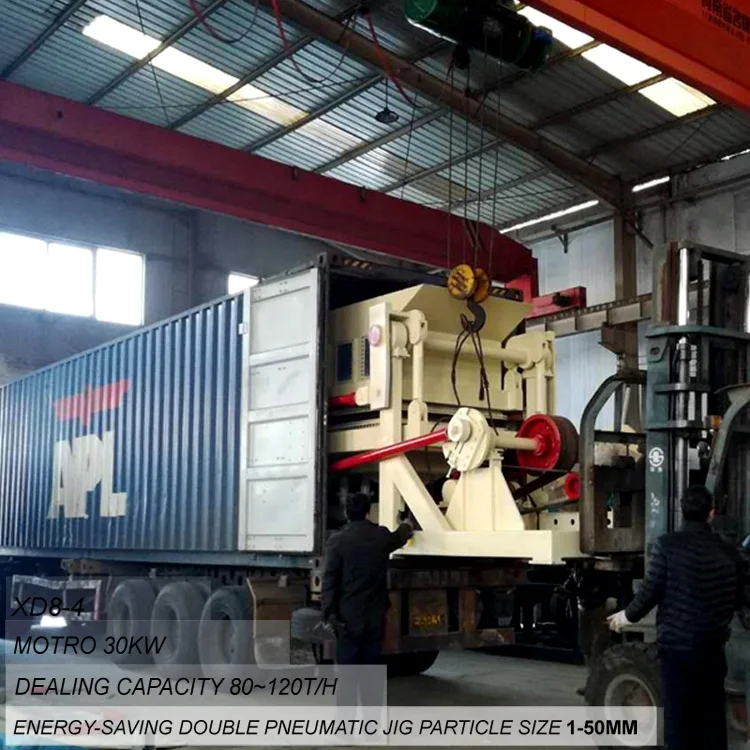

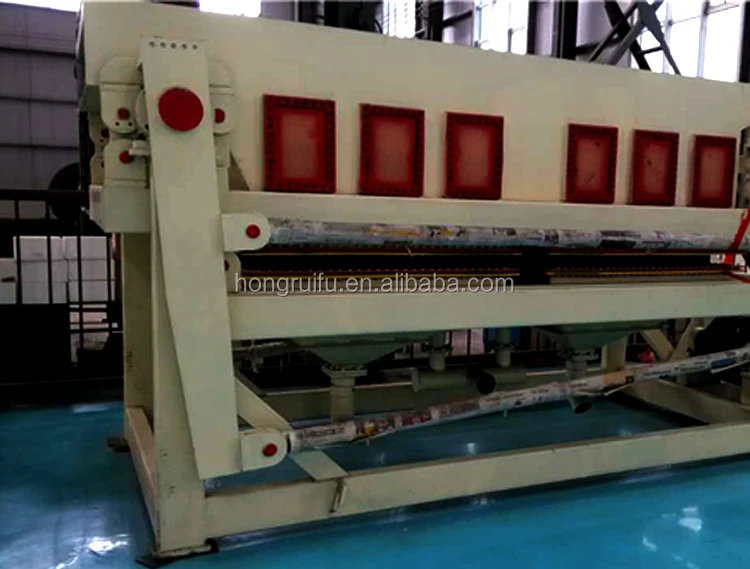

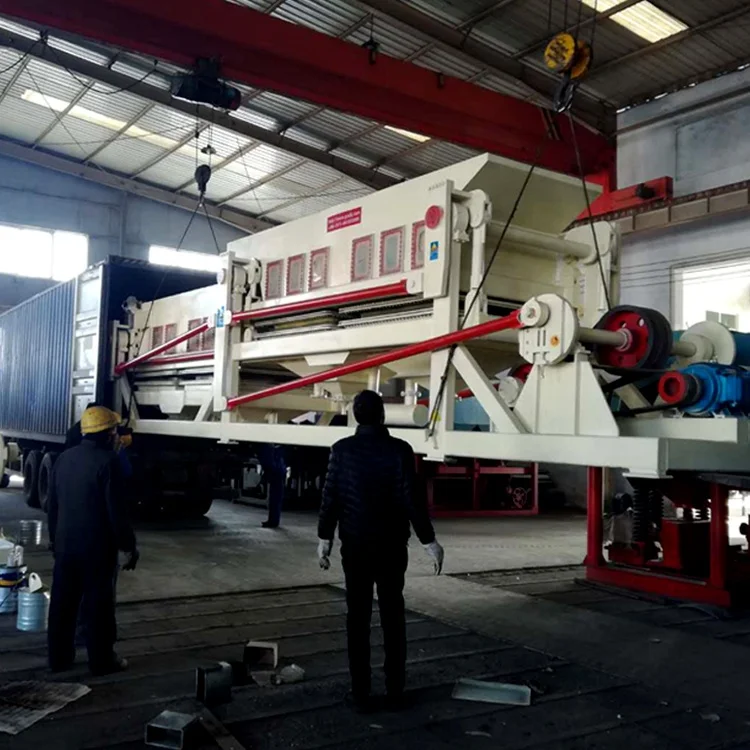

XD8-4 Design Ore Jigging Gold Mining Machinery

Gold Washing Machine, Gold Separator



Brand: HRF

Model: XD8-4

Condition:  NEW 100%

Gold mining machinery

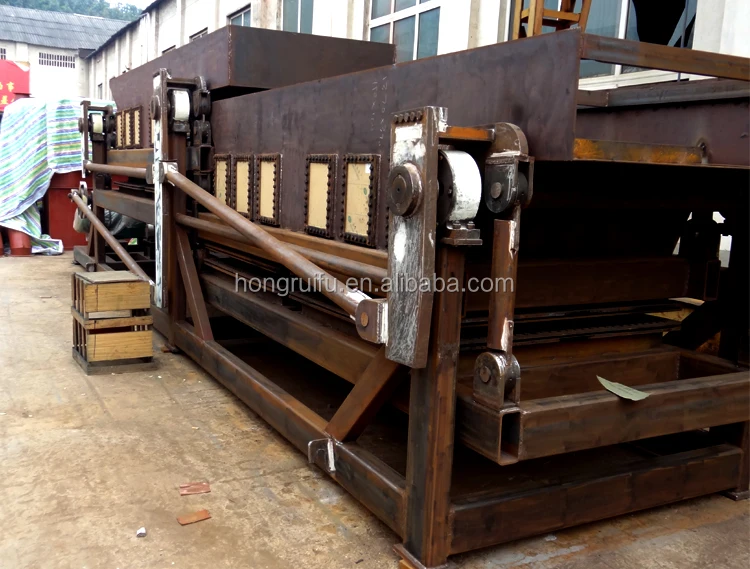

XD8-4 Composite double-acting jig gold mining machinery is the newest gravity concentration equipment which is created by our research department, enjoying advantages compared with traditional single-acting jigging machine. New type jig has won high reputation in domestic and abroad.





Advantages of jig saw machine / gold mining machinery

* Large feeding size  (1-50mm);

* Large dealing capacity  (80-120t/h);

* High concentration ratio and high recovery  ( Fine and rough same time selection);

* Less water consumption  (440t/h);

* Easy operation and maintenance  ( Stable structure).



Working Principle

Thus through a set of connections to make the 4 composite boxes doing the up and down sine wave movement by the opposite direction, and the inverted rubber film doing the opening and closing movement while making the water in the tank to produce synchronized fluctuations up and down. Such a complex movement, that’s the box doing sine wave motion, the media water doing the up and down fluctuation in the same period, the selected particles in water separated clearly by the forward motion, buoyancy and sustenance of water, and the interaction of material gravity and sine wave thrust of chambers.Final effect is mineral particle with large gravity one fall into the discharge port, then the light material discharged from the tailing area with water together.





Questions From Engineers

 1) What is the raw ore material ?

 2) What is the input size of raw material ?

 3) What is the dealing capacity per hour that needed ?

 4) What is the output size of final product ?
