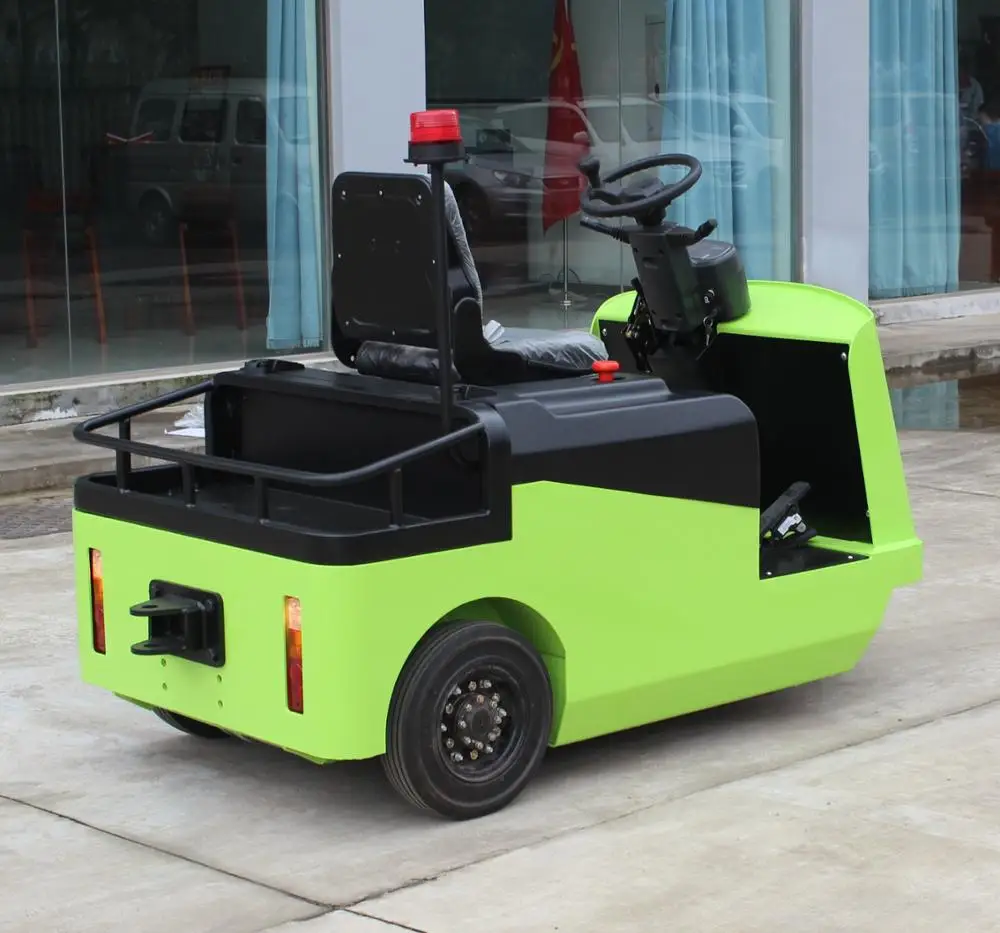

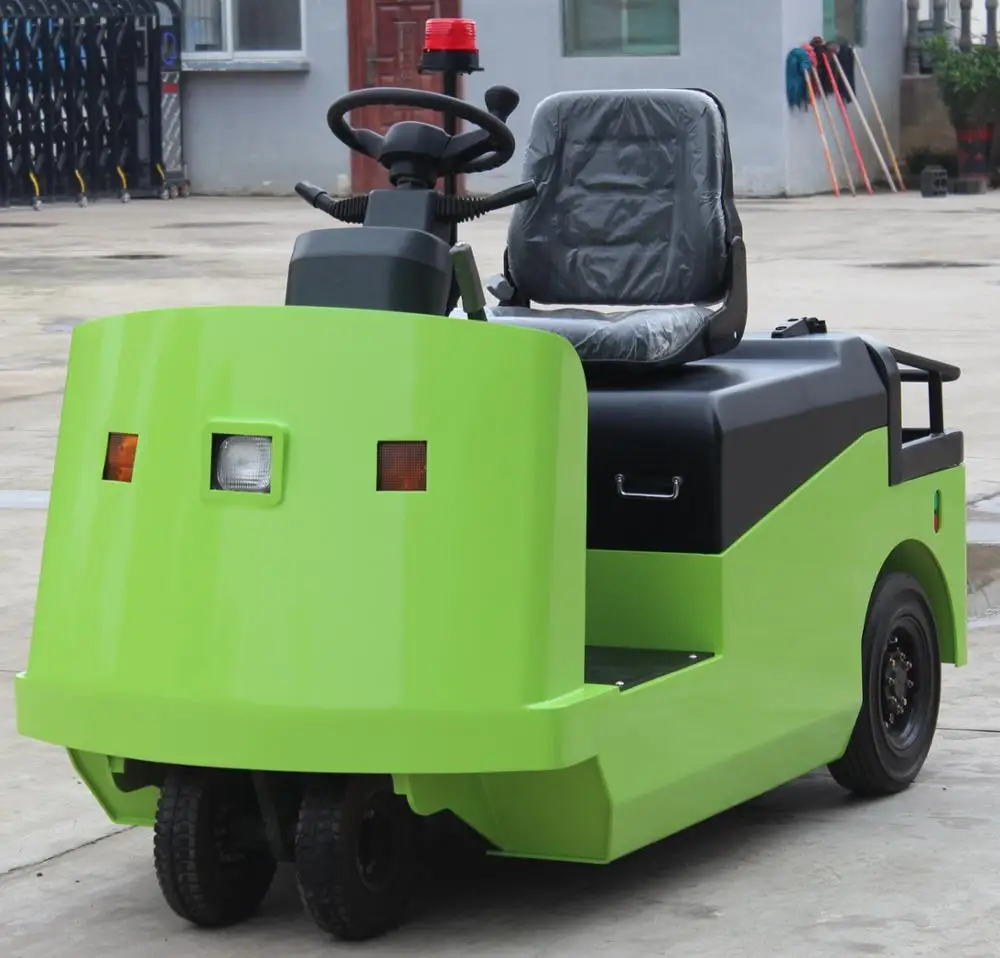

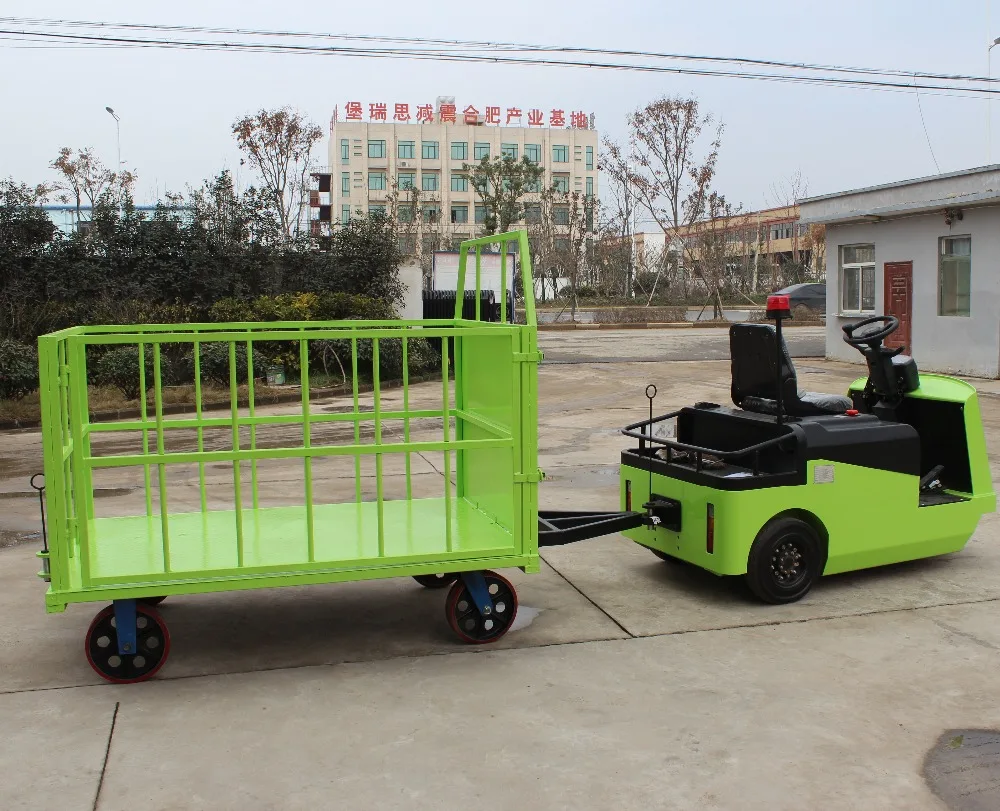

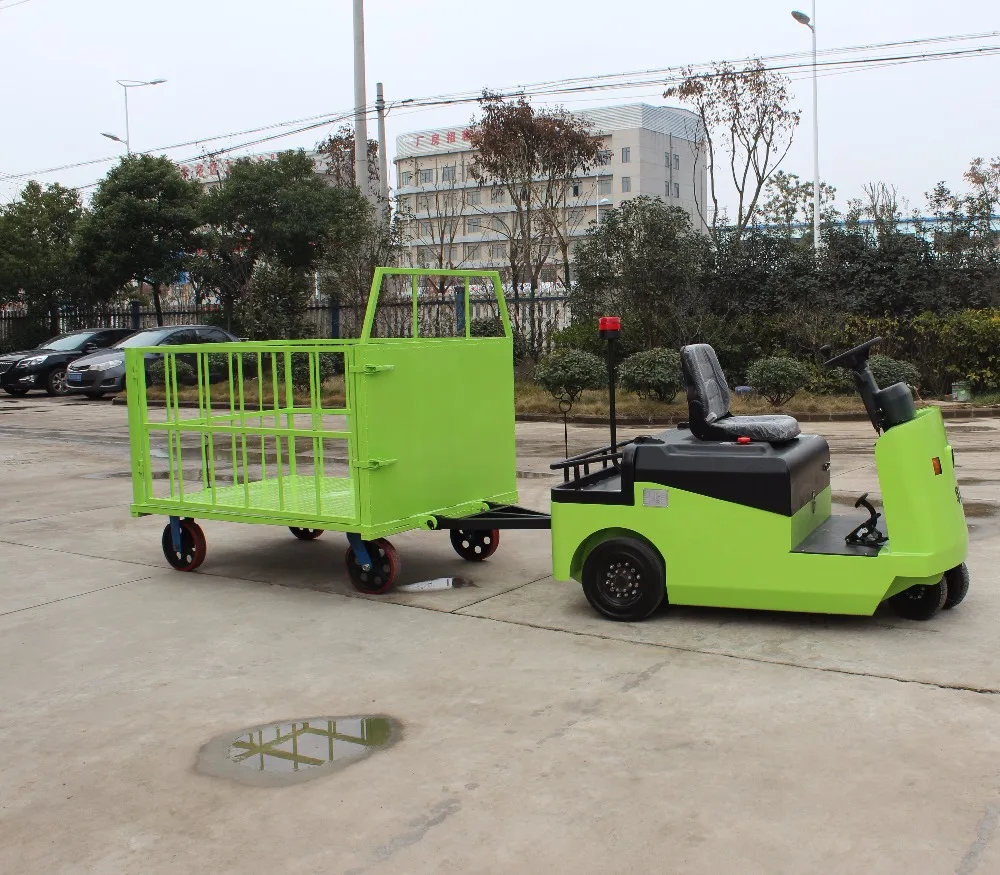

Electric tow tractor 4000 kg 6000 kg 10 ton baggage towing truck with AC motor
Produtcs details:
Imported curtis controller
Vertical AC drive motor
Germany ZF gearbox
EPS Steering system
Large rubber solid tire,suitable for different pavements.
Seated rider makes operation easier than you expect a truck.
Ergonomic designed layout controller assure the comfortable driving performance.
Technical Data:
Name
Drived Seated Electric Tow Tractor(48V)
Operation type
Seated Type
Model No.
Unit
EPQ40A
EPQ60A
Power type
Electric
Electric
Wheel type
Rubber
Rubber
Maximum traction weight
KG
4000
6000
Max. traction
N
2050
2300
The instantaneous maximum traction
N
4000
4000
The vehicle height
H2(mm)
1420
1420
Overall length
L(mm)
2010
2010
Overall width
S(mm)
985
985
Max. Travel speed
Km/h
8/12
16/10
Wheelbase
mm
1357
1357
Turning radius
Wa(mm)
1705
1705
Battery weight
KG
355
550
Steering type
EPS
EPS
Parking brake type
Manual operation/Pedal type
Manual operation/Pedal type
Body weight
KG
1020
1200
Front wheel
mm
Ø295*96
Ø295*96
Rear wheel
mm
Ø415*112
Ø415*112
Battery capacity
V/Ah
24/350
48/280
Charger-intelligent
V/Ah
24/50
48/40
Drive motor
Kw
3
4
Min. Ground Clearance
Mm
85
85
Our Services
After-sale Service
All the product of EFORK supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
Certifications
Company Information
Anhui Yufeng Equipment Co.,Ltdis an ISO 9001 accredited company which has been focusing on manufacturing&exporting Battery-powered Material Handling Equipment(MHE) for many years in China.With the strong capacity of R&D and manufacture,nowadays EFORK becomes one of the leading brand of battery-powered MHE at home&abroad.
We're a dedicated reputable company carrying our theme''Innovation,integration and enviroment friendly'',and we strive to privide only the best to our customers.Please allow us to support your handling/moving/lifting needs and you're welcome to visite our show room to view the products in details.
FAQ
1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Electric motor, CURTIS controller. Absolutely high quality.
5. How many colors of forklift you can supply?
Green, Orange, Yellow, Red. Or As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat, direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
