Product Overview
Description
Veinasa-TS weather station used soil moisture humidity sensor 4 20ma with acquisition instrument
Products Description
Soil humidity sensor (transmitter) is a soil moisture measuring instrument of high precision and high sensitivity.
The sensor adopts the principle of electromagnetic pulse to measure the apparent dielectric constant of the soil, resulting in soil moisture content.The sensor has the characteristics of fast, accurate, stable and reliable, and can not be affected by chemical fertilizers and metal ions in the soil.
Product Paramenters
Item | Technical Parameters |
Measurement range | 0~100% |
Accuracy | ±3% |
Resolution | 0.10% |
The power supply mode | DC5V, DC12V, DC24V |
Signal output mode | 4-20mA, 0~5V, RS485, RS232 |
Length | Standard:10 meters, Other |
Load resistance | Voltage type: RL≥1KΩ |
Current mode: RL≤ 250Ω | |
Working temperature | -50℃~80℃ |
Humidity | 0~100%RH |
Product weight | Probe 220 g |
With acquisition instrument weight | 570 g |
Power consumption | 310 mW |
Product Features

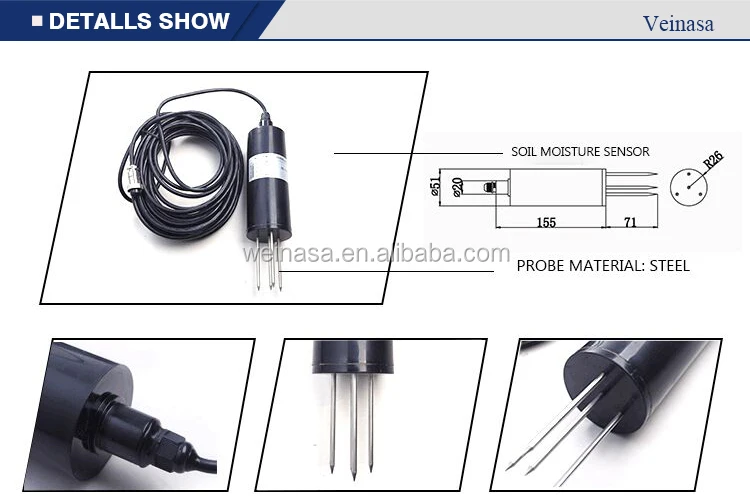

This four-probe soil humidity sensor is small and flexible, with a total length of only 155mm, a probe length of 71mm and an overall diameter of 51mm, which is easy to transport and carry. The stainless steel probe not only has a simple and elegant appearance, but also is not afraid of corrosion. It can be placed in the soil for a long time, which is convenient for multiple measurements.
If use our weather station,Can the sensor directly to the line and sensors connected to the corresponding interface of weather stations on line
If buy separate transducer, transmitter supporting lines sequence respectively to:
If buy separate transducer, transmitter supporting lines sequence respectively to:
Line Color | Output signal | ||||
0~5V | 4~20mA | RS485 | |||
Red | Power + | Power + | Power + | ||
Black (green) | Power ground - | Power ground - | Power ground - | ||
Yellow | Voltage signal | Current signal | 485+ | ||
Blue | 485- | ||||
(3)Two wiring method:
Application Field
Veinasa-TS can be widely used in meteorological, marine, environmental, airport, port, laboratory, industrial and agricultural areas of the field of temperature measurement.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do nothesitate!
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor TR-TS01, which has different power supply.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like temperature, electric conductivity, salinity, etc. we have this existing model TR-HTSE.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC12V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this moisture Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 10m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do nothesitate!
