Best selling tractor 3 point hitch snow sweeper in Russia

Share on (60725083274):


Price:

Quantity:


Product Overview

Description


Introduction

Brief features and introduction

of tractor 3 point hitch snow sweeper:

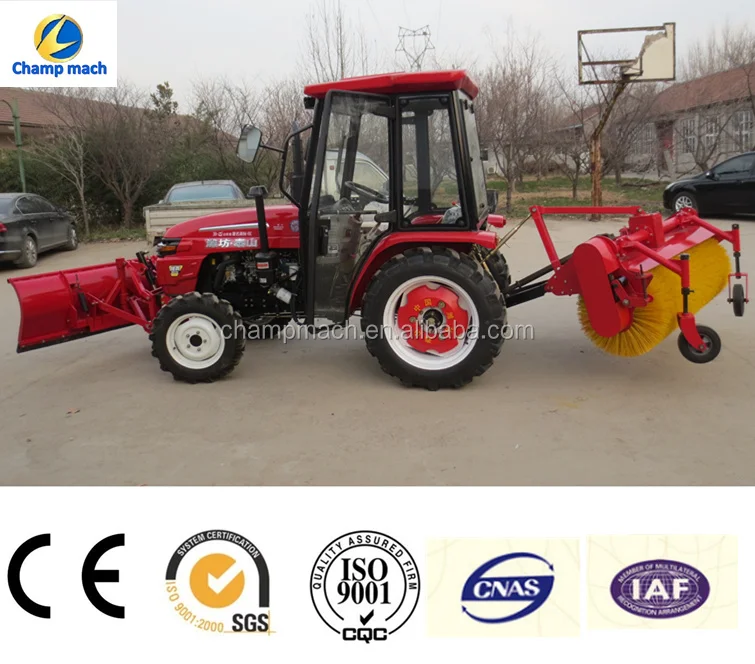

1. SX Series Snow Sweeper for tractor is used for sweeping of thin layer of snow, featured with quick speed, high efficiency and easy operation. To clear away deep snow, it will be more effective to use it together with snow blade. It's also used in sweeping on road and ground.

2. SX Series Snow Sweeper for tractor is widely used in road, ground, warehouse etc, mainly in sweeping of thin layer of snow, leaves, sand, court etc.

3.The snow sweeper can be matched to tractor,wheel loader,forklift,

4.The snow sweeper powered by hydraulic output of these machinery,only tractor could be driven by PTO.

5.PP with steel wires brushes.

6.Working width from 1200 to 2500mm

7.Suitable for cleaning road,street,floor and other flat.



specifications

tractor 3 point hitch snow sweeper Technical Parameters:



ItemsSX120SX160
 Structure weight:140kg180kg
 Overall dimension(mm):1380*1100*800mm1780*1100*800mm
Brush wridth(mm)11801580
work efficiency (m2 /hour)1680022100
Required tractor power20-4550-75
Connecting method with tractor3-point suspension3-point suspension
Driveline specification:Motor/pto driveMotor/pto drive
Brush materialPPPP
Brush axle materialSeamless steelSeamless steel
brush rotation speed180 rpm180 rpm
Brush diameter560mm560mm
CBM per package(m):0.91.15



ItemsSX180SX200
 Structure weight:200kg260Kg
 Overall dimension(mm):1980*1100*800mm2200*1200*800
Brush wridth(mm)17801900
work efficiency (m2 /hour)24800
Required tractor power50-10050-100
Connecting method with tractor3-point suspension3-point suspension
Driveline specification:Motor/pto driveMotor/pto drive
Brush materialPPPP
Brush axle materialSeamless steelSeamless steel
brush rotation speed180 rpm180rpm
Brush diameter560mm560mm
CBM per package(m):1.281.35
Detailed Images

tractor 3 point hitch snow sweeper Detailed Images:


Packaging

tractor 3 point hitch snow sweeper Packaging :








Company Information






QC

tractor 3 point hitch snow sweeper Quliaty control

Modern machine tools__.jpgcoordinate measuring  .jpgloading runingin _.jpg



Warranty



.jpg

Our Services



.pngOther Implements
