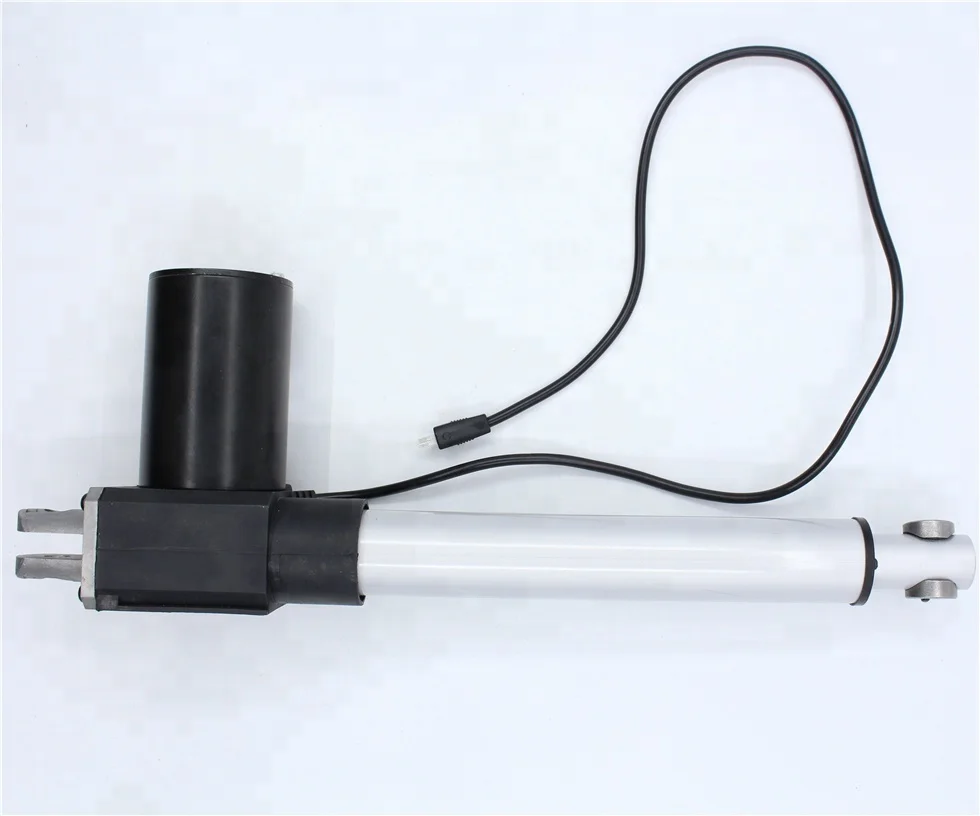

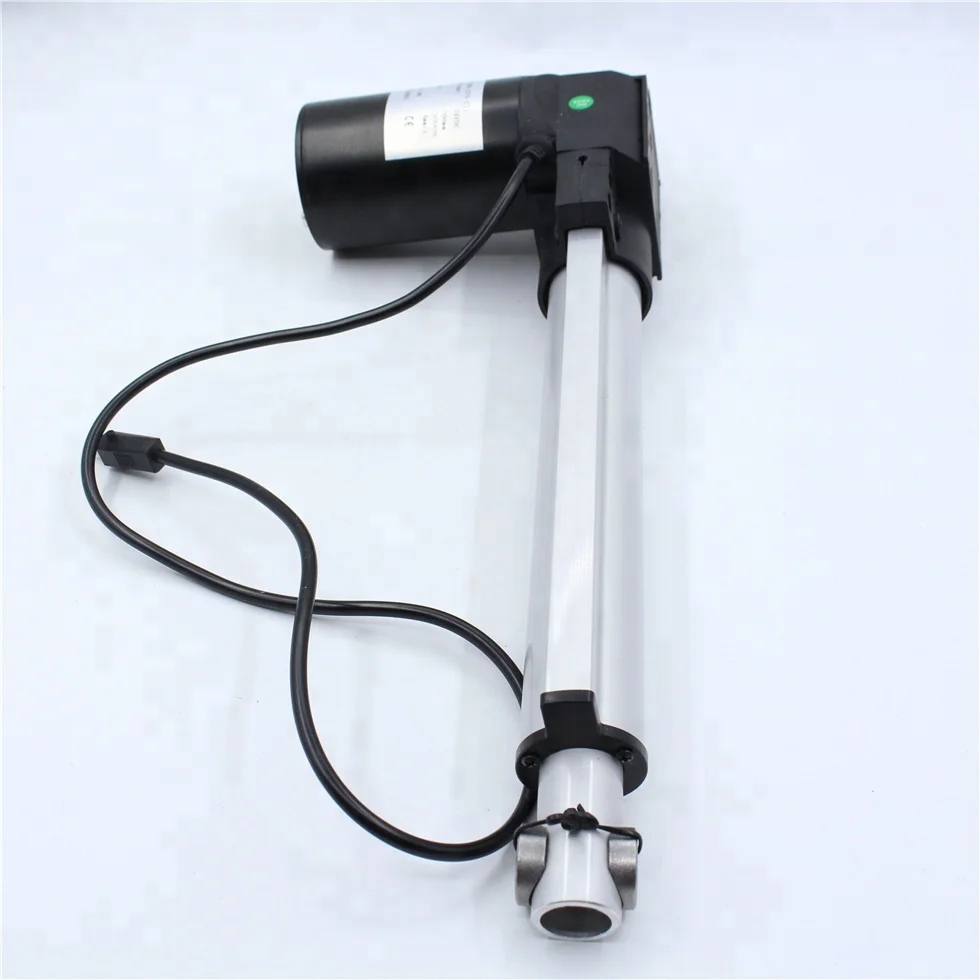

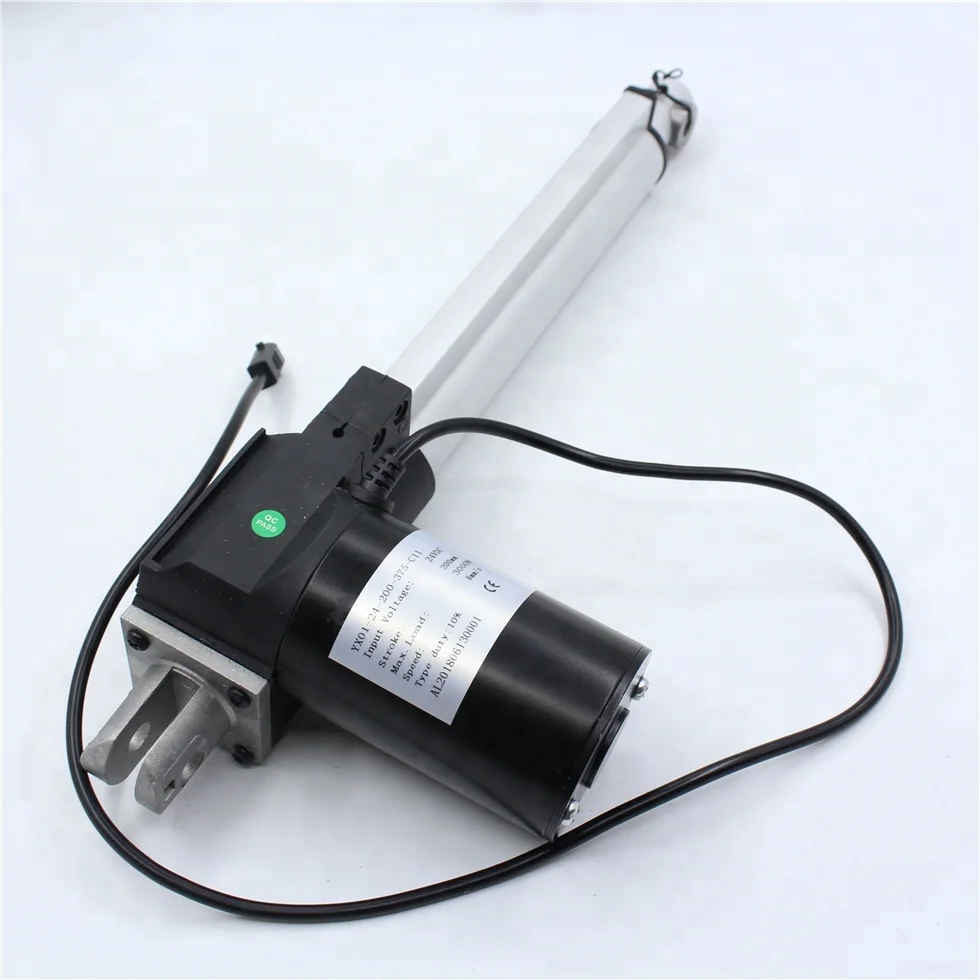

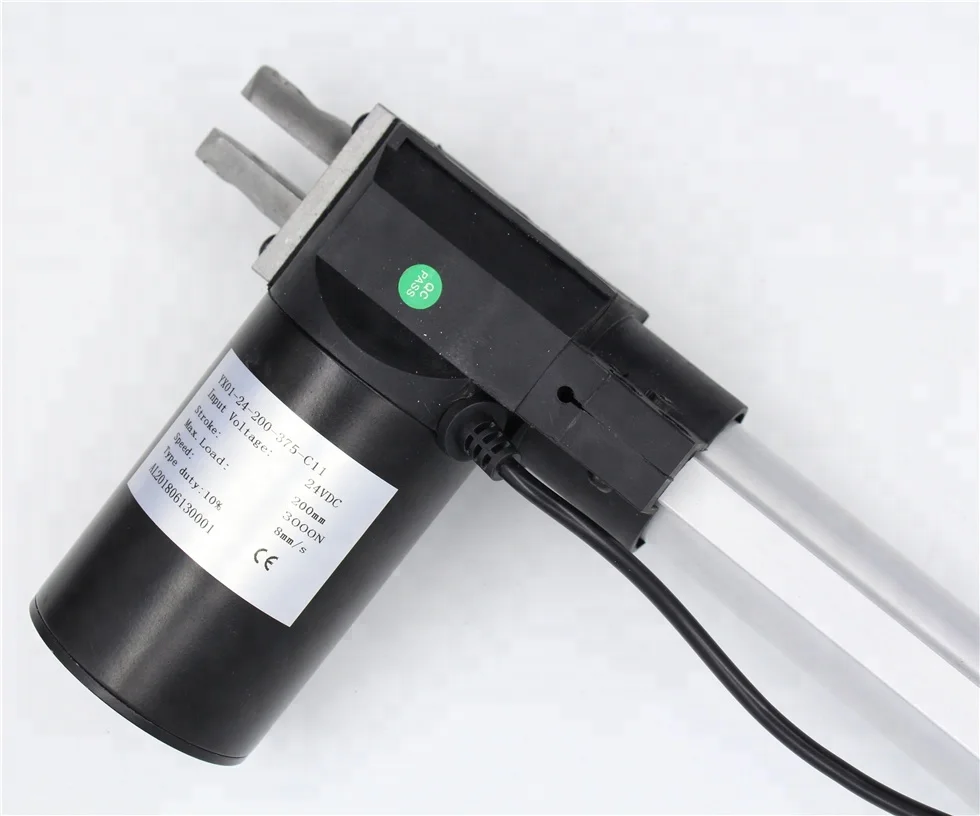

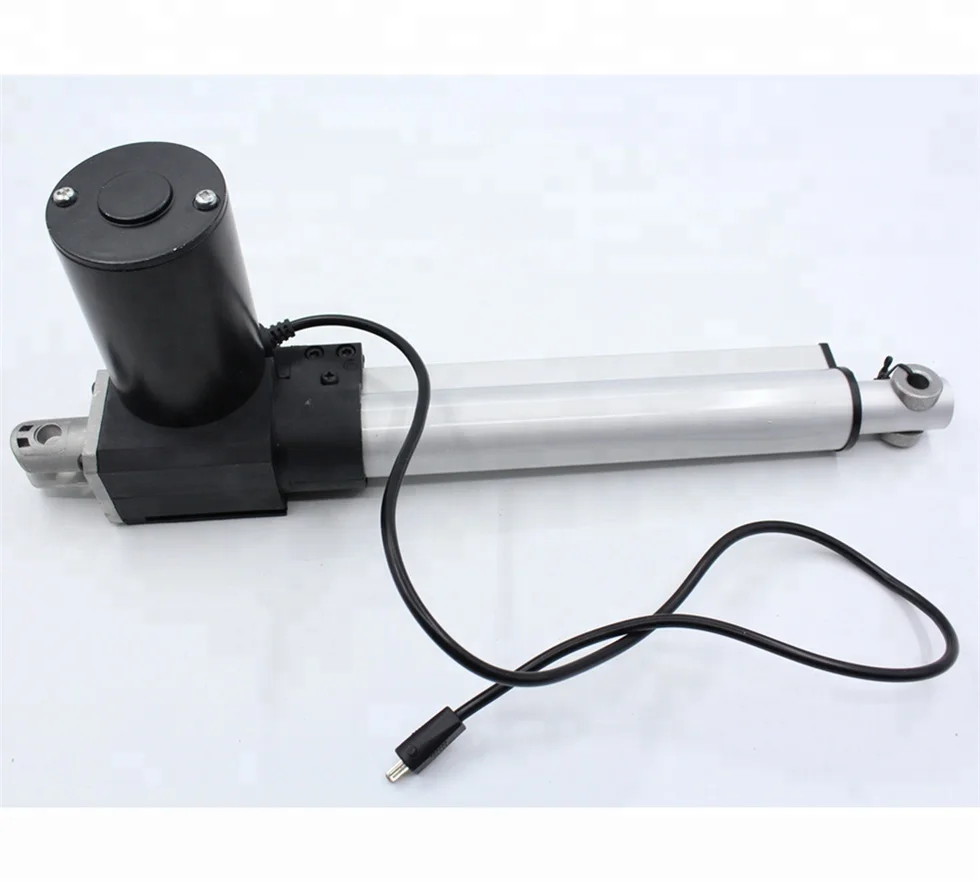

Stroke 500mm 20 inch Heavy Duty Linear Actuator 24V DC Reciprocating Motor 6000N 1322 Lbs Speed 6mm s

Product Overview

Description

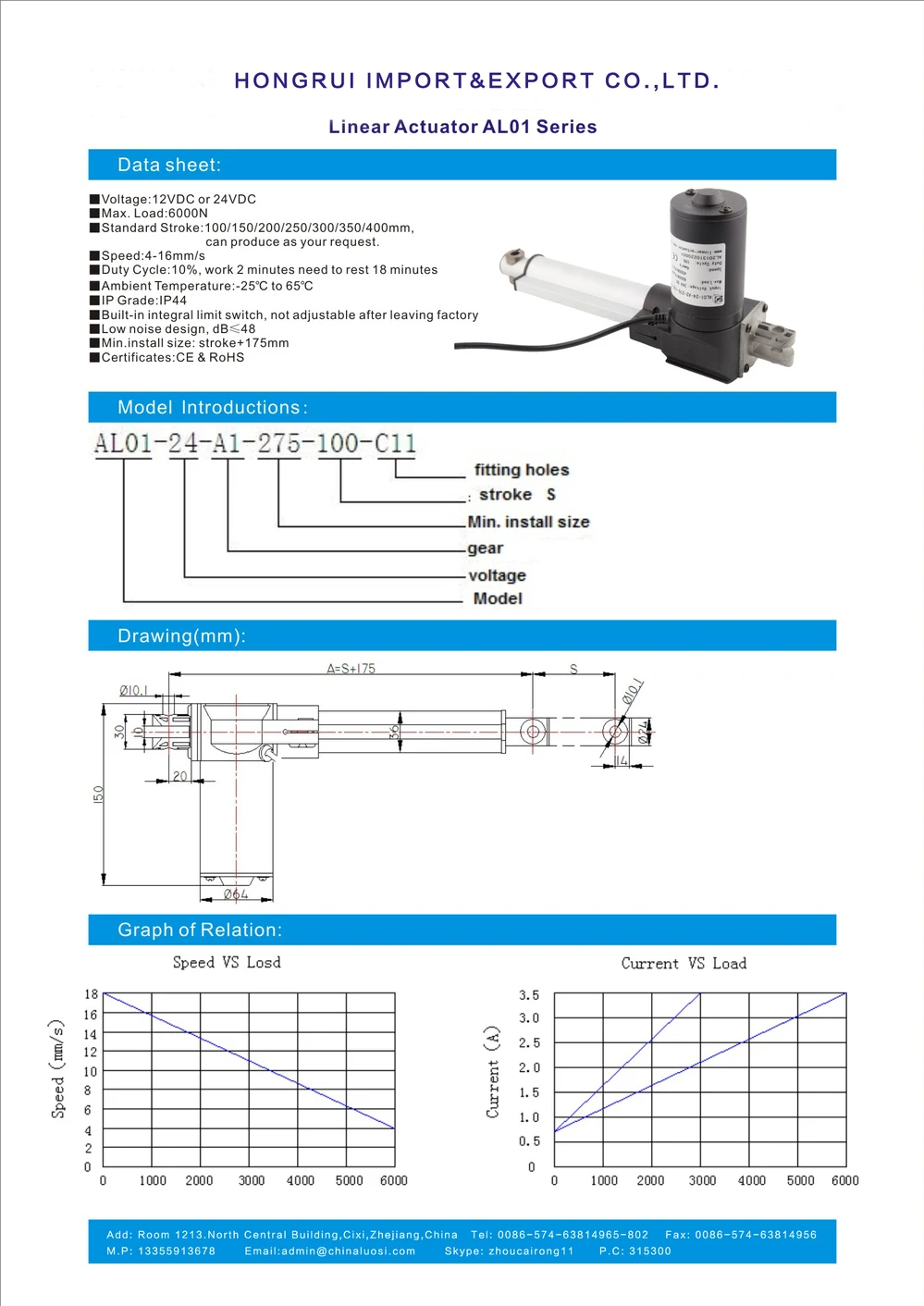

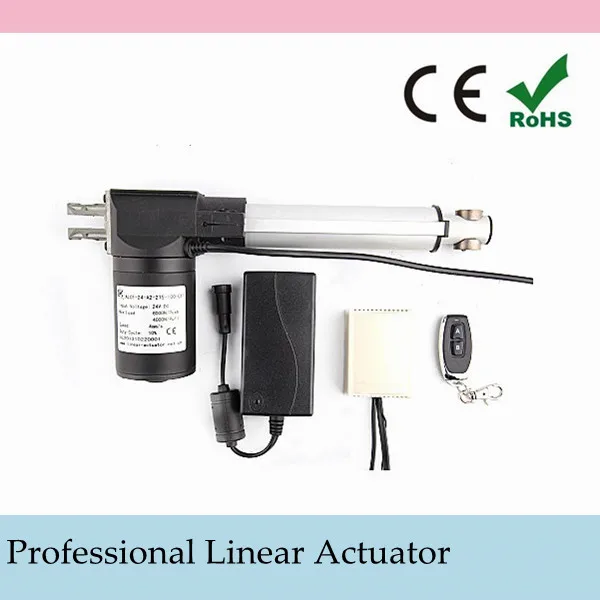

Linear Actuator











1.Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive
2. Standard Stroke: 100/150/200/250/300/350/400 mm,

    special stroke are available according to customers requirement.
3. Max. Thrust: 2000N, 4000N, 6000N
4. Free Load Speed: 4-32mm/s
5. Duty cycle: 10%
6. Ambient temperature -25°C (-13F) to +65°C (149F)
7. Standard protection class :IP 44
8. Built-in integral limit switch, not adjustable after leaving factory
9. Low noise design, dB≤48; The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
10.CE Certificated

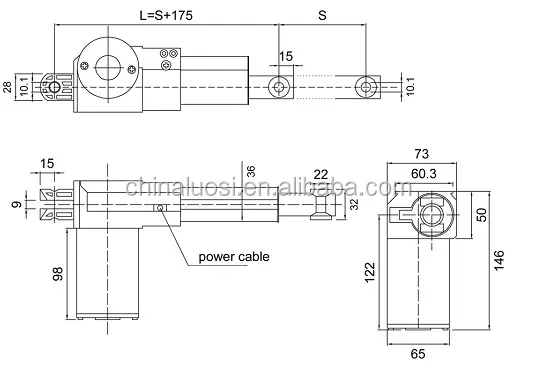

Technical Drawing

Standard Stroke(mm)		50	100	150	200	300	350	400
Minimum install Size(mm)	2000N	225	275	325	375	473	525	575
	4000N	225	275	325	375	473	525	575
	6000N	225	275	325	375	473	525	575













Application Fields

• WINDOW OPENER


• ELECTRIC DENTAL CHAIR


• ELECTRIC TRACTION TABLE


• ELECTRIC SOFA


• ELECTRIC NURSING BED


• MASSAGE CHAIR


• ELECTRIC SANITATION VEHICLE


• SOLAR TRACKER MOUNTING


• LCD TV BRACKET


• ELECTRICALLY LEISURE SOFA


• ELECTRIC ELEVATING STAGE


• ELECTRIC OPERATING TABLE
