LULU Brand 3500lbs small hydraulic electric trailer winch 12v

Price:RUB 3,450.39 - RUB 4,983.90

Quantity:

LULU Brand 3500lbs small hydraulic electric trailer winch 12v

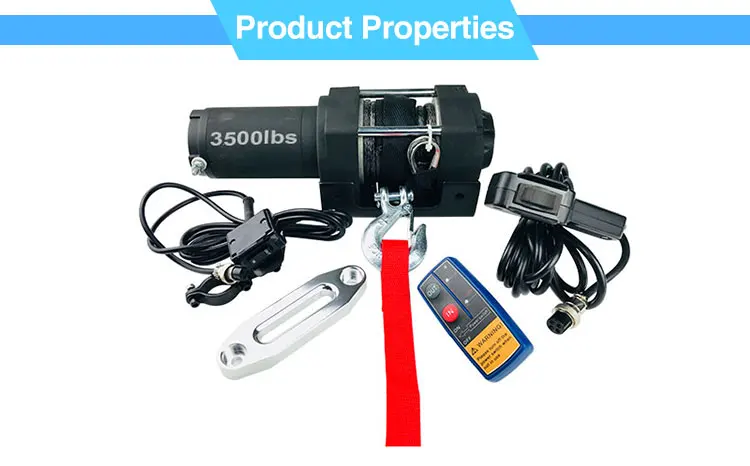

Product Display

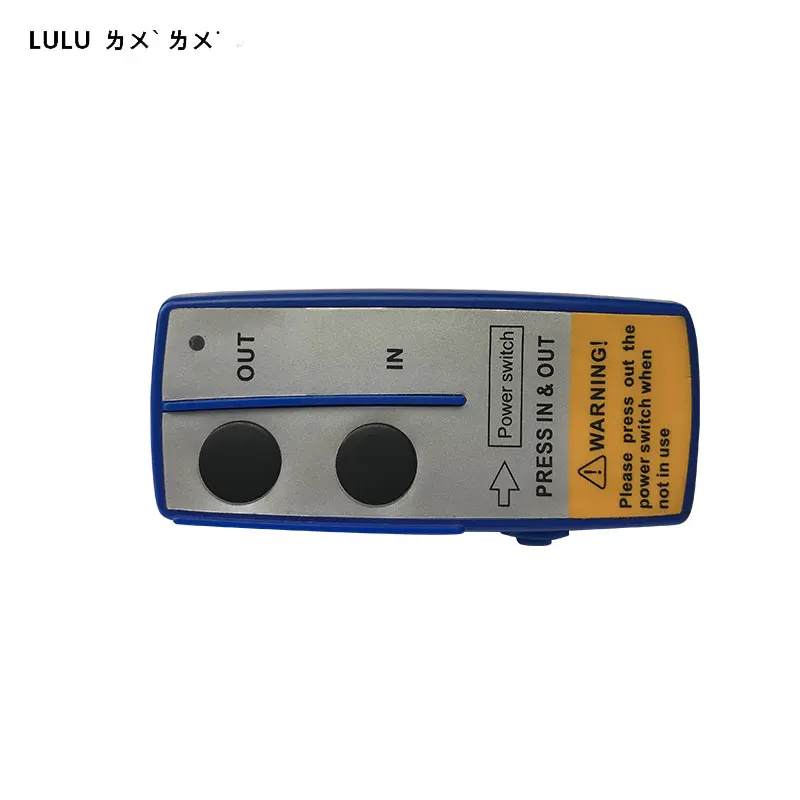

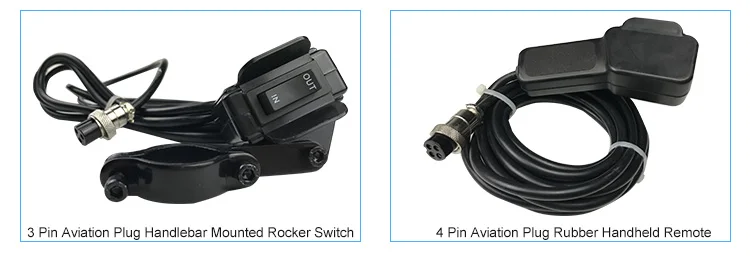

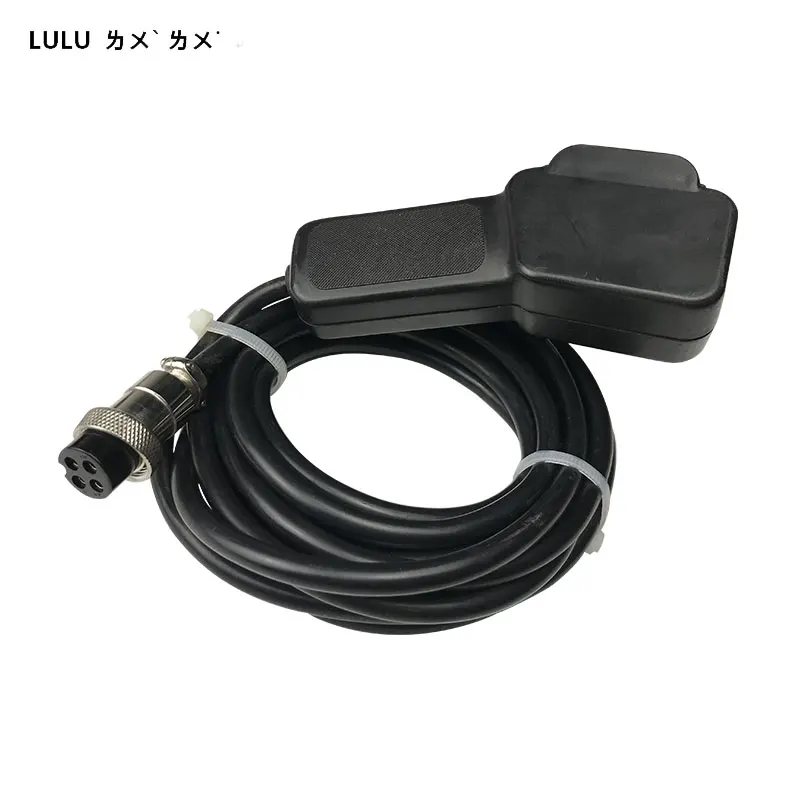

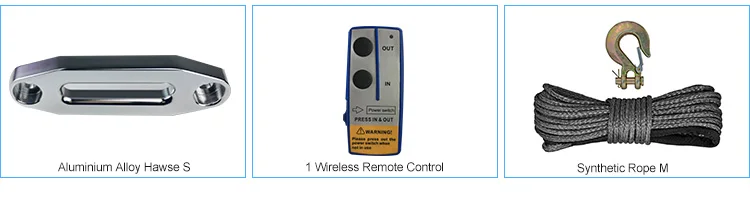

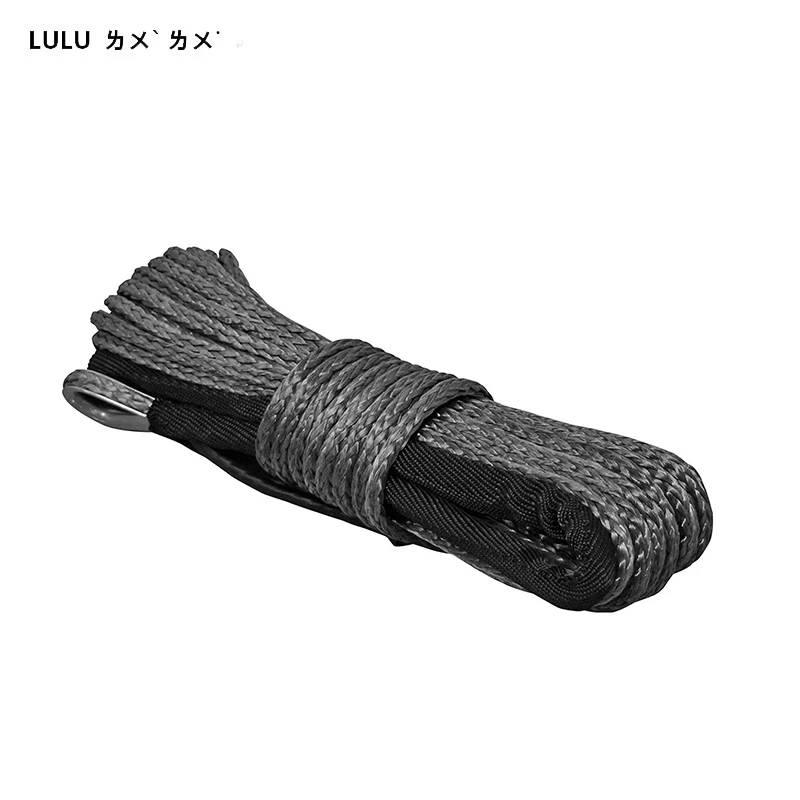

3500Lbs/1589Kg 12V DC Electric Winch, Synthetic Rope, Handle Bar Mounted Rocker Switch, Rubber Handheld Remote,1 Remote Control

3500lbs Features and Specifications
	HJEW-3500-1 (This Product)	HJEW-3500-3
Rated line pull	3500lbs. (1588kgs) Single Line	3500lbs. (1588kgs) Single Line
Voltage	12v	12V
Motor	12V DC, 3.3hp (2.4kW) Permanent Magnet, Sealed	12V DC, 1.2hp (0.89kW) Permanent Magnet, Sealed
Color	Matte Black	Grey Powder Coat
Motor Leads	5 sq.mm x 500mm	10 Sq.mm x 860mm
Geartrain	1-Stage Planetary	3-Stage Planetary
Gear Ratio	153:1	166:1
Clutch (freespooling)	Turn	Turn
Brake	Dynamic gear brake	Spring
Drum Diameter / Length	32mmx72mm	1.9 in (50.4mm) / 3.14 in (80mm)
Cable Diameter / Length	5mmx13	7/32 in (5.5mm) / 45.1ft. (13.75m)
Cable Type	Wire	Wire/Synthetic
Wireless remote controller	Option	Option
Wire remote controller	Option	Option
Fairlead	Roller	Roller
Battery Leads	5 sq.mm , 71 in (1.8m)	10 Sq.mm, 69 in (1.76m)
Finish	Matte Black	Grey Powder Coat
Weight	10kg	10kg

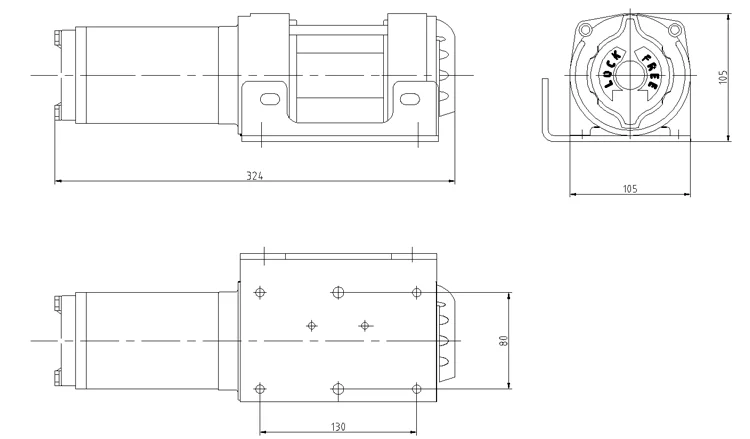

Mounting Bolt Pattern	3.1 in x 5.1in (80mm x 130mm)	3 in x 4.9 in (76.2mm x 124mm)
Overall Dimensions	(L X W X H) 12.8 in x 4.13 in x 4.13 in 325mm x 105mm x 105mm	(L x W x H) 13 in x 4.6 in x 4.6 in 330mm x 118mm x 118mm

Performance Data
Line Pull Lbs.(Kgs.)	Line Speed FT./min (M/min.)	Motor Current (Amps)	Pull by layer / Rated line pull Lbs. (Kgs.)
0	19 (5.8)	25	1 / 3000 (1361)
1000 (454)	12.8 (3.9)	100	2 / 2640 (1198)
2000 (907)	9.8(3.0)	155	3 / 2320 (1052)
3000 (1361)	6.6(2.0)	210	4 / 2040 (925)
3500(1590)	3.9(1.2)	240	0
