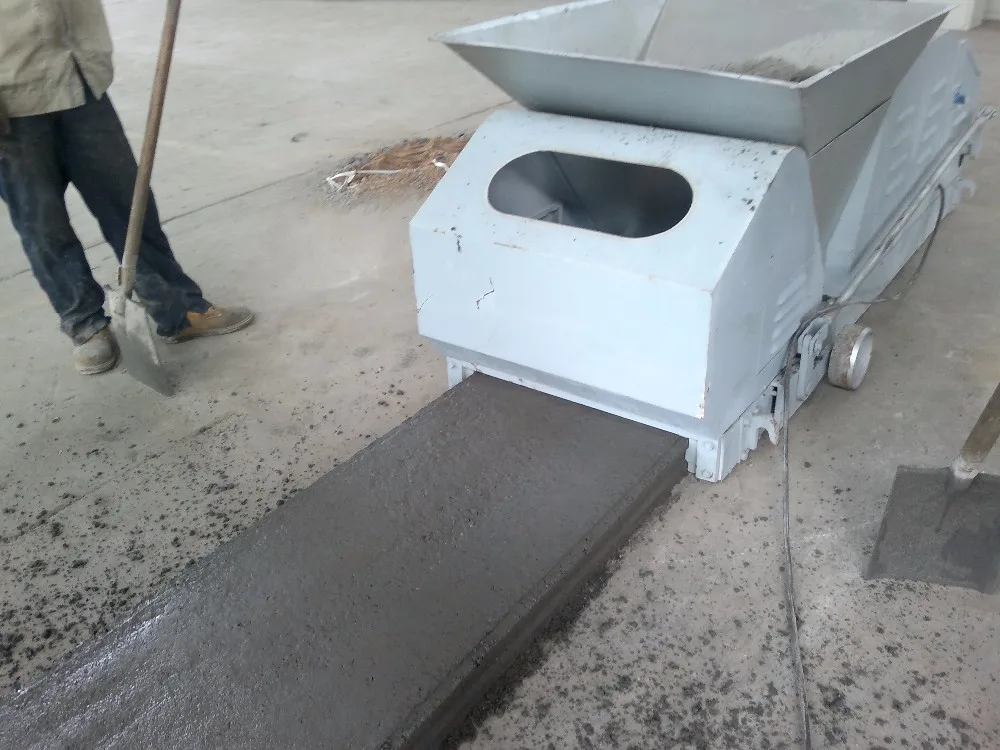

Automatic precast concrete fence post making machine
Automatic precast concrete fence post making machine is a specialized machine to produce non-load bearing external wall slab,widely used for the external partition of building,such as office building,hotel and apartment.The slab produced with this machine is characterized with low cost,light weight and easy for assembly.
Automatic precast concrete fence post making machine uses hydraulic lifting system,easy to revolve.It can reduce labor intensity and improve production efficiency.Machine body adopts anti-rust technology.Key parts,like hopper are welded by stainless steel.Wearing parts like reamers,side form,vibration board,stock guide and other parts are all welded with alloy.
Model | Product Thickness in mm | Product Width in mm | Electric motor power (kw) | Vibrator Motor Power (kw) | Molding Speed Meters/minute | Overall Diamention in mm | Machine Weight in kg |
HQJ50-300-2 | 50 | 300 | 2.2 | 0.25 | ≧1.4 | 2000x800x680 | 950 |
HQJ90-600 | 90 | 600 | 5.5 | 0.8 | 1.5-1.8 | 2470X950X680 | 1030 |
HQJ120-600 | 120 | 600 | 5.5 | 3 | 1.5-1.8 | 2250X980X730 | 1300 |
HQJ150-600 | 150 | 600 | 5.5 | 1.1 | 1.5-1.8 | 2300x820x820 | 1450 |
Main Features
1.Extrusion method, smooth surface
2.One machine can make one slab,low investment
3.Simple structure,easy operate
4.Long working-life with easywear spare parts

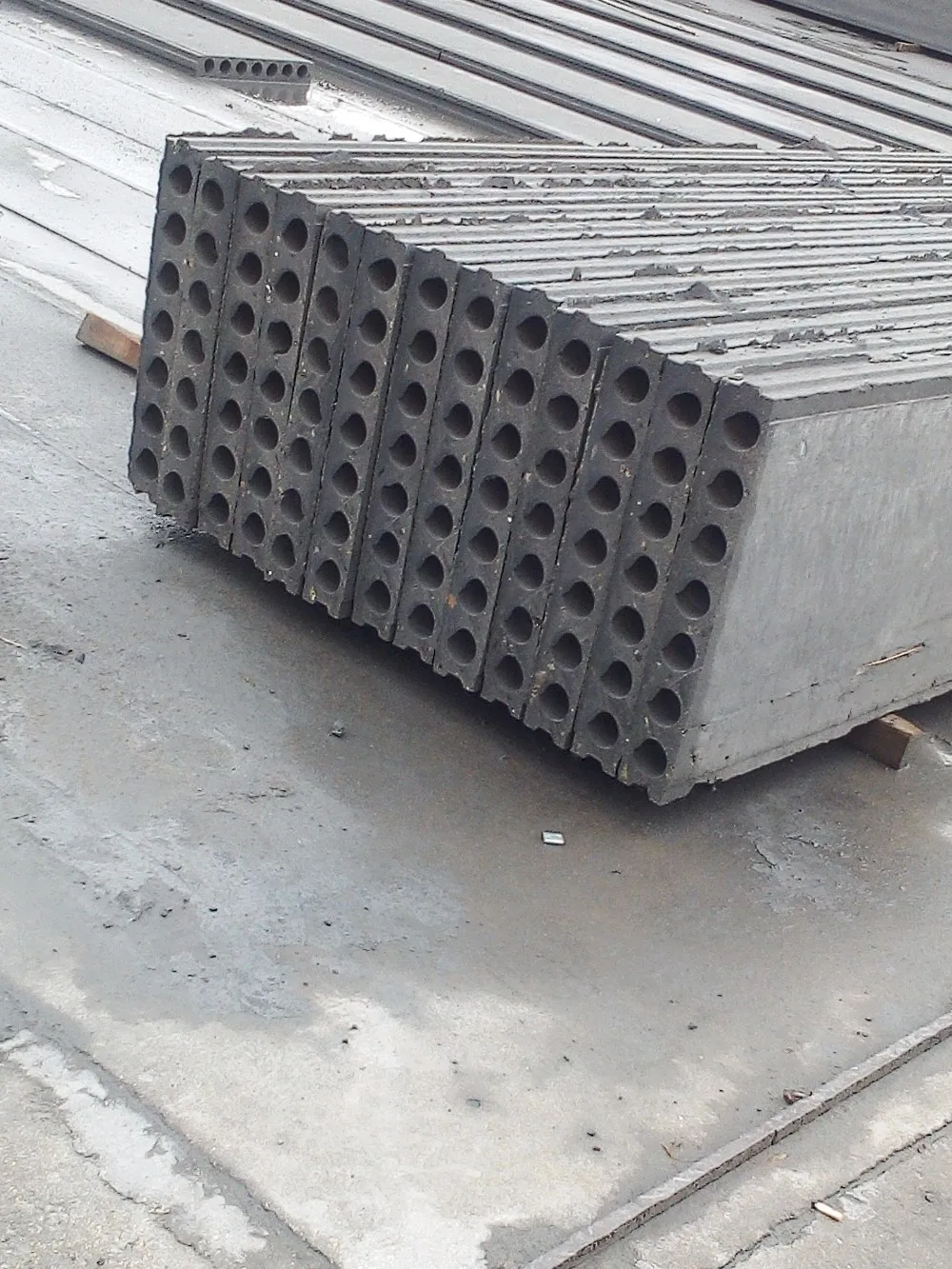

5.Non-loading bearing partition wall board and exterior wall board
6.Sound insulation,heat insulation
Working principle:
The main motor transmit power to the reduction gearbox through V-shape belt pulley so as to make the spiral reamer turn in the forming space consisted of frame, vibrator and pedestal. While working, The spiral reamer turns according to the the given rotary direction in the forming space, continuously delivering the mixed materials in the hooper to the forming space, with the both screaming strength from the spiral reamer and vibrating force from the vibrator, the materials are being squeezed into compaction, and at the same time also the anti-force is also produced on the turning reamer so that the extruder keeps forward to form the concrete into the slab. Through the molding scraper in the rear part of the machine, polish the surface of the slab smoothly to meet the requirements.
The main motor transmit power to the reduction gearbox through V-shape belt pulley so as to make the spiral reamer turn in the forming space consisted of frame, vibrator and pedestal. While working, The spiral reamer turns according to the the given rotary direction in the forming space, continuously delivering the mixed materials in the hooper to the forming space, with the both screaming strength from the spiral reamer and vibrating force from the vibrator, the materials are being squeezed into compaction, and at the same time also the anti-force is also produced on the turning reamer so that the extruder keeps forward to form the concrete into the slab. Through the molding scraper in the rear part of the machine, polish the surface of the slab smoothly to meet the requirements.
Working requirements:
1.The machine can work on open air
2.The working temperature required is 5-40 centigrade degree;The voltage is 360-400V,power frequency 50Hz.
1.The machine can work on open air
2.The working temperature required is 5-40 centigrade degree;The voltage is 360-400V,power frequency 50Hz.

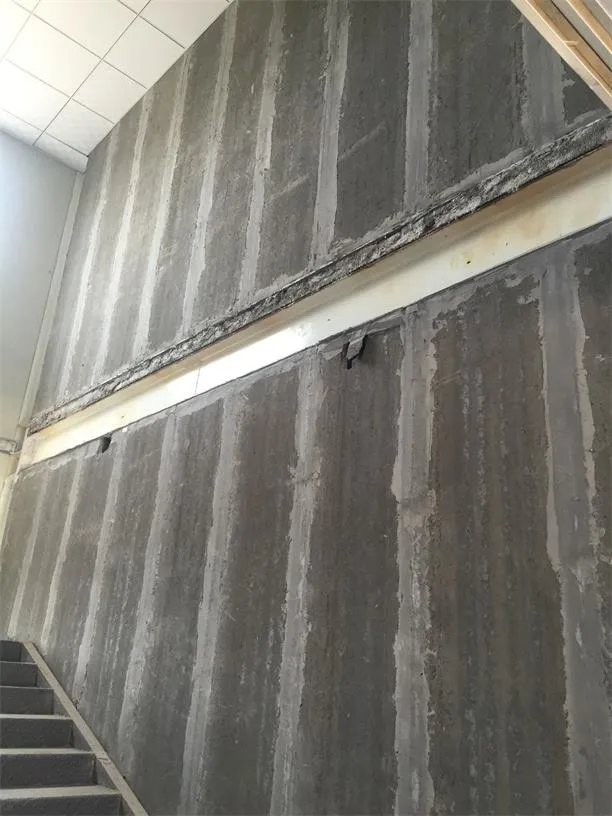

Wall panel application:
Packing & Delivery
Packaging | ||
Size | 2000 (L) * 800(W) * 680 (D) | |
Weight | 950kg | |
Packaging Details | 1.Wire cables are used for fastening the machine on the trailer or inside the container. 2.Plastic film is covered on the machine as a rain-roof. | |
Our Company
Initiator of pushing former
30 years manufacturing experience
Constitutor of the <Chinese Prestressed Concrete Hollow Core Slab Standard>
Shandong Xingyu Mechanical Technology Co.Ltd, founded in 1996 and located in Zibo City, specialized in concrete prefabrication machine manufacture with a name brand of "Xingyu".
Our main products: large span GLY concrete hollow core slab machine,light-weight wall panel machine,purline forming machine,lintel moulding machine,column moulding machine,hollow core slab cutting machine,concrete feeding dumper,high-strength steel wire tensioning machine, which amount to more than ten types and more than a hundred standards. We can design and manufacture various kinds of concrete forming equipments according to the customer demands.
Exhibition
Our Service
We can design and manufacture all kinds of precast concrete hollow core slab machines according to customers' demands. Meanwhile we can provide customers a complete set of technology and solution for all producing flow.
Your inquiry refers to the local standard of the width and thickness of slab can help us offer more specific suggestions.
Welcome to visit us at any time!
FAQ
1. When did your company established?
XingYu machine is established in the year 1996.
2. Where is your company situated?
XingYu machine is located in ZiBo city, ShanDong province, China.
You can arrive at Jinan airport by air, we will pick you up at Jinan airport.
3. What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% as deposit and the rest 70% should be paid before delivery.
