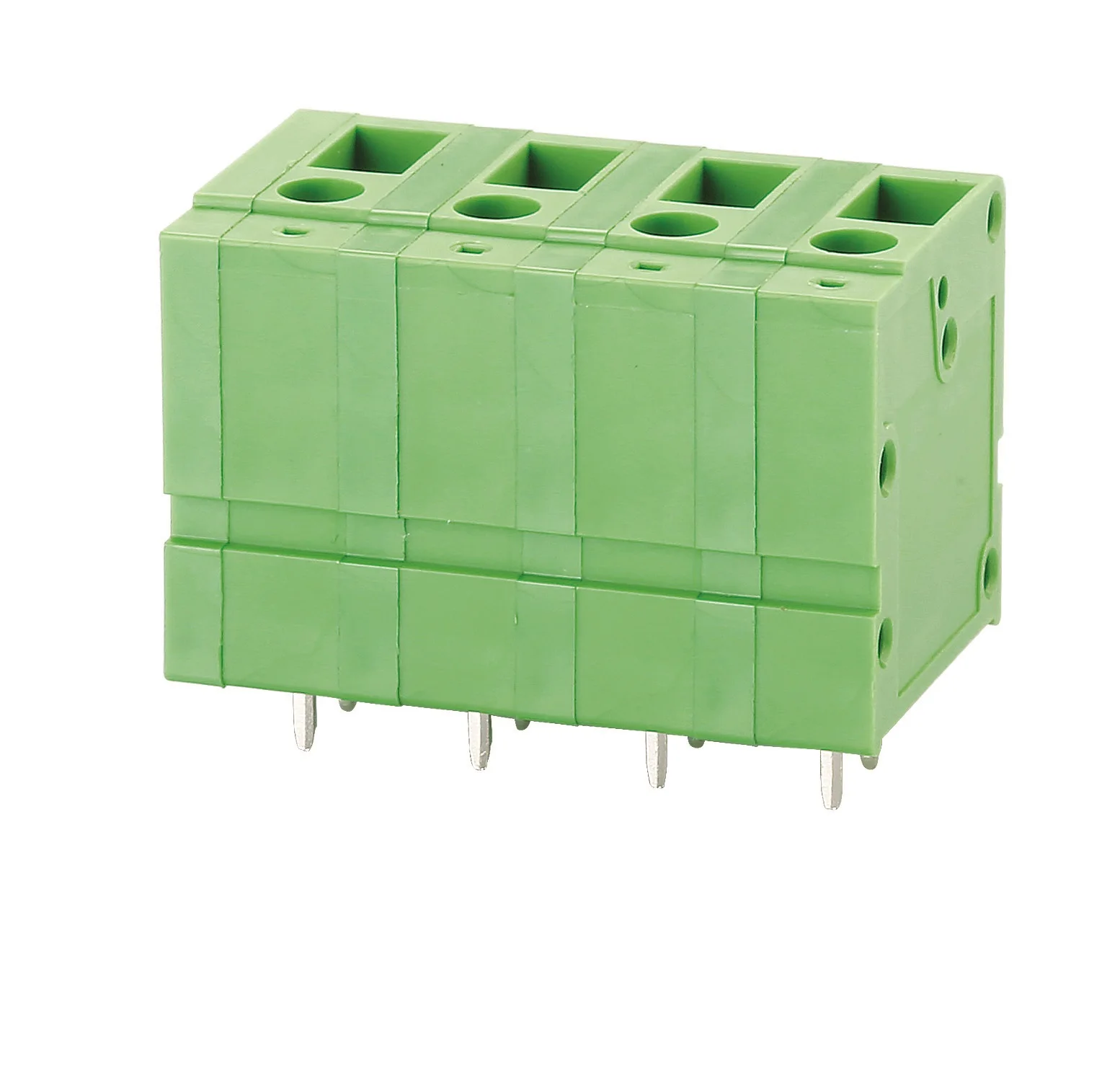

5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector
5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector
5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector
5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector
5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector

5.0mm x 5.0mm Pitch Vertical PCB Screw Terminal block Connector

Share on (60725183027):


Price:

Quantity:


Product Overview

Description


WANJIE TERMINAL BLOCK


Green, Front, 5mm, Vertical


Color: Green


Certificate:UL


Rated voltage: 300V


Rated Current: 15A


pitch: 5 mm


Housing: PA66 94V-0


Poles: 1-NP

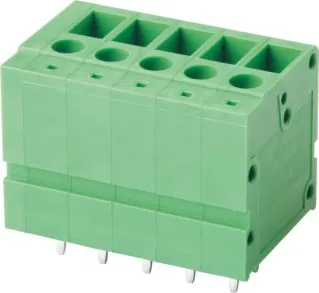

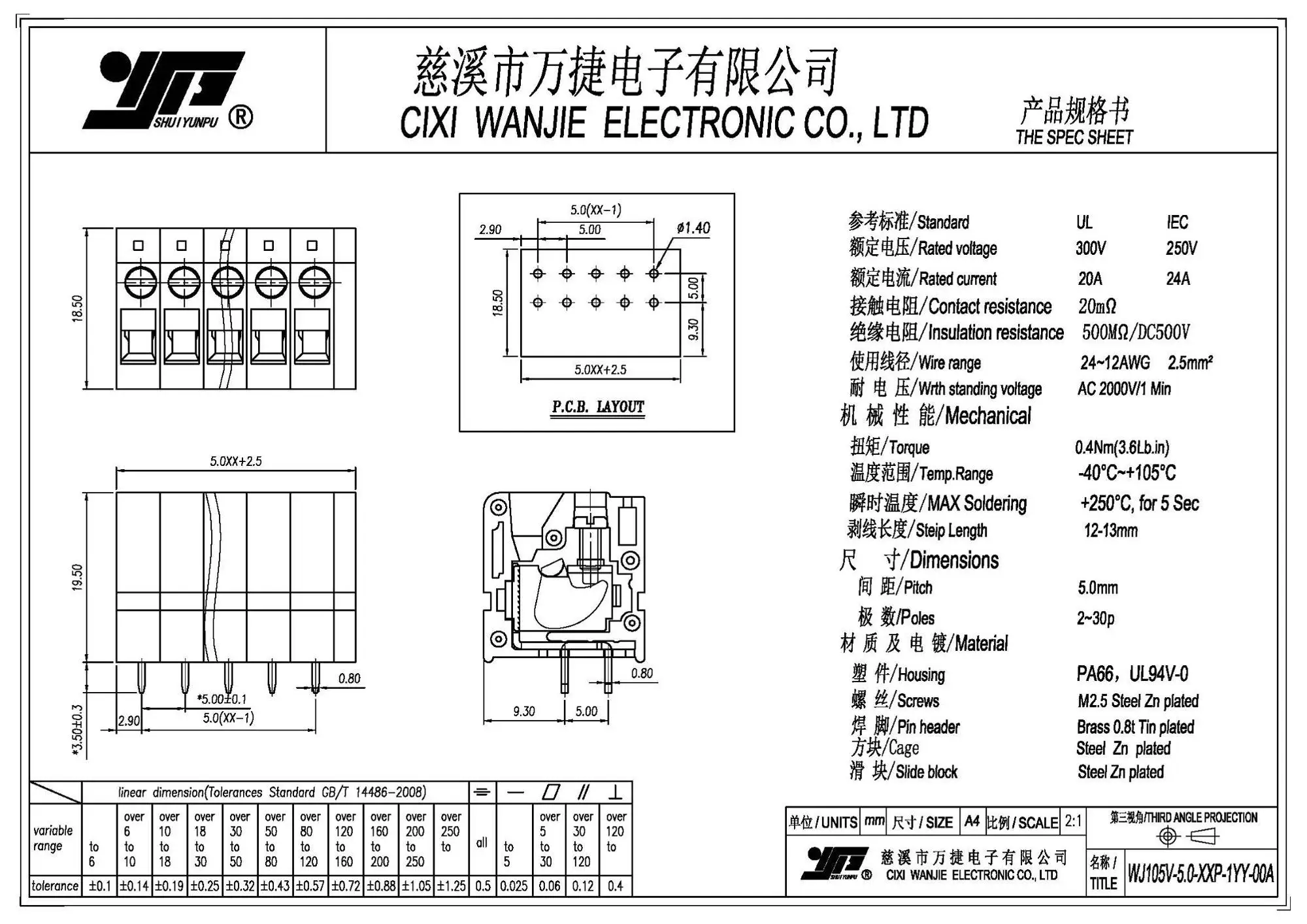

Part no.: WJ105V




Green, Front, 5mm, Horizontal

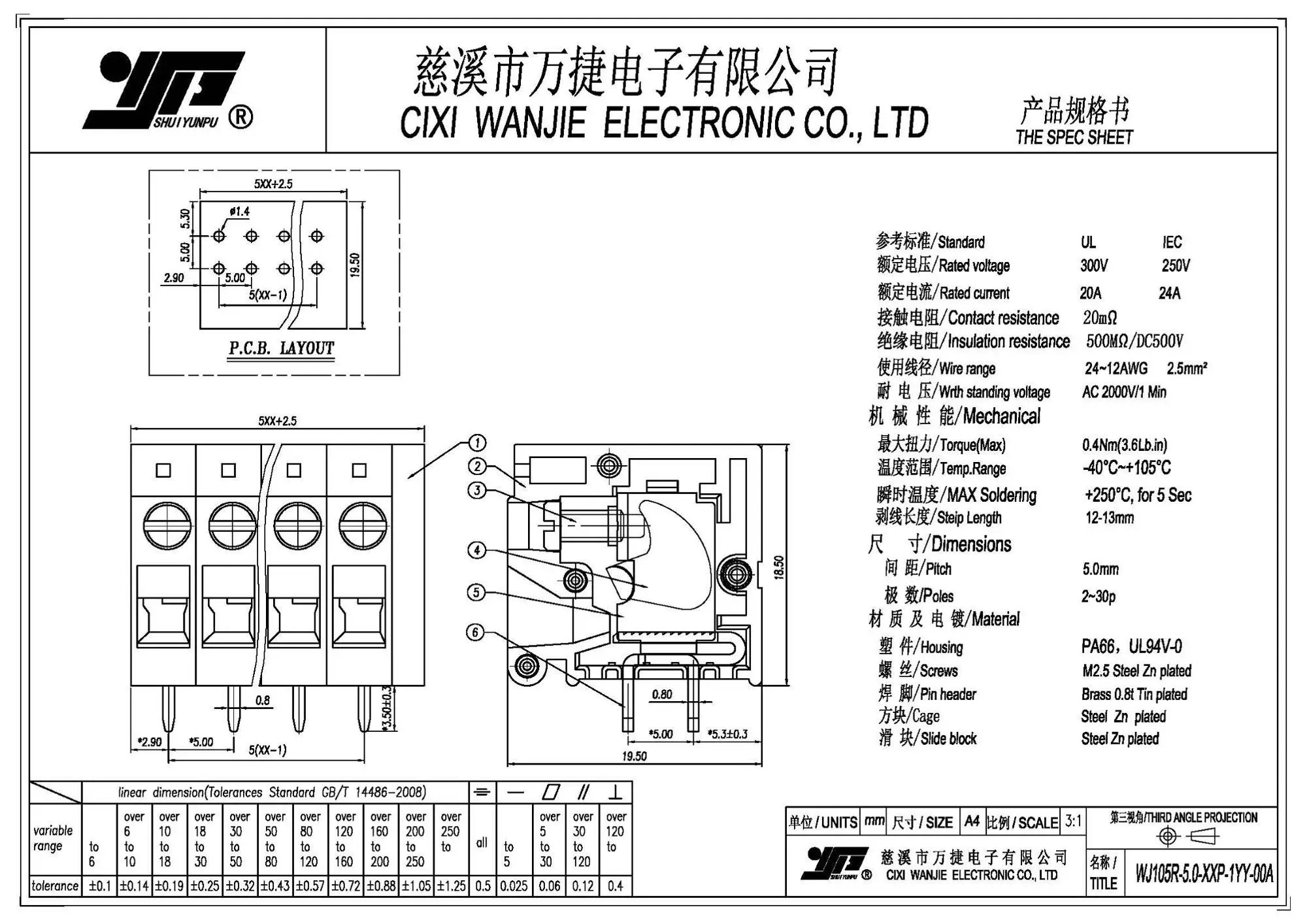

WJ105R




Different pin header layout

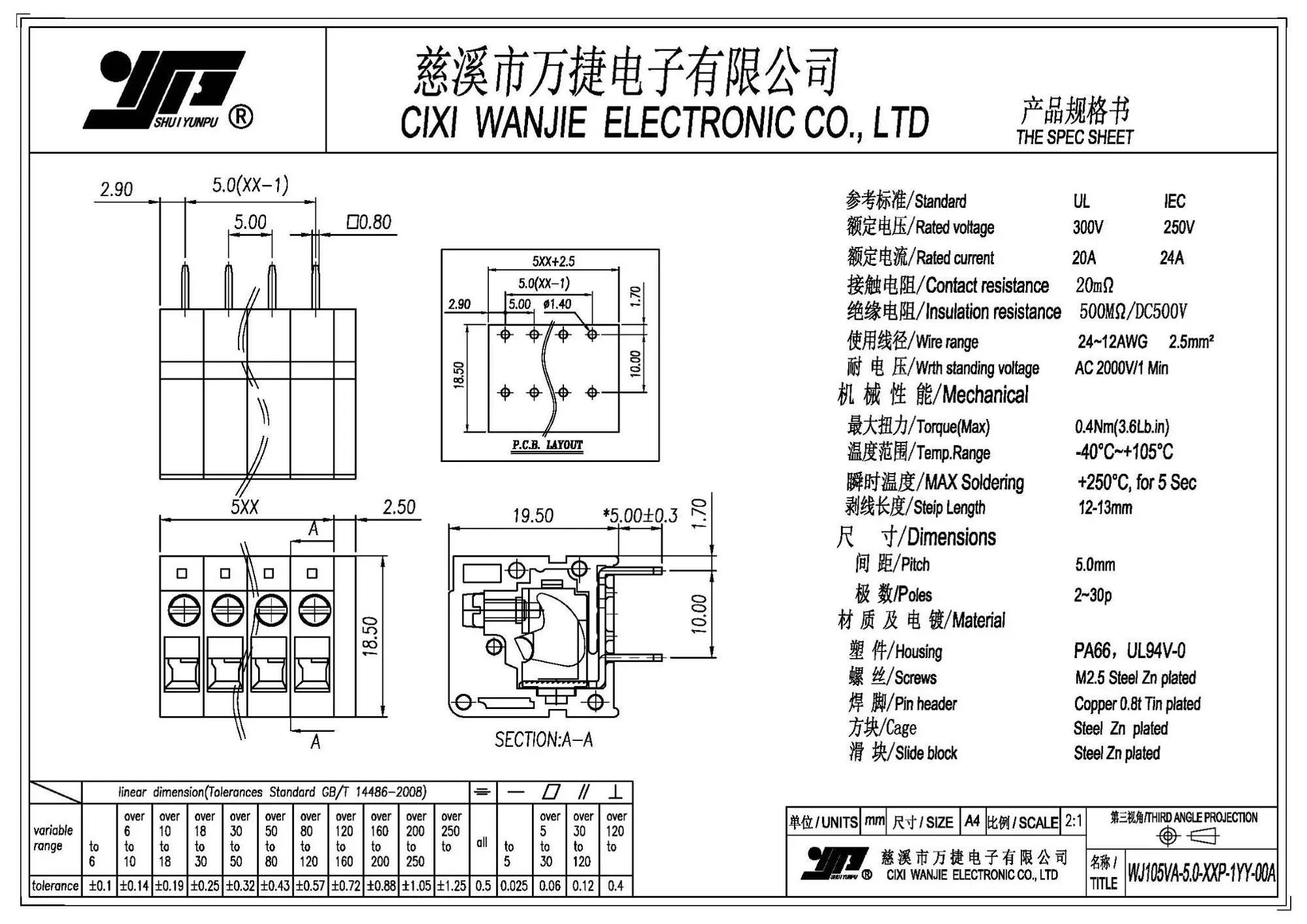

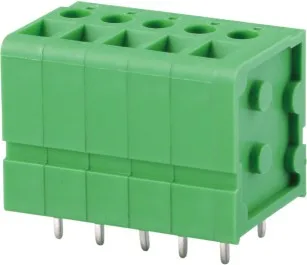

WJ105VA

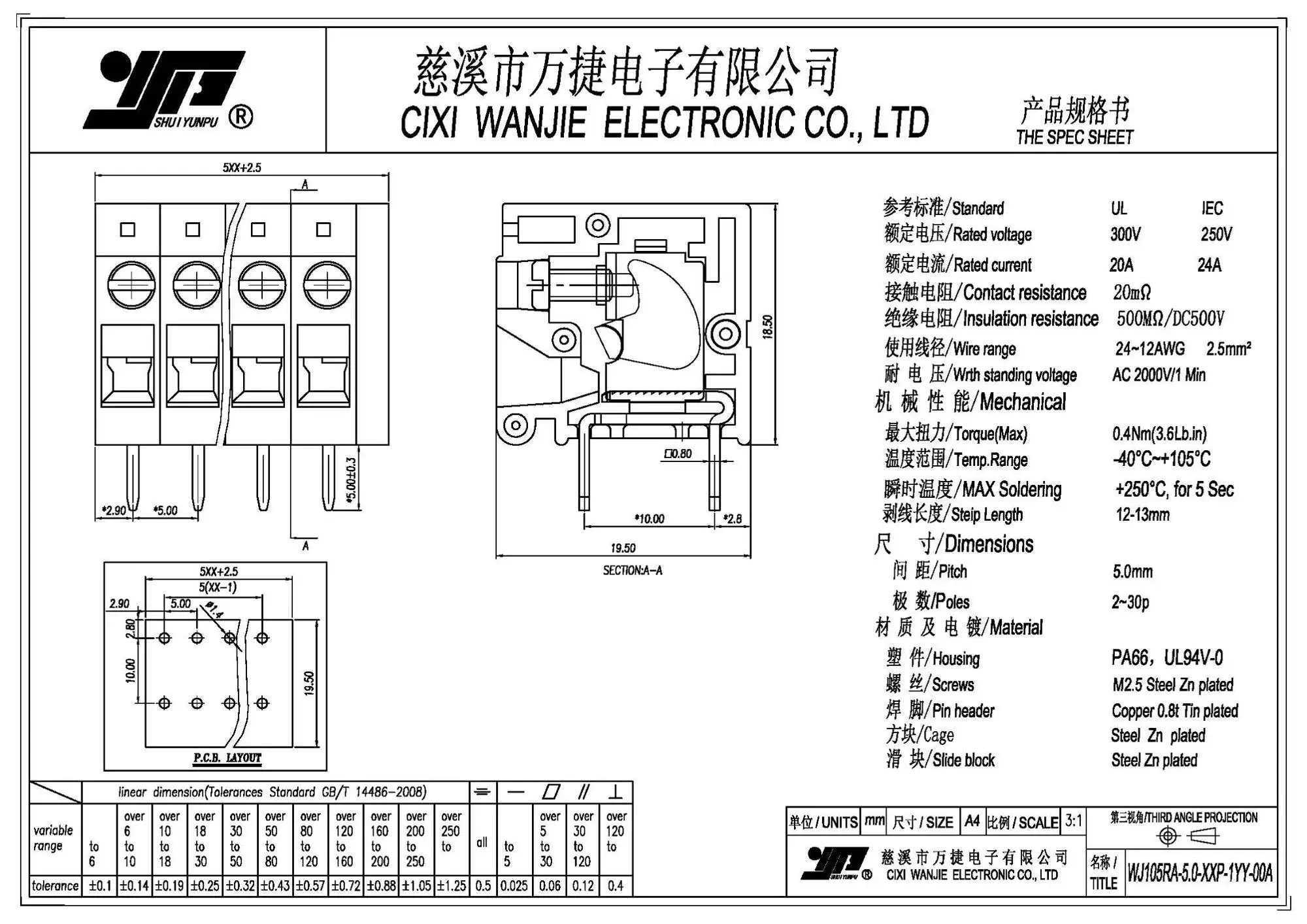

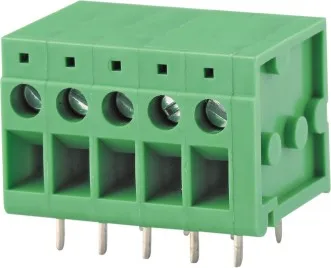

WJ105RA





UL/CUL
























Use Group








BCD

Rate Voltage [V]








300-300

Rated Current [A]








20-10

Wire Range [AWG]






26~12

Dielectric Voltage-Withstand






1.6KV


IEC




























Overvoltage Category








IIIIIIII

Contamination Class








322

Rated Voltage [V]








250400630

Rated Current [A]








242424

Impulse withstand voltage [KV]








444

Conductor cross section[solid/flexible] [mm²]






0.5~2.5


Material




















Insulation Material






PA66

Flame relardant rating






UL94V-0

Conductor Material






Copper alloy

Plating of conductor surface






Sn plated


Other Data
































Pitch/Poles [mm]/[P]






5.0/1~30

Stripping Length [mm]






12~13

Screw/Torque(Max)[N.m]






M2.5/0.4

Operating temperature [℃]






-40~+105

Soldering temperature






260℃/5S

Pin dimensions [mm]






0.8*0.8

PCB Hole Diameter [mm]






Ø1.4
