circulating air circulator fan solar basement vent solar ceiling exhaust vent
- Category: >>>
- Supplier: Jiangmen Sunny Photoelectricity Technology Limited
Share on (60725214428):
Product Overview
Description
Advantages

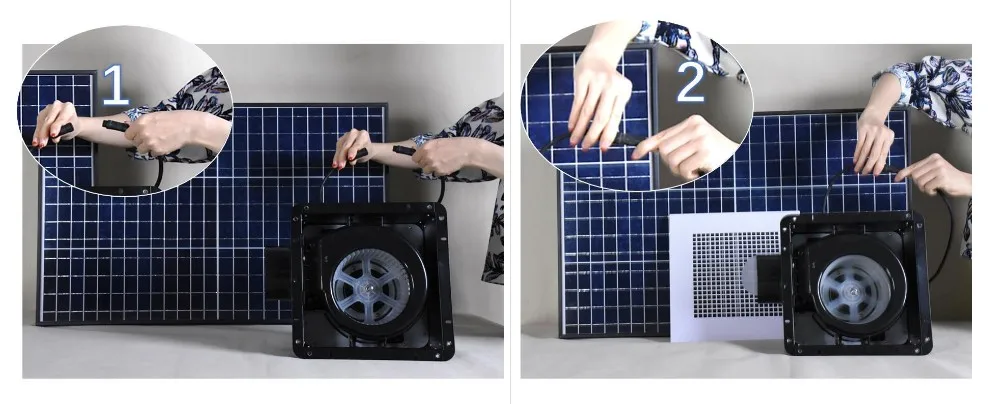

One Plug Wiring
The wiring of this solar fan is super easy. Everyone can DIY! The fan is DC 18V which is safe for human body thus no need to hire electrician as well!
Product Details

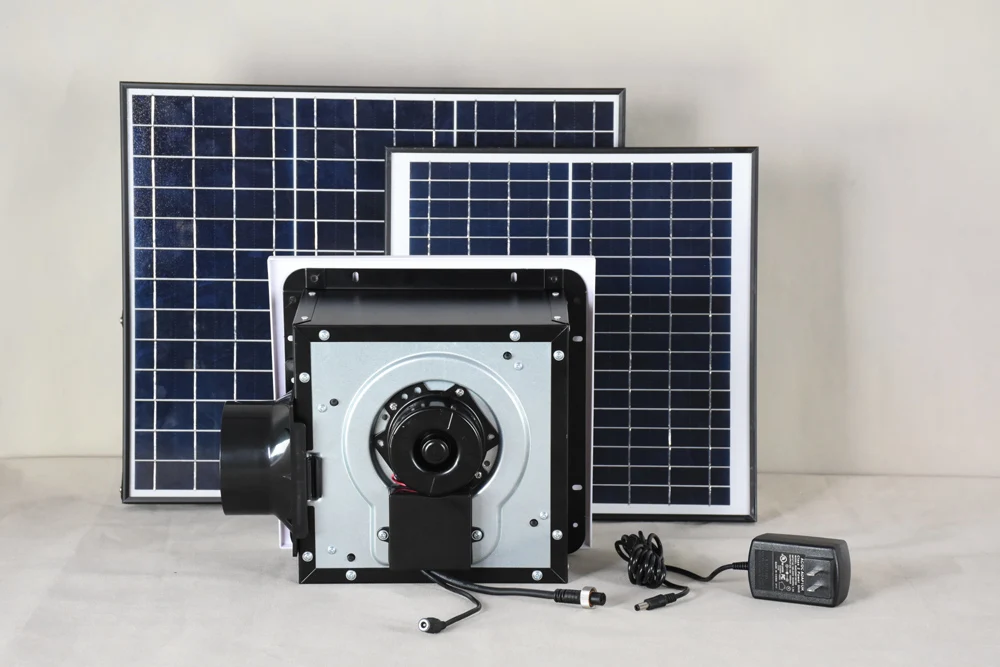

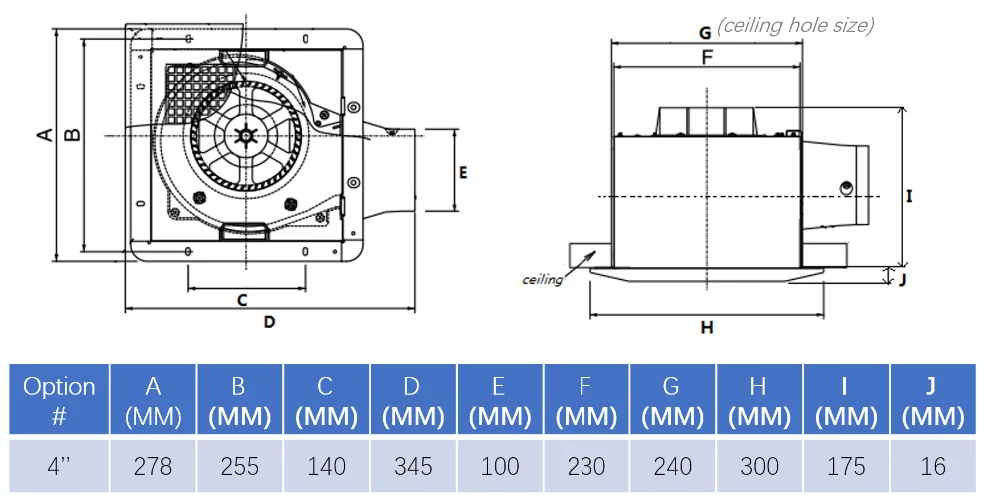

Structures
Specification

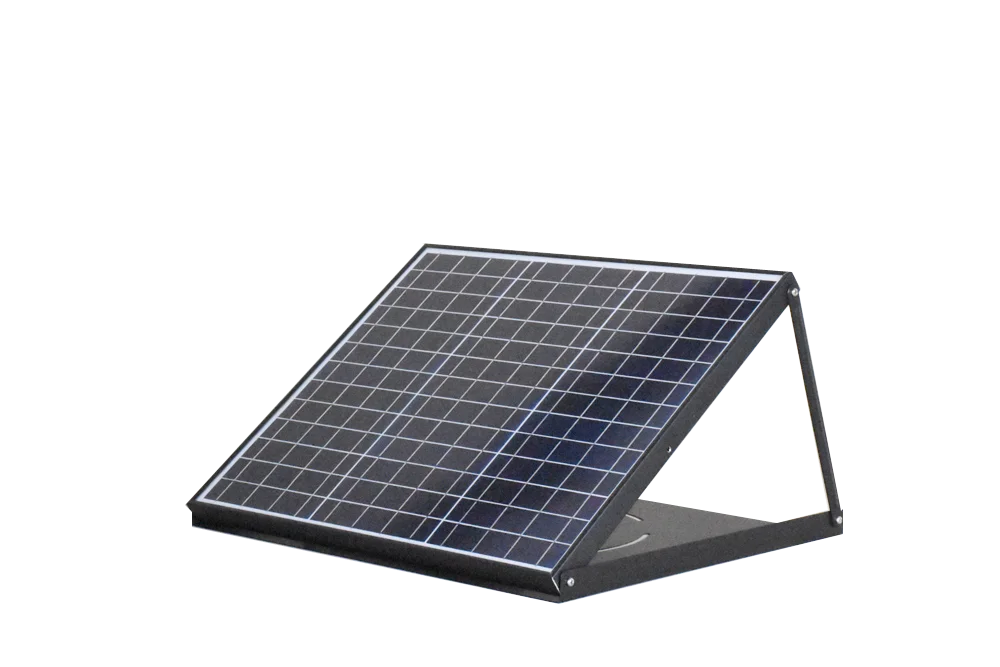

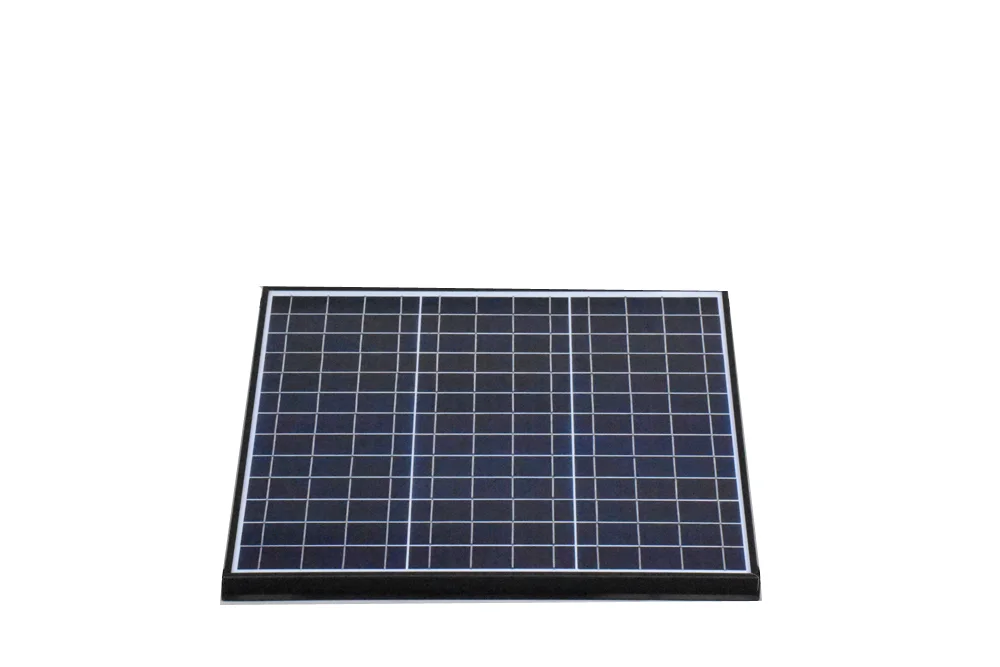

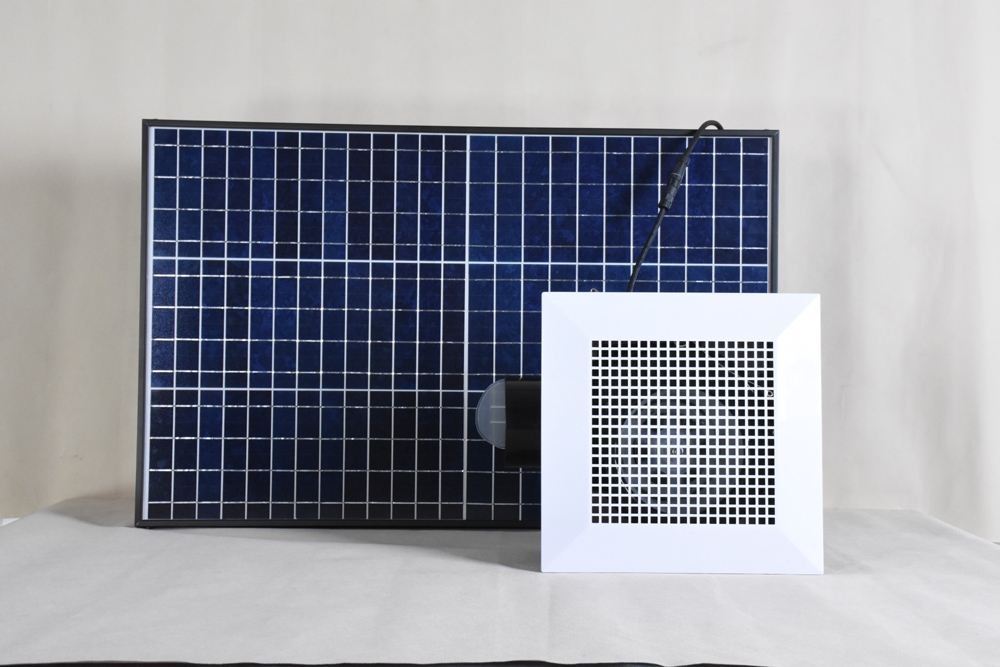

30W polycrystalline solar panel (495x415x25mm),
19.5V brushless DC motor,
Φ100mm air outlet, centrifugal type plastic fan blades,
12 inch flat louver (size: 290x290mm),

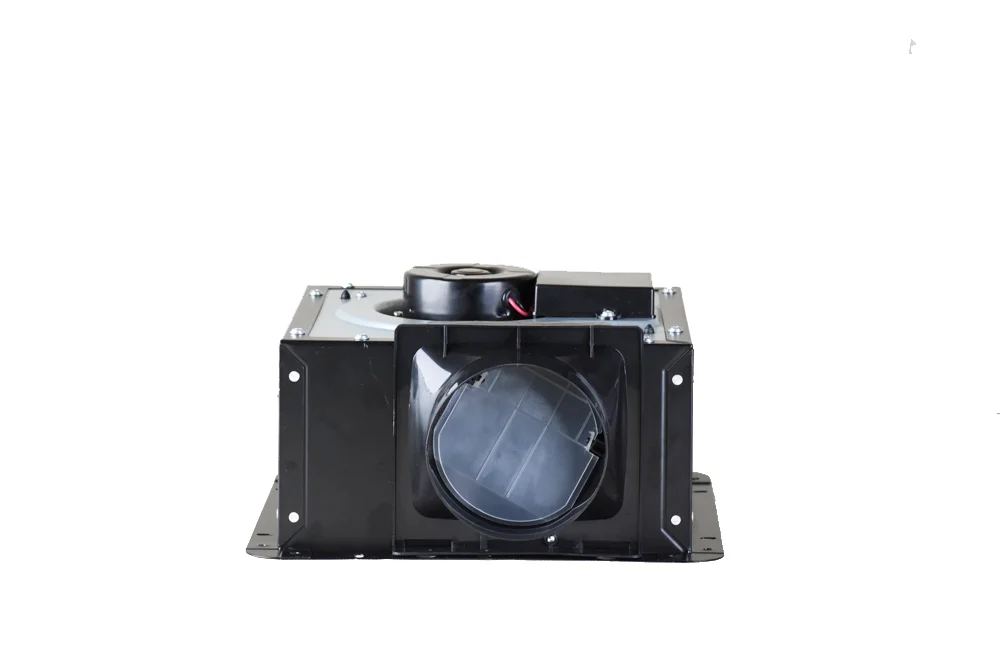

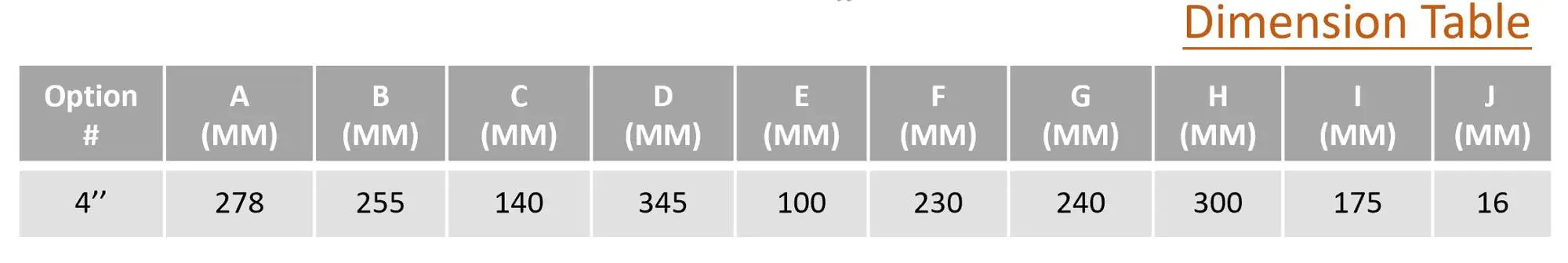

fan body: 230x230x135mm (the part that will insert into ceiling),
with 10m cable to connect fan host & solar panel
【work time: sunny day hours, when sunlight is available】
19.5V brushless DC motor,
Φ100mm air outlet, centrifugal type plastic fan blades,
12 inch flat louver (size: 290x290mm),
fan body: 230x230x135mm (the part that will insert into ceiling),
with 10m cable to connect fan host & solar panel
【work time: sunny day hours, when sunlight is available】
The other installation accessories you may need: | ||||||

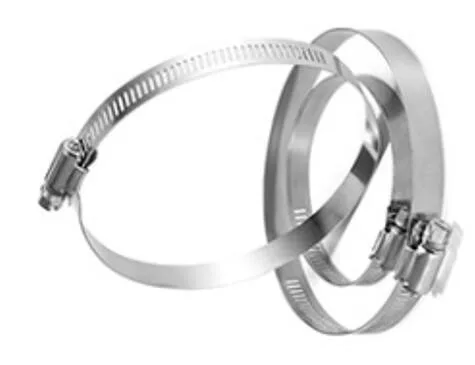

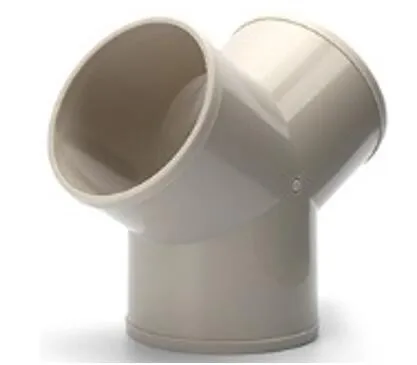

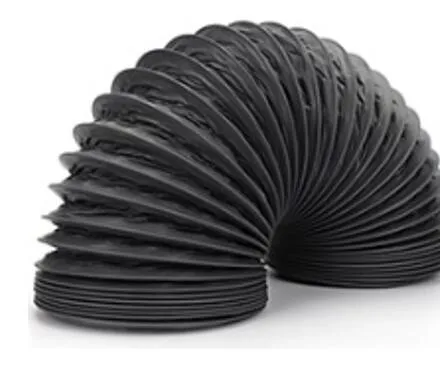

foil tube | host clamp | Y joint | air outlet | |||
Intelligent System (optional)

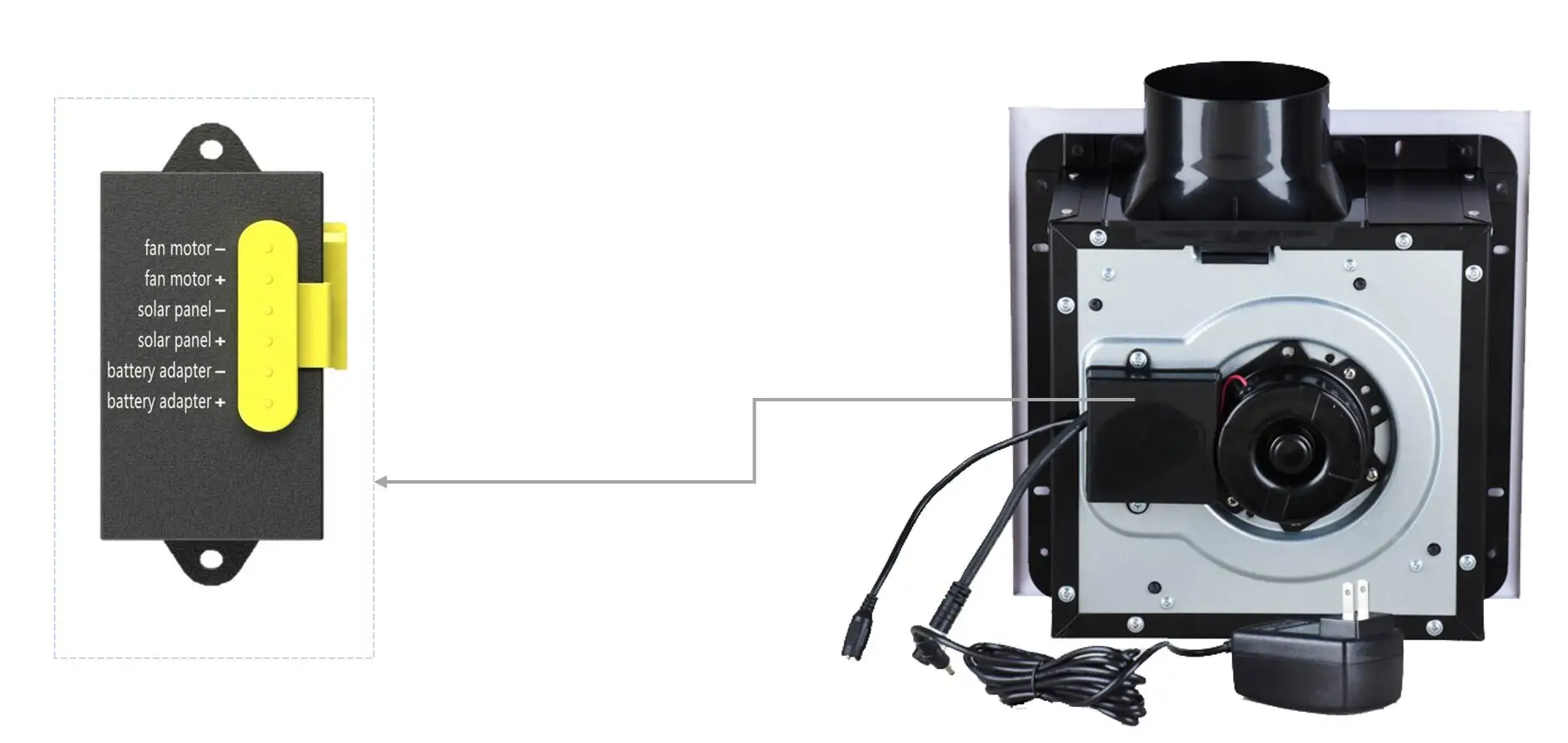

Auto Switch Controller
This waterproof controller is like a little smart computor, the solar wattage output becomes its signal so that it can sense when sunlight is weak, and then it switches in the back-up power to power the fan together with the solar panel. Not any solar energy is wasted, meanwhile, fan is still running fast.
And you may decide Battery or Adapter as back up depending on whether there is convenient AC grid in your location.
1. solar battery system
Battery Capacity：12.8V 9.6Ah
60W polycrystalline solar panel (495x782x30mm),
30w to support motor runs directly at daytime,
30w to charge 12.8V 9.6Ah battery at daytime
30w to support motor runs directly at daytime,
30w to charge 12.8V 9.6Ah battery at daytime
Advantage: Allow the fan working 24h in area without electricity
Wiring is simple, just need to connect one plug to the fan, no need to hire any electrician
2. AC/DC Power Adapter
Input：AC100-240V 50/60Hz
Output: DC 18V 1000mA
Advantage: Cost is low while the fan can run fast anytime when cloudy, raining or at night, not limitted by sunlight intensity
Energy consumption is low as 18W, even when the fan is not using solar energy, it is still very cost saving for you
Warranty
We are offering Assurance both in product quality and trade, promising to better serve your need for a
long-term and win-win cooperation.
Product Part | Designed Lfespan | Warranty |
Metal Casing | 20 Years | 15 Years |
Solar Panel | 25 Years | 15 Years |
Brushless DC Motor | Over 10 Years | 5 Years |
AC/DC Power Adapter | 5 Years | 2 Years |
Lithium Battery | 8 Years | 2 Years |
Every spare part of our solar fan can be free replaced and maintained within warranty time, if solar fans are with something wrong themselves ( except the man-made damage ); Also, spare parts are available for replacement if the warranty is expired.
Contact : Monica Chong Skype: Monica @SIPL Tel: +86 13536070920 (WhatsApp) Email: sales02(@)sunnyintlpowerltd.com | ||||||
