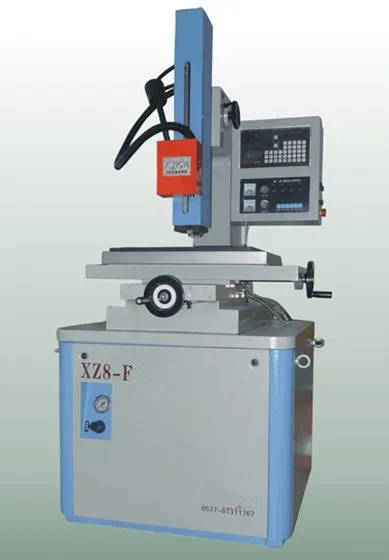

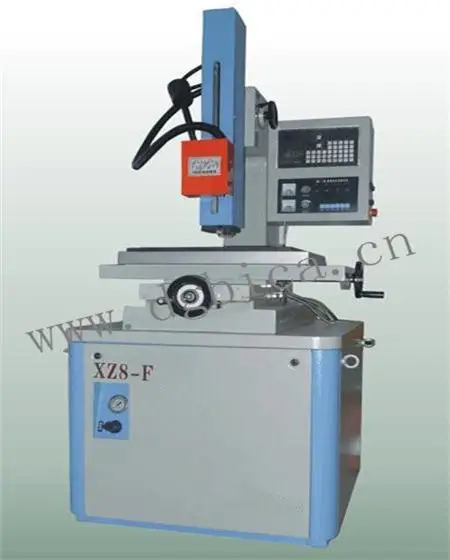

EDM hole drill machine XZ8 F with 390mm servo travel

Product Overview

Description







Product Introductions:



High speed pinhole processing machine mostly applies to process stainless steel, hardened steel, hard alloy, copper, aluminum and different kinds of conducting materialsIt can directly penetrate or drill from cant, camber and pyramidal face. The machine applies to process unmanageable deep pinhole such as threading hole of wire cutting on ultra-hard conducting material, nozzle opening of oil pump, spinneret orifice of spinning die, oil way of hydropneumatic components and cooling hole of engine.

Feature:
1. Fast processing speed and low consumption
2. Install numerical display device
3. Ultra thickness: main axis travel 300, applying to thick part processing.
4. Ultra travel: servo travel 300, lengthened electronic pole is available and 15% of pole saving
5. Z-axis uses dual straight rack with high efficiency and good stability.
6. X and Y axis uses ball bearing lead screw easy to ensure feeding precision.
7. The angle of main axis is adjustable for angling hole processing.
8. Electronic fluctuating and easy operation.



Parameters of  EDM Hole Drill Machine(XZ8-F):



EDM Hole Drill Machine(XZ8-F)
Work table dimension	450*300mm
Electrode diameter	0.3-3.0mm
Servo travel	390mm
Work head travel	300mm
Travel of x-y axis	370*270mm
Imput power	3.0kw
General electric capacity	380v 50HZ
Max machining current	30A
Max.workpiece weight	200kg
Working-fluid	water
Weight of machine	500kg
Machine diemensions (L*W*H)	760*800*1700mm
Base size of installation	1800*2000mm



FAQ



1.What is the delivery time?

Usually It is 7~30 days, sometimes we have stock of edm hole drilling  machine.



2.What about the package?

Outside package:export standard wooden case

Inner package:strech film



3.Do you provide training and maintainence?



Yes,you can send your worker to our factory, and our engineer will give them training until they can operate the machine skillfully.





4.What kind of payment term do you accept?



T/T ,  L/C,paypal and so on. For T/T, after the confirmation of the order,  30% deposit is needed.And 70% balance defore we send out the goods.



5.Are you EDM machine manufacturer?

Of course,we have been the manuafacturer of edm hole drill  machine for 16 years, and we have 10  years export history, i am sure you will be satisfied with the quality and service. And  you are always welcomed to visit our factory of  hole drill machine in Dongguan, Guangdong,China.
