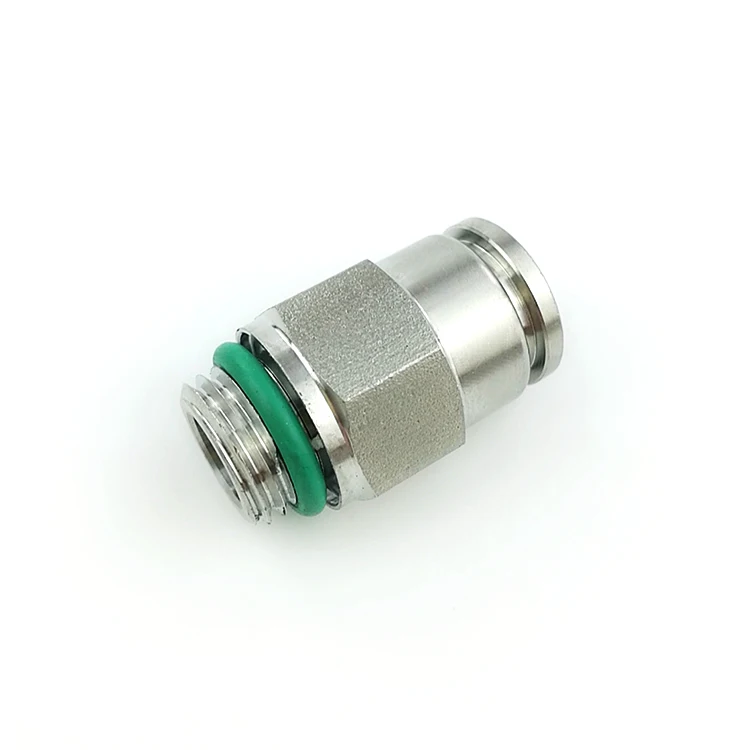

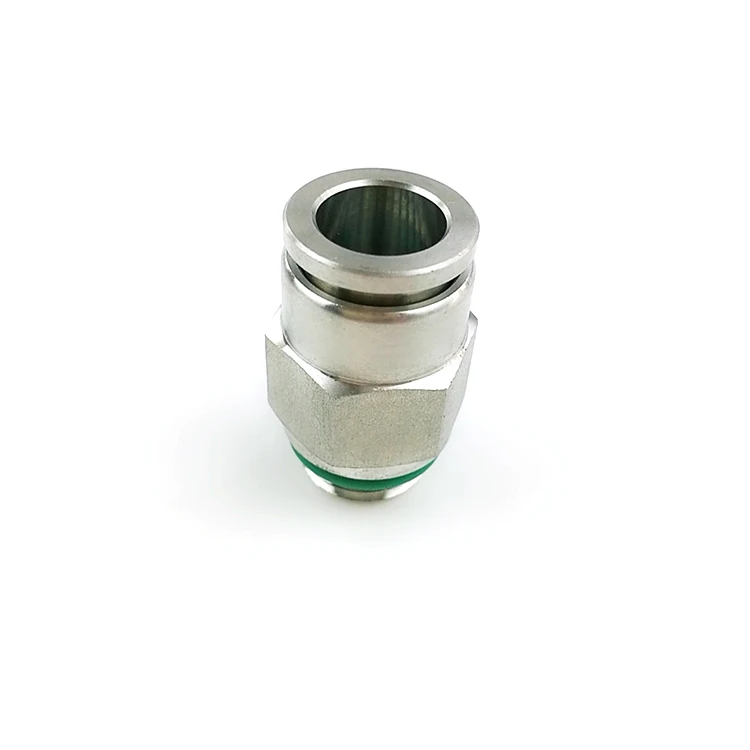

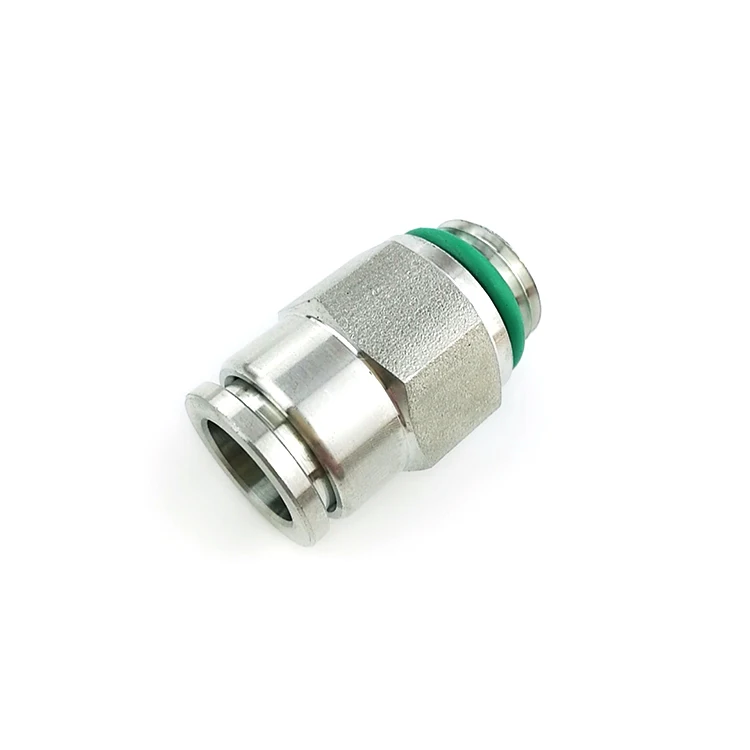

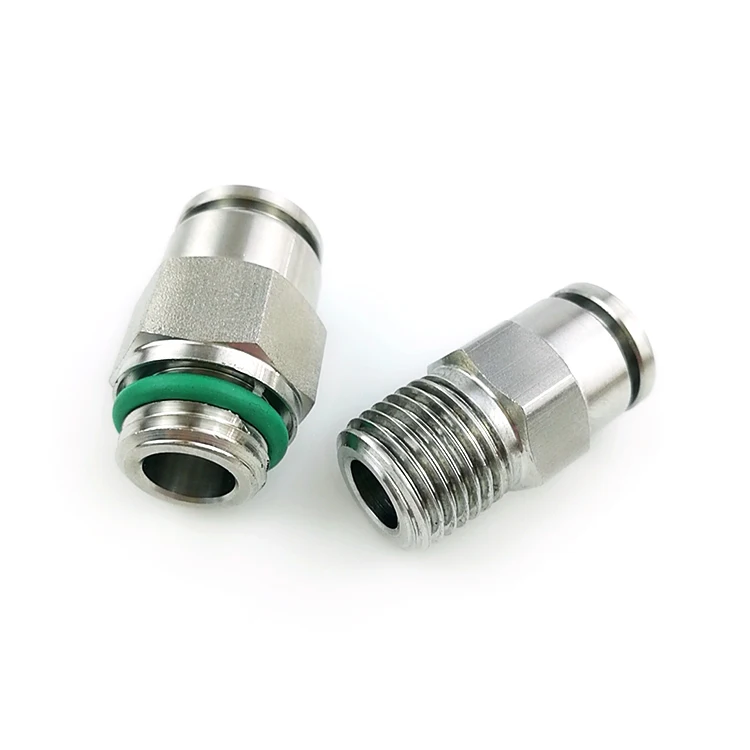

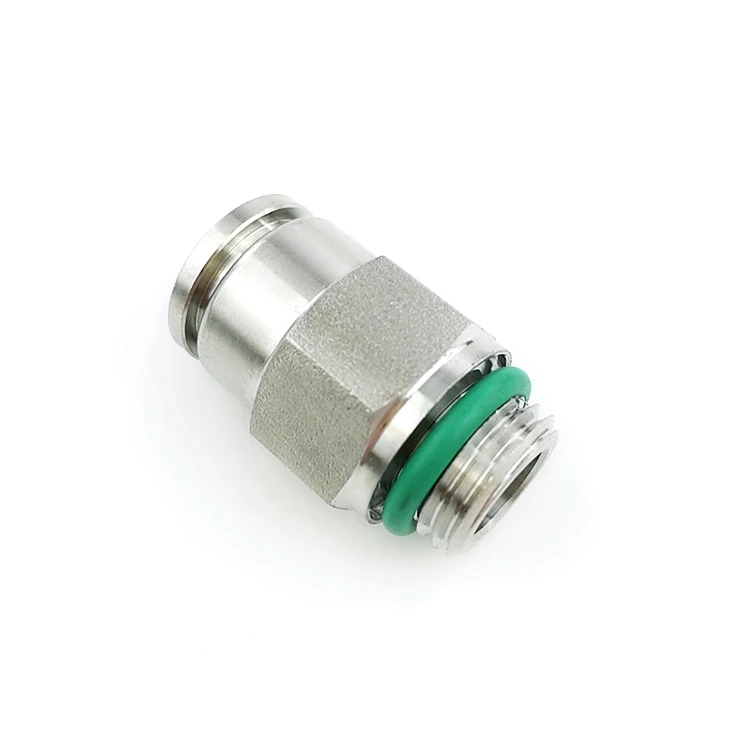

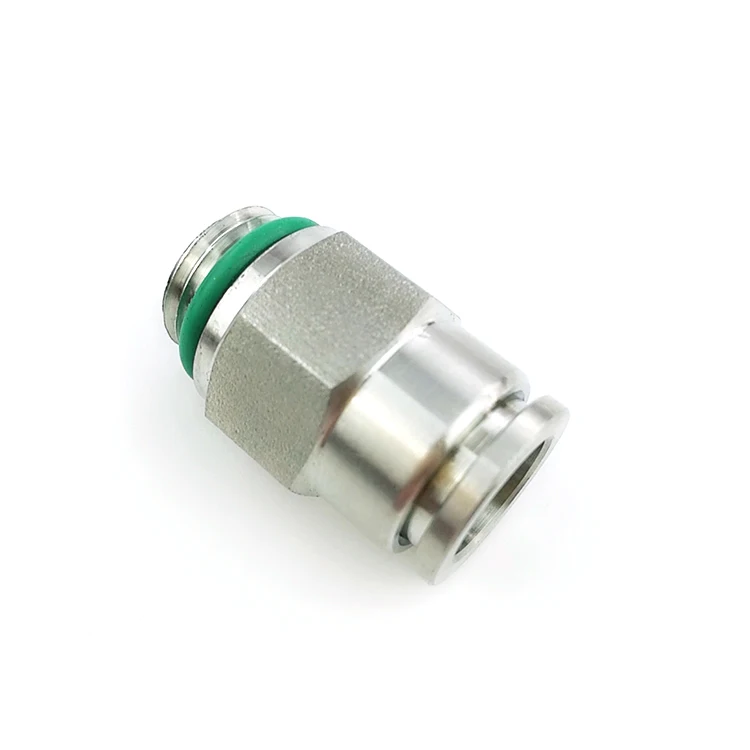

Stainless steel one touch tube fitting male straight push in tube fitting
- Category: Pipe Fittings >>>
- Supplier: Ningbo Fescolo Pneumatic Manufacturer
Share on (60725231530):
Product Overview
Description
Product Overviews
♦ Product name: SPC series SS316 stainless steel male straight fitting
♦ Ordering code:
S PC 8 - G 02
Stainless Male straight O.D. of hose Thread type Port size
4 Blank: PT 01: 1/8"
6 G: BSP thread 02: 1/4"
8 N: NPT thread 03: 3/8"
10 04: 1/2"
♦ Characteristic:
1) This series full stainless steel push in tube fittings can bear high temperature and high pressure
2) SS304, SS316, SS316L materials are available..
3) Pressure unit: 1kgf/cm2=1bar=0.1MPa=100KPa=14.5psi
4) Customized stainless steel products are available.
5) Different thread types can be offered according to customers' requirements, e.g.:PT,BSP,NPT etc.
♦ Specification:
Applicable Medium | Compressed air | |
Applicable pressure range | 0~1.2Mpa | |
Proof pressure | 1.5Mpa | |
Ambient and fluid temperature | -5~160°C | |
Material of body | SS304,SS316,SS316L | |
Material of seal | FKM(Viton) | |
Advantages
Production Flow
company profile
Certifications
FAQ
1) Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
2) What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
3) Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
4) Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
5) Which port can you delivery?
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
