Description

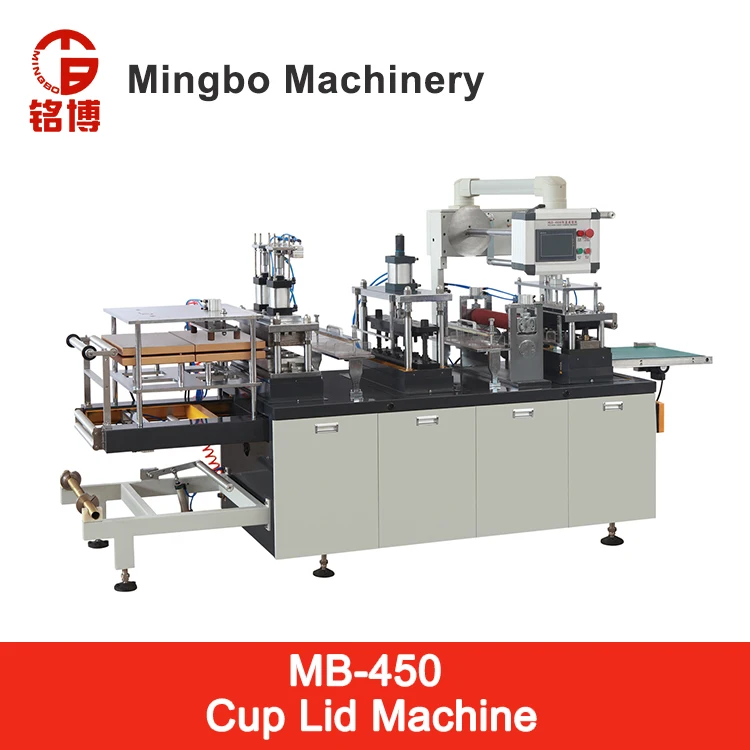

2018 new arrival fully automatic plastic cup and lid making machine(MB-450)





2018 new arrival fully automatic plastic cup and lid making machine(MB-450) is invented based on the mature technology of plastic thermoforming machinery, this is an improved model, more smart and easier to operate. this is the upgraded model of MB-420.



2018 new arrival fully automatic plastic cup and lid making machine(MB-450) Technical data:

speed	25-40 strokes/min
Output	if the lid diameter is <= 95mm, we can get 8 pcs,2 rows per stroke
Max roll diameter	540mm
Max Forming Depth	45mm
Max Forming Area	430*260mm
Total Power	6kw
Air Consumption	0.3cbm/min
Air Pressure	0.4-0.7mpa
Dimensions of Machine	3600mm×1100mm×1750mm
Weight	1200kg





2018 new arrival fully automatic plastic cup and lid making machine(MB-450) specification:

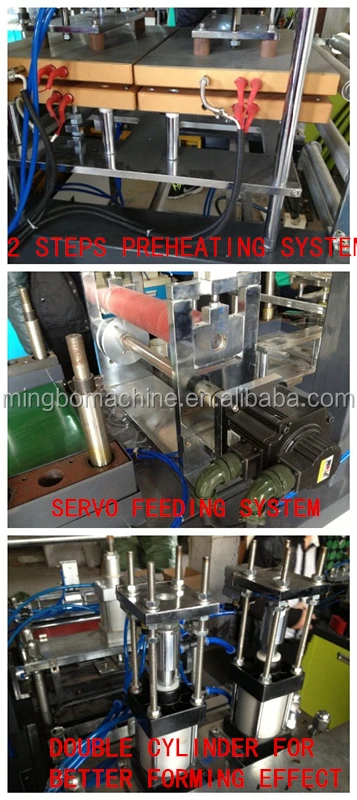

It adopt the Delta touch screen, Delta inverter and Delta PLC programmed

Delta thermo temperature module, Japan SMC Pneumatic feeding system, Mistubishi servo motor and controller.

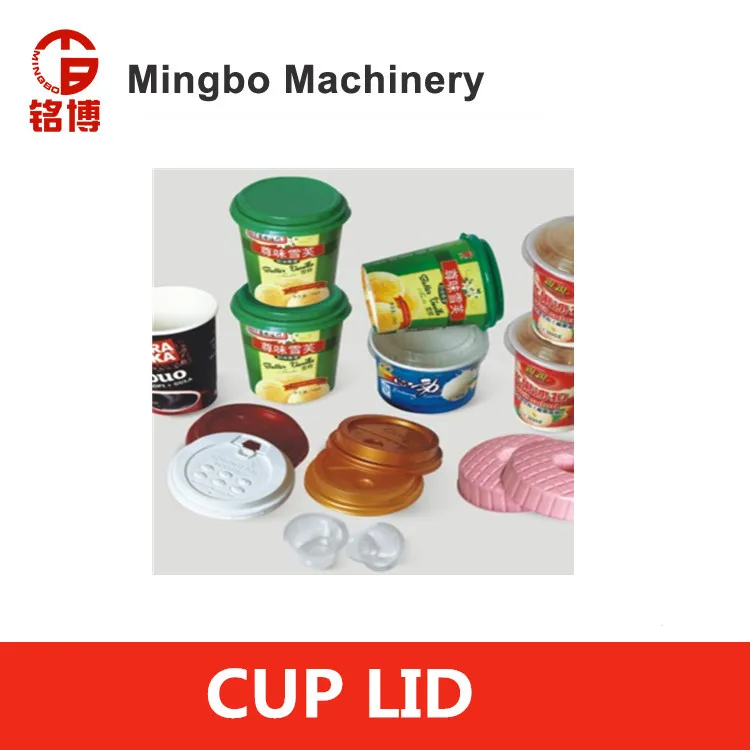

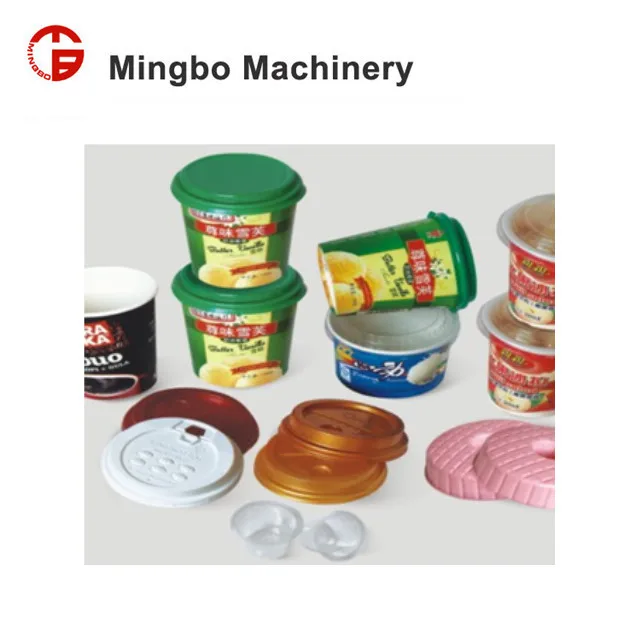

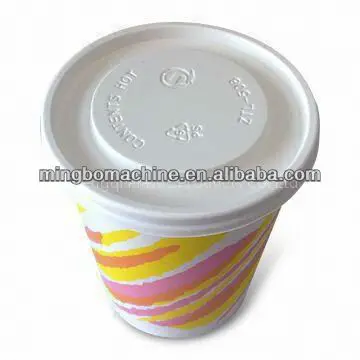

2018 new arrival fully automatic plastic cup and lid making machine(MB-450) finished products:

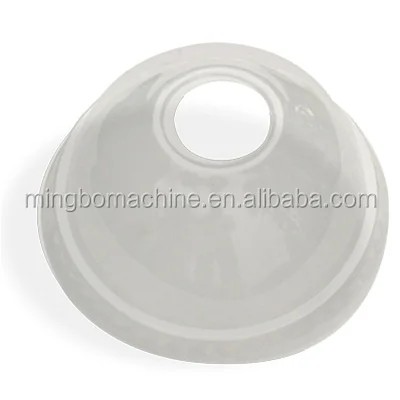

2018 new arrival fully automatic plastic cup and lid making machine(MB-450) can use almost all kinds of plastic material, like PVC, PET, PS, HIPS and so on, you can make lids with diameter 60-260mm by changing moulds.



2018 new arrival fully automatic plastic cup and lid making machine(MB-450) moulds





2018 new arrival fully automatic plastic cup and lid making machine(MB-450) video link:https://youtu.be/Od-Ag-I1hMo
