FSTB WYG WQB Reliable thermal protector capillary thermostat for water heater parts
Product Description
Capillary thermostat, also known as liquid expansion thermostat, is made based on thermal expansion and contraction principle.

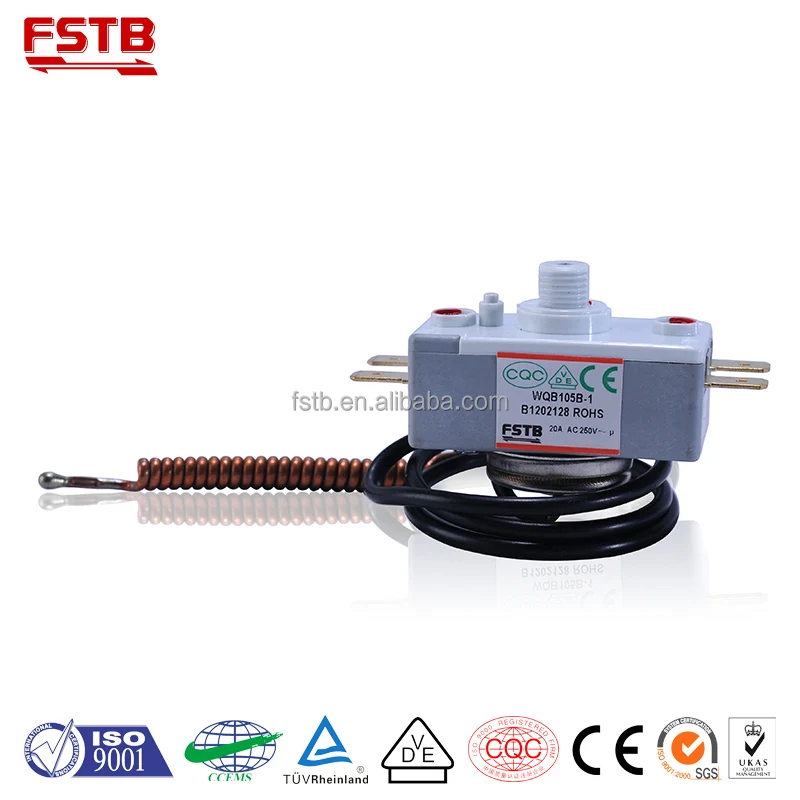

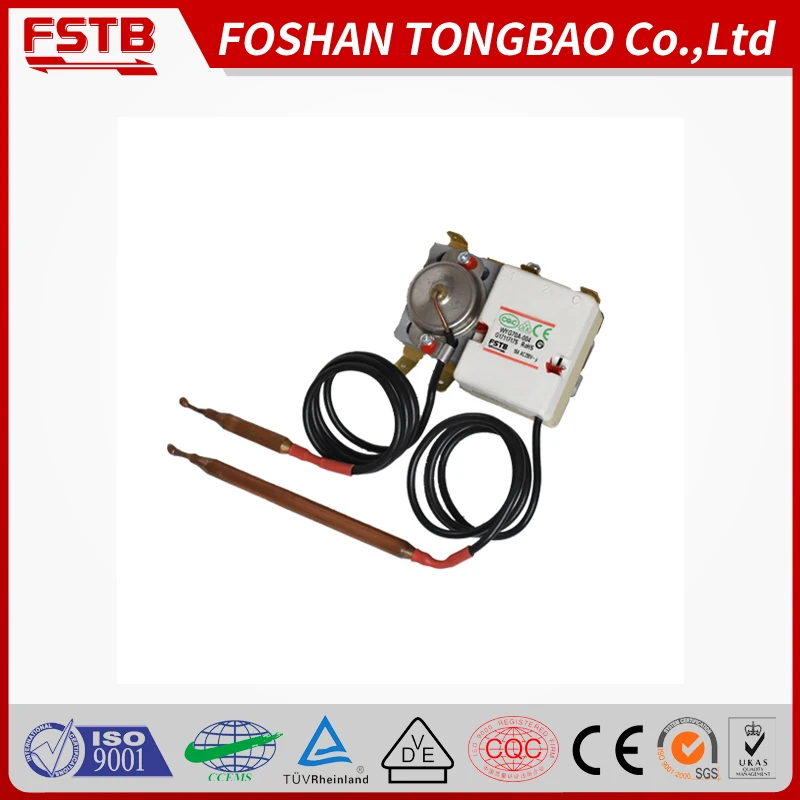

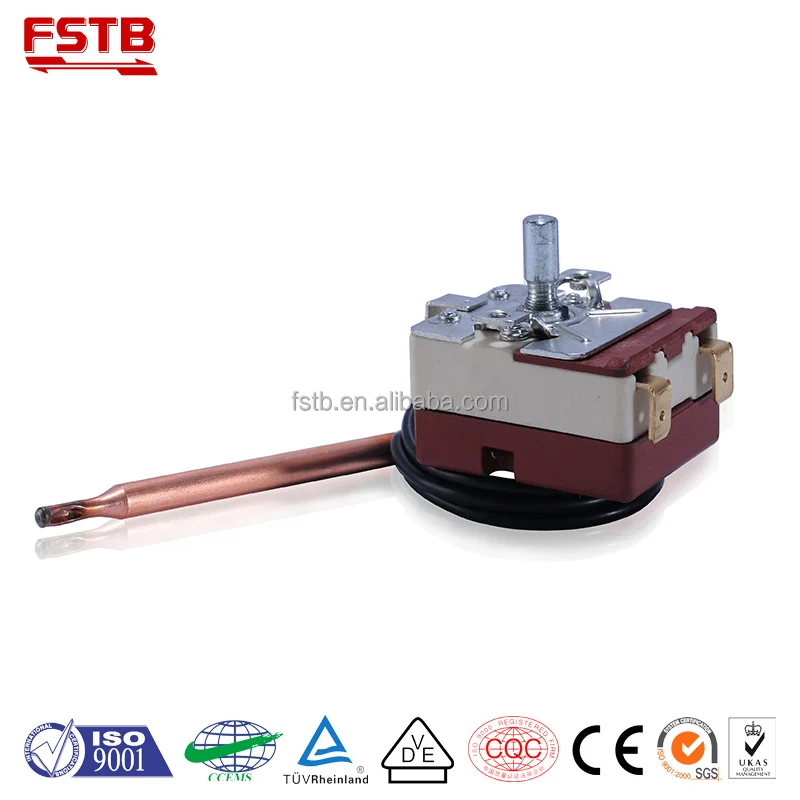

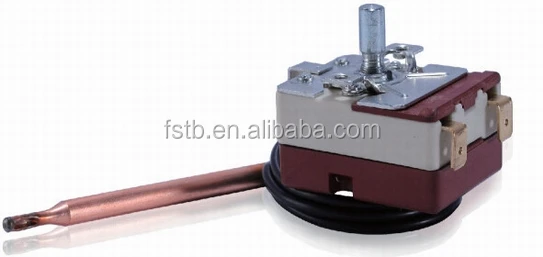

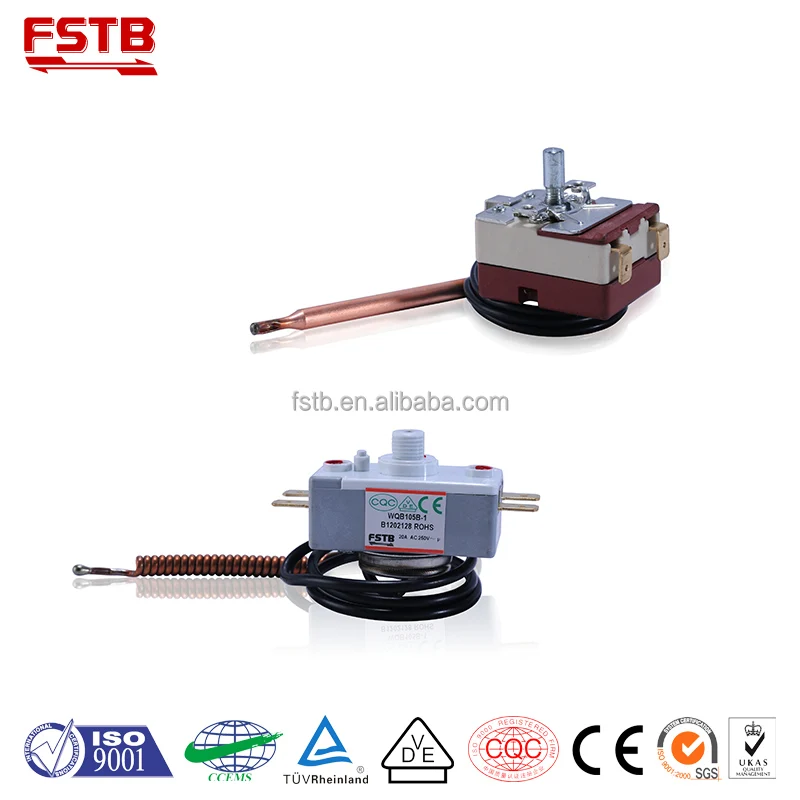

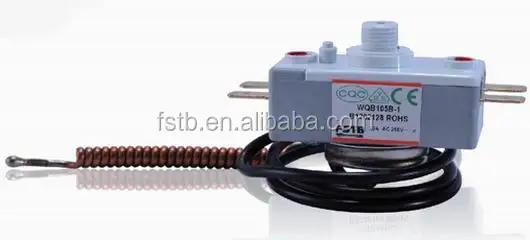

The WYG capillary thermostat,with adjustable operating temperature, is designed for temperature control. Its quick response can well prevent the unacceptable heat of water heaters, and guarantee people’s safty. WQB series capillary thermostat is often used as a thermal protector in electric water heaters. The WYG and WQB combination is a good TCO solution for water heaters.
Features:
High safety
Ceramic box
Accurate temperature control
Great contact capacity
Individual package (for distributor)

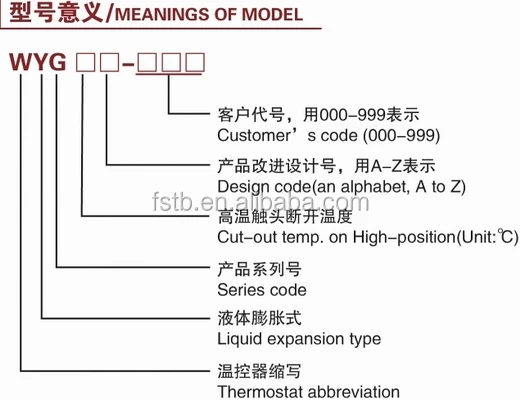

WYGParameters:
Rated current & voltage
C-1:16(2.5) A 250V~C-2:3(0.5) A 250V
C-1:25(2.6) A 277V~C-2:3(0.5) A 277V
Control range
Max.320℃
Tolerance on operating range
3~12℃
Differential range
1~17℃
Insulation resistance
>100MΩ(normal)
Dielectric strength
2000V. AC 1min (normal)
Life cycles
>100000(250V)
>30000(277V)
Test gradient
≤1.0℃/min (liquid medium)
Rotating torque of adjustment shaft
<40N.cm
Max. ambient temp. of main body
150℃
Switch type
SPST/SPDT

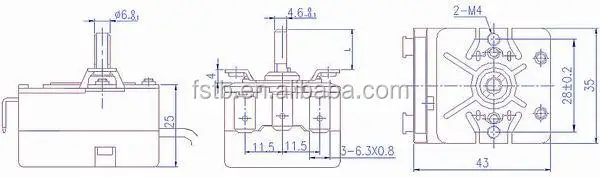

Dimension of main body:
Safety Certificate:
