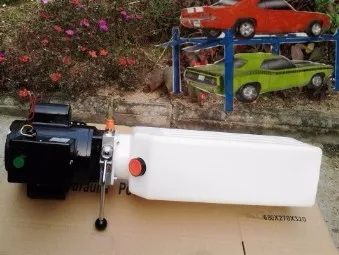

China 220v 380v auto lift mini hydraulic power unit hydraulic power pack

Product Application

China 220v 380v auto lift mini hydraulic power unit hydraulic power pack is applied to doule/four pillars car lift.Type aluminum alloy casting motor and type  2 has a optional.They both are manual cotrol valve.

Special Notes

1) The duty if this hydraulic power unit is S3.I.E.,30 seconds on and 270 seconds off.

2) Clean all the hydraulic parts concerned before mounting the power unit.

3) Viscosity of the oil should be 15-68cst.

4) This power unit should be horizontal.

5)  Check the oil level in the tank after the first star of the power unit.

6) Change the oil after the first 100 hours of using the power unit,then change the oil every3000 hour.

Hydraulic power unit Parts

Name: Motor

Brand: LIFT

Original: China

AC motor,International standard steel casting motor with CE & SA certificntion.

Center Manifold Features

Name: Center manifold
Brand: LIFT
Original: China
According to customers requirement,We designed for the usages in different flow and mounting condition.

Hydraulic power unit Parts

Name: Spare part
Brand: FELIFT
Original: China
 Solenoid valve: Max pressure:300bar

                            Max flow:20L/min

                            Coil power:18W

Oil Tank Main Features

Name: Oil tank
Brand: LIFT
Original: China

International standard palstic tank

Colour:White

"W" type:Horizontal    "L" type:Vertical
