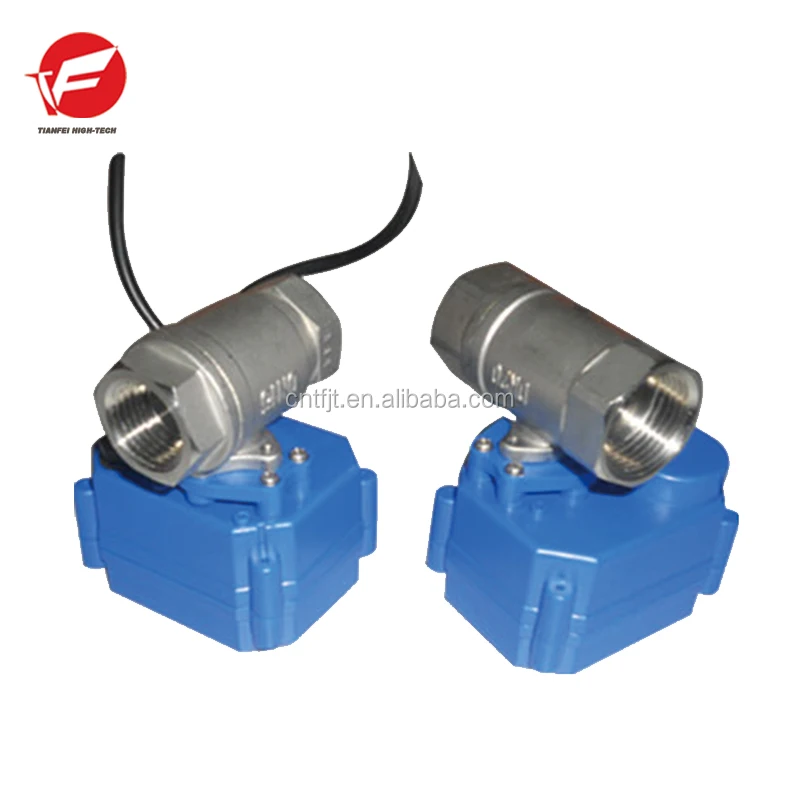

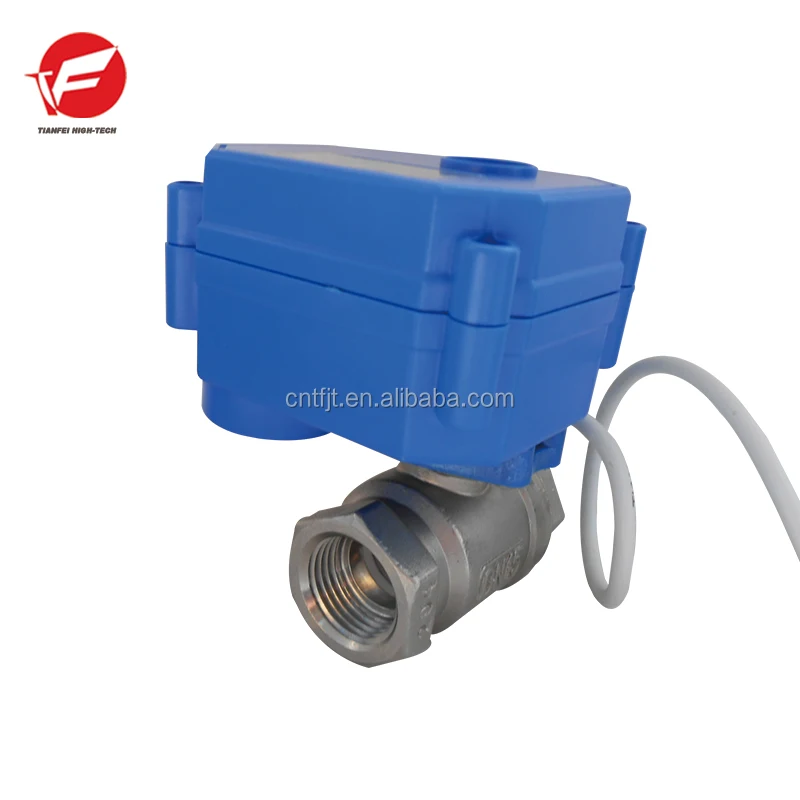

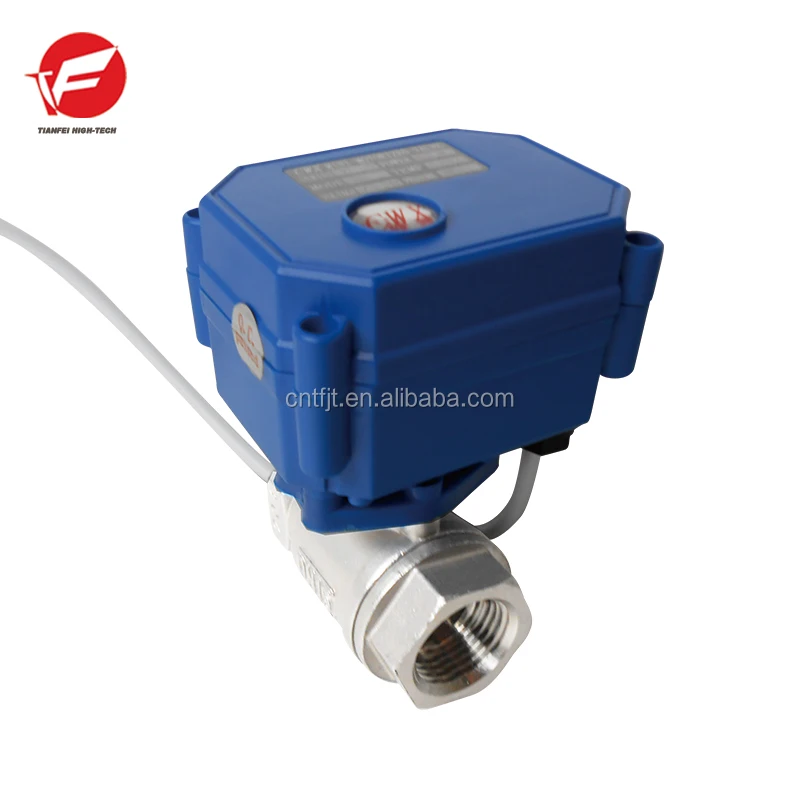

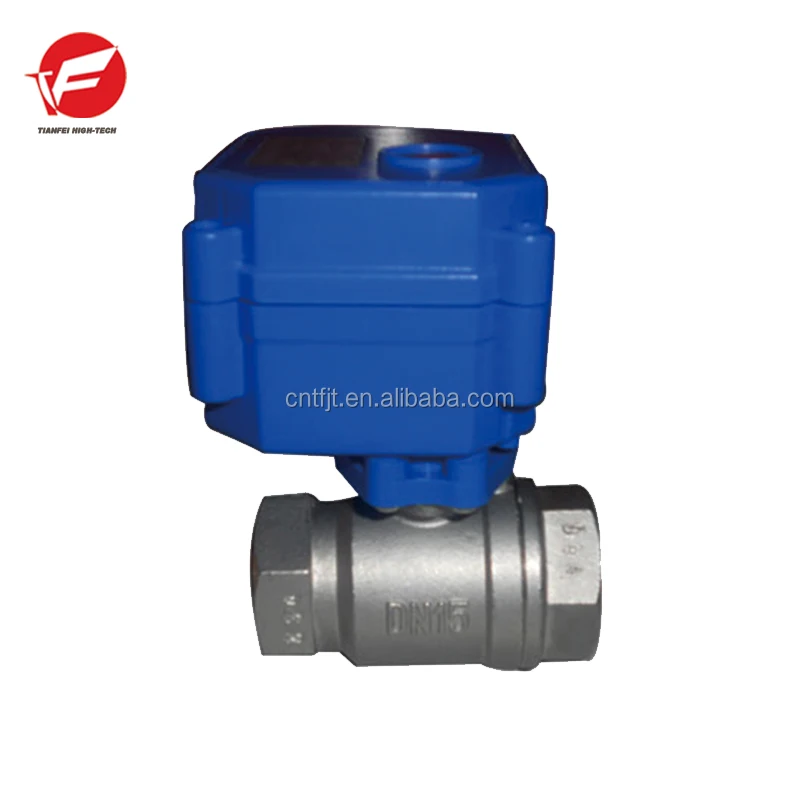

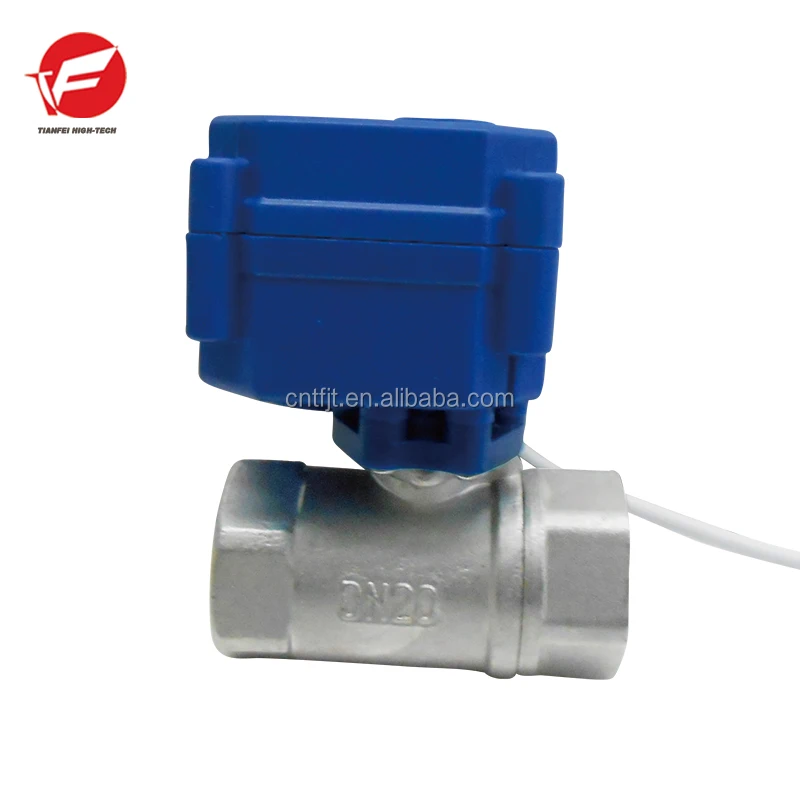

CWX-15Q/N 2-way electric water valve stainless steel material 3/4'' DN20 automatic valve actuator DC12v with three wires CR02
Product Technical Parameters
| Model | Voltage | working current | Output torque | On/off time | Wiring control |
| CWX-15N | DC12v | Max100mA(CR04 Max 150mA) | 2.0Nm | <5Sec | CR02 three wires |
| Pressure | Power | Medium Temperature | Valve size | Enclosure | Valve material |
| 1.0MPa | <2W | 0-100℃ | 3/4''=DN20 | IP65 | Stainless steel 304 |

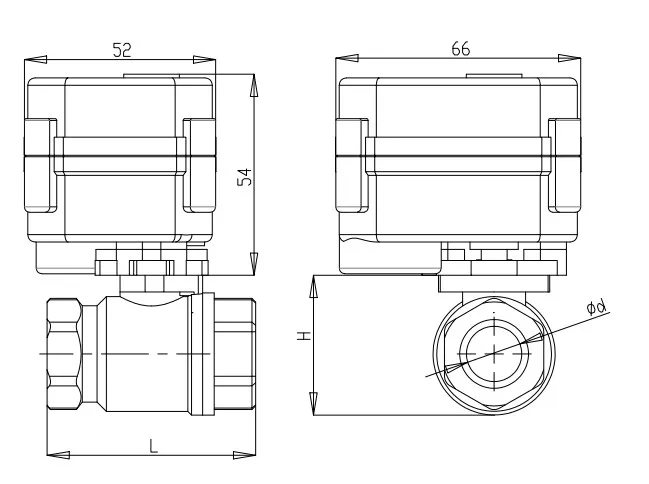

Product Size

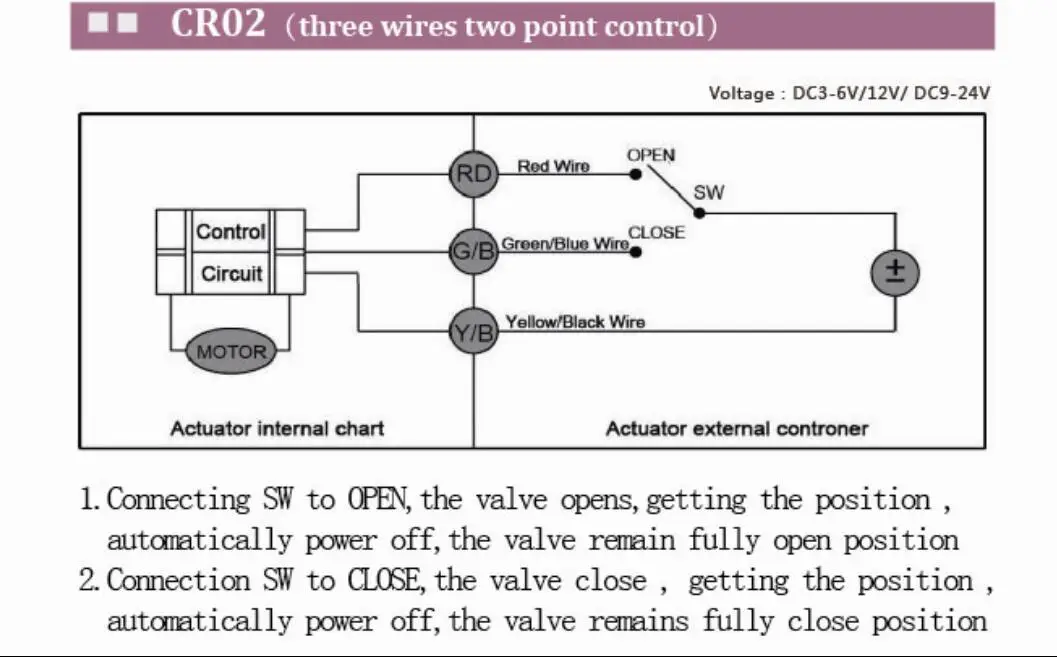

CR02 Three Wires Wiring Diagram
