flare ignition device / electronic portfire for oil or gas well
Product Description
Electronic flare gas ignition device is equipped to burn on the oil and natural gas drilling field in case of flammable and poisonous gas overflow while drilling and eliminate the harm to the environment and ensure safety.It consists of a gas guiding pipe,an ignition device,a torch and an explosion-proof hose,integrating high pressure electronic ignition and gas combustion.
Technical Parameter
Petroleum equipment flare ignitor device for oil and gas / automatic ignition system / flare ignitor device.
Fuel types
oil and gas
Gas pressure
≤0.1MPa or less
Gas inlet test pressure
0.4MPa
Largest gas consumption
1000m³/h
Power source
AC220V. 50HZ 3A (Max)
Electric ignition voltage
10KV (Max)
Electric ignition energy storage
150MJ
Spark frequency
≥5HZ
Flame detector response time
≤5S
Working temperature
the head of the ignition device(flame outlet within the range of 2m, max 600℃);the other side -25℃~60℃
Feature
Main features of our safety electronic flare ignition device / ignition unit / flare igniter for drilling:
1.High pressure electronic ignition 2.Reduce environmental impact and ensure safe 3.Equipped together with mud gas separator 4.Compiance with API 521

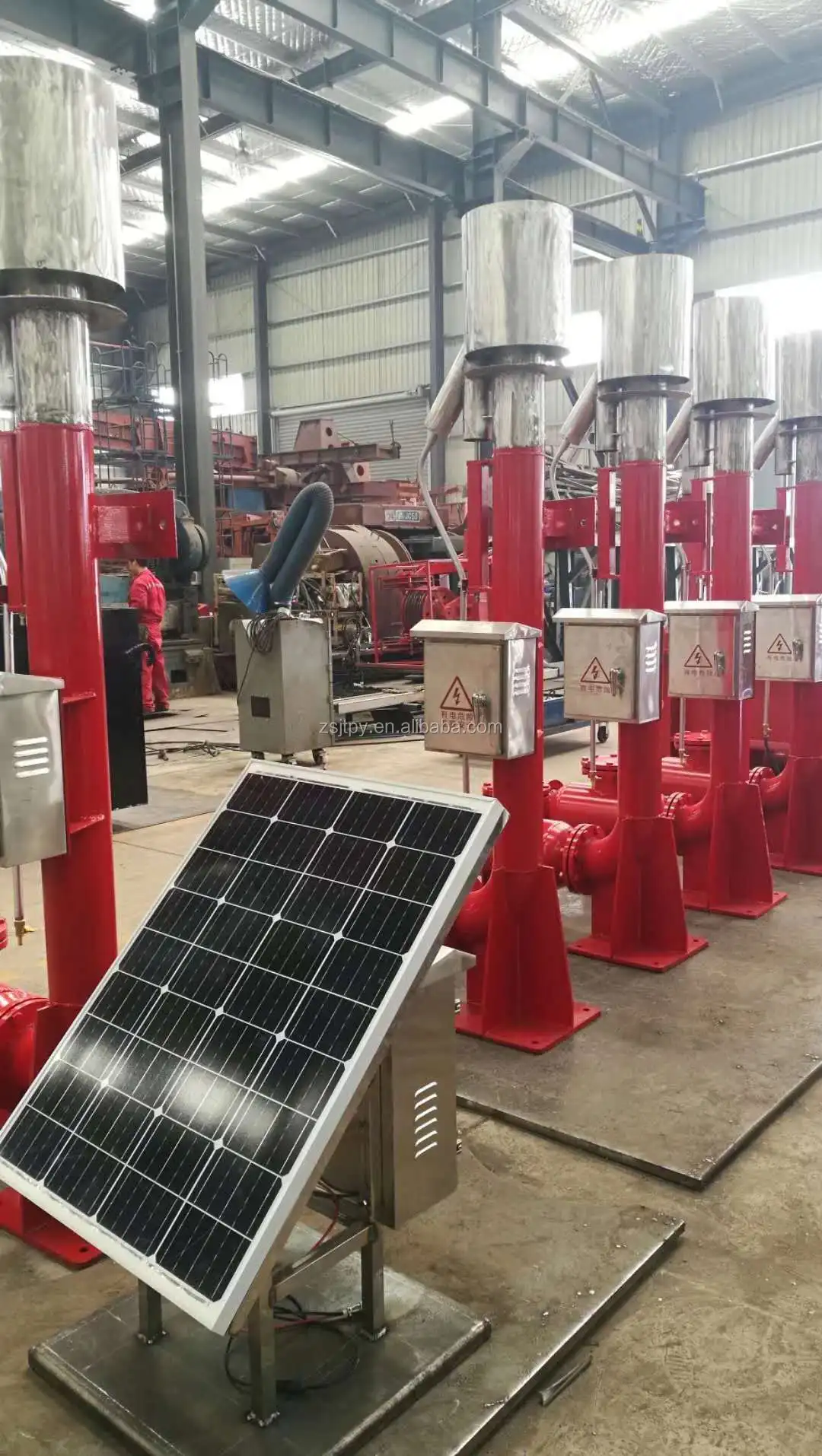

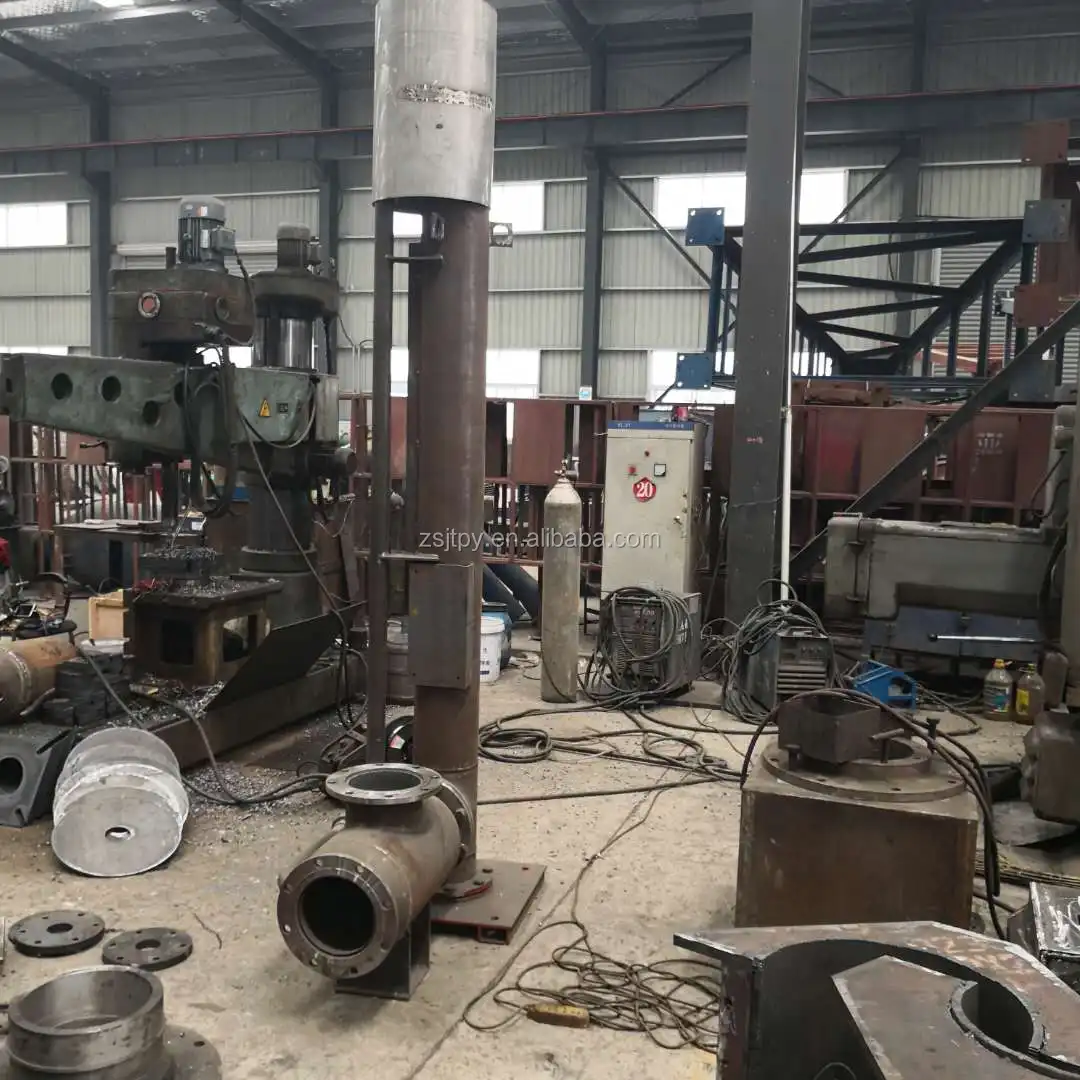

Factory Production
Our Services
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Certifications
Customer Visits
Company Information
The predecessor of Henan Puyang Zhongshi Group Co. Ltd, was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd. With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability. Our leading products are pumping unit, tubing pump & sucker rod pump, cementing accessories, down-hole tools, wellhead (X-mas tree), drilling solid control series, pressure vessel ,camping house, air cannon, belt feeder and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries. Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for. With strong technical backup, reliable product quality, advanced marketing regime and good service system, this company wins popularity and recognition of vast consumers home and abroad. We would like to faithfully cooperate with friends from all circles with classic products and service to achieve common development.
