КЛВ фабрики новая 3 тонн 6 колеса dongfeng 5m3 RHD небольшой дизельный дозаправки грузовик для продажи

Product Overview

Description

 CLW factory new 3 tons 6 wheel dongfeng 5m3 RHD small petrol refuel truck for sale





Brief Introduction of refuel truck



The refuel truck is also called gasoline refueling truck, fuel truck, fuel tanker truck
, oil dispenser truck, oil flling tank truck, oil delivery truck, oil tanker truck,  etc.



The mobile oil filling truck is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped oil filling machine and fuel pump to refuel for other automobile.



The shape of the fuel tank truck is elliptical or rectangular and the material can be high quality carbon steel plate Q235 , stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.



In order to prevent corrosion, the surface of the oil tank was printed anticorrosive paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil.



As a professional fuel tanker truck supplier, the fuel tank truck for sale is from 5000 liters to 45000 liters.  They are from 4*2 fuel trucks to 6x4 fuel tank trucks. Besides oil tanker truck, our factory also produce fuel tanker trailer and the fuel tank capacity is from 30000 liters to 60000 liters.



Structure drawing of oil tank truck







(1) head (2) coaming (3) baffles (4) manhole (5) ladder (6) sister beam (7) supporting plate (8) outlet



(9) lifting lug (10) hose carrier (11) tank body (12) indicator(optional)





chengli 3 tons small mobile gasoline fuel dispensing truck for sale



Items	Descriptions	Specifications and Types
General	Truck Name	Fuel bowser truck
	Drive Type	4*2
	Gross Vehicle Weight(kg)	6495
	Curb Weight (kg)	3365
	Approx.Overall Dimensions (mm)	5990×1960×2400
Engine	Engine Brand	Chao Chai
	Fuel Type	Diesel
	Power	70kw/95HP
	Emission Standard	Euro III
	Displacement(ml)	3856
	Engine Type	4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis	Chassis Brand	Dongfeng
	Tire No.	6
	Tire Specification	7.00-16 Nylon tire
	Axle No.	2
	Cab	Flat roof with single row cab
	Gear Box	5 speed forward with 1 reverse, manual
	Brake	Air brake
	Steering Wheel	Right hand drive with power-assisted
Tank	Tank Volume(L)	5000
	Tank Material	High quality carbon steel,Q235
	Tank Thickness(mm)	4
Other equipment	Equipped with oil pump, euro standard manhole, fuel hose, hose carrier,access ladder,etc.

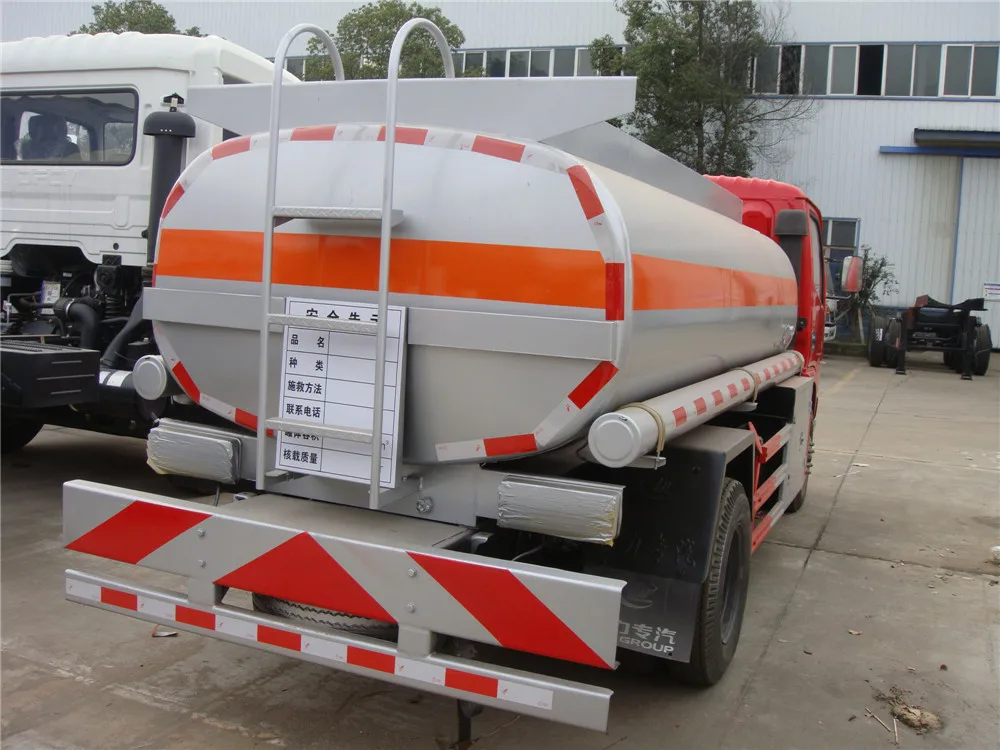

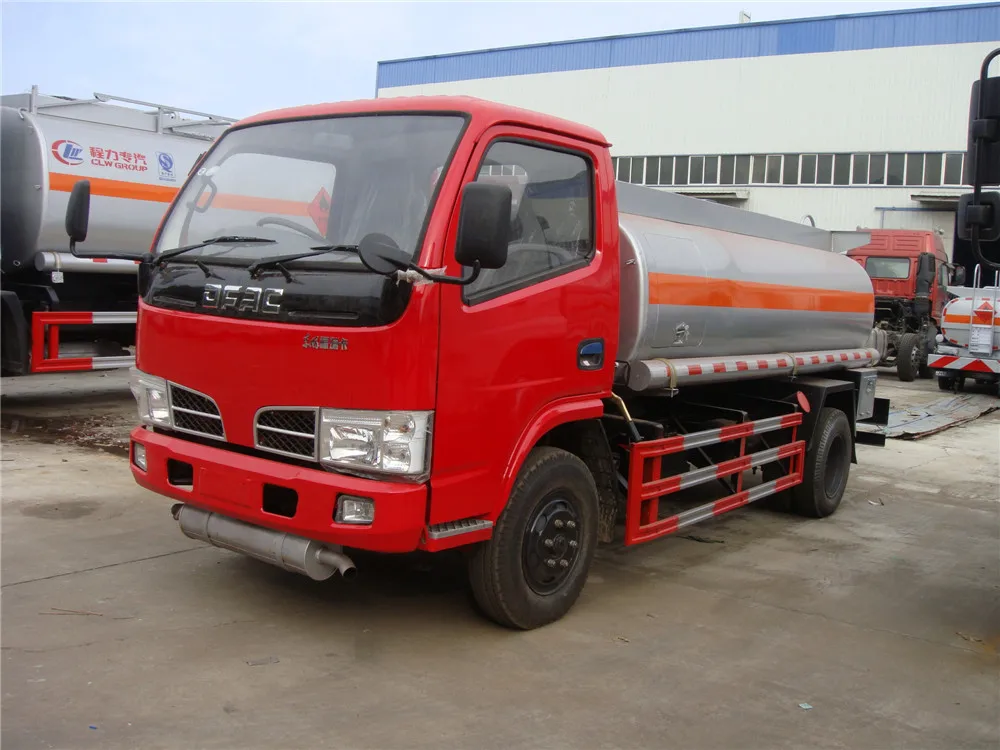

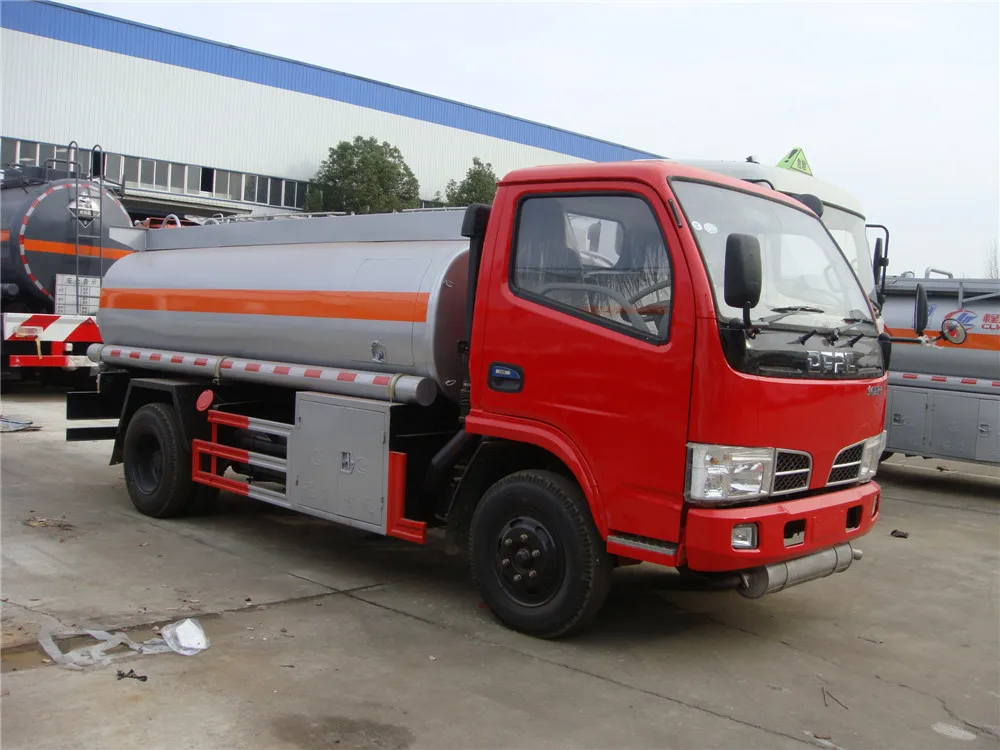

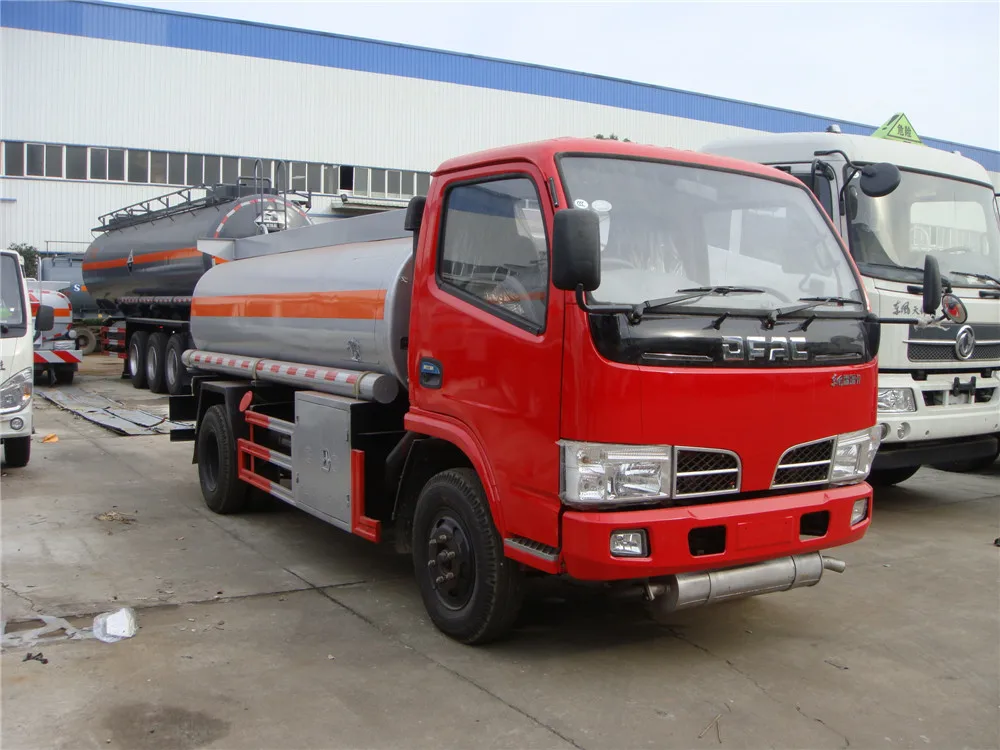

Pictures of 6 wheel dongfeng 5m3 RHD mobile refueling tanker truck

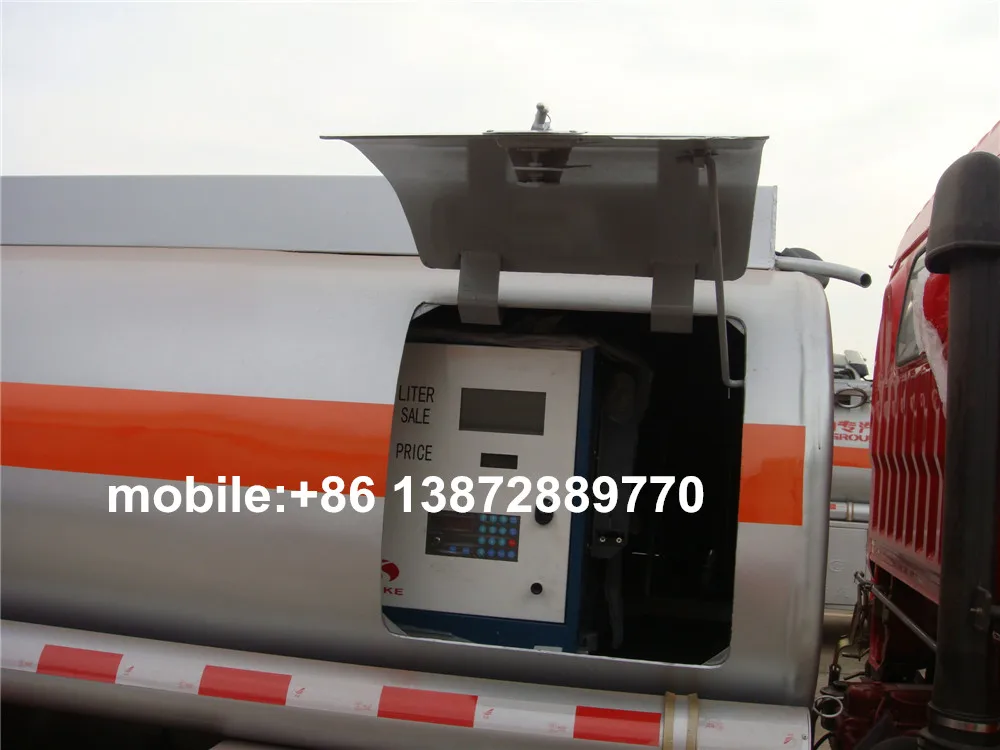

The mobile refueling tanker is with english saike brand fuel dispenser and 15m refueling hose with fuel gun.







Above oil filling tanker truck dimension and fuel dispensing truck specification is just for reference. If you want to know more fuel truck details or fuel dispensing truck price, please feel free to contact me. Besides JAC fuel truck, we also have dongfeng fuel truck, faw fuel tanker, jmc oil tanker truck,etc.



 chengli fuel tanker trucks for sale







The large oil truck is usually nude with wax by bulk ship or roro ship. The small oil tanker truck can be shipped by 40ft container.



ro ro ship



bulk ship



40ft container





Brief introduction of Chengli factory



We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.

We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.

Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.









Factory Certificate







cooperation partner





customer visiting factory







Trust Brand, Trust Chengli! Welcome to chengli oil dispensing truck factory for fuel dispenser truck price, fuel tanker specifications, oil truck dimensions, and more cooperation details.
