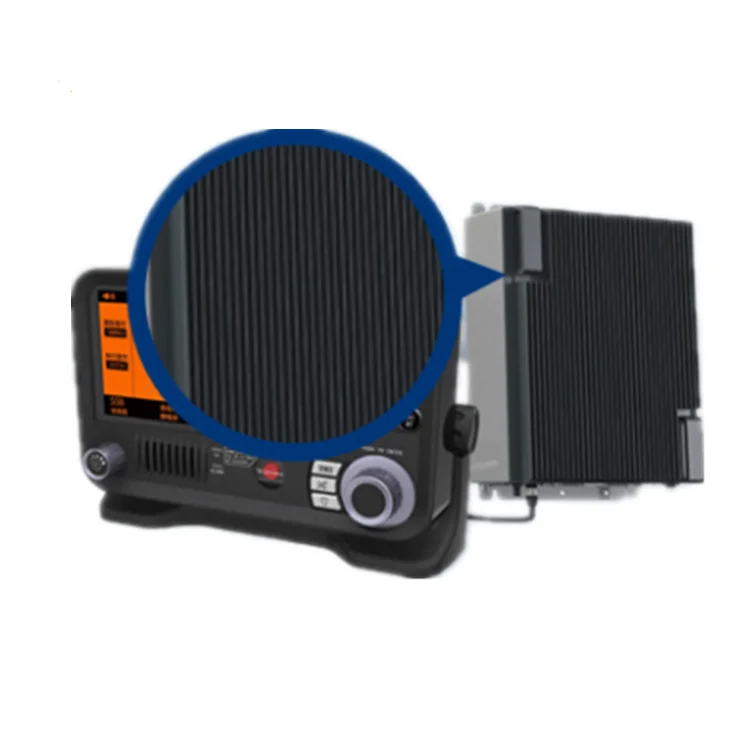

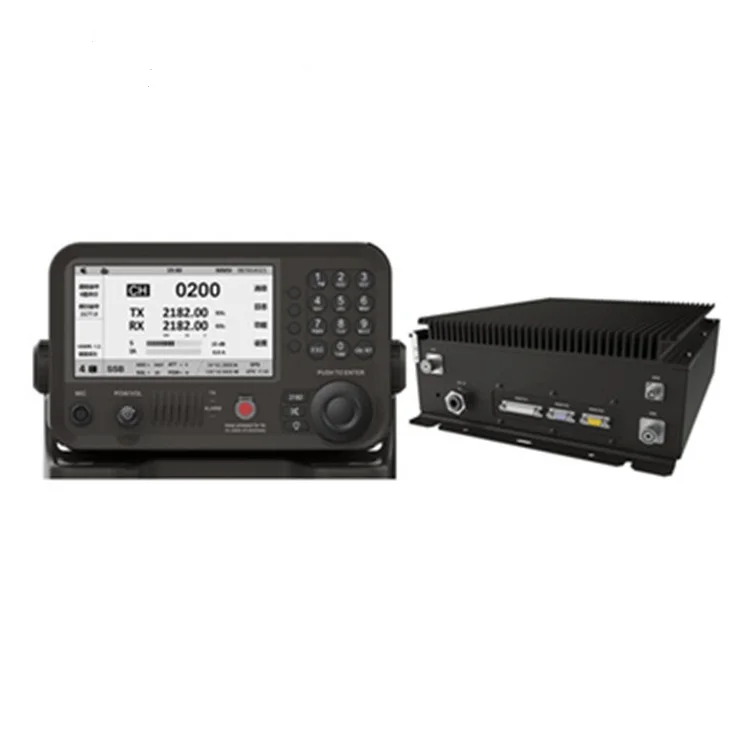

WT B150 Second generation marine MF/HF SSB Radio device

Product Overview

Description

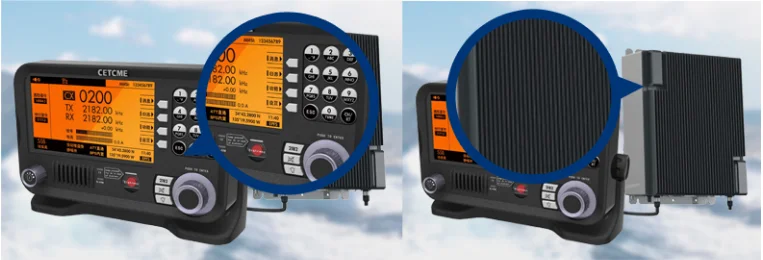

WT-B150 Second-generation Marine MF/HF DSC SSB Radio



Product Description

WT-B150 is an important part of GMDSS system, which is adopted by the most advanced software radio technology and digital RF technology;

it provides strong performances of receiving, transmission and operation and is fully compliant with the standards of IEC 61097-9,

IEC 493-13 and other international standards. Besides, WT-B150 provides rich extended functions and interface.







Brief introduction:	Model Number:		WT-B150
	Application Area:		WT-B150 is an important part of GMDSS system, which is adopted by the most advanced software radio technology and digital RF technology; it provides strong performances of receiving, transmission and operation and is fully compliant with the standards of IEC 61097-9, IEC 493-13 and other international standards. Besides, WT-B150 provides rich extended functions and interface.
	Certificate:		COSPAS,and ZY,meeting with standard of IMO/IEC
Function:	WT-B150 and its derivative products are used in variety ships. According to international maritime rules, the ships working in area of A2 to A4 must install this device. Besides, its derivative products can be used by land users as required.

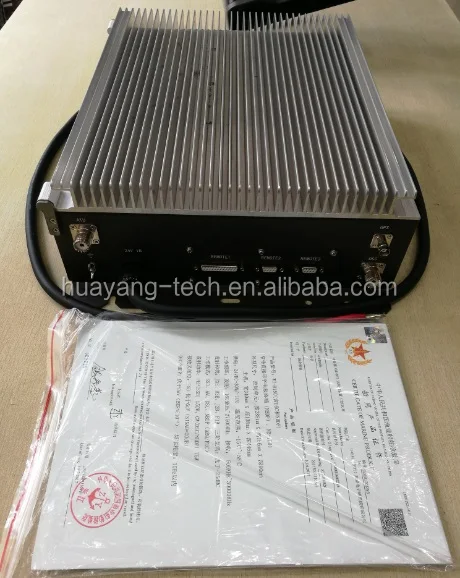

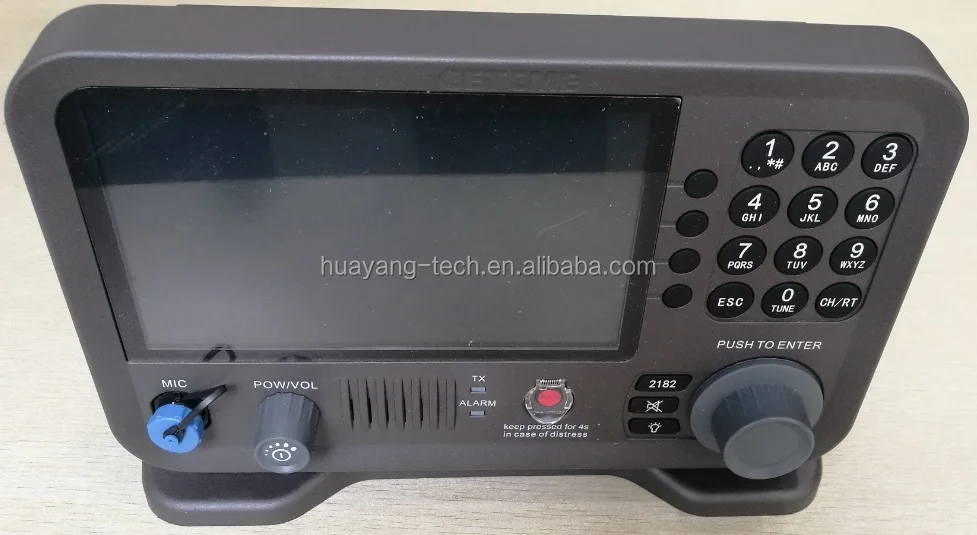

Feature:	1.Convenient installation for users by the separated design of control unit and main unit.
	2.Three Operating Modes of SSB, AM and digital DSC
	3.One-click answer and forwarding of distress alarm and help signal
	4.SQL function.
	5.Fully compliant with the standards of IMO relevant to Digital selective-calling system
	6.Six simultaneously distress channel on duty, six routine scan channel on duty, and one SSB fixed frequency channel on duty.
	7.Automatic calibration function of clock frequency offset and excellent performance of frequency error.
	8.Internal and external switch for GPS
	9.Desktop installation and embedded installation
	10.The function of remote software upgrade
	11.The function of Chinese or English sms transceiver(Optional)
	12.Analog and digital communication of SSB. (Optional)
	13.Voice recording function of communication. (Optional)
Specification	1. MAIN UNIT:
	Frequency range: 1.6MHz~ 30MHz (transmitting), 0.5MHz~ 30MHz (receiving) .
	Frequency stability: ±10Hz
	Modulation type: SSB, DSC, AM
	Operating temperature range: -15℃~ 55℃
	Power requirement: 24V DC+30%/-10%
	Protection function: overvoltage, under-voltage, over-current, reverse, high VSWR protection.
	External interface: RS422, LAN and USB2.0.
	2.Transmitter:
	Output power: 200W/150W/100W
	Sideband suppression: ≤-60dBc
	Carrier suppression: ≤-60dBc
	Clutter suppression: ≤-60dBc
	Three order inter-modulation: ≤-28dBc
	3.Receiver
	Sensitivity: ≤11dBuV(SINAD=20dB)
	Audio Output Power: 4W/8Ω
	Audio Frequency Response:350Hz~2700Hz, <= 2dB
	AGC: ≥100dBc
