Dongguan OEM 140mm pin fin heat sink for cob led cxb3590
US $3.85-$4.80

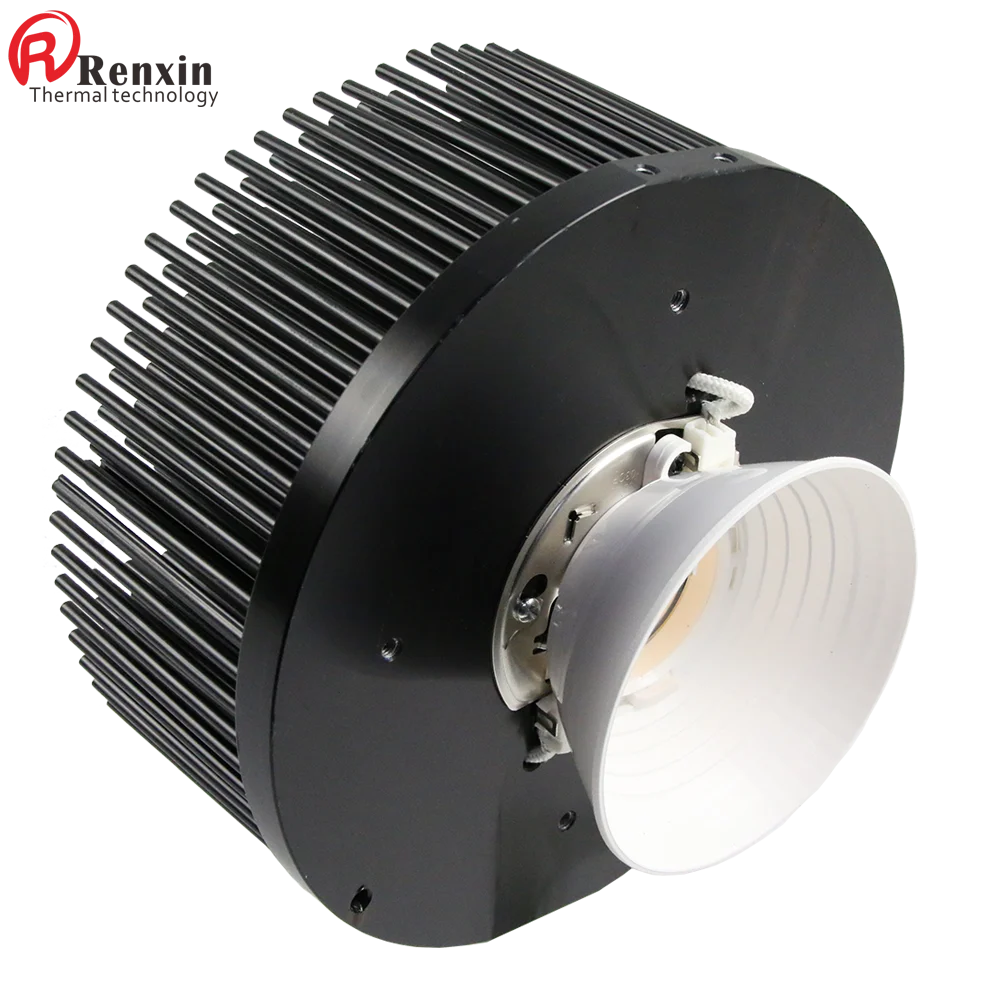

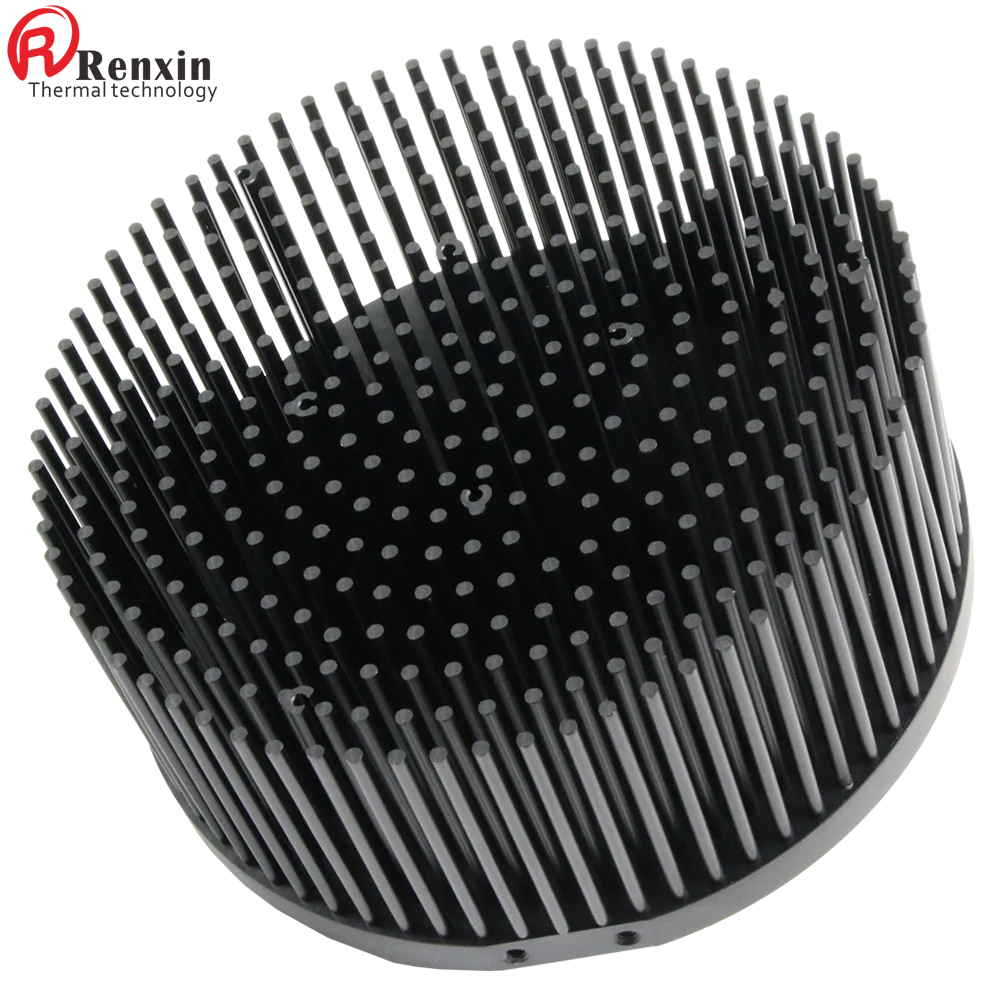

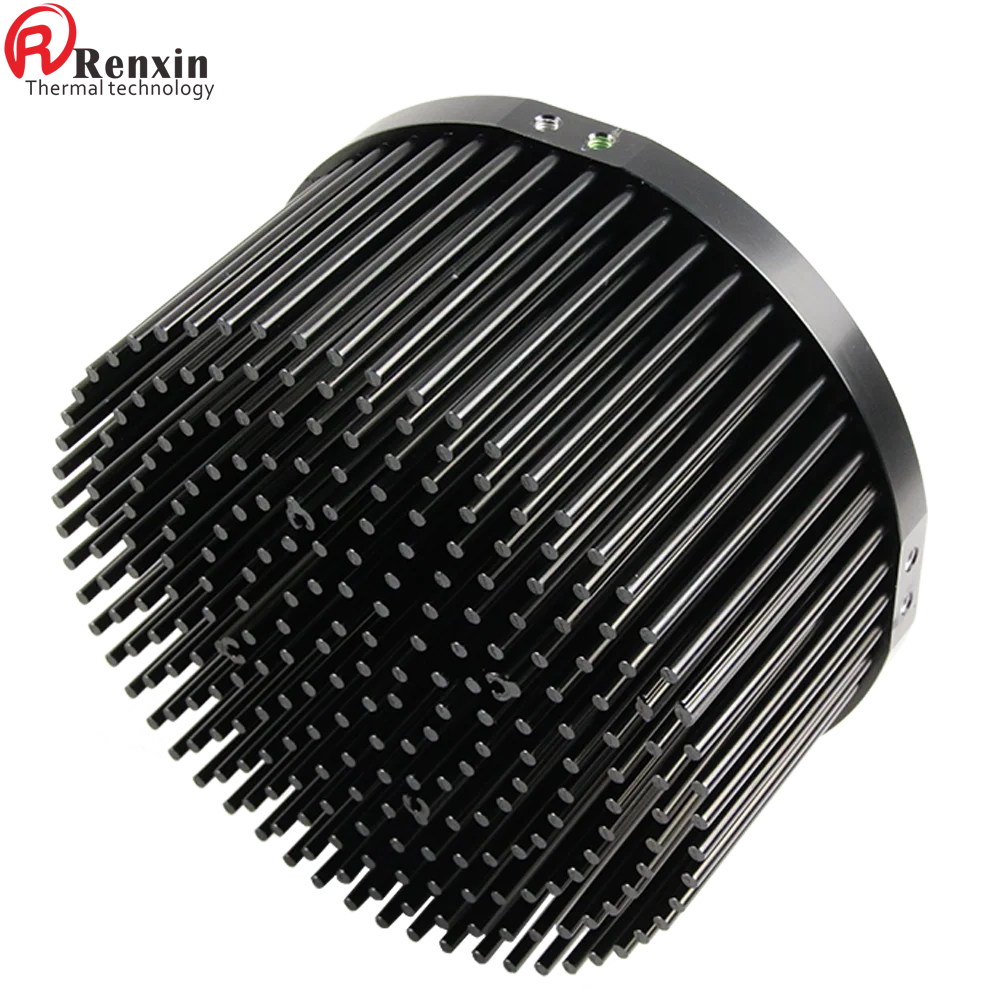

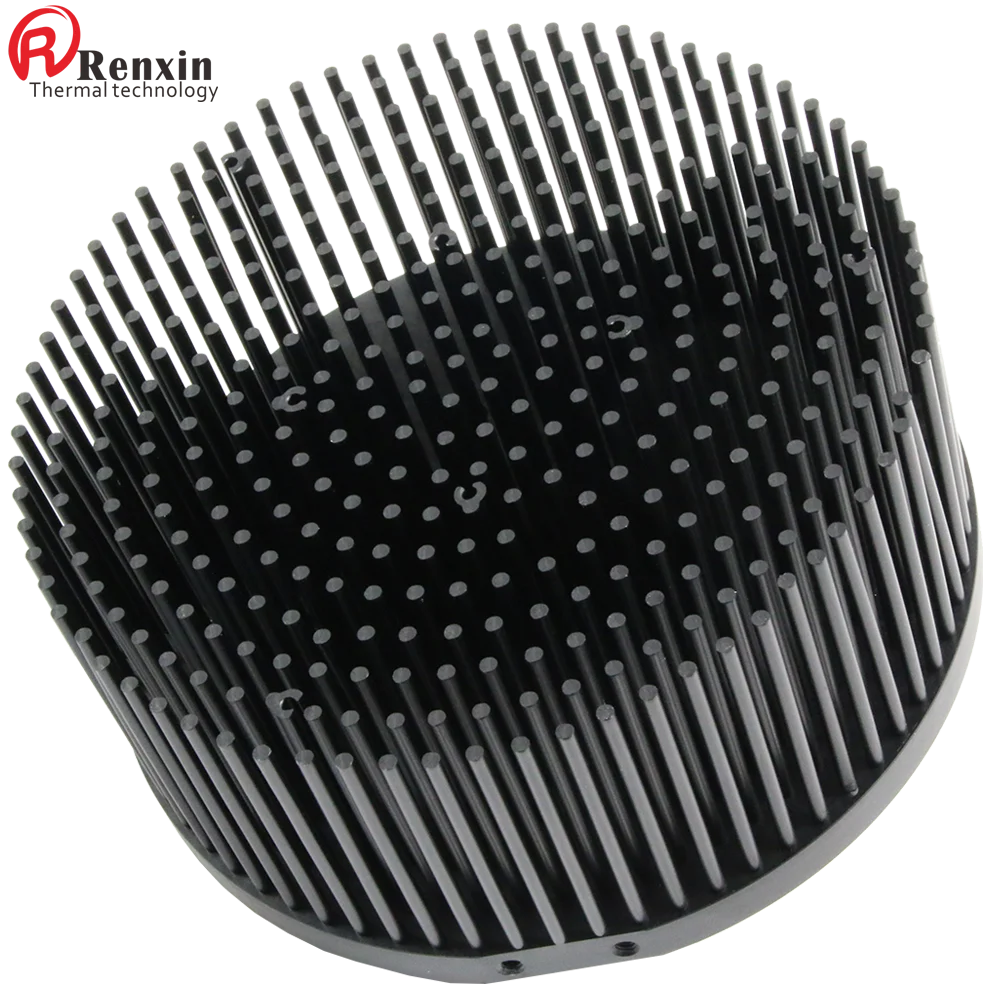

110W passive cxb 3590/clu058/vero29 se led 163mm pin heatsink
- Category: Heat Sinks >>>
- Supplier: Dongguan Renxin-Seiko Industry Co. Ltd.
Share on (60725522684):
Product Overview
Description
Size 163mm details
| model number | RX612-163-A4 |
| size | Φ163*H70(mm) |
| base thickness | 10mm |
| watts | 80-110watts |
| pin | straight pin fin heatsink round for cxb3590 |
| color | Various colors are aviable |
| Net Weight | 1.051(KG) |
| application | CXB3590,CXB3070,VERO 29 ,CLU 048 and so on |

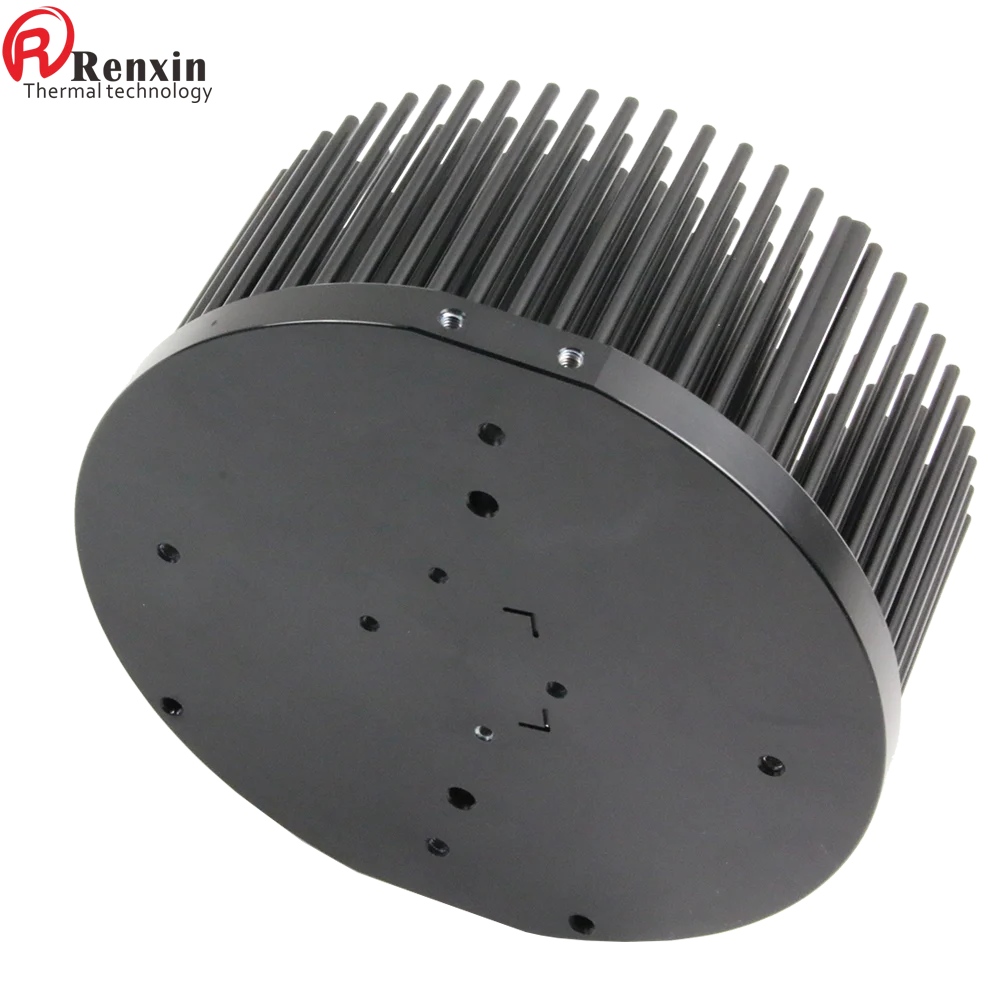

Pre-drilled and tapping for Vero 29 or CXB 3590/3070,CLU048/058, the tolerances are accept to DIN ISO 2768
1:The values indicated in the diagrams apply only for heat sinks with black Anodize , mounted vertically and
natural convection.
2:The mentioned heat sink profiles in our catalogue contain so called extrusion marks between the fins for a profile
identification. To avoid misuse the operator has to check the size and position for the mechanical treatment or
placement of the components.
3:Machining of our extruded and forging conforms to requirements of DIN ISO 2768.
4:If you need more detailed information(Datasheet and Thermal Analysis report ), please contact us.

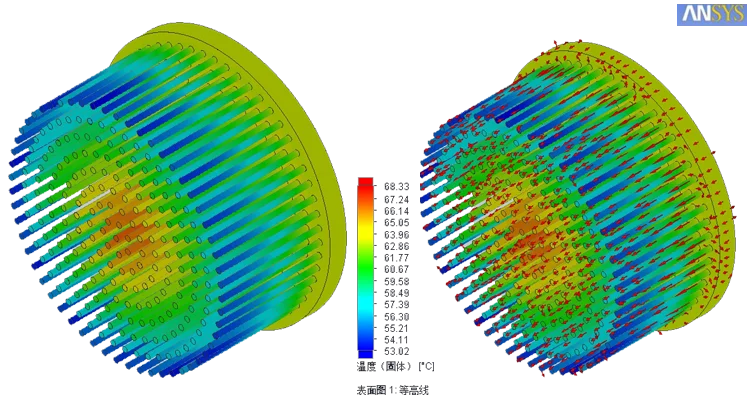

RX612-163 pin fin heatsink thermal analysis
Packaging & Shipping
Fast delivery time,and we choose best delivery way,with reasonable price,include the international express,international air transport,international shipping way. they use superior packing materials to protect our sophisticated products from getting any damage during their transit.
Company Information
Our related products
We are manufacturer with ISO and the third party certification.
We have a strict quality control system, 100% QC inspection before shipment.
| Item no. | Size(mm) | Base thickness | pin select | Watts | quantity (pcs) |
| Rx612-50 | OD50*H45 | 5mm | straight pin | 5-25 | 100 |
| Rx612-60 | OD60*H45 | 15-30 | 100 | ||
| Rx612-120 | OD120*H70 | 10mm | 30-65 | 1000 | |
| Rx612-133 | OD133*H70 | 45-65 | 1000 | ||
| Rx612-140 | OD140*H70 | 50-85 | 1000 | ||
| Rx612-150 | OD150*H70 | 65-100 | 1000 | ||
| Rx612-163 | OD163*H70 | 65-110 | 600 | ||
| Rx612-180 | OD180*H70 | 70-130 | 500 | ||
| RX613-150 | OD150*H70 | splayed pin | 55-100 | 1000 | |
| RX613-125 | 125*125*70 | 80-120 | 1000 |
Base support Glass lens
Led Chips Led driver
Aplication
FAQ
1. Q: How long and how to get sample from us ?
1) If you need some Aluminum Heat Sink to test,we can make as per your request. Please provide us PDF or AI for Making.Or choose from our catalog. You should pay for the transportation freight of samples and sample cost.
2) Lead time for making sample:about 2-3 days
2.Q: Which kind of finishing can you exactly offer?
We can offer anodize,brushed/wire-drawing,sandblasting,silk-screen printing and painting.
3.Q: Which machines for finishing do you exactly have?
We have anodize equipment, brushing machine, sandblasting machine, and silk screen printing machine.
4.Q: Which colours can you make the anodizing in?We can offer anodize in silver/black/blue/red/green/gold, other colors also acceptable.
5.Q: Delivery times?
7-10days after receiving deposit.
If you interest it, please send us inquiry. Thank you so much!
