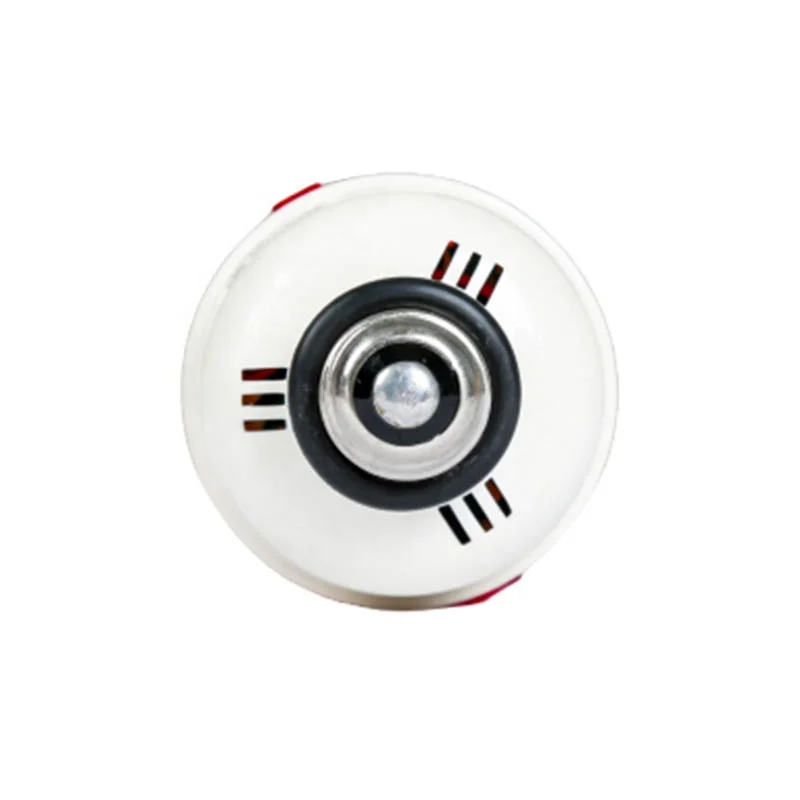

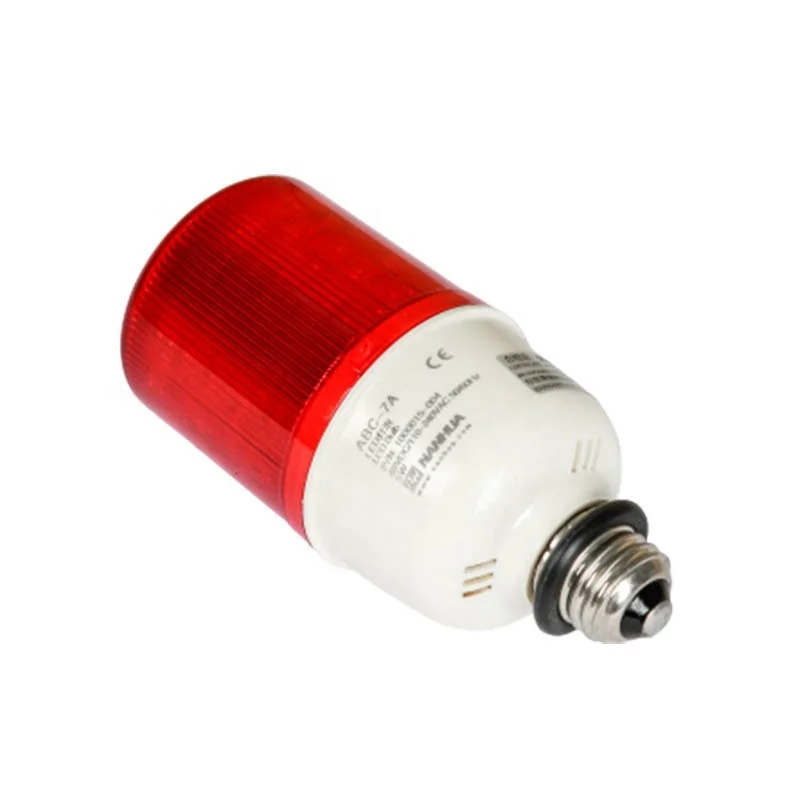

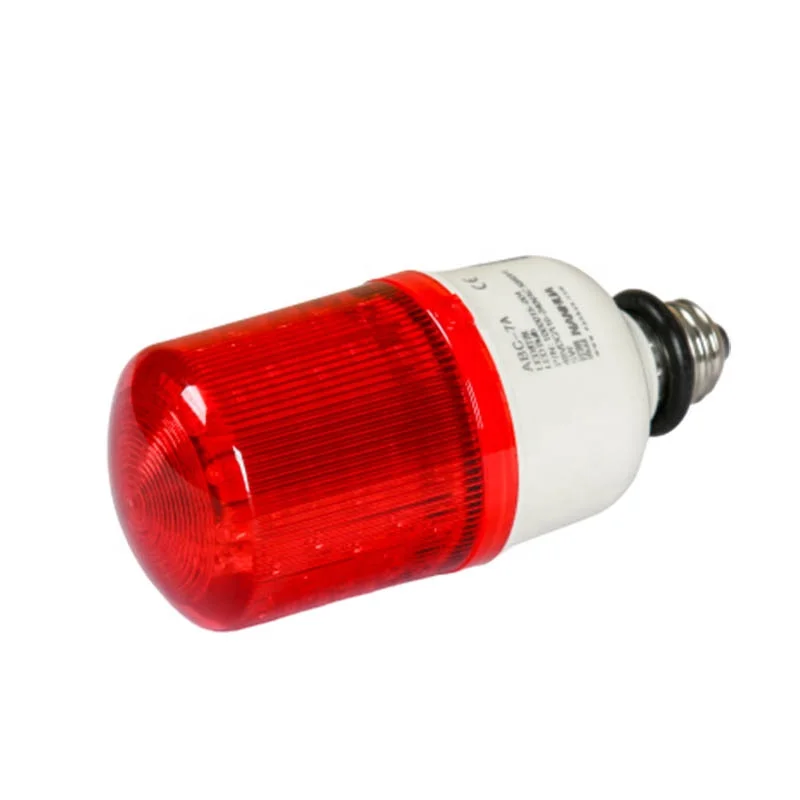

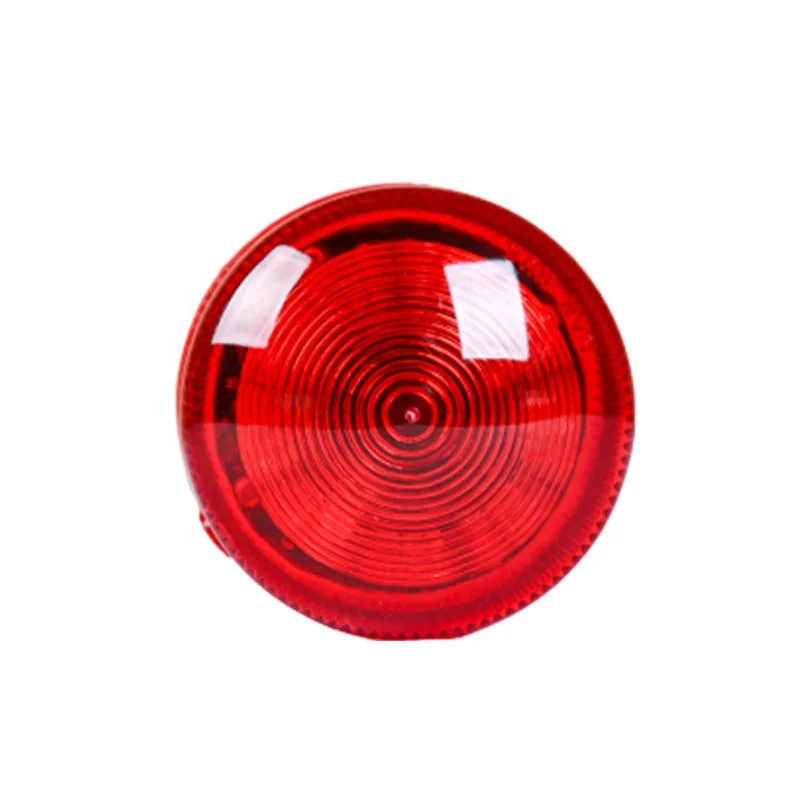

ABC 7A aviation obstruction light bulb
- Category: Lighting Bulbs & Tubes >>>
- Supplier: Shanghai Nanhua Electronics Co. Ltd.
Share on (60725537250):
Product Overview
Description
ABC-7A aviation obstruction light bulb
Product Description
Application
Obstruction light for a wide variety of cranes used in Harbors, Metallurgies, Towers (Telecom, GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light.
Main functions and features
- Based on LED technology.
- Lamp housing –Polycarbonate, with good anti-impact strength, thermal stability, high transmittance.
- Low power consumption, high efficiency , low heat and stability.
- Screwed type, convenience to mount.
Specifications
Standard | ICAO (Aerodromes Annex 14) (Type A) and FAA-L810 | Vertical degree | ≥10° |
Light source | LED | Horizontal degree: | 360° |
LED color | Red, yellow, blue, green and white(optional) | Working mode | Steady burning or flashing mode |
Operating voltage | AC110V~AC240V/DC12V~DC48V(optional) | Power consumption | <5W |
Intensity | >10cd | Led life | ≥100,000h |
| |||
Operating temperature | -30°C ~ +70°C | Material | Base:ABS Housing:PC |
Relative humidity | 10% ~ 95% (no condensing) | Weight | 0.14kg |
Installation and operation
- Mounting the bulb with E27 base on a smooth surface and connect power cable to the light.
- Check whether the supply voltage complies with operating voltage of the bulb.
- If the light works under DC power supply, connect the power cable according to the indicating marking on the bulb
- Power on after verification of connection and the light starts to work.
Model selection
Model | Function | |
Features | Remarks | |
ABC-7A | Steady burning |
|
ABC-7AP | ABC-7A with photocell | On/off level:70/100lux |
ABC-7AQ | ABC-7A (with photocell and flashing type) | On/off level:70/100lux Flashing rate: 30~40 times/min(can be customized) |
ABC-7AS | Flashing type | Flashing rate: 30~40 times/min(can be customized) |
Notice
- The part of material of products is PC( like lamp cover and lamp shell ), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isopropyl alcohol, carbon tetrachloride, cyclohexanone and so on, otherwise, the product will be corroision.
Company Information
NANHUA Electronics Co., Ltd was founded in 1990, has been focused on developing, manufacturing and selling industrial signaling, lighting and controllers more than 27 years.
Based in Shanghai, China, NANHUA has a registered capital of RMB 50 million, with total about 285 employees (including 36 R&D people), and owned the production space of 120,000 square meters. As a high-tech enterprise in Shanghai, NANHUA has gained ISO9001, ISO14001 and OHSAS 18001 certificates.
Aviation obstruction lights as one of the major products of NANHUA, design and manufacturing according ICAO, FAA international and local CAAC standard, and most products have been certified.
NANHUA's products are widely applied in key projects domestic and abroad. NANHUA is committed to the establishment the benchmark of the top aviation obstruction light equipment.
Features of Aviation obstacle lights (FAA)
Features of Aviation obstacle lights (ICAO)
Light Type | Colour | Signal type/ (flash rate) | Peak intensity(cd) at given Background Luminance(b) | ||
Day (Above 500cd/m²) | Twilight (50-500cd/m²) | Night (Below 50cd/m²) | |||
Low-intensity,Type A (fixed obstacle) | Red | Fixed | N/A | N/A | 10 |
Low-intensity,Type B (fixed obstacle) | Red | Fixed | N/A | N/A | 32 |
Low-intensity,Type C (mobile obstacle) | Yellow/ Blue | Flashing(60-90fpm) | N/A | 40 | 40 |
Low-intensity, Type D (follow-me, vehicle) | Yellow | Flashing(60-90fpm) | N/A | 200 | 200 |
Low-intensity, Type E | Red | Flashing | N/A | N/A | 32 |
Medium-intensity,Type A | White | Flashing(20-60fpm) | 20 000 | 20 000 | 2000 |
Medium-intensity,Type B | Red | Flashing(20-60fpm) | N/A | N/A | 2000 |
Medium-intensity,Type C | Red | Fixed | N/A | N/A | 2000 |
High-intensity, Type A | White | Flashing(40-60fpm) | 200 000 | 20 000 | 2000 |
High-intensity, Type B | White | Flashing(40-60fpm) | 100 000 | 20 000 | 2000 |
