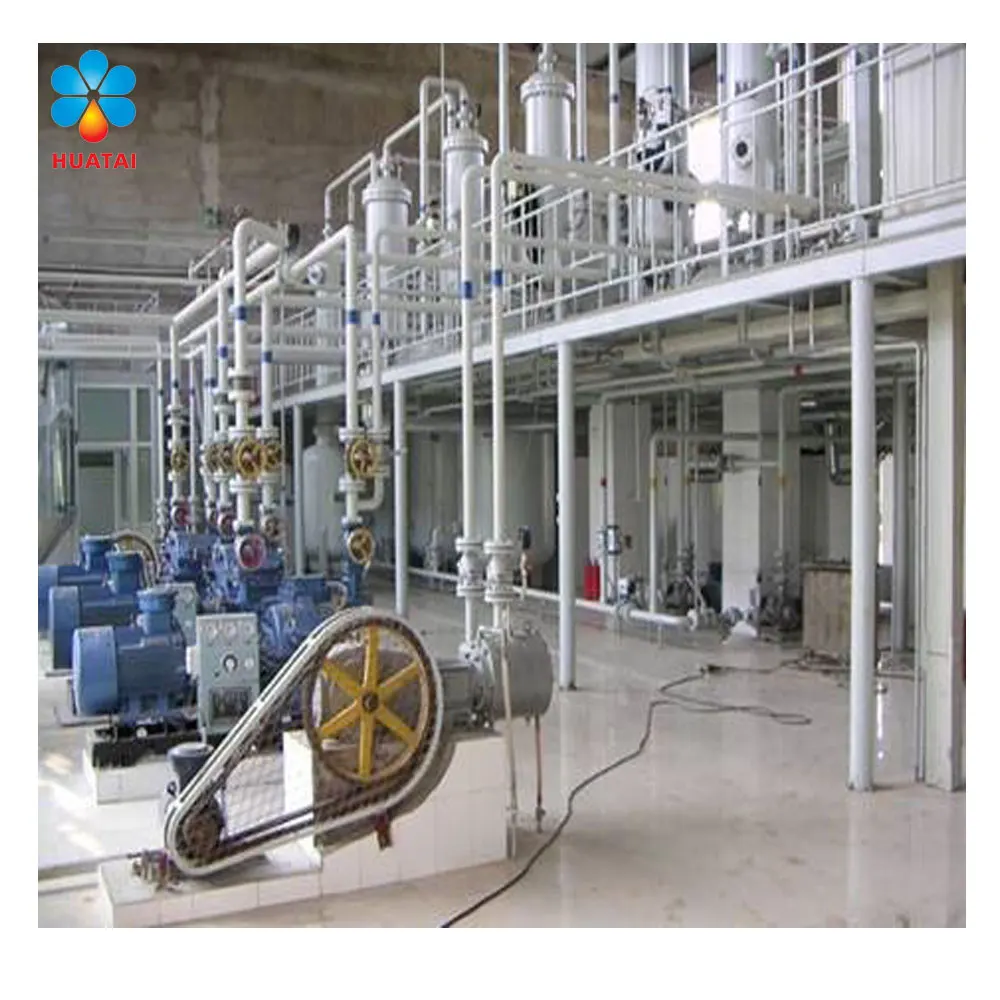

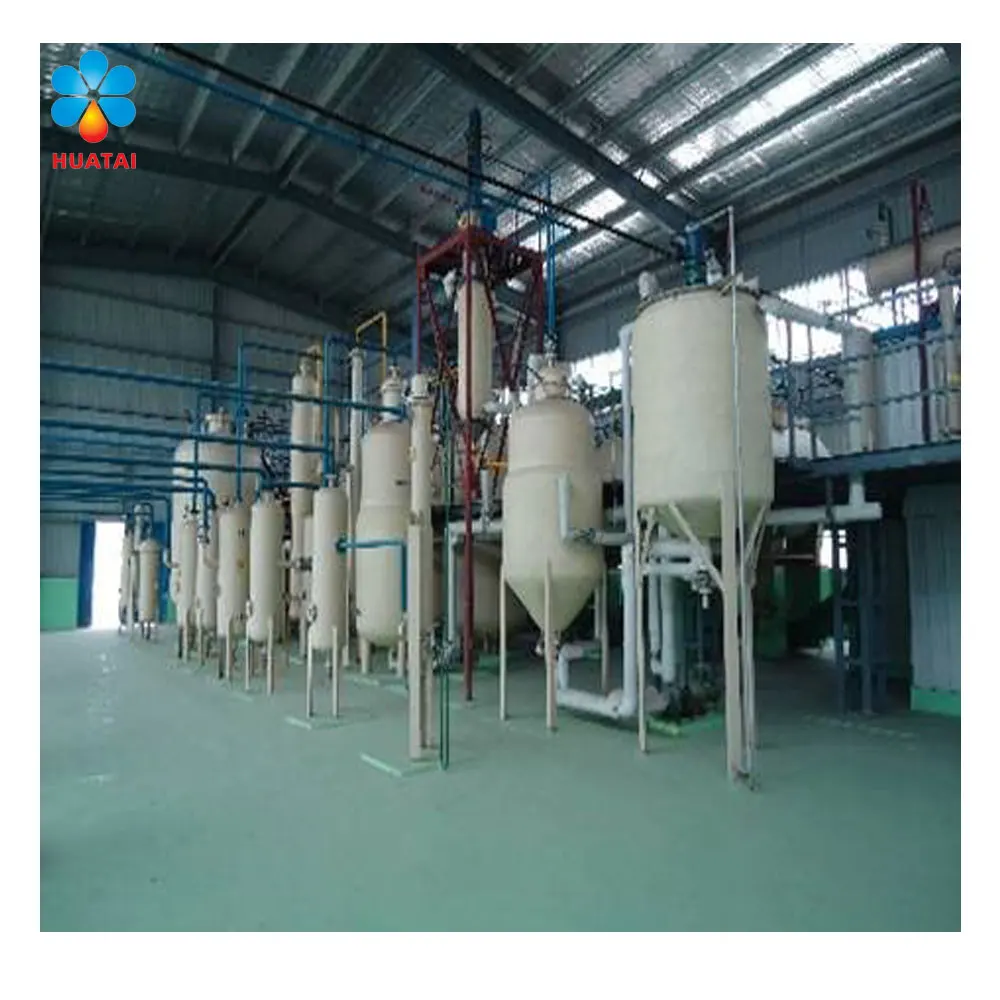

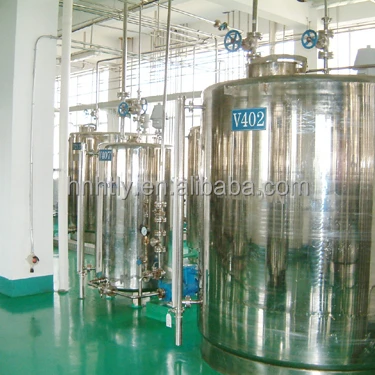

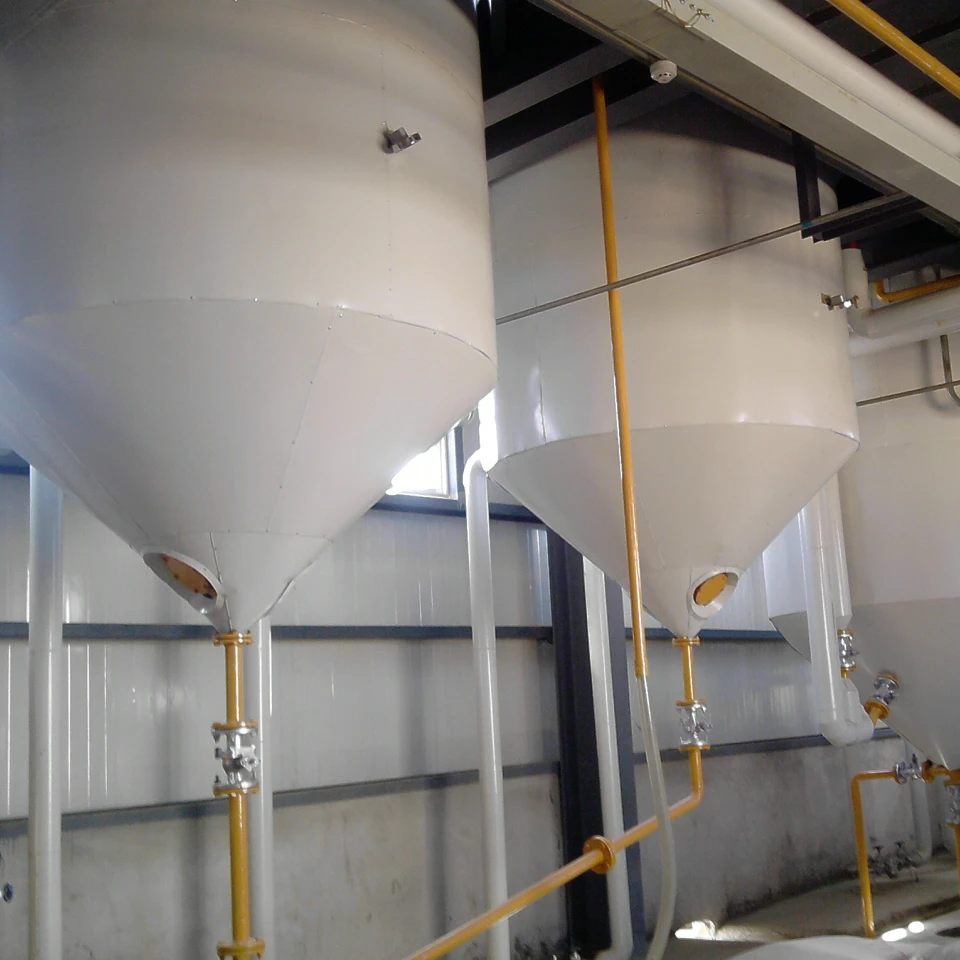

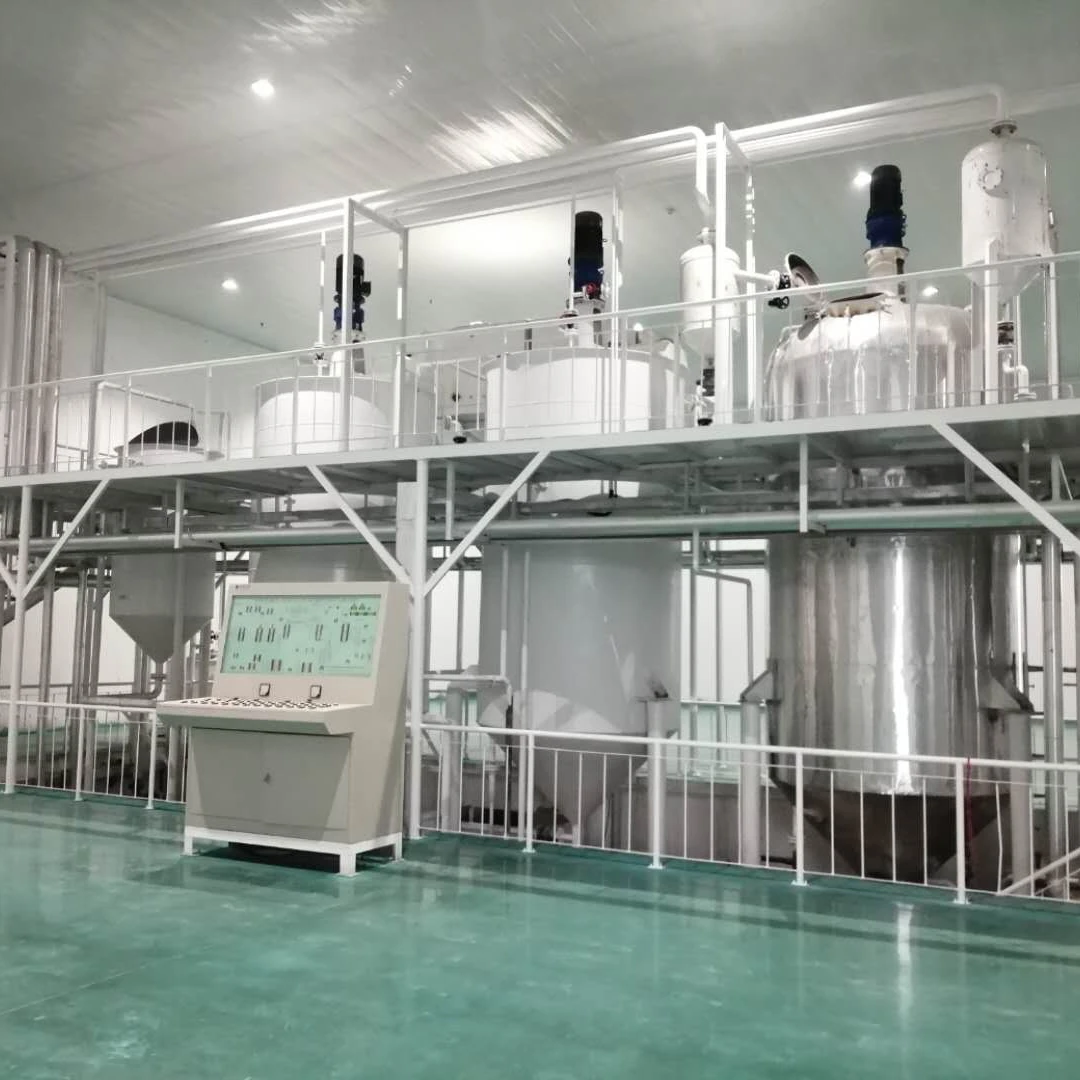

full production line small type Soybean Seed Oil Refining Processing Line

full production line small type Soybean Seed Oil Refining Processing Line

soybean seed oil refining is as below:
Grade seed crude oil – filtration – degumming – deacidification – desolventization – deodorization – dewaxing – fine filtration – grape oil product

General introduction of soybean seed oil refininging line:

Filtration can remove suspended solid object of grape seed crude oil and keep impurity of less than 0.2%.

Degumming. By utilization of degumming hydrophilic impurities, through a certain amount of water, NaCl, and phosphoric acid electrolyte solution, adding hot oil under stirring to make stripper coagulating sedimentation of insoluble impurities.

Deacidification. According to grape seed crude oil acid value, removes free fatty acid in crude oil. Deacidification can increase transparency, improve smoke point and prevent oxidative deterioration.

Decolorization. Heating oil until 105-110 degrees Celsius for dehydration in vacuum, filter removes clay and activated carbon by using clay and activated carbon adsorbing coloring substances such as grade seed leaf.

Deodorization. Heating oil up to 180 degrees Celsius and vacuum 260Mpa, using direct steam to further remove residual oil odor agent free fatty acid, color and reduce the peroxide value by gas stripping principle.

Dewaxing. Slowly freeze grape seed oil, gradually cooled to about -10 ℃ fully crystallized, and then filtered offer frozen wax, until getting national level standard grape seed oil.

 Any more information ,please do not hesitate to contact me at any time.
