Disposable Plastic Fast Food Tray Box Container Making Machine
Product Description
Machine Introduction
JC-500B Automatic Plastic Tray&Container Forming Machine is developed by our research and development personnel according to the demand of packing market. This machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. Machine adopts a fully automatic flow covering blow molding or plastic sucking molding, punching and diet cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. therefore, the quality requirement is secured during the production.
Machine Features
1. Sensor controls are adopted in pneumatic system.
2. Automatic, equipped with PLC touch screen.
3. JC-500B support frequency conversion, and can adjust the length of stroke easily. It is simple and convenient to change the mold.

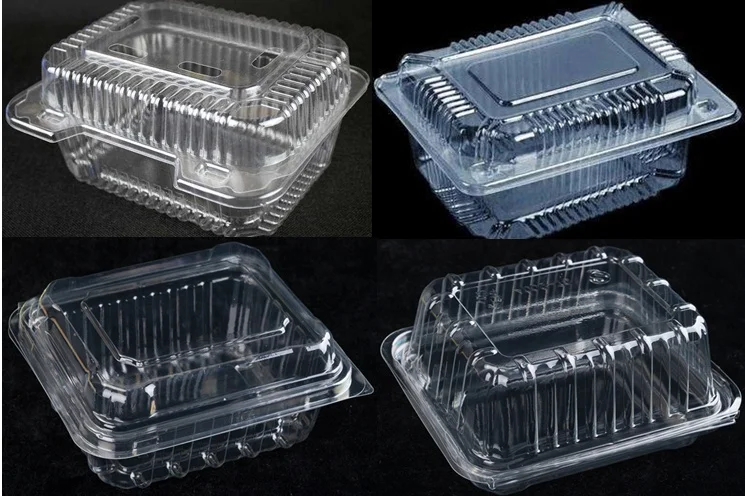

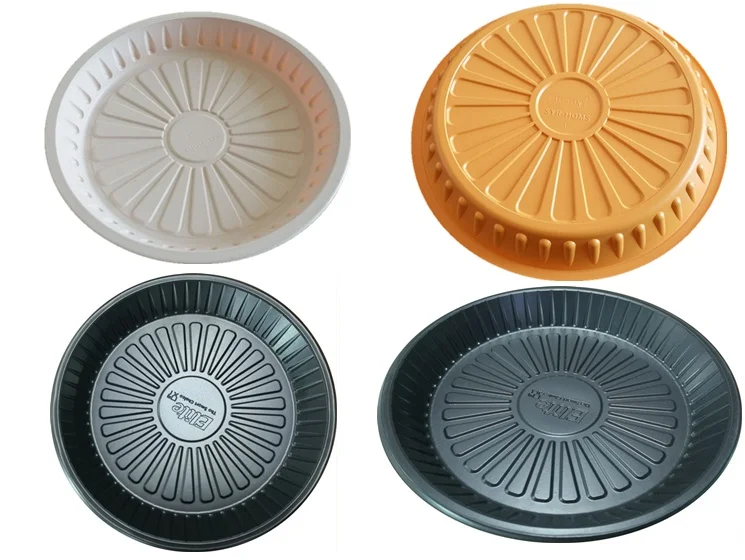

Samples
Main Technical Parameters
Punch frequency
15-45(Time/min)
Mould cooling
Tap water recycle water 60L/H
Max. Forming area
470*225mm
Max. Forming depth
47mm
Stroke
60-230mm
Compressed air(mpa)
0.6-0.8mpa
Total power
10.5KW
Packing Material
PVC PET PS, Hard pieces: 0.15-0.6*500mm, Rolls: 70-76mm
Overall dimension
3500*1000*1800mm
Weight
2300kg
Product Application
It is applicable to the plastic ware such as PVC, PET, PS, can produce plastic cup lid, cover, tray, container, box, plate. Just need to change the mold can be achieve!!
Easy to operation and maintenance.
Advantage 1) The stainless steel fuselage protects the internal structure of the machine.
2) The outer parts of the machine have a protective cover that not only protects the machine components, but the most important purpose is to protect the operators from safe production.
3) The inside of the fuselage is a H-shaped structure with reasonable layout and easy cleaning and maintenance. The most important function is to greatly increase the load capacity, so that the machine can run smoothly.
4) We are specialized in the manufacture of automatic plastic lids forming machine over ten years
experience. The earliest manufacturer of cup lid machine in China.
Certifications
Machine Details
Related Machines
Over 9 years in Alibaba with Gold Supplier
Company Information
THE HERITAGE OF 20 YEARS PACKAGING PROFESSIONAL KNOWLEDGE
Wenzhou Jiacheng Machinery Co., Ltd. is located in Wenzhou city. This is a professional company engaged in various packaging machinery, pharmaceuticals, mechanical design, development, production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production technique; with a modern system of scientific and technological management and perfect service system, also a crack team with youthful vigor.
Since its establishment, the company all along adhere "good faith-based, development study, innovation" spirit of enterprise. Based on " human technology, and customer-oriented service, develop the market with integrity and high-quality and establish the corporate culture system with the unique features. Company has passed the 9001 quality system certification and CE certification in 2010.
TRUSTWORTHY PROFESSIONAL ABILITY
Responsibility
We believe that we have responsibility for our enterprise and have responsibility for spirit of innovation; we have responsibility for our environment; Whatever we do, we confirm we have strong enduring foundation.
Vision
Have the vision to have innovation. We encourage any vision based on Jiacheng , there let everyone have firmly faith to contribute and think. We try our best to supply the best solution. We always think and practice.
Innovation
Innovation is the soul. Jiacheng company become unique by innovation . We provide customized solutions for clients so we can do the best. We never afraid of difficulties and overcome every challenge — we are looking forward by intelligence . Innovation is Jiacheng’ s soul.
Our Service
What JC Can Do For Customers 1.JC supplies standard products to customers. 2.JC supplies standard products under customers’ brands and packaging, etc. 3.JC R&D department develops any new products together with the customers.
Service 1 . One year guarantee for whole machine. 2 . 24 hours technical support by e-mail. 3 . Engineer available machinery oversea service, door to door . 4 . Use-friendly English software, user manual and detailed Videos/ CD.
Installation & Commissioning
1. We can offer you English manual for install and commissioning.
2. We can send our engineers to customers’ factory to teach customers how to install and commissioning the machine.
Exhibition
We attend the Chinaplas exhibition every year
Packaging & Shipping
According to the customers' requirement. Normally in wooden case.
