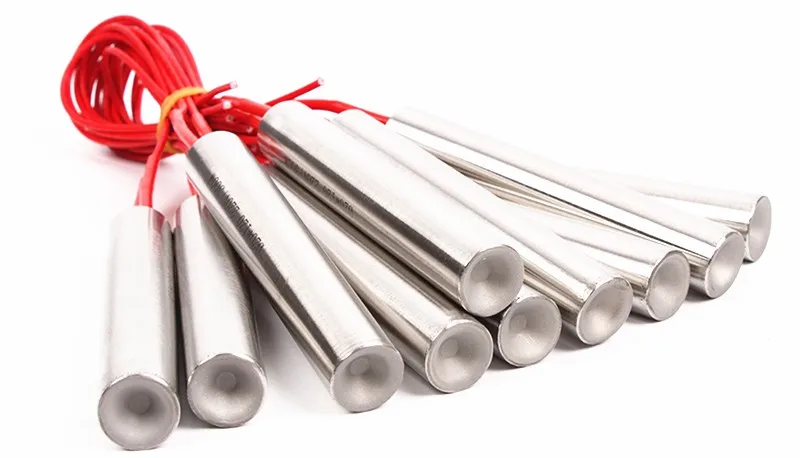

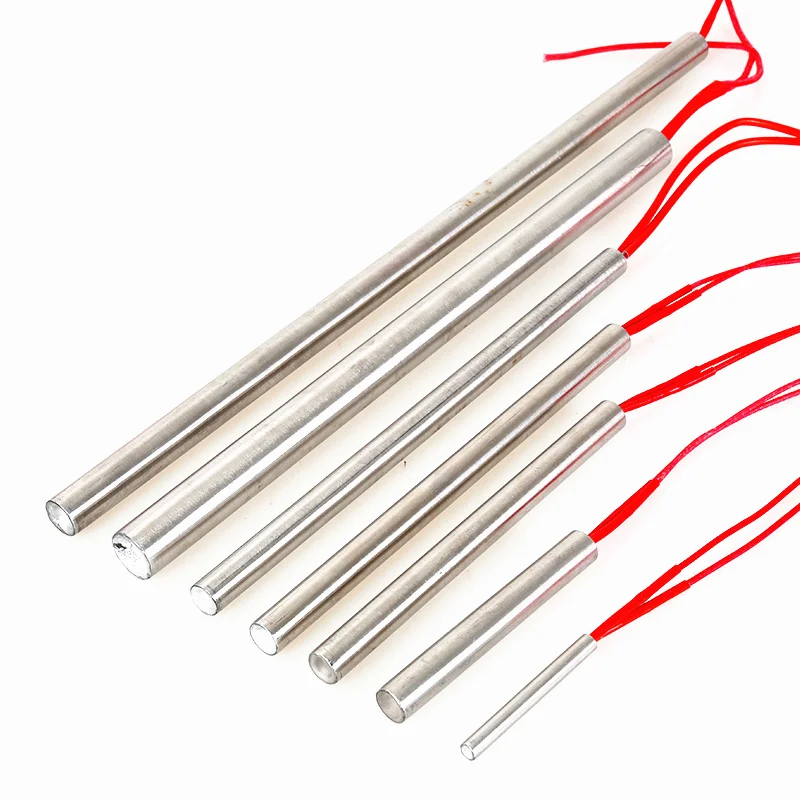

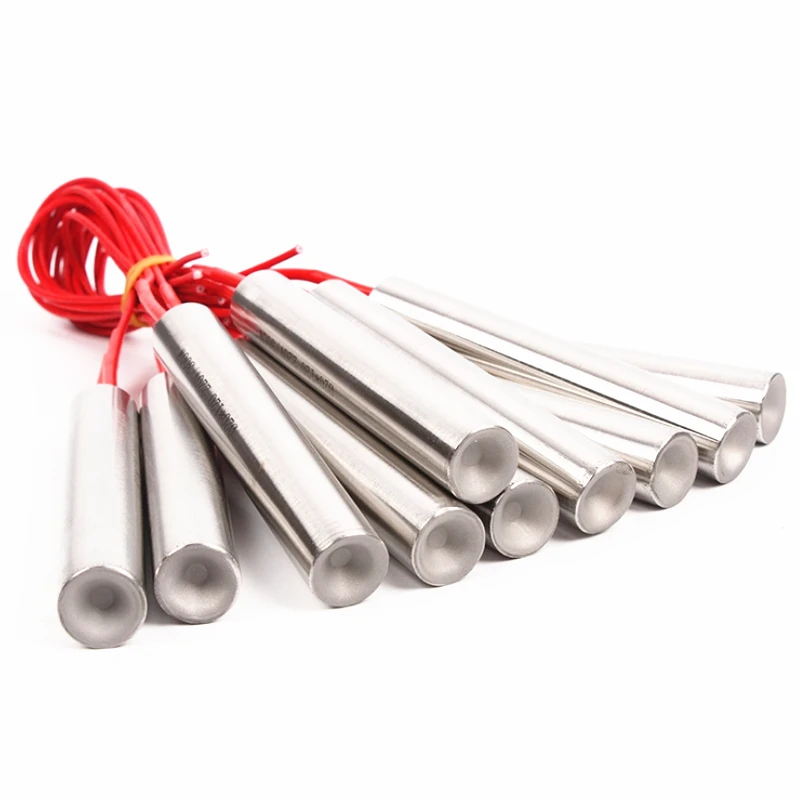

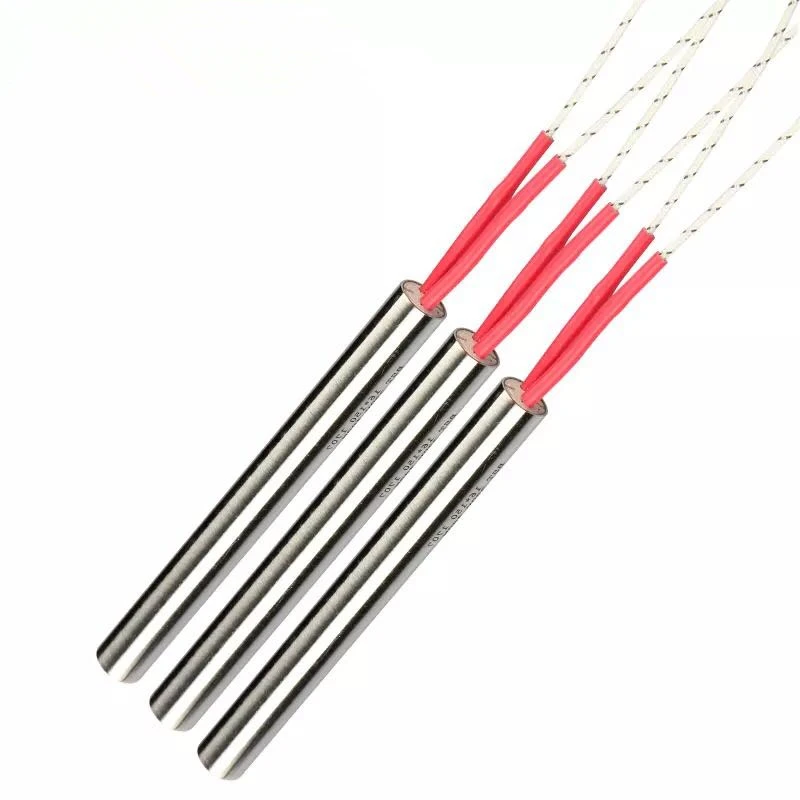

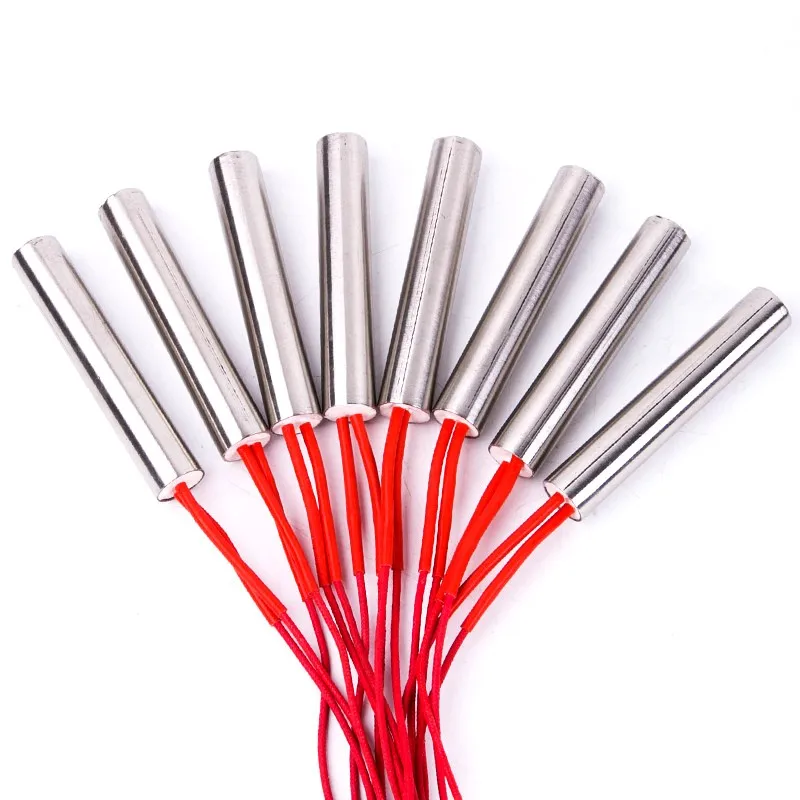

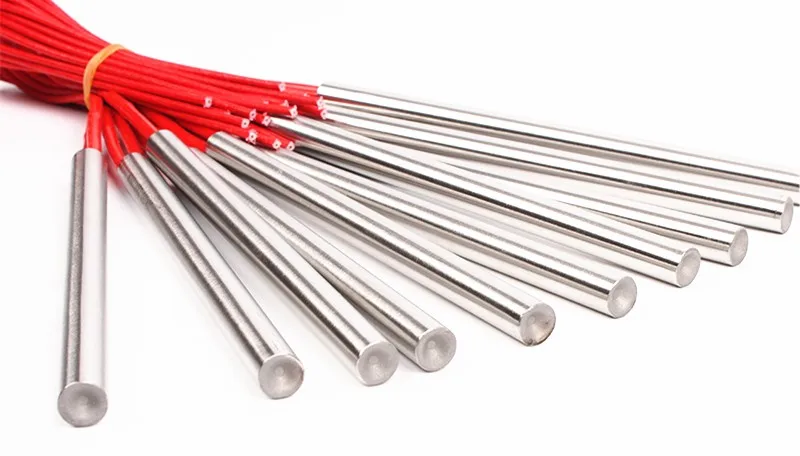

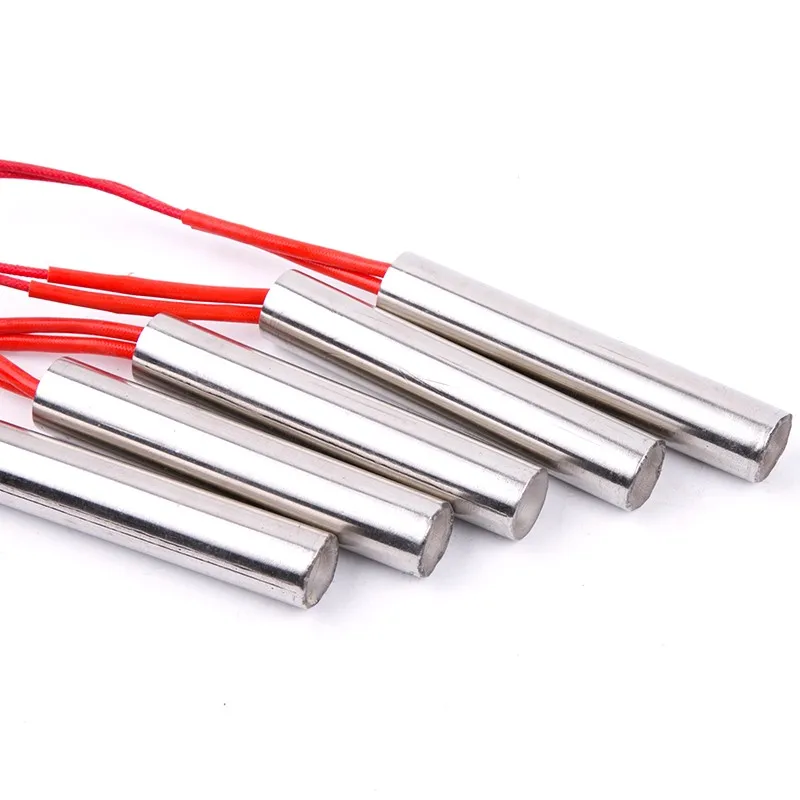

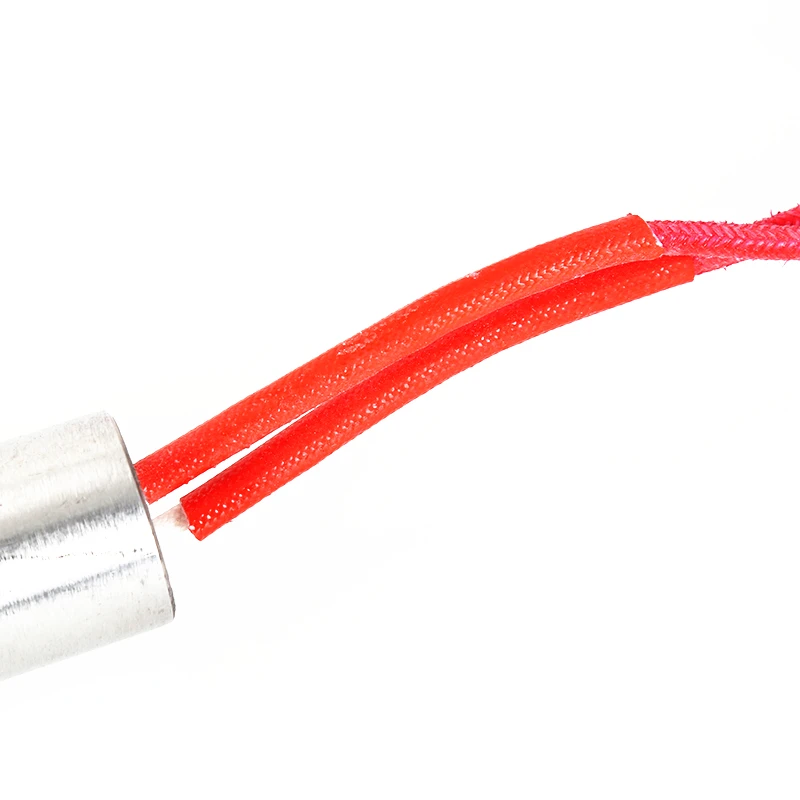

JinXinYang industrial electric heating element 110V/220V immersion cartridge heater electric heating tube 100 300W

Share on (60725682275):


Price:RUB 770.65

Quantity:


Product Overview

Description

Product Description



NOTICE:we have 10*30mm 10*60mm 12*60mm 12*80mm 12*100mm
which size you want ,please leave a message to us.

TB2Y5M1gdFopuFjSZFHXXbSlXXa_!!2692906255_TB2Y5M1gdFopuFjSZFHXXbSlXXa_!!269290625556

1. Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840)

2. usually in tube form

3. Cartridge heaters are manufactured in two basic forms - high density and low density

4. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Product Name
heating tube
Resistance heating wire
NiCr 80/20 wire
Sheath
stainless steel 304,321,316, Incoloy 800, Incoloy 840
Maximum temperature
800 degree Celsius
Wattage Tolerance
+5%, -10%
Resistance tolerance
+10%, -5%
Voltages available
220V,110V
Length tolerance
±1 mm
Diameter tolerance
-0.02mm
Standard Cold Zone
5-10mm
Insulation resistance (cold)
≥ 500 MΩ
Maximum leakage current (cold)
≤ 0.5 mA
Thermocouple Location
Type K



FAQ



Q1: What's the main product of you factory?

A1: Professional production and sales: bronzing machine, embossing machine, Copper mould, aluminum mold, cake mold brand. All hot stamping tools.

Q2: What's your MOQ?

A2:1pcs

Q3:How long guarantee for the machine?

A3:Yes,we have warranty of 1year period.

Q4:How about the quality guarantee period of wear parts?

A3:The wear parts is not included the guarantee.Please buy spare parts.

Q5:How long is shipment?

A5:Normal at least 5 work days after all sides clear, every machine need this time to keep the quality

Q6:Alibaba assurance ?

A6:Yes, we are alibaba assurance supplier.

Q7: How does your factory do regarding quality control?

A7: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.

Q8: What is your after-sales service?

A8: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.

Q9: What is the terms of payment you accept?

A9: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.Amount is greater than 3000USD.
