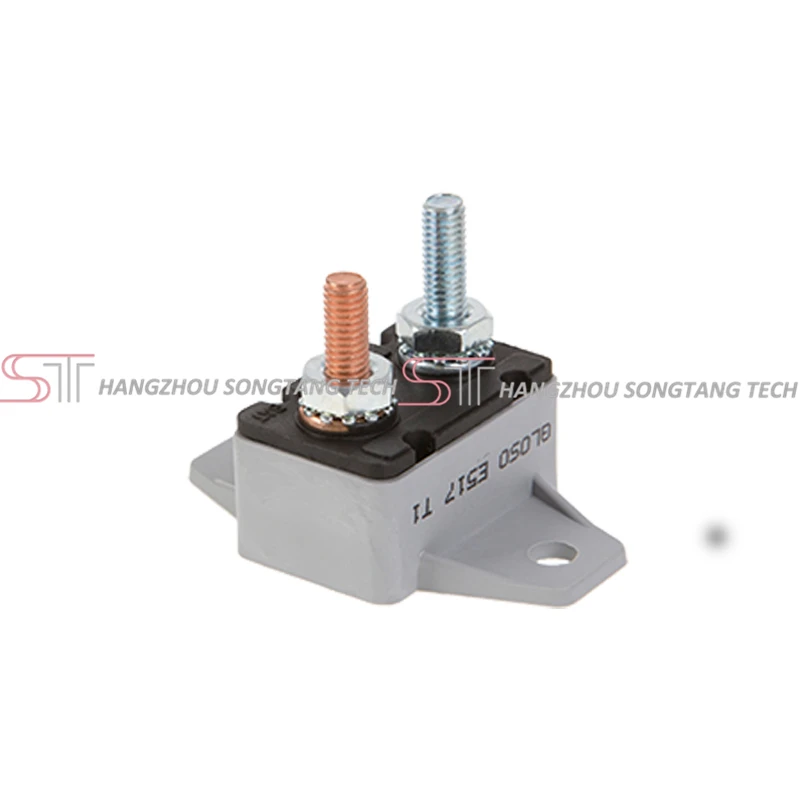

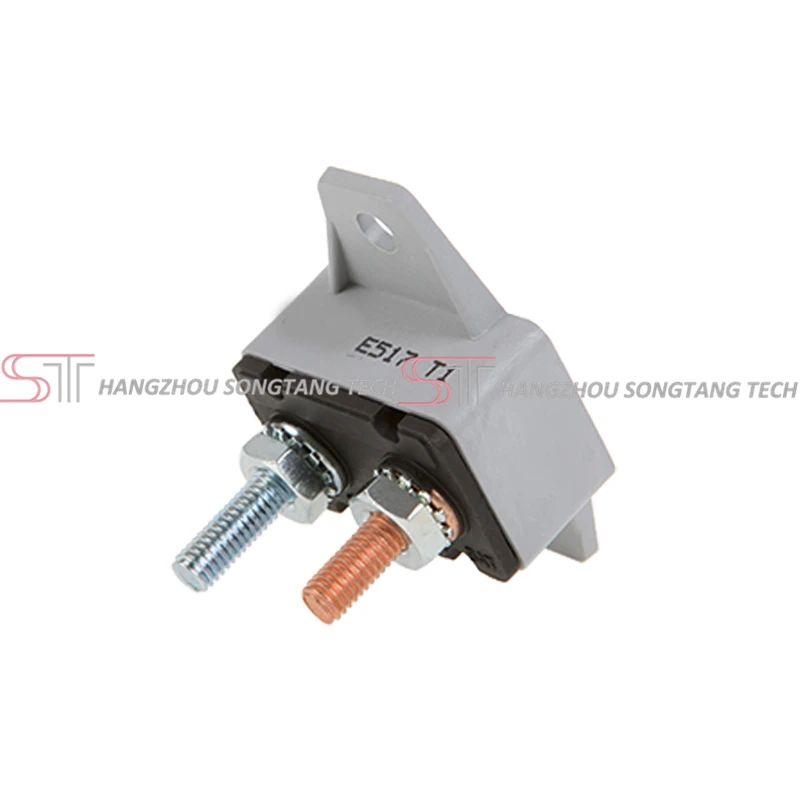

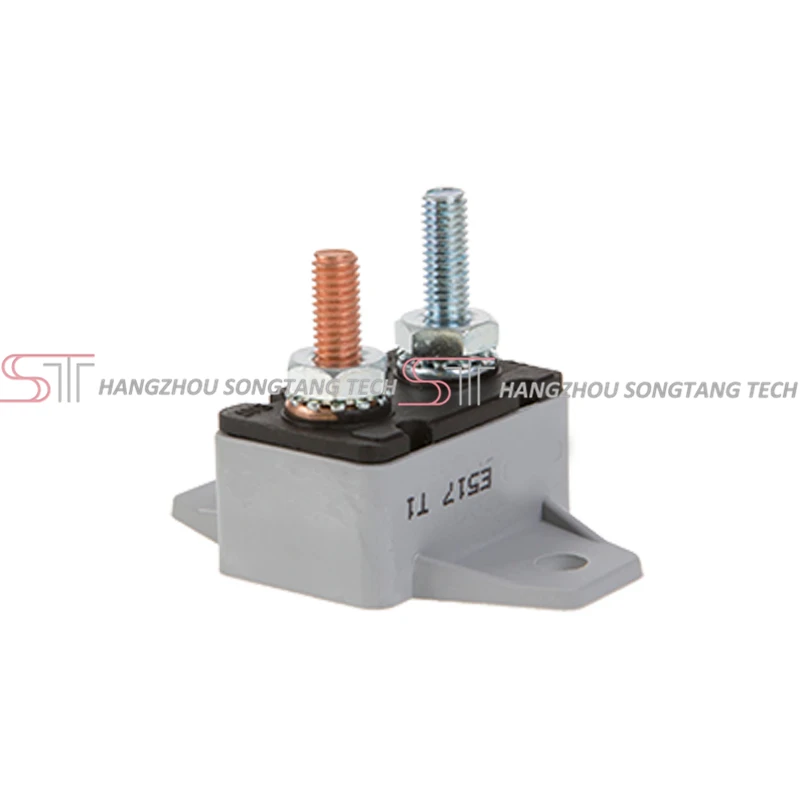

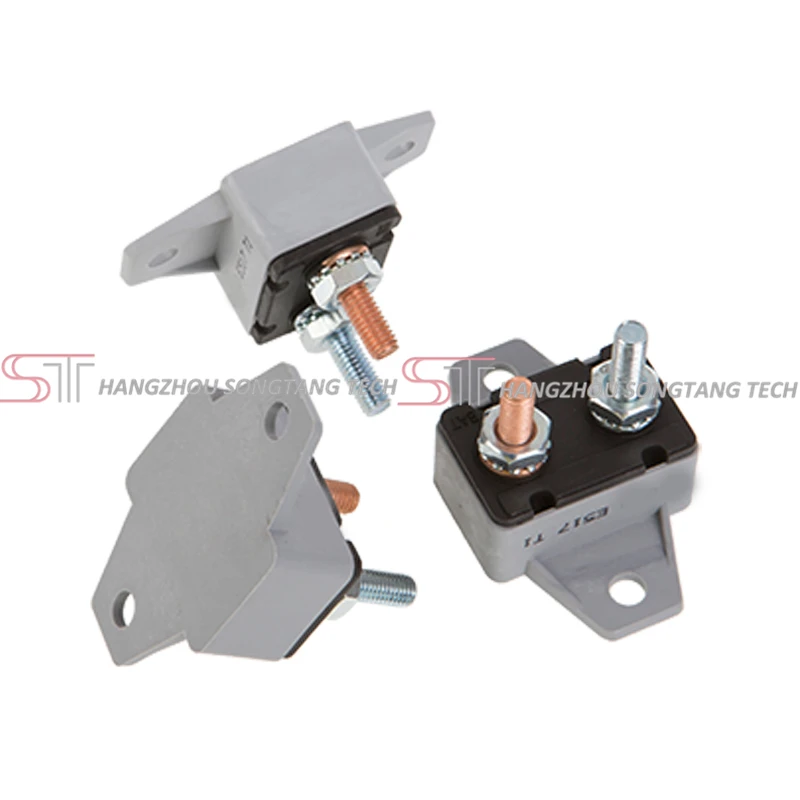

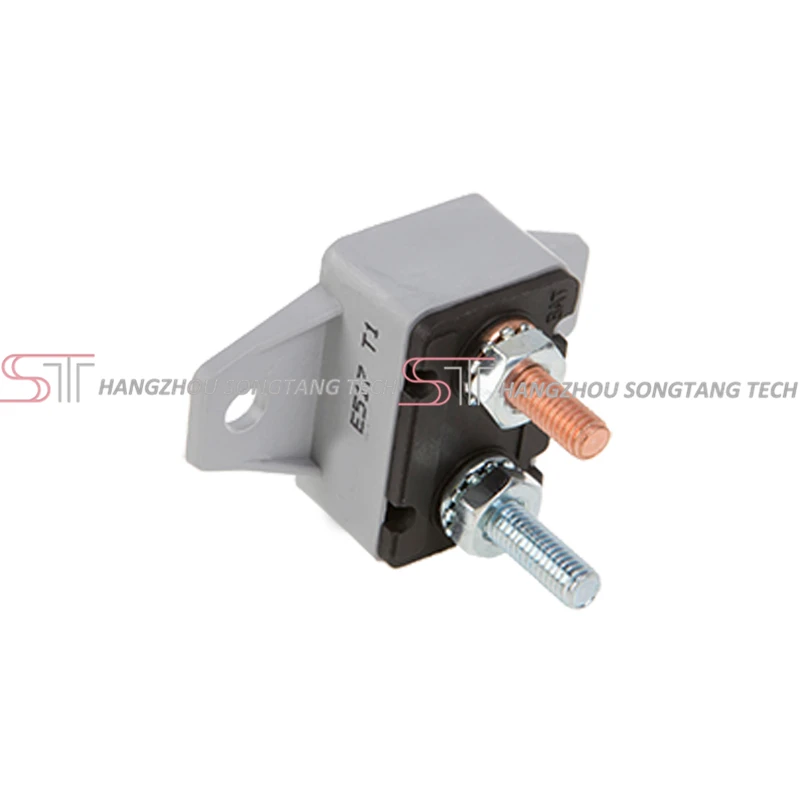

E517 Stud Type 12/24VDC thermal Circuit Breaker
- Category: >>>
- Supplier: Hangzhou Songtang Tech. Co. Ltd.
Share on (60725684720):
Product Overview
Description
SONGTANG
| Part Number | E517 |
| Description | E5 Stud Type Circuit Breaker Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc Available in ratings from 5 to 50 Amperes. Complies with SAE J553; SAE J1171; UL1500 |
| Family | Thermal Circuit Breakers |
| Category | E5 |
| Series | E517 |
| Voltage | 14Vdc |
| Rated Current | 20A |
| Mounting | Horizontal (Crosswise) Mounting Bracket |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) |
| Interrupt Capacity | 2,500A @ 14Vdc |

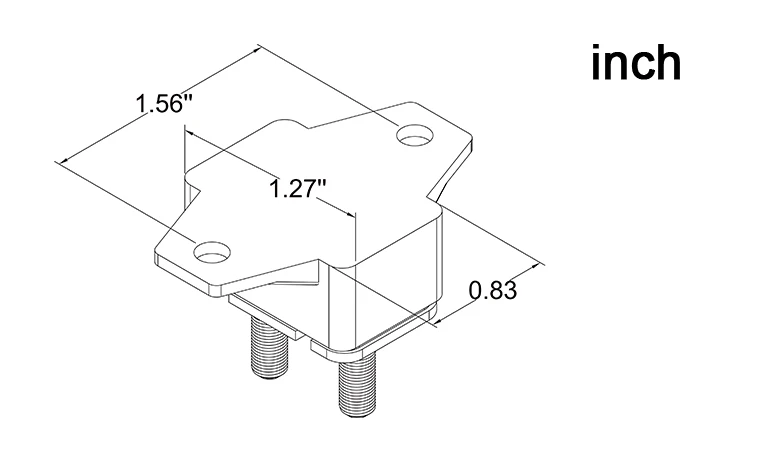

| Dimension | Length: 1.56" Width: 0.83" Height: 0.669" Unit: inch |
| Weight | 22 g |
| RoHS | Y |
| Standard Pack | 300 |
| HS Code | 85362000 |
| Termination | #10-32 Thread |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) |
Product Advantage:
| 1 | Thermal Trip-free, Cycling |
| 2 | Branch Circuit Protection: 2.5KA @ 12 Vdc |
| 3 | Main Circuit Protection: 1.5KA @ 12Vdc |
| 4 | 100% Hold, 135% Trip (percent of rating) |
| 5 | #10-32 Thread and Quick Connect options available |
| 6 | IP67 Waterproof function |
| 7 | SAE J553 |
| 8 | SAE J1171 (ignition protected) |
| 9 | ISO 8846 |
| 10 | Stud Mount or Bracket Mount |
