High Capacity Sugar Mill Machinery

Category: Seasoning Processing Machinery >>>
Supplier: Wuxi Rela Pharma Machinery Co. Ltd. [Jiangsu China]Wuxi

Price:RUB 454,908.00 - RUB 15,163,600.00

Quantity:

Product Overview

Description

Product Description

Product Application

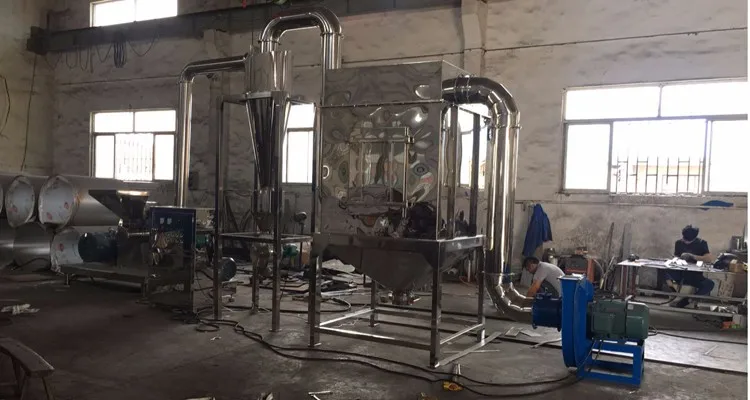

High Capacity Sugar Mill Machinery is a new designed grinding machine with air-cooling system. It can grind powder at 20-120mesh with cyclone and dust collector system. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc.

Working Principle

The raw material enters into the grinding chamber through the feed hopper. The material, impacted by the high-speed rotary cutters, is thrown to the fixed liners, then is bounced and sheared. Meanwhile, under the impact, cut, rubbing force by turns, the material is micronized well. Under the pull force, the finished product is absorbed into the cyclone through the sieve and discharged from the rotary valve. A little of superfine powder is collected by the filter pockets.
It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.．

Main Feature

1. In the behind of machine chamber, there is a propeller structure. During operation, the heat in the grinding chamber is sucked out with air quickly by the rotary propeller; therefore, there is no much heat in the chamber to keep the characteristic of the material.
2. During operation, the strong air flow can expel the material out quickly. So the capacity is high and it can grind the heat sensitive and sticky material with good effect.

Working Video

1. KFL-400 Sugar Grinding: https://youtu.be/dJw43jdQbeA

Technical Parameter

Model	KFL-400	KFL-500	KFL-600	KFL-700	KFL-800
Capacity (kg/h)	50-400	100-800	300-1500	400-1800	500-2000
Output size (mesh)	10-120	10-120	10-120	10-120	10-120
Rotary speed (rpm)	4800	4200	3500	3050	2140
Main motor (kw)	7.5	15	18.5	22	30
Fan motor (kw)	2.2	4	11	11	15
Unload motor (kw)	0.75	0.75	1.1	1.5	1.5
Weight (kg)	420	650	1000	1200	1600

Detailed Images

Machine Parts

Name: Rotor & Stator

Material: Stainless Steel

The hammer type rotor with several levels of stators can grind the product into powder quickly and easily.

The final particle size is determined by the sieve size.

Machine Parts

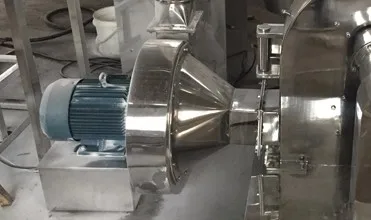

Name: Inline Blower
Material: Stainless Steel

The inline blower is placed between the main machine and cyclone to enhance the airflow in the system. Thus the powder can be sucked out the grinding chamber through the sieve quickly. So the capacity is much higher and the temperature in the chamber is low.
The fan is made by Stainless Steel to meet Food standard.

Control Cabinet

Material: Stainless Steel

Independent control cabinet for easy operation.

Electric components are famous local brand CHNT. Other famous brand such as Siemens, Schneider, etc. are available.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship.

Packing & Delivery

Packaging
Size	Depends on the model
Weight	Depends on the model
Packaging Details	-Pre-pack by Plastic Film -Plywood Case If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
