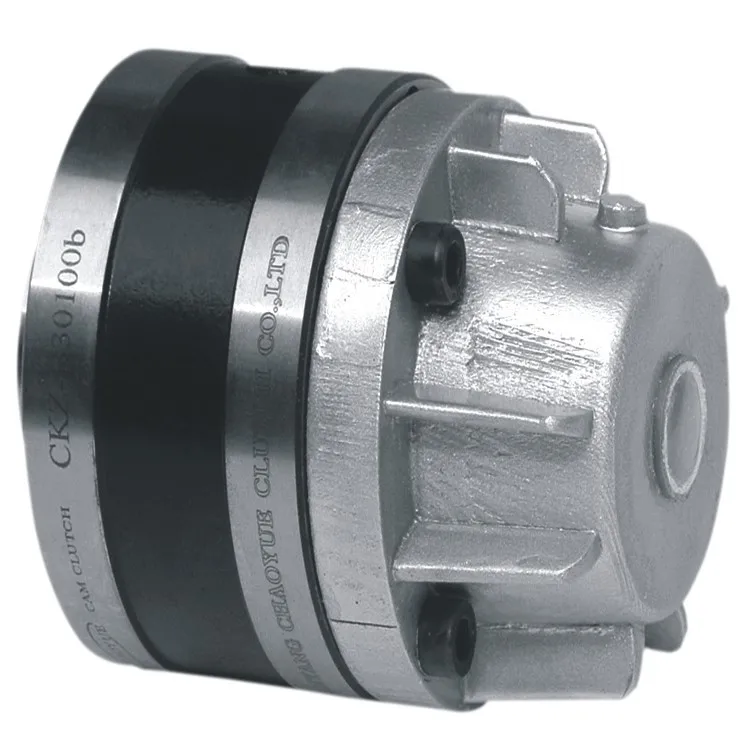

CKZ D China supplier unidirectional sprag overrunning clutch

Name: CKZ D China supplier unidirectional sprag overrunning clutch
SKU: 60725732107
Availability: InStock

Price:

Quantity:

Product Description

CKZ-D China supplier unidirectional sprag overrunning clutch

Parameter of CKZ-D China supplier unidirectional sprag overrunning clutch

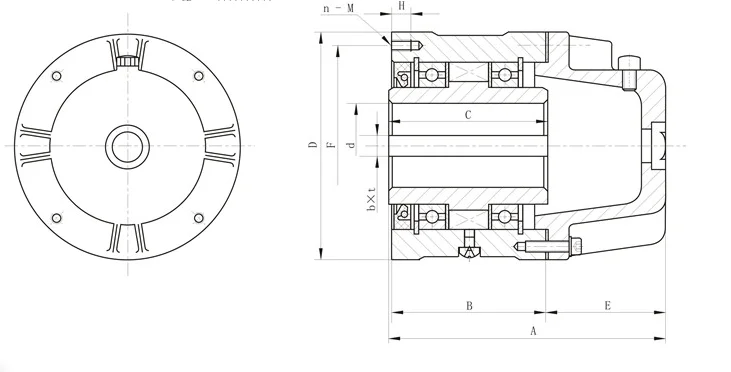

TYPE	NOMINAL TORQUE [N · m]	OVERRUNNING LIMITING SPEEDS [r / min]	DIMENSNION IN CONTOUR [mm]										WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	OVERRUNNING LIMITING SPEEDS [r / min]	d [H7]	D [h7]	A	B	C	F	E	n - M	H	b x t	WEIGHT [kg]
CKZ-D1977	185	1960	19	77	115	60	63	66	53.5	4 - M6	13	5 x 2	2.00
CKZ-D2288	317	1820	22	88	122	67	70	73	53.5	4 - M8	16	5 x 2	3.00
CKZ-D32108	953	1680	32	108	154	86	89	92	66.5	4 - M8	16	7 x 3	5.50
CKZ-D50136	1847	1470	50	136	165	92	95	120	71.5	6 - M8	16	12 x 3.5	9.50
CKZ-D70180	3460	1050	70	180	207	124	127	160	81.5	6 - M10	20	18 x 6	21.0
CKZ-D85200	5590	980	85	200	280	150	153	175	128.5	8 - M14	25	24 x 6	40.3
CKZ-D110250	10300	910	110	250	298.5	155	158	220	142	8 - M16	25	28 x 7	50.6
CKZ-D135300	14400	840	135	300	314.5	160	165	265	152	10 - M16	32	35 x 9	77.6
