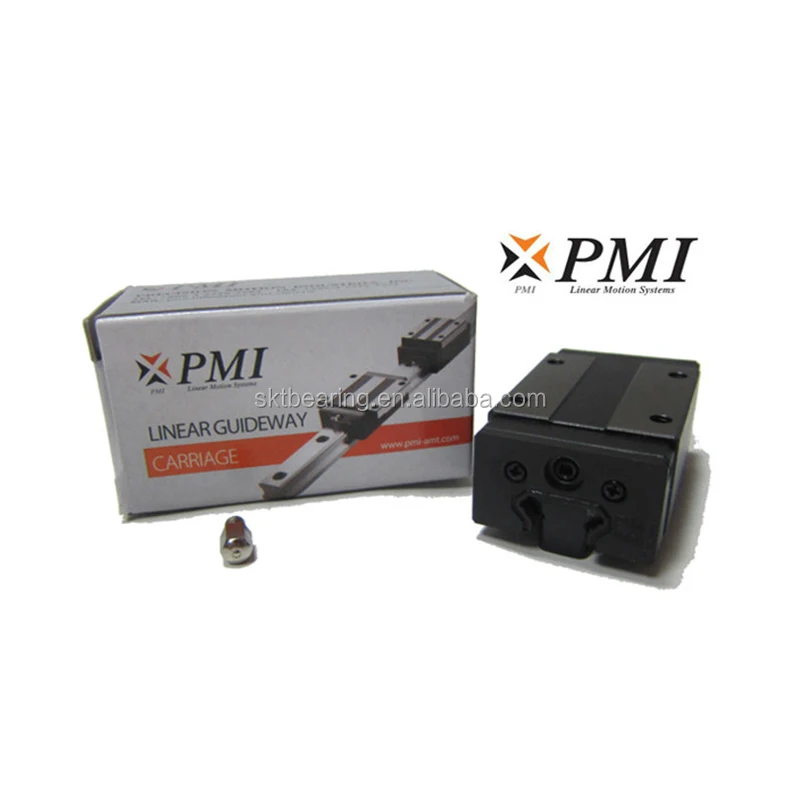

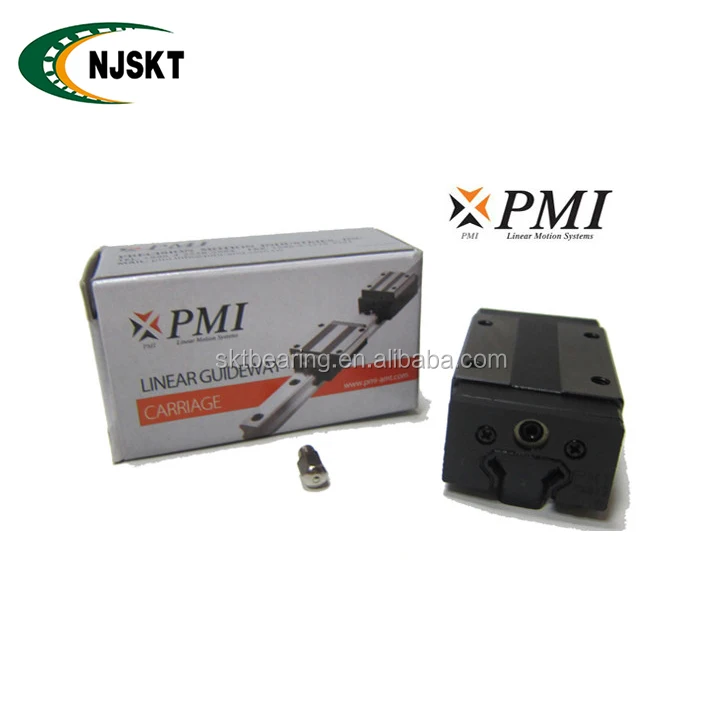

High quality 45mm PMI Linear guide rail MSA45S

Product Overview

Description

High quality 45mm PMI Linear guide rail MSA45S

PMI,  MSA S/LS Series

  Heavy Load Type



Features-------------------------------------------------------------------

   The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial,reversed radial and lateral directions.Therefore, it can be aplied in any installation direction. Futhermore,MSA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.



Characteristics------------------------------------------------------------

.Heavy load radial       .Self Alignment Capability

.High Rigidity               .Interchangeability

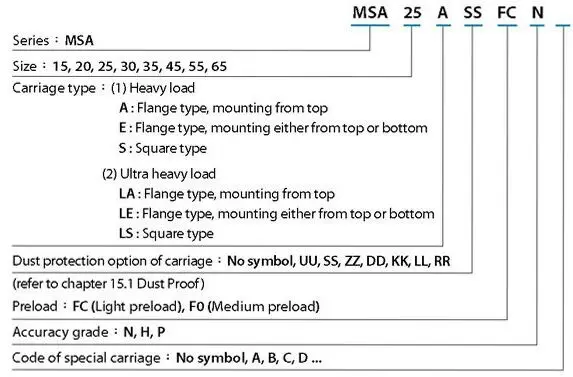

Series-----------------------------------------------------------------------

MSA-A/MSA-LA  ,  MSA-E/MSA-LE  ,  MSA-S/MSA-LS

MSB-TE/MSB-E  ,  MSB-TS/MSB-S

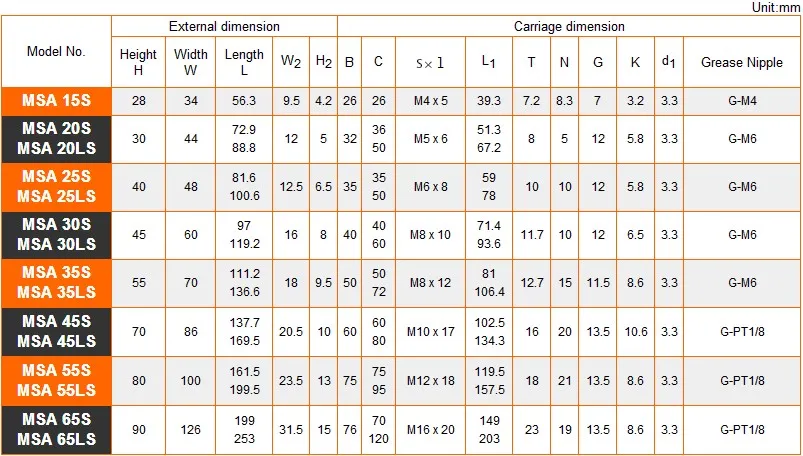

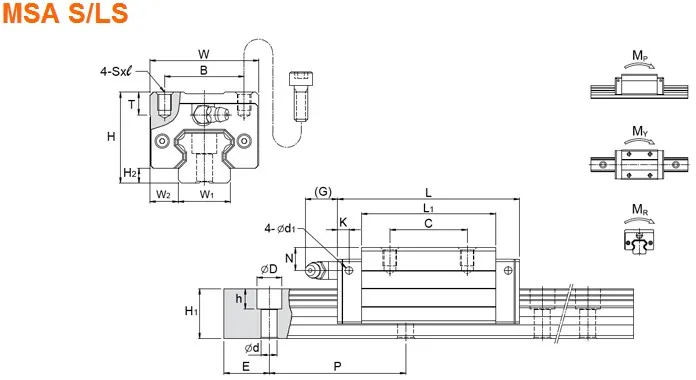

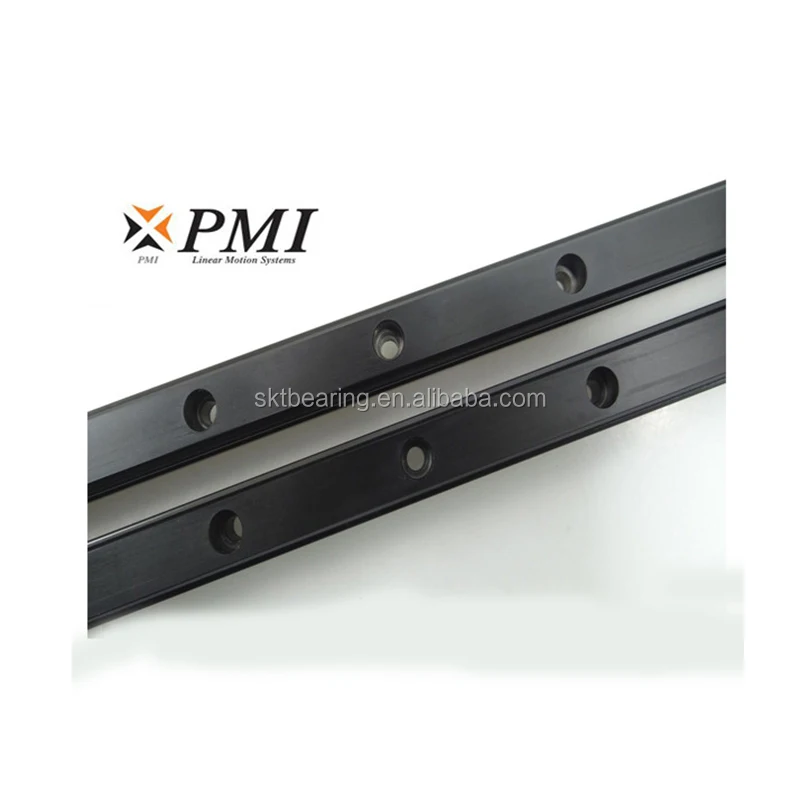

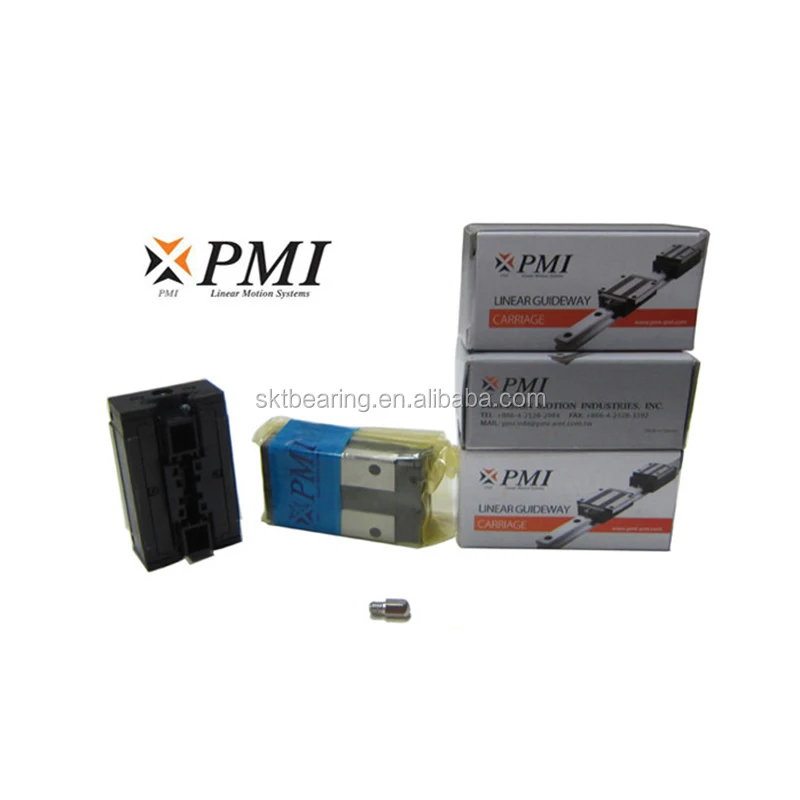

Pictures--------------------------------------------------------------------

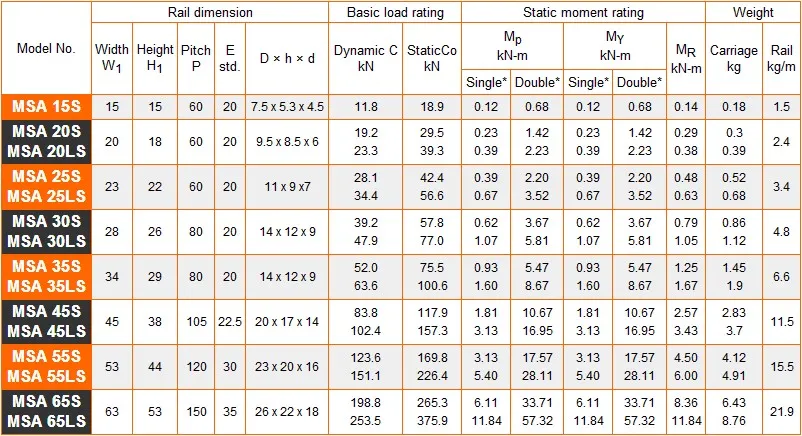

Note: The basic dynamic load rating C of ball type is based on the 50 km for nomal life

            The conversion between C for 50 km and C100 for 100 km is C=1.26*C100

 Note*: Single: Single carriage/Double: Double carriage closely contacting with each other.





Also we can supply below model

• Roller linear guideway MSR Series

MSR25E         MSR30E           MSR35E         MSR45E       MSR55E

MSR25LE       MSR30LE         MSR35LE      MSR45LE     MSR55LE      MSR65LE

MSR25S         MSR30S           MSR35S         MSR45S       MSR55S

MSR25LS       MSR30LS         MSR35LS      MSR45LS     MSR55LS      MSR65LS

• Mini linear guideway MSC Series & MSD Series

MSC7M       MSC9M       MSC12M       MSC15M

MSC7LM     MSC9LM    MSC12LM     MSC15LM

MSD7M       MSD9M       MSD12M       MSD15M

MSD7LM     MSD9LM    MSD12LM     MSD15LM

• Ball Chair type linear guideway SME series

SME15EA      SME20EA       SME25EA       SME30EA      SME35EA     SME45EA

SME15 LEA   SME20LEA     SME25LEA    SME30LEA    SME35LEA   SME45LEA

SME15EB      SME20EB        SME25EB      SME15LEB    SME20LEB   SME25LEB

SME15SA      SME20SA        SME25SA      SMA30SA      SMA35SA      SMA45SA

SME15LSA    SME20LSA      SME25LSA    SME30LSA   SME35LSA    SME45LSA

SME15SB      SME20SB         SME25SB      SME25SA     SME30SB      SME35SB        SME45SB

SME15LSB    SME20LSB      SME25LSB    SME25LSA   SME30LSB    SME35LSB     SME45LSB

• Roller Chair type SMR Series

SMR25E         SMR30E           SMR35E         SMR45E       SMR55E

SMR25LE       SMR30LE         SMR35LE      SMR45LE     SMR55LE        SMR65LE

SMR25S         SMR30S           SMR35S         SMR45S       SMR55S

SMR25LS       SMR30LS         SMR35LS      SMR45LS     SMR55LS        SMR65LS

• High load type MSA Series

MSA15A        MSA20A        MSA25A       MSA30A       MSA35A       MSA45A

MSA20LA      MSA25LA     MSA30LA     MSA35LA     MSA45LA

MSA15E        MSA20E        MSA25E       MSA30E       MSA35E       MSA45E     MSA55E    MSA65E

MSA20LE      MSA25LE      MSA30LE    MSA35LE     MSA45LE     MSA55LE   MSA65LE

MSA15S        MSA20S        MSA25S       MSA30S       MSA35S       MSA45S     MSA55S    MSA65S

MSA20LS      MSA25LS      MSA30LS    MSA35LS     MSA45LS     MSA55LS   MSA65LS

• Compact type MSB Series

MSB15TE           MSB20TE         MSB25TE          MSB30TE          MSB35TE

MSB15E              MSB25E           MSB30E             MSB35E           MSB35LE

MSB15TS            MSB20TS        MSB25TS           MSB30TS         MSB35TS

MSB15S              MSB20S           MSB25S             MSB30S           MSB35S            MSB35LS

 Linear guide rail Warehouse to show >>>>>



Payment & Shipping & Sample & Service

Payment

• T/T ,L/C, Western Union,PayPal, Credit Card

Shipping

• For Small orders and short size (80mm-2500mm),we send by express UPS,DHL,FEDEX, or EMS,China Post with Thracking number


• For Big quantity and long size(3000mm-4000mm), we will ship by sea.

Sample

• Free sample after deposit,or sample cost at buyer's cost(refundable)

1.Providing guidance for bearing type selection ,choosing the optimal desidn,reducinH the customer cost and esuring the operating performance of equipment

2.Hlping customers design bearing applications and providing overall solutions

3.Reducing operating cost for customers

• In-Sales:

1.Providing customers with transportation arrangements and related service

2.Assisting customers in handling icoming inspection.

• After-sales:

1.Providing customers with trainings about bearings installation,operation and maintenance

2.Ensuring the stable operation of equipment,improving

3.Providing bearing failure analysis
