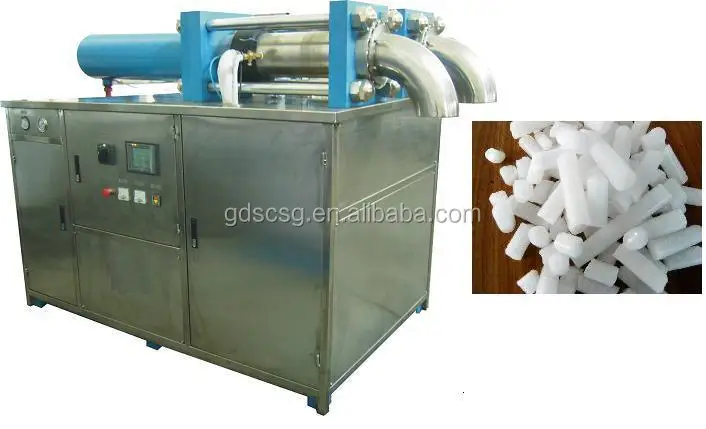

Dry ice block machine

Product Overview

Description

CGC-100-1 single-head block dry ice machine can produce 350g-1200g block dry ice, the production capacity is 120kg-185kg/h. The actual output depends on the thickness of the dry ice produced, the thicker the dry ice, the higher the output.

The dry ice production of this machine is mainly used in airline food, fresh storage, cold chain transportation.



CGC-100-2 double-head block dry ice machine can produce 350g-1200g block dry ice, the production capacity is 240kg-370kg/h. The actual output depends on the thickness of the dry ice produced, the thicker the dry ice, the higher the output.

The output is twice as much as the dry ice machine CGC-100-1, saved the area and pipes connection. The dry ice production of this machine is mainly used in airline food, fresh storage, cold chain transportation.



CGC-500-1 single-head block dry ice machine can produce 2kg-12kg block dry ice, the production capacity is 300kg-500kg/h. The actual output depends on the thickness of the dry ice produced, the thicker the dry ice, the higher the output.

The dry ice production of this machine is mainly used in refrigeration storage, cold chain transportation, dry ice cleaning deburring etc.



CGC-500-2 double-head block dry ice machine can produce 2kg-12kg block dry ice, the production capacity is 600kg-1000kg/h. The actual output depends on the thickness of the dry ice produced, the thicker the dry ice, the higher the output. The output is twice as much as the dry ice machine CGC-500-1, saved the area and pipes connection.The dry ice production of this machine is mainly used in refrigeration storage, cold chain transportation, dry ice cleaning deburring.

Series

Model

M.P.(KW)

Dry ice size(mm)

Capacity(kg/h)

Density(t/m3)

CO2 T.R.

L.I.P(MPa)

LID(mm)

E.P.D(mm)

F.T (L)

Dimen.(cm)

Weight(kg)

1

CGC-100-1

7.5

125*105*(20-60)

120~185

≥1.48

40%--43.5%

≤2.1

DN10

DN50

280

140x110x170

1200

2

CGC-100-2

2x 7.5

125*105*(20-60)

240~370

≥1.48

40%--43.5%

≤2.1

2-DN10

2-DN50

280

160x140x170

1600

3

CGC-500-1

13.5

250*140*(50-210)

300~500

1.3~1.5

40%--43.5%

≤2.1

DN20

DN70

280

270x110x180

2300

4

CGC-500-2

2x 13.5

250*140*(50-210)

600~1000

1.3~1.5

40%--43.5%

≤2.1

2-DN20

2-DN70

400

270x150x180

4500

M.P.=Motor Power, CO2 T.R.=CO2 transformation rate, L.I.P=Liquid Inlet Pressure, L.I.D=Liquid Inlet Diameter, E.P.D=Exhaust Pipe Diameter, FTC=Fuel Tankage, Dimen.=Dimension
