high performance alcohol production equipment/alcohol production line/alcohol distillation plant
Product Description

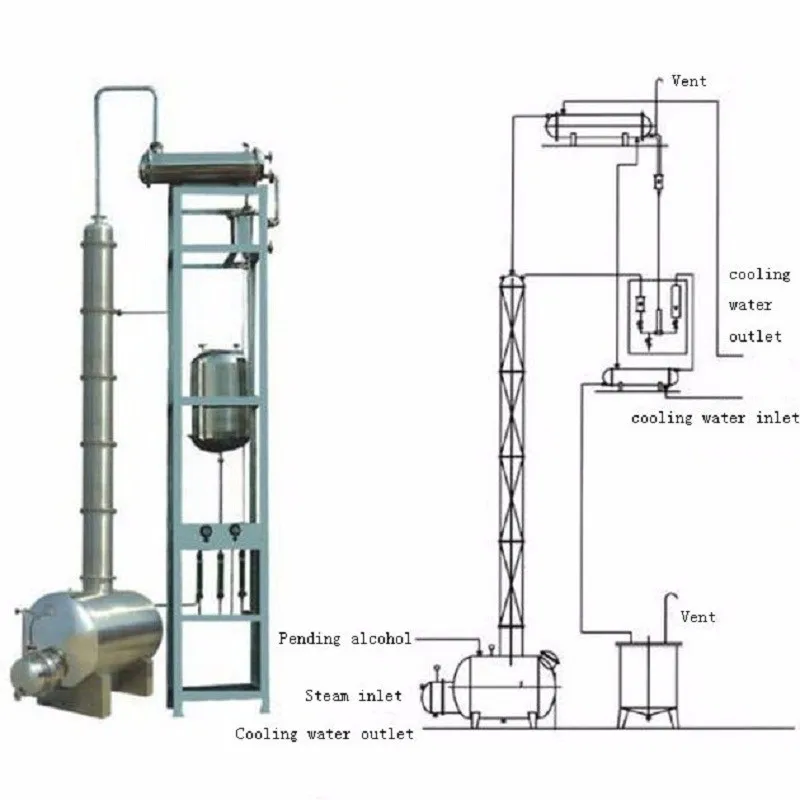

Alcohol distillation plant is made of kettle, body, condensator, cooler, buffer tank and high-level tank to be used in diluted alcohol reclaiming in pharmacy, foods, chemistry and other industries. The parts contacting with material are made by OCr18Ni9 stainless steel to obtain good performance of erosion resistance. It is durable and meets with GMP standard.
Specification and parameter:
Standard Requirement | JH200 | JH300 | JH400 | JH500 | JH600 | JH800 |
(L) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 |
Tower Volume | ||||||
(mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 |
Tower Height | ||||||
(L) | 300 | 400 | 650 | 800 | 1000 | 1500 |
High-level Tank Volume | ||||||
(m2) | 5 | 9 | 11 | 18 | 25 | 45 |
Condensing Area | ||||||
(m2) | 1 | 1.5 | 2.2 | 4 | 6 | 8 |
Cooling Area | ||||||
(m2) | 3 | 6 | 6.5 | 10 | 15 | 26 |
Heat Exchange Area | ||||||
(kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 |
Reclaiming Capability | ||||||
(kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 6800 |
Device Weight | ||||||
(mm) | 2300×700 | 2600×800 | 2500×1000 | 3000×1200 | 3500×1400 | 4200×1800 |
Outer Size (Length * Width * Height) | ×7300 | ×7500 | ×9000 | ×9000 | ×1000 | ×14000 |
Reclaiming Density (%) | >90 | |||||
Stuffing Method | Stainless Steel Packing | |||||
Vessel Sort | I Sort |
Packaging & Shipping
1. Wooden case packing if necessery.
2. Packed by plastic bags if for Very big machines.
3.Trade term: FOB or CIF.
4.Sea shipping.
FAQ
About Delivery time
A-----Usually we send tne shipments in FOB term.However, the CIF are also acceptable which decided by the clients.
About Lead Time
A------Usually it takes about 15-20 days after we received your PO and prepayment.
However, it would depend on our production line schedule and the complexity of the item.
About Payment Term
A------By T/T in Advance, or Irrevocable L/C at Sight.
The equipments can be customized, leave us an inquiry to know more details about price, packing and shipping.
