Complete factory price industrial mini rice milling machine combined with wheat flour mill machine 6N40 9FQ20
- Category: >>>
- Supplier: Leshan Chuanggong Machinery Manufacturing Co. Ltd.
Share on (60725779083):
Product Overview
Description
Product structure

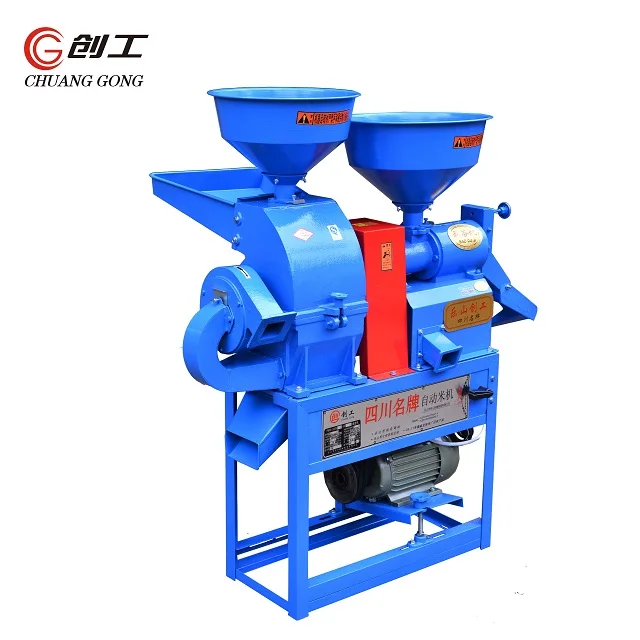

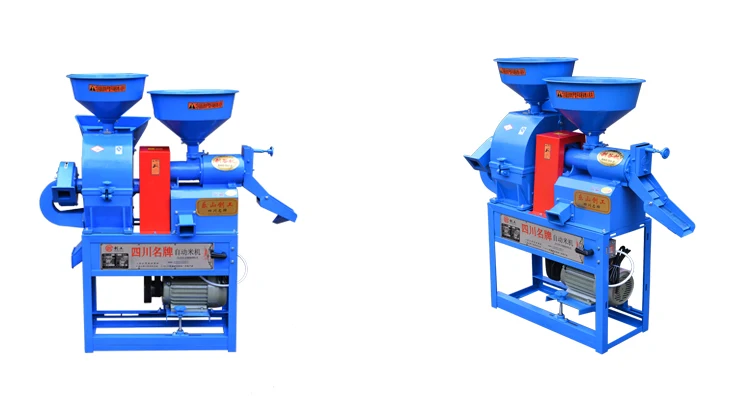

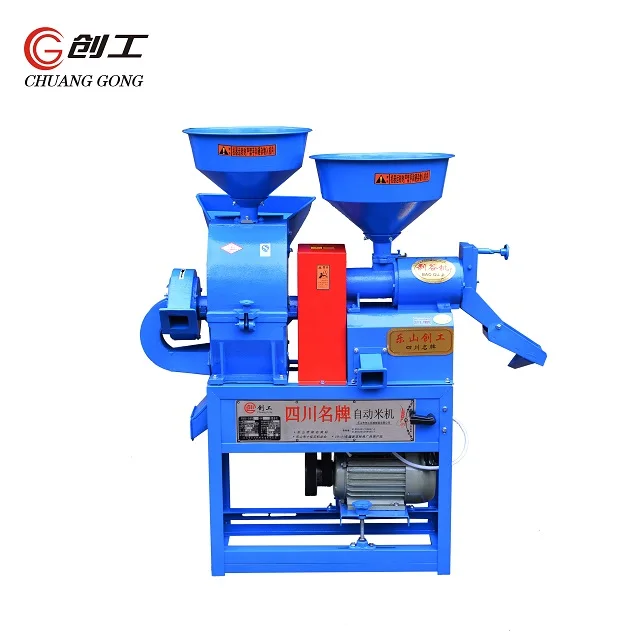

Complete factory price industrial mini rice milling machine combined with wheat flour mill machine 6N40-9FQ20
| Main Technical Parameters | |||
| Rice miller | Grinding machine | ||
| Model No. | 6N40 | Model No. | 9FQ20 |
| Rate Power(kw) | 1.5-2.2 | Rate Power(Kw) | 1.5-2.2 |
| Rate Voltage(V) | 220 | Rate Voltage(V) | 220 |
| Productivity(kg/h) | ≥120 | Productivity(Kg/h) | ≥150 |
| Power Consumption(kw.h/t) | ≤15.0 | Power Consumption(Kw.h/t) | ≤10.0 |
| Percentage Of Head Rice(%) | ≥85.0 | Temperature Rise | ≤20.0 |
| The Diameter Of Rice Roller(mm) | φ40 | Diameter Of Sieve Circle (mm) | φ2 |
| Speed Of Roller(r/min) | 1400-1910 | Diameter Of Spindle(mm) | φ200 |
| Rate Motor Speed(r/min) | 2800 | Spindle Speed(r/min) | 4850 |
| Diameter Of Sieve Circle (mm) | φ48 | Diameter Of Motor(mm) | φ170 |
| Dimension(mm) | 1180*580*1230 | ||
| Packaging Size(mm) | 690*570*310 | ||
| Total Weight(kg) | 89 | ||
Product application
1.Complete rice milling machine 6N40-9FQ20 is combined with rice mill machine and grain crusher machine.
2.Two function: Rice milling and Grain grinding, such as rice bran, cassava, corn, sorghum, bean and feedstuff.
3.Adopts the patent collection bran products, the fine bran and fine powder does not contain refined rice.
4.Can mill rough rice directly into polished rice, separate polished rice, broken rice, rough rice bran and polished rice bran.
5.Different Screen mesh, Different Sorts Of Powder.
6.The mill without knife can collect the chaff products, favorable for refining rice and eliminating the appearance of tiny bran and powder.
7.Advantages of Safety, Easy to Operate.
8.Has optional switch type or ordinary type.
9.Has optional with or without fan.
10.Can choose electric motor or diesel engine.
11.The color and non-standard machine is ok.
