DC Low Speed Spur Gear Motor

Product Overview

Description

FT-49OGM500  DC Low Speed Spur Gear Motor

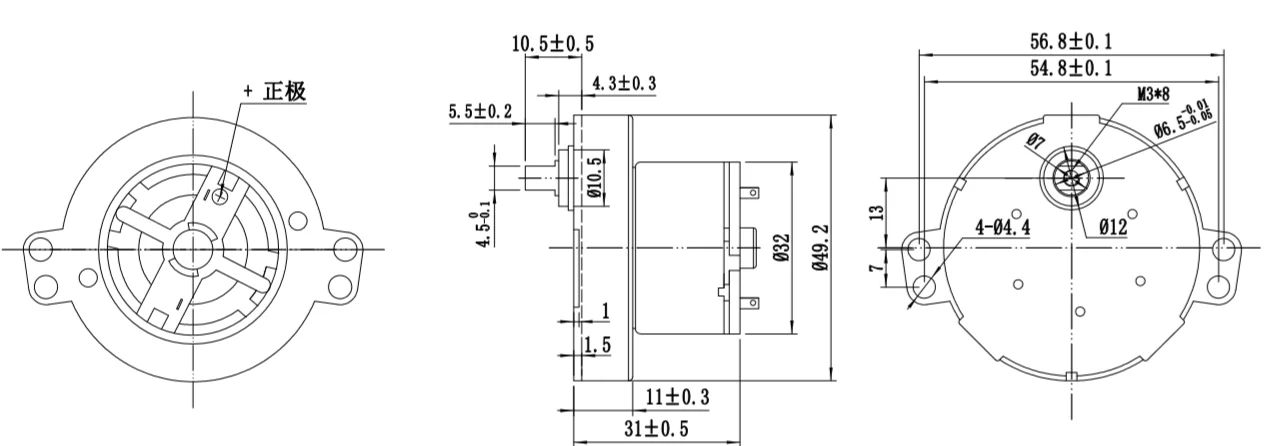

DRAWING (mm)



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-49OGM5000063300-532K-3V	3V	3	50	2	110	2.6	0.05	140	7
FT-49OGM5000031800-176K	3V	11	30	8	100	1	0.08	160	3
FT-49OGM5000062100-105K	6V	20	50	12	120	1	0.12	160	2.5
FT-49OGM5000064400-105K	6V	42	140	27.5	370	1.5	0.42	580	5
FT-49OGM5000066000-176K	6V	34	300	22	720	3.8	0.86	1100	12
FT-49OGM50066000-266K	6V	22	180	16	600	4.5	0.74	990	15
FT-49OGM5000064000-530K	6V	8	80	5.6	200	5	0.29	450	19
FT-49OGM5000123000-340K	12V	8	40	6	130	5	0.31	280	21
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in





GEARBOX DATA

Reduction stage	4-stage	5-stage
Reduction ratio	80	150, 201, 309, 426, 522
Max rated torque Kgf.cm	1	2
Max momentary torque Kgf.cm	3	5
Gearbox efficiency	65%	59%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-500	3	≤35	2800	≤160	2300	10	0.24	≥60	≥640
FT-500	3	≤22	1800	≤85	1430	8.4	0.13	≥41	≥330
FT-500	5	≤26	3100	≤120	2540	12.6	0.34	≥70	≥540
FT-500	6	≤20	2700	≤84	2180	11.6	0.26	≥60	≥350
FT-500	12	≤22	4000	≤125	3200	13.5	0.45	≥75	≥460



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
