RLK131 TLK131 Transmission Parts Keyless Power Lock Device 45*75
US $8.20-$11.00
Z5 Factory price standard shaft power locking device
- Category: Other Power Transmission Parts >>>
- Supplier: Xianyang Chaoyue Clutch Co. Ltd.
Share on (60725799762):
Product Overview
Description
Product Description

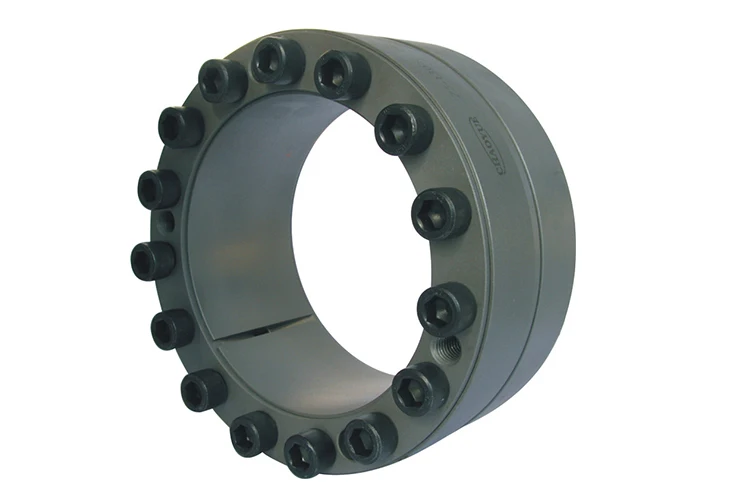

Z5 Factory price standard shaft power locking device
It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .
Parameter of Z5 Factory price standard shaft power locking device

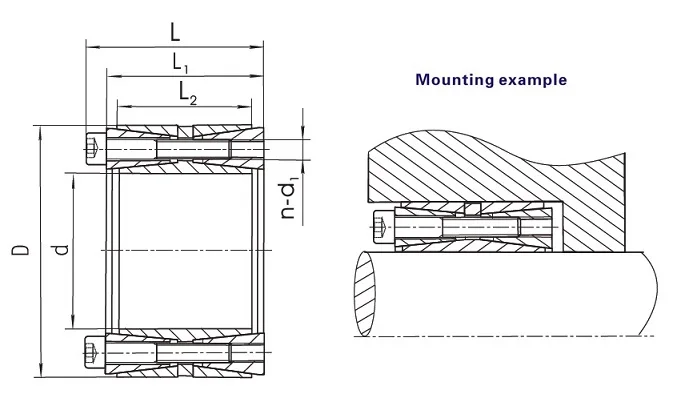

| Fundametal dimension [mm] | Bolt | Rated load | Pressure on shaft Pf [N / mm2] | Pressure on hub Pf' [N / mm2] | Torque of tighten locking-bolt MA [N · M] | Weight [kg] | ||||||
| d | D | L | L1 | L2 | d1 | n | Force Ft [kN] | Toruqe Mt [kN · m] | ||||
| 100 | 145 | 77 | 65 | 60 | M12 | 10 | 288 | 14.4 | 192 | 132 | 145 | 4.1 |
| 110 | 155 | 77 | 65 | 60 | M12 | 10 | 288 | 15.8 | 175 | 123 | 145 | 4.4 |
| 120 | 165 | 77 | 65 | 60 | M12 | 12 | 346 | 20.8 | 195 | 139 | 145 | 4.8 |
| 130 | 180 | 86 | 74 | 68 | M12 | 15 | 433 | 28.1 | 193 | 139 | 145 | 6.5 |
| 140 | 190 | 86 | 74 | 68 | M12 | 15 | 519 | 36.3 | 214 | 157 | 145 | 7 |
| 150 | 200 | 86 | 74 | 68 | M12 | 18 | 519 | 39 | 200 | 150 | 145 | 7.4 |
| 160 | 210 | 86 | 74 | 68 | M12 | 21 | 606 | 48.5 | 219 | 167 | 145 | 7.8 |
| 170 | 225 | 95 | 81 | 75 | M14 | 18 | 712 | 60.6 | 215 | 162 | 230 | 10 |
| 180 | 235 | 95 | 81 | 75 | M14 | 18 | 712 | 64.1 | 203 | 155 | 230 | 10.6 |
| 190 | 250 | 108 | 94 | 88 | M14 | 20 | 792 | 75.2 | 178 | 135 | 230 | 14.3 |
| 200 | 260 | 108 | 94 | 88 | M14 | 24 | 950 | 95 | 203 | 156 | 230 | 15 |
| 210 | 275 | 120 | 104 | 98 | M16 | 18 | 970 | 102 | 187 | 142 | 355 | 17.5 |
| 220 | 285 | 120 | 104 | 98 | M16 | 18 | 990 | 109 | 183 | 141 | 355 | 19.8 |
| 240 | 305 | 120 | 104 | 98 | M16 | 24 | 1318 | 158 | 222 | 176 | 355 | 21.4 |
| 250 | 315 | 120 | 104 | 98 | M16 | 24 | 1340 | 167.5 | 215 | 170 | 355 | 22 |
| 260 | 325 | 120 | 104 | 98 | M16 | 25 | 1370 | 173 | 215 | 172 | 355 | 23 |
| 280 | 355 | 144 | 126 | 120 | M18 | 24 | 1590 | 222.5 | 188 | 149 | 485 | 35.2 |
| 300 | 375 | 144 | 126 | 120 | M18 | 25 | 1650 | 248 | 183 | 146 | 485 | 37.4 |
| 320 | 405 | 162 | 142 | 135 | M20 | 25 | 2140 | 344 | 192 | 152 | 690 | 51.3 |
| 340 | 425 | 162 | 142 | 135 | M20 | 25 | 2140 | 365 | 181 | 144 | 690 | 54.1 |
| 360 | 455 | 187 | 165 | 158 | M22 | 25 | 2670 | 480 | 176 | 139 | 930 | 75.4 |
| 380 | 475 | 187 | 165 | 158 | M22 | 25 | 2670 | 508 | 166 | 133 | 930 | 79 |
| 400 | 495 | 187 | 165 | 158 | M22 | 25 | 2670 | 535 | 158 | 128 | 930 | 82.8 |
| 420 | 515 | 187 | 165 | 158 | M22 | 30 | 3200 | 673 | 181 | 147 | 930 | 86.5 |
| 450 | 555 | 204 | 180 | 172 | M24 | 30 | 3700 | 832.5 | 175 | 142 | 1200 | 112 |
| 480 | 585 | 204 | 180 | 172 | M24 | 32 | 3950 | 948 | 175 | 143 | 1200 | 119 |
| 500 | 605 | 204 | 180 | 172 | M24 | 32 | 3950 | 988 | 168 | 139 | 1200 | 123 |
| 530 | 640 | 227 | 200 | 190 | M27 | 30 | 4320 | 1145 | 157 | 130 | 1600 | 151 |
| 560 | 670 | 227 | 200 | 190 | M27 | 30 | 4320 | 1210 | 148 | 124 | 1600 | 160 |
| 600 | 710 | 227 | 200 | 190 | M27 | 32 | 4610 | 1380 | 147 | 124 | 1600 | 170 |
