ACO 208 mini screw air compressor pump for ozone generator 45lpm for sale

Product Overview

Description

ACO-208 mini screw air compressor pump for ozone generator 45lpm



It’s designed to work with an ozone generator without an internal air pump. It consumes low power but provides steady air output. Functioning as a part of an ozone generating system, it is especially suitable for spa, aquarium, fish breading, water tank and where purification is required.



Features:
1. Silent operation
2. Stable air output

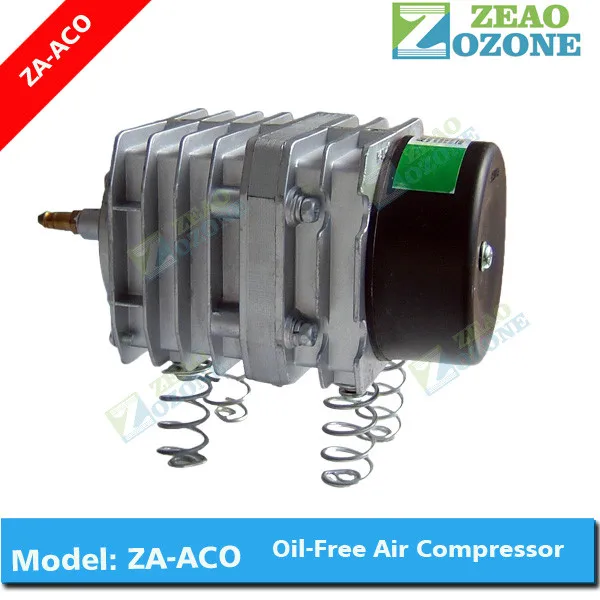

ZA-ACO Model air compressor

the air compressor installed into ozone generator mahcine for aquarium water treatment



Specs for ZA-ACO model

Item	Unit	Model
		ACO-208	ACO-308	ACO-318	ACO-328
Air flow rate	LPM	45	55	70	82
Input Power	W	25	30	35	60
Work voltage	V	110/220
Frequency	Hz	50/60
Pressure	Mpa	>0.015	>0.025	>0.030	>0.035
Noise	Db	<60
Net weight	Kg	1.20	1.65	1.85	2.30
Size	mm	159×90×95	182×95×116	199×108×133	155×140×15

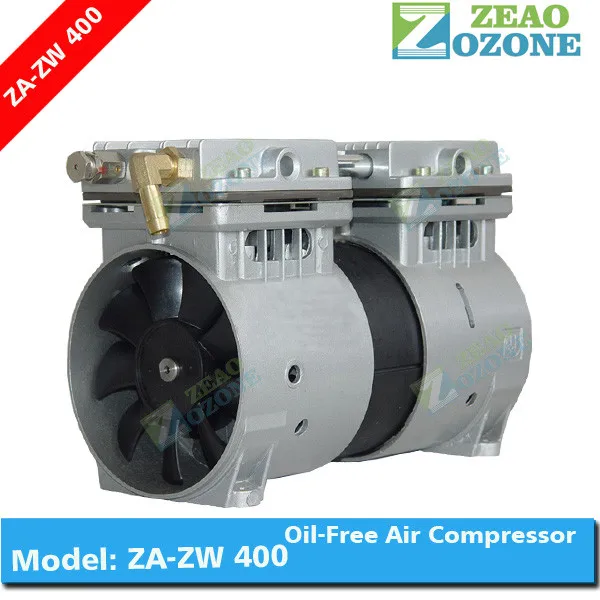

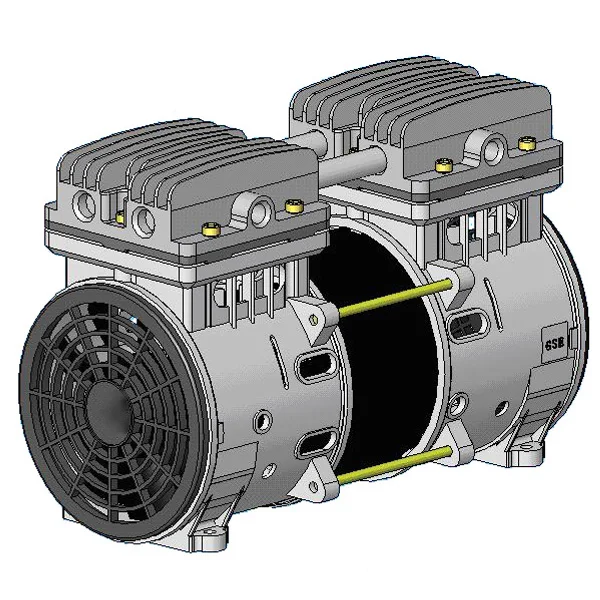

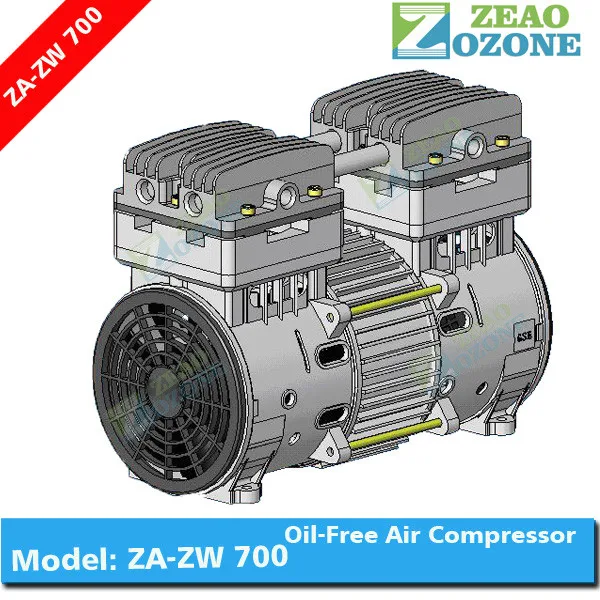

ZA-ZW model oil free air compressor

Specs for ZA-ZW Model

Item	Unit	Model
		ZAZW280	ZAZW400	ZAZW500	ZAZW700	ZAZW1100
Air flow rate	LPM	53.3at206.8KPa	90at206.8Kpa	40at700KPa	60at700KPa	103at800KPa
Input Power	W	≤315	≤500W	≤550	≤750	≤1250
Working pressure	Kpa	206.8	206.8	400	700	800
Max pressure	Kpa	300	300	800	800	900
Operating ambient temperature	℃	5-40	10-40	5-40	5-40	5-40
Cold insulation resistance	MΩ	≥100
Thermal protectors	/	automatic reset 135±5	automatic reset 145±5	automatic reset 135±5	automatic reset 145±5	automatic reset 160±5
Voltage strength resistance	V/Hz	1500/50 1min No breakdown
Installation size	mm	83×147	203.2×88.9	223.2×88.9	223.2×88.9	246×127
		Install foot thread 4-M6
Noise	Db	≤59	≤66	≤66	≤68	≤66
Net weight	Kg	6.85	8.3	8.5	12	15
Size	mm	234×103×165	244×128×180	268.8×128×189.7	268.8×128×212.7	319×195×290

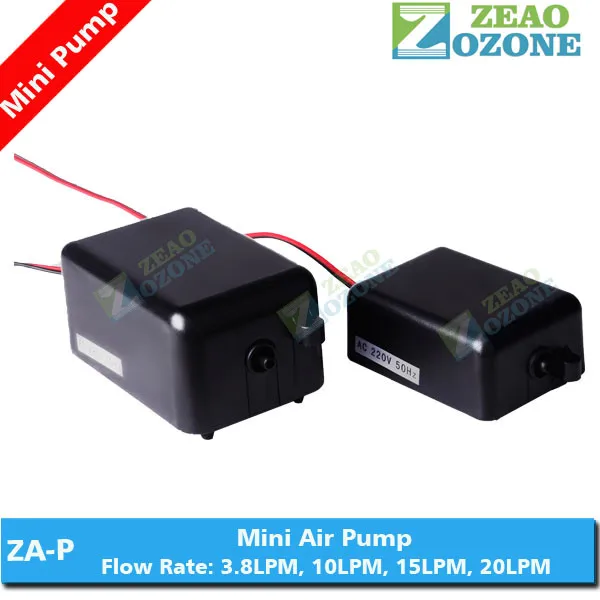

Mini air pump ZA-P model 110v/220vac



Specs for ZA-P model

Item	Unit	Model
		ZA-P-4	ZA-P-10	ZA-P-15
Air flow rate	LPM	3.8	10	15
Air pressure	kpa	14	15	21
Power Supply	V/HZ	220v/ 50HZ
Power	W	2.50	3.70	5.00
Dimension	mm	90×37×39	95×55×40	120×65×55
Net weight	G	89	156	281
