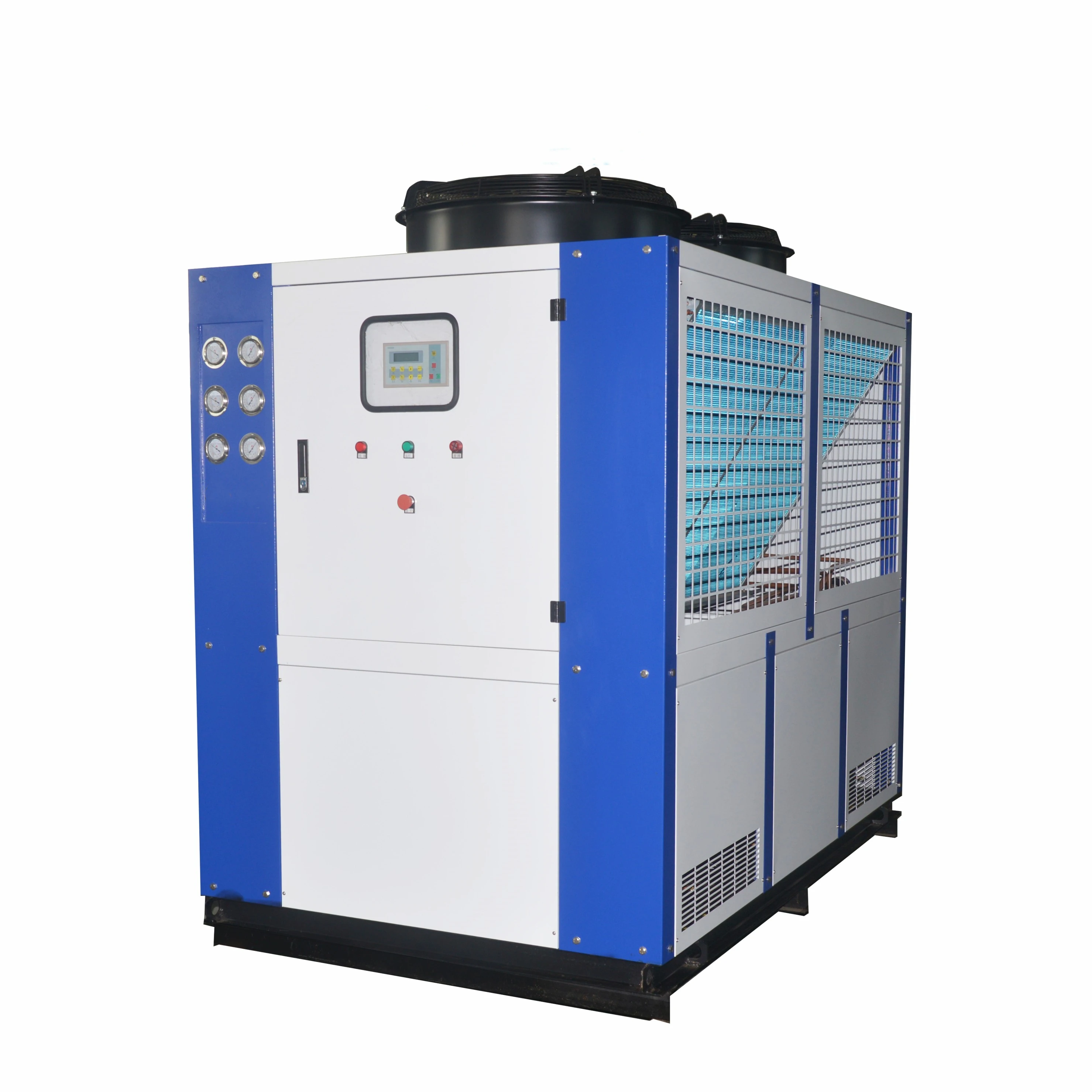

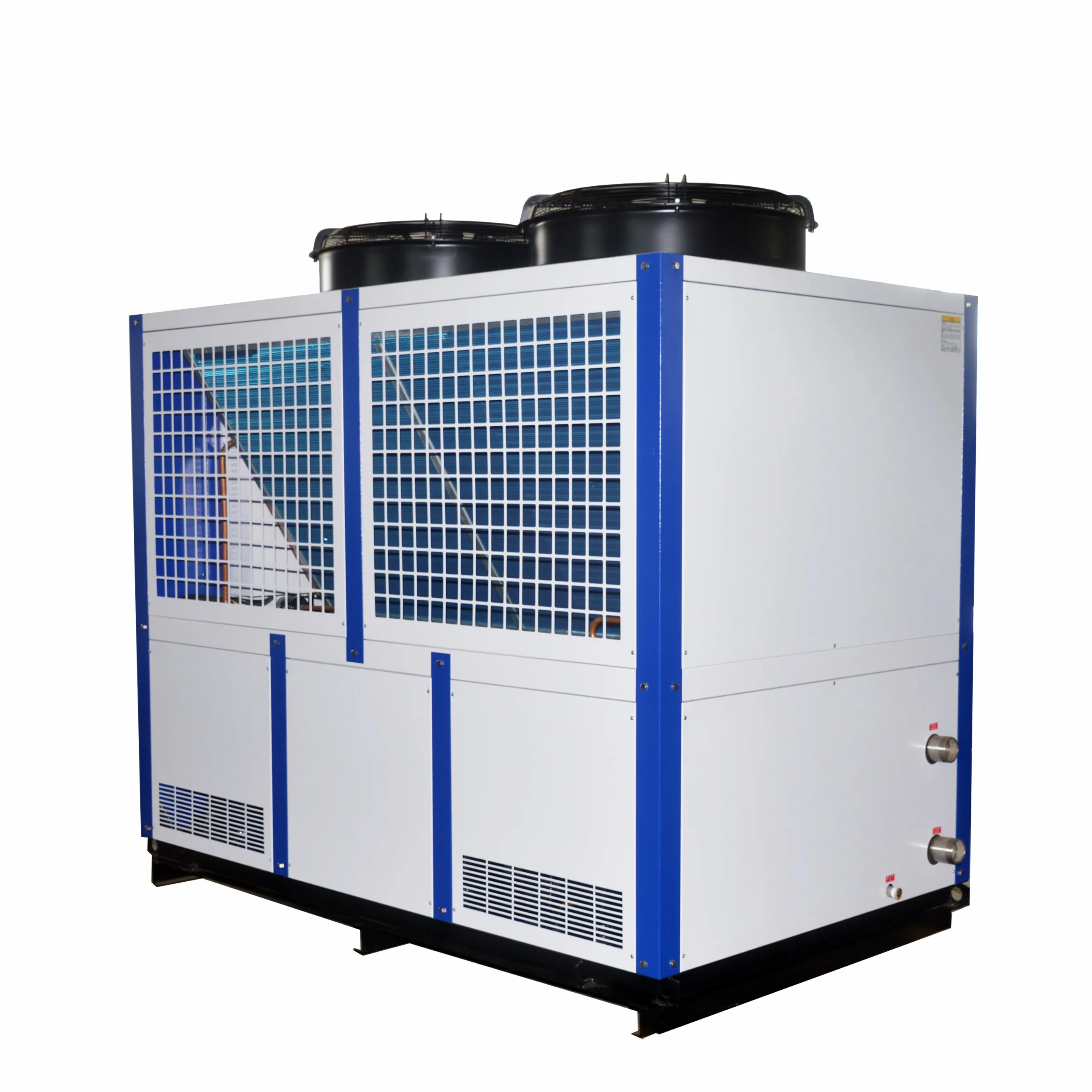

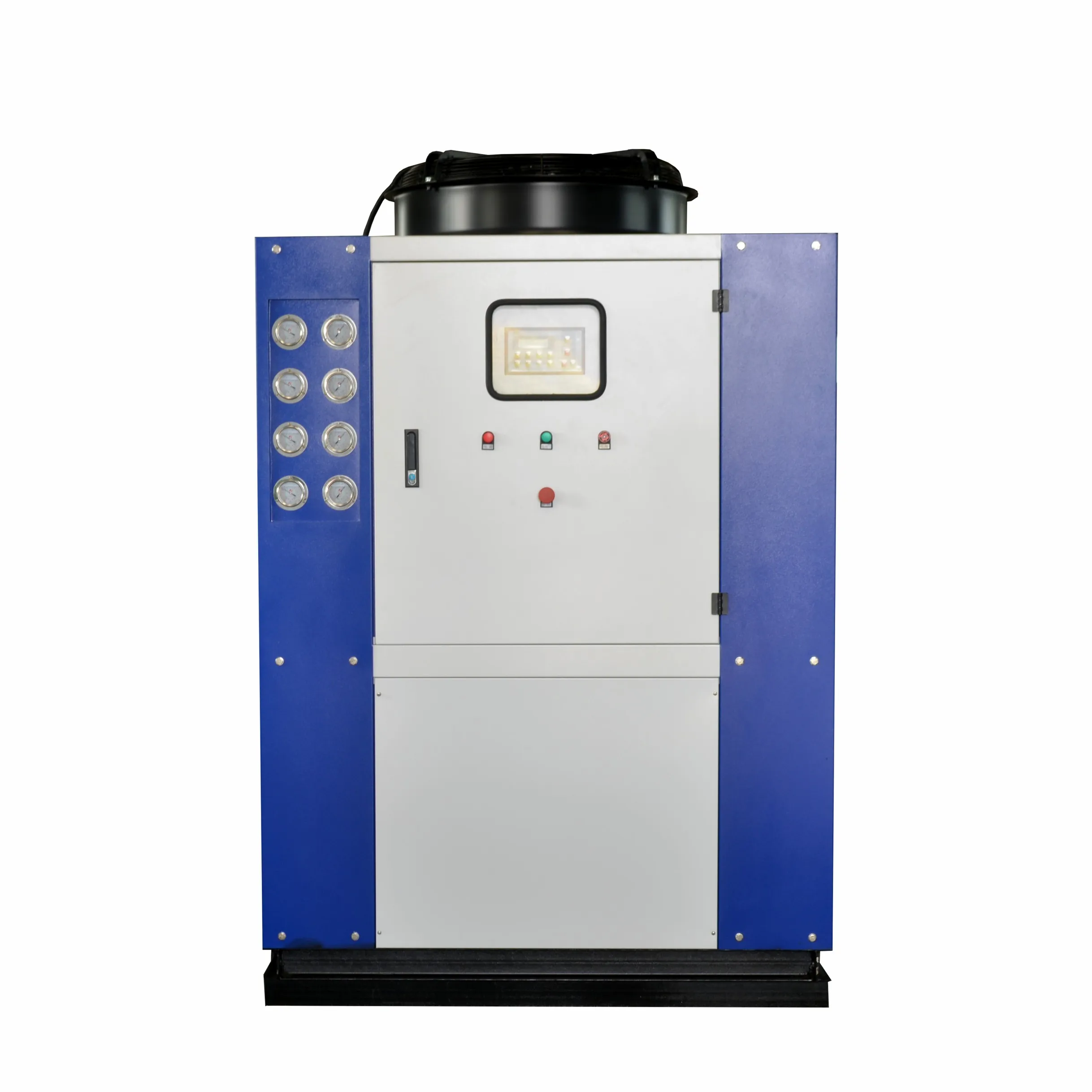

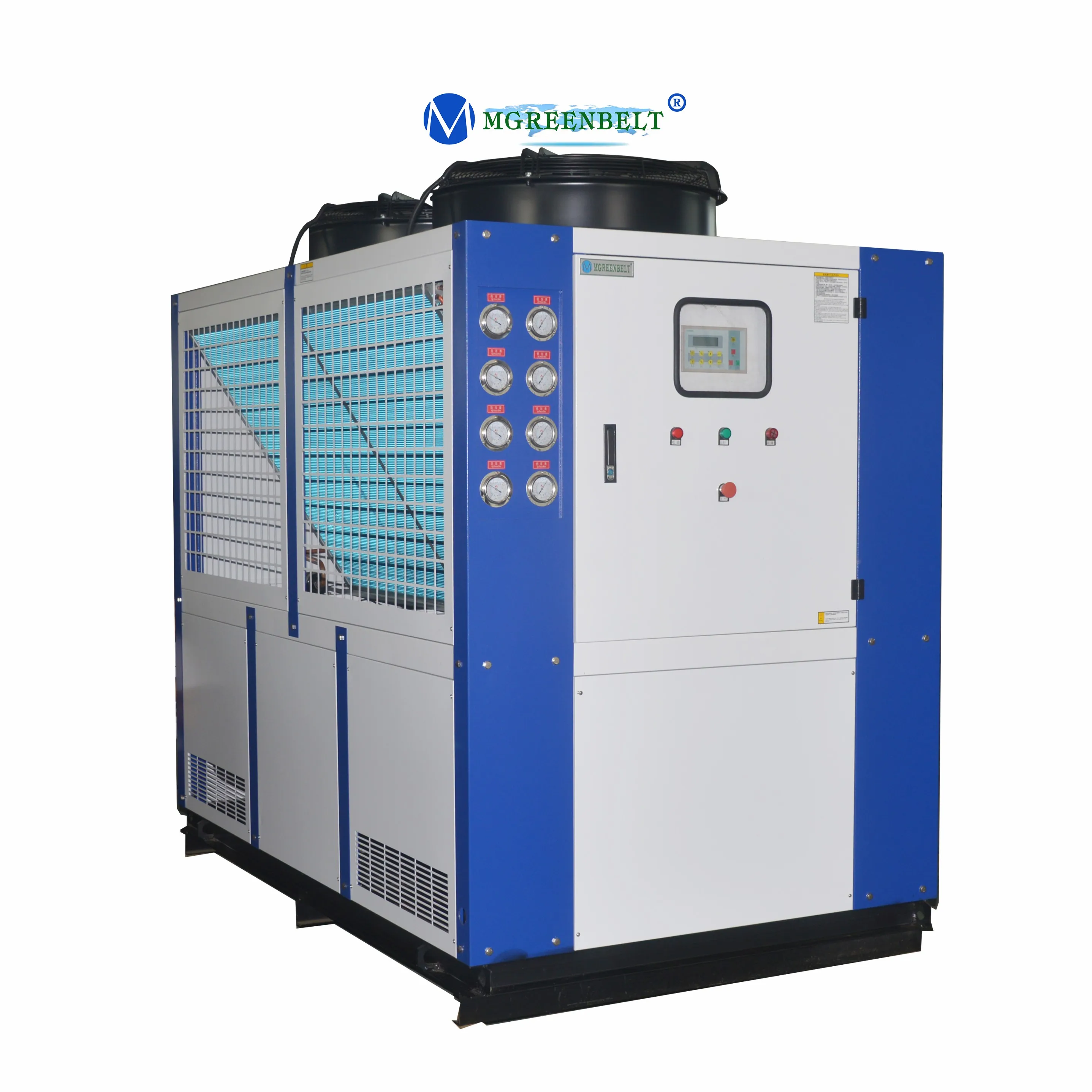

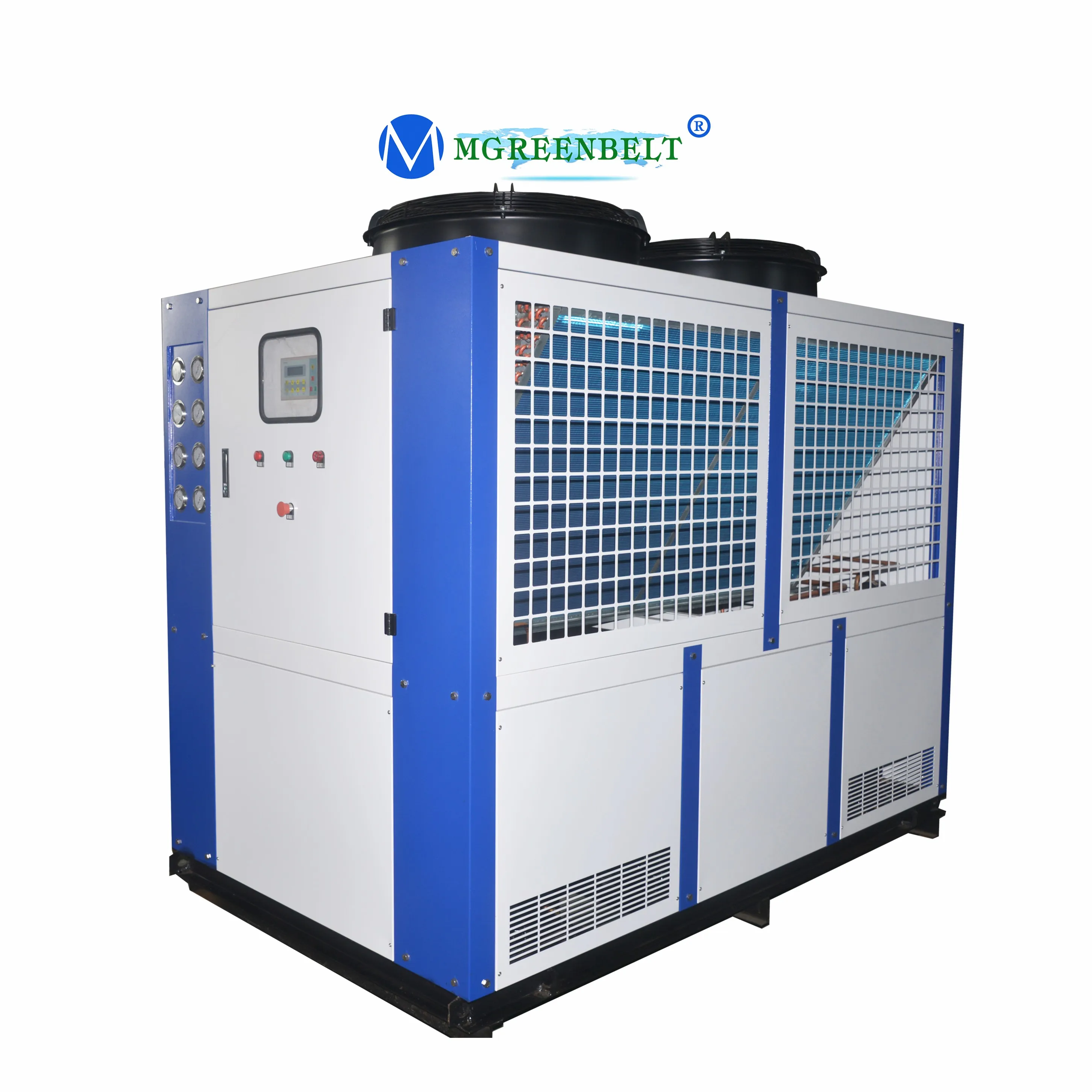

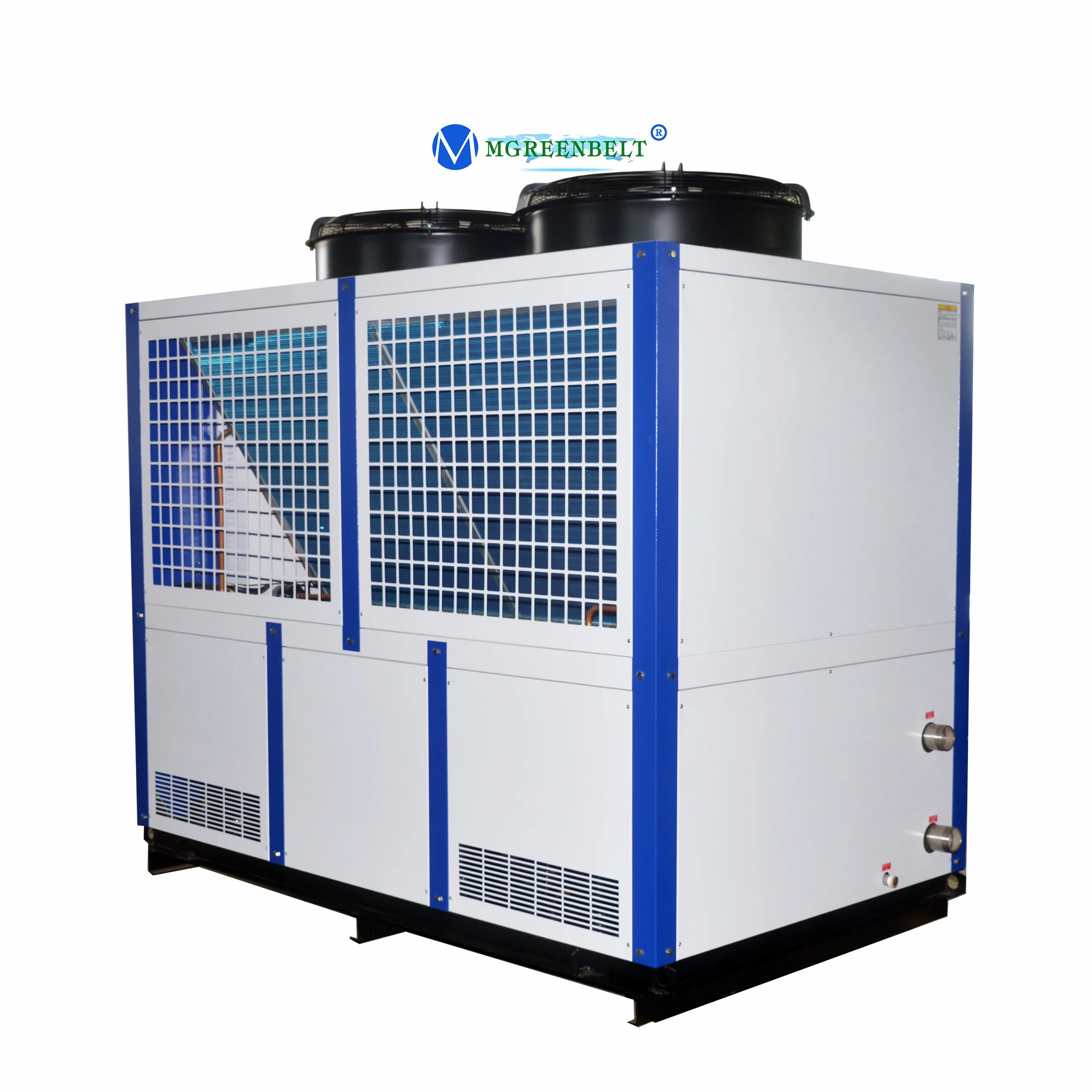

Industrial /Commercial Water cooling machine 30 tons Four Circuit 100kW Air cooled water chiller
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (60725817796):
Product Overview
Description
Product Description
30 tons air-cooled water chiller with 4 unit scroll compressors typically has the following features:
1. Large cooling capacity: By using multiple refrigeration units in combination, it can provide high cooling capacity, suitable for large industrial equipment that requires stable continuous operation.
2. High stability: The multiple refrigeration units can run alternately so that if one unit fails, it can switch to another unit
promptly without affecting the normal operation of the entire system, ensuring equipment stability and reliability.
3. Energy-saving and eco-friendly: While achieving high cooling efficiency, it employs energy-saving compressors and optimizes the refrigeration cycle process through intelligent control technology to achieve lower energy consumption and fewer exhaus emissions.
4. Convenient operation: Through intuitive and straightforward control interface, users can operate it easily, while the
electronically controlled expansion valve installed increases its heating effect.
2. High stability: The multiple refrigeration units can run alternately so that if one unit fails, it can switch to another unit
promptly without affecting the normal operation of the entire system, ensuring equipment stability and reliability.
3. Energy-saving and eco-friendly: While achieving high cooling efficiency, it employs energy-saving compressors and optimizes the refrigeration cycle process through intelligent control technology to achieve lower energy consumption and fewer exhaus emissions.
4. Convenient operation: Through intuitive and straightforward control interface, users can operate it easily, while the
electronically controlled expansion valve installed increases its heating effect.
Features of 109KW 30RT Air Cooled Water Chiller
MG-C(D) series water chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,etc.
1. Imported famous brand compressor,built-in security protection,low noise,power and durability, to increase the service life of equipment.
2. High efficiency hydrophilic aluminum foll finned type condenser,with an exceptionally strong heat transfer efficiency,long life,washable and so on.
3. All stainless steel thick tank insulation,built-in automatic water replenishment and protecting devices,cleaning maintenance convenient.
4. Use high-quality brand name pumps,flow,low noise,long-lasting durability
5. LCD display microcomputer controller can accurately control the temperature.Chinese interface,easy operation and control functions are complete.
6. Germany,Schneider Electric products,with improved electrical protection systems.
7. Anti-static coating shell,nice,quick installation using the form plate appearance,ease of use and maintenance.
8.Variety power supply available, 208V/380V/451V/460V depends on customer project site situation.

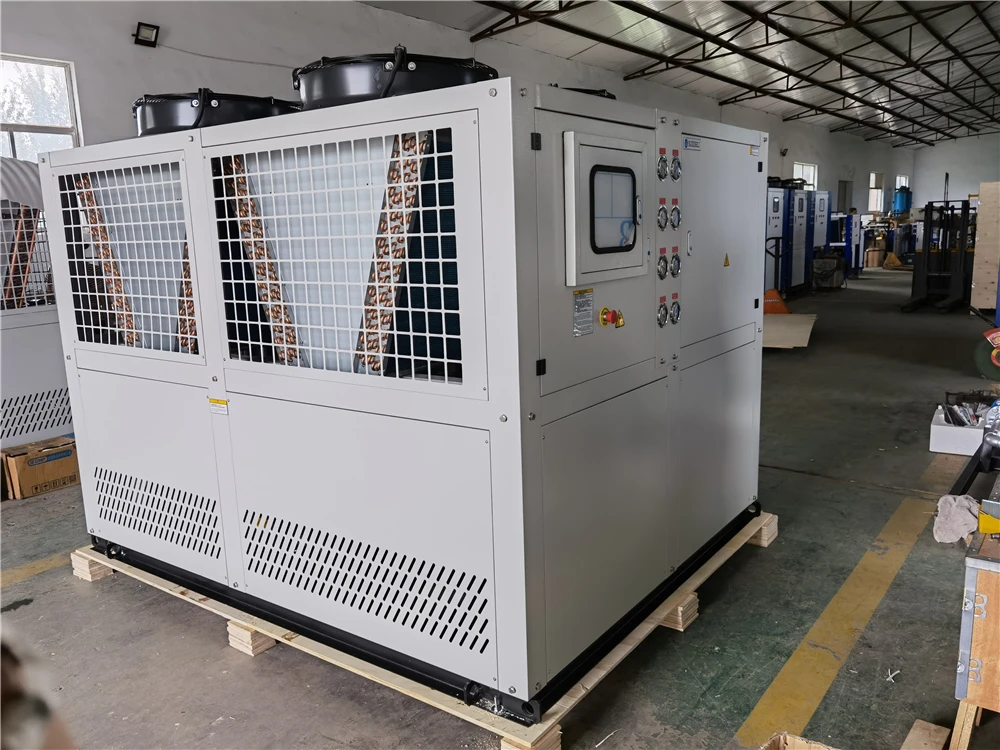

Four compressors means this chiller has 4 couple of pressure meters by high and low pressure monitoring;
Adopt Schneider Electrical parts and Micro-processor with super good operation and protection system;
Closed shell and tube type heat exchanger, with much high efficiency;
Inbuilt centrifugal water pump with different flow and pressure by demands;
Employ hermetic scroll type compressors, each compressor is separate circuit, automatically select to work together or standby according to the process cooling request;
Use 6 stages large volume air fans, IP55 class, motor 1.5kW, volume 21000m3/h each;
Water pump installed inside the chiller, standard is 3kW motor , 30m3/h at 2 bar pressure; with stainless steel and cast steel for options

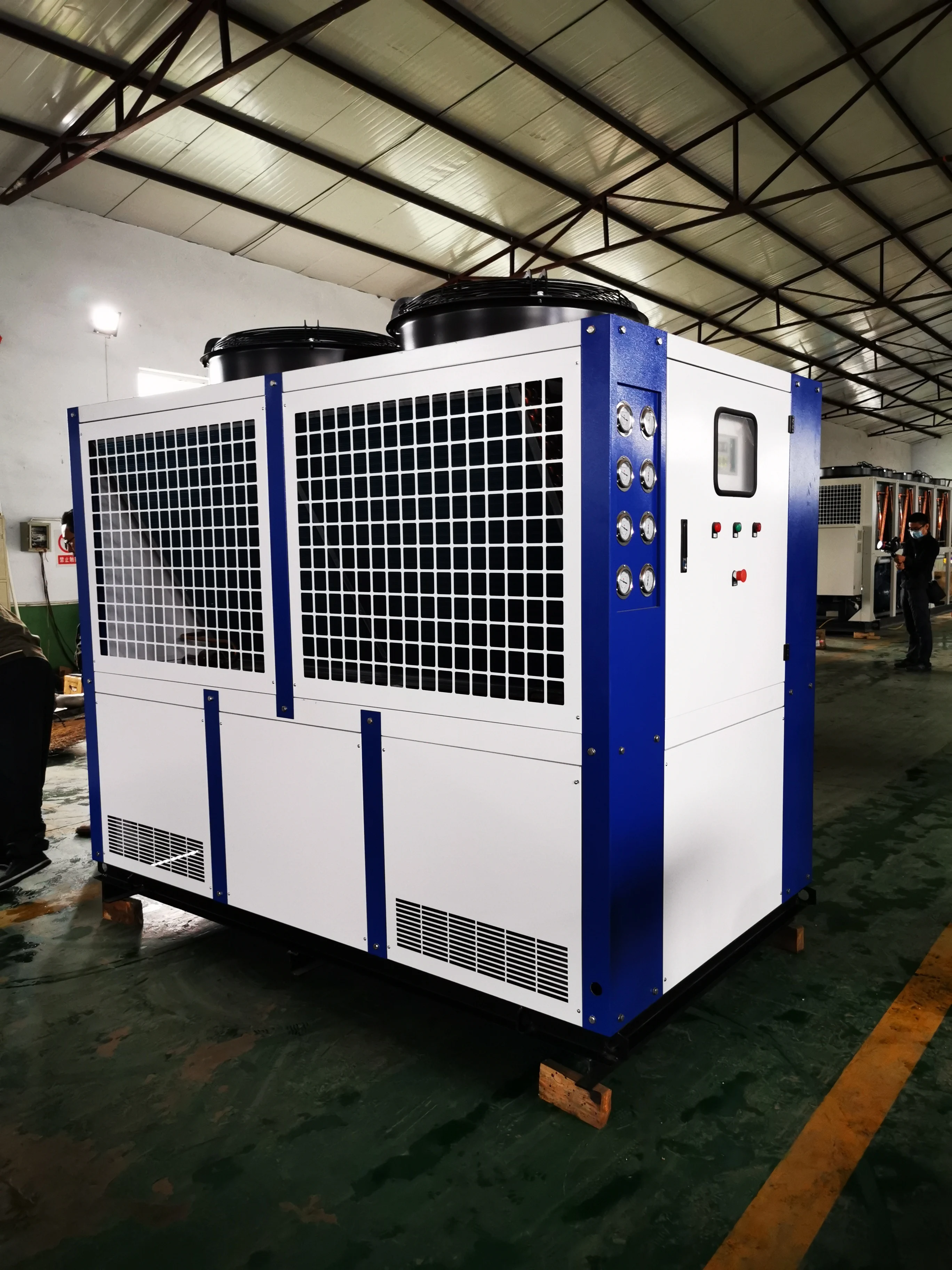

V type aluminum finned copper tube condenser, to suction heat from compressor and exhaust through fans into air;
Design of 100kw water chiller

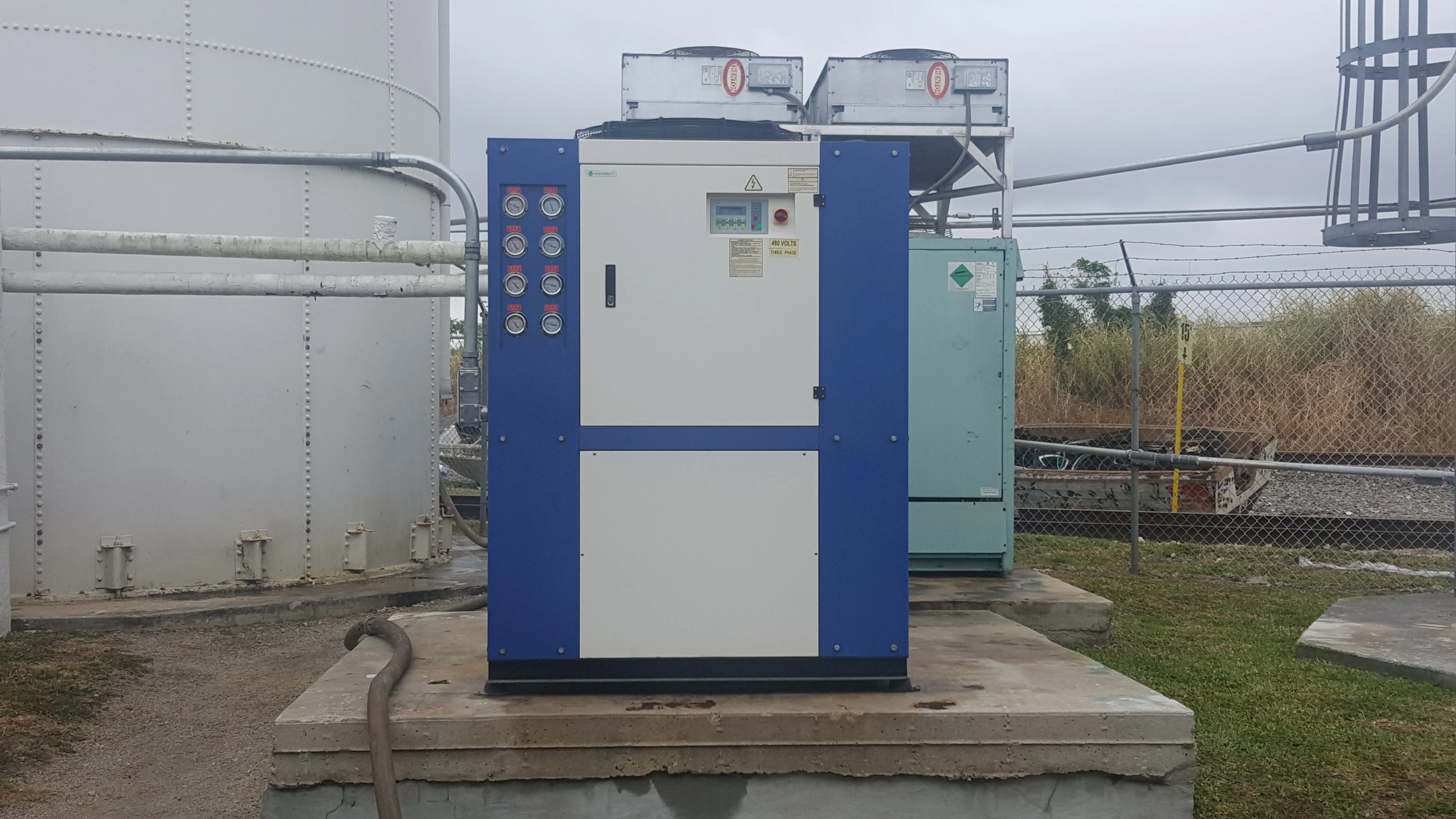

(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;

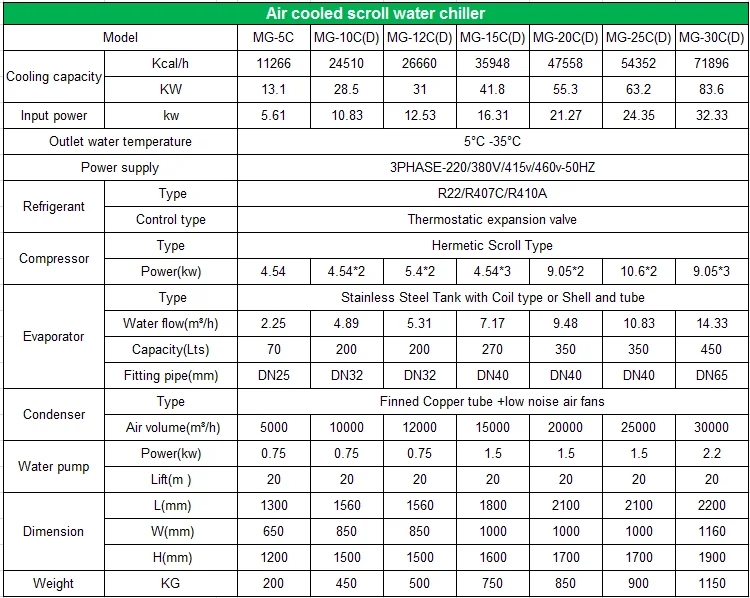

General Information | Model | MG-40C(F) | ||
Nominal Cooling Capacity | 109 kW | |||
31 TR | ||||
Input Power | 42 kW | |||
Power Voltage | 380V/415V/440V/460V | |||
Chilled Fluid Type | Water | |||
Temperature Control Range | 5℃ to 30℃ | |||
Control System | Controller Type | PUNP controller | ||
Temperature Control Accuracy | ±1 K | |||
Unit Safety Protection | Motor overload, refrigerant circuit high/low pressure, low water flow, coolant temperature too high/low, phase sequence | |||
Compressor | Compressor Type | Hermetic scroll | ||
Compressor Motor | 9kW*4 | |||
Quantity of Compressor | 4 | |||
Energy control | 25-50-75-100(%) | |||
Refrigerant | Refrigerant Type | R407c | ||
Refrigerant Control Method | Thermal expansion valve | |||
Condenser | Condenser Type | Air Cooled Type - Aluminum fin copper tube type | ||
Condense Air Volume | 42,000 m³/h | |||
Fan Motor*Quantity | 1.5kW*2 | |||
Fan Diameter | 800 mm | |||
Evaporator | Evaporator Type | Shell and tube | ||
Evaporator Design Flow | 20.5 m³/h | |||
Evaporator Design Temperature Difference | 5K | |||
Water Pump | Motor | 3kW | ||
Flow rate | 30m3/h@ 2.0bar | |||
Connection | Chilled Water Inlet Diameter | DN65 | ||
Chilled Water Outlet Diameter | DN65 | |||
Physical Information | Appearance | Packaged type with grayish white painting | ||
IP Rating | IP54 | |||
Noise Level | 75dBa | |||

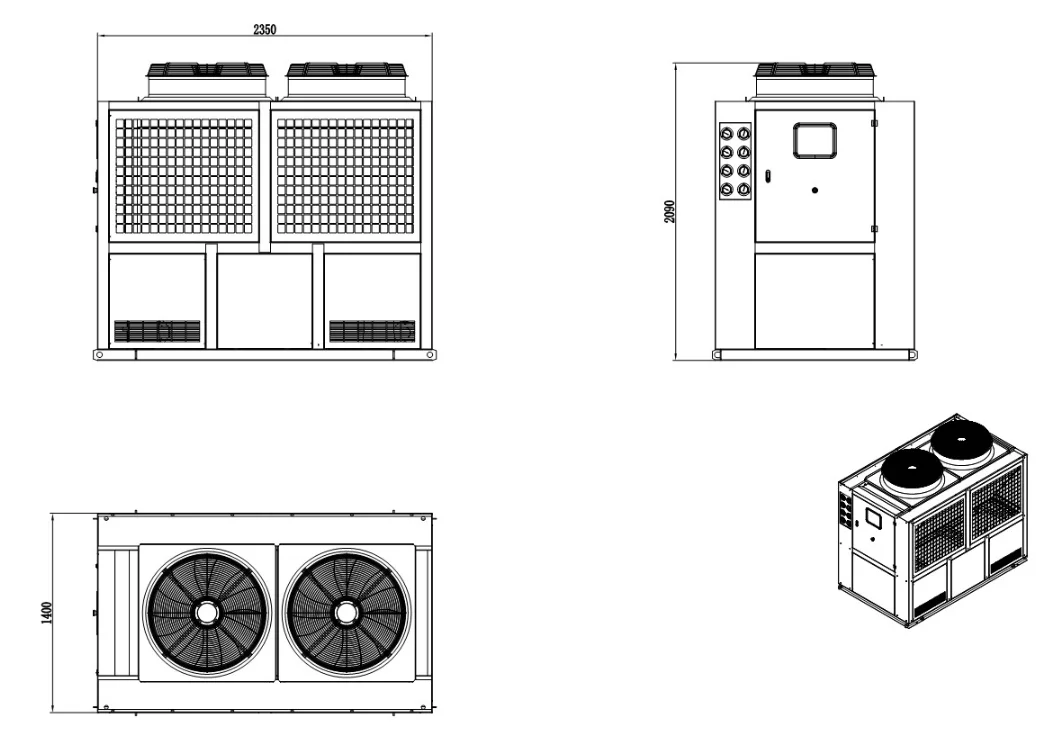

Dimension | Length | 2550mm | ||
Width | 1400mm | |||
Heigt | 2100mm | |||
Weight | N.W | 1450 kgs | ||

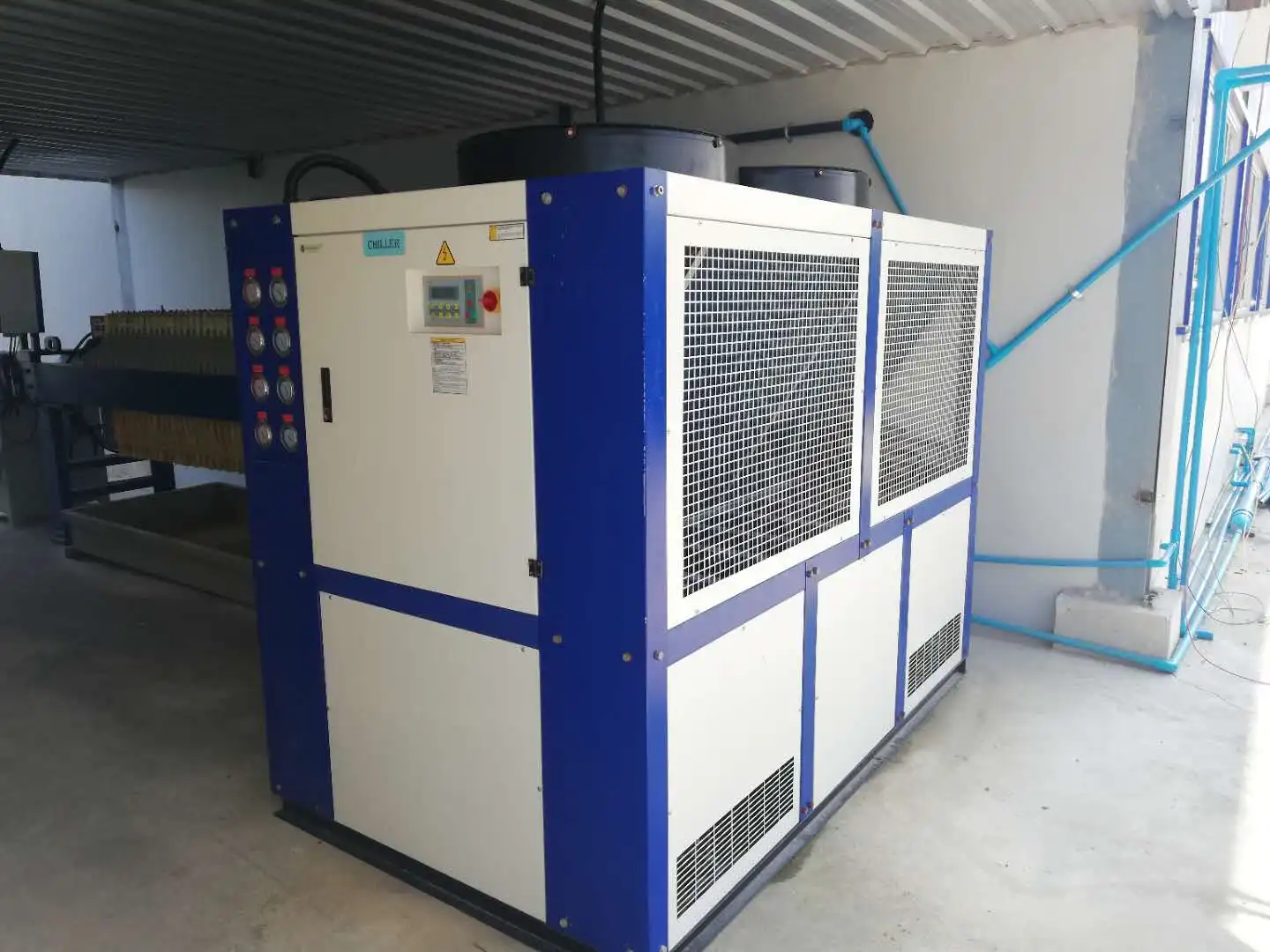

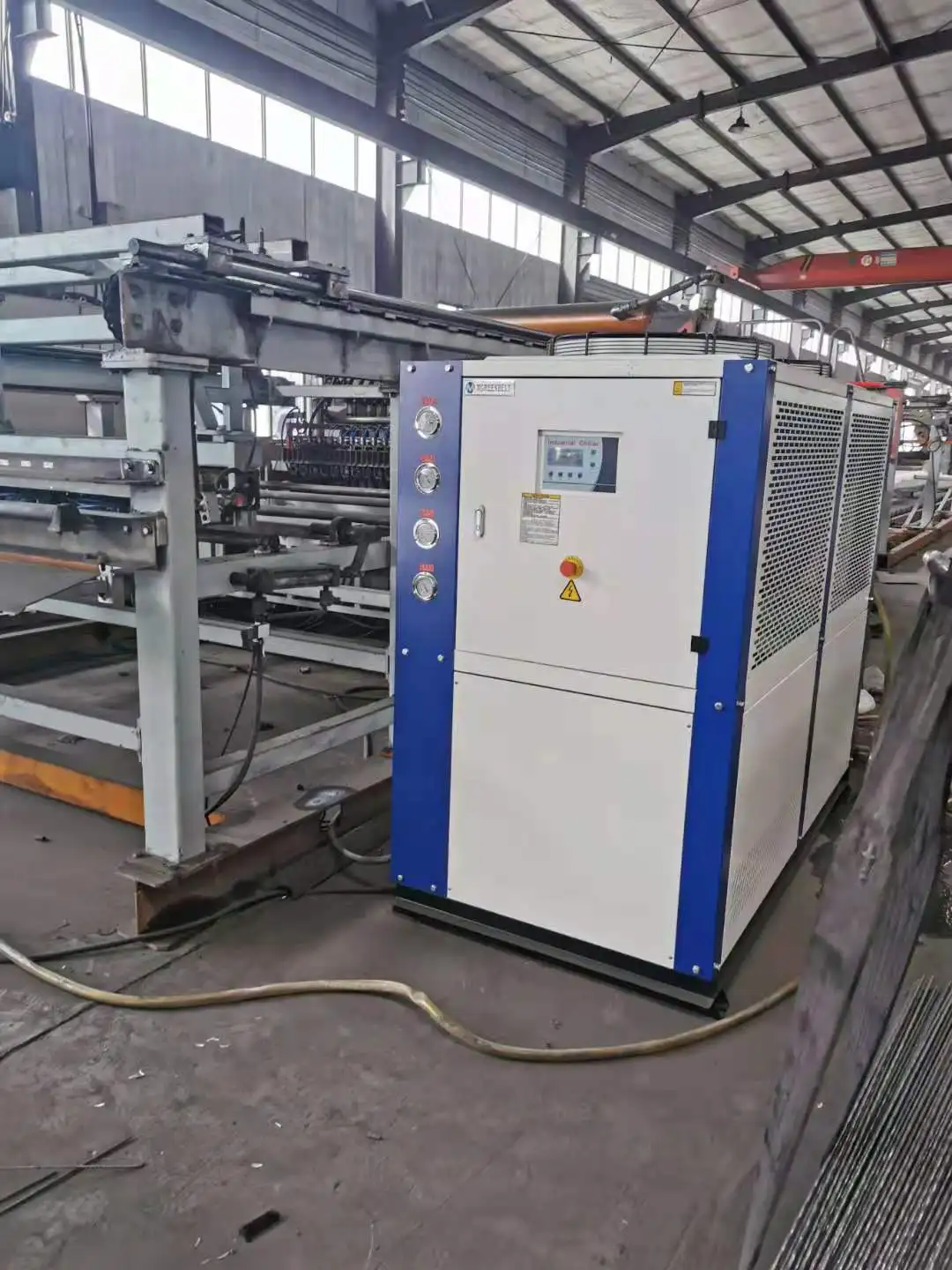

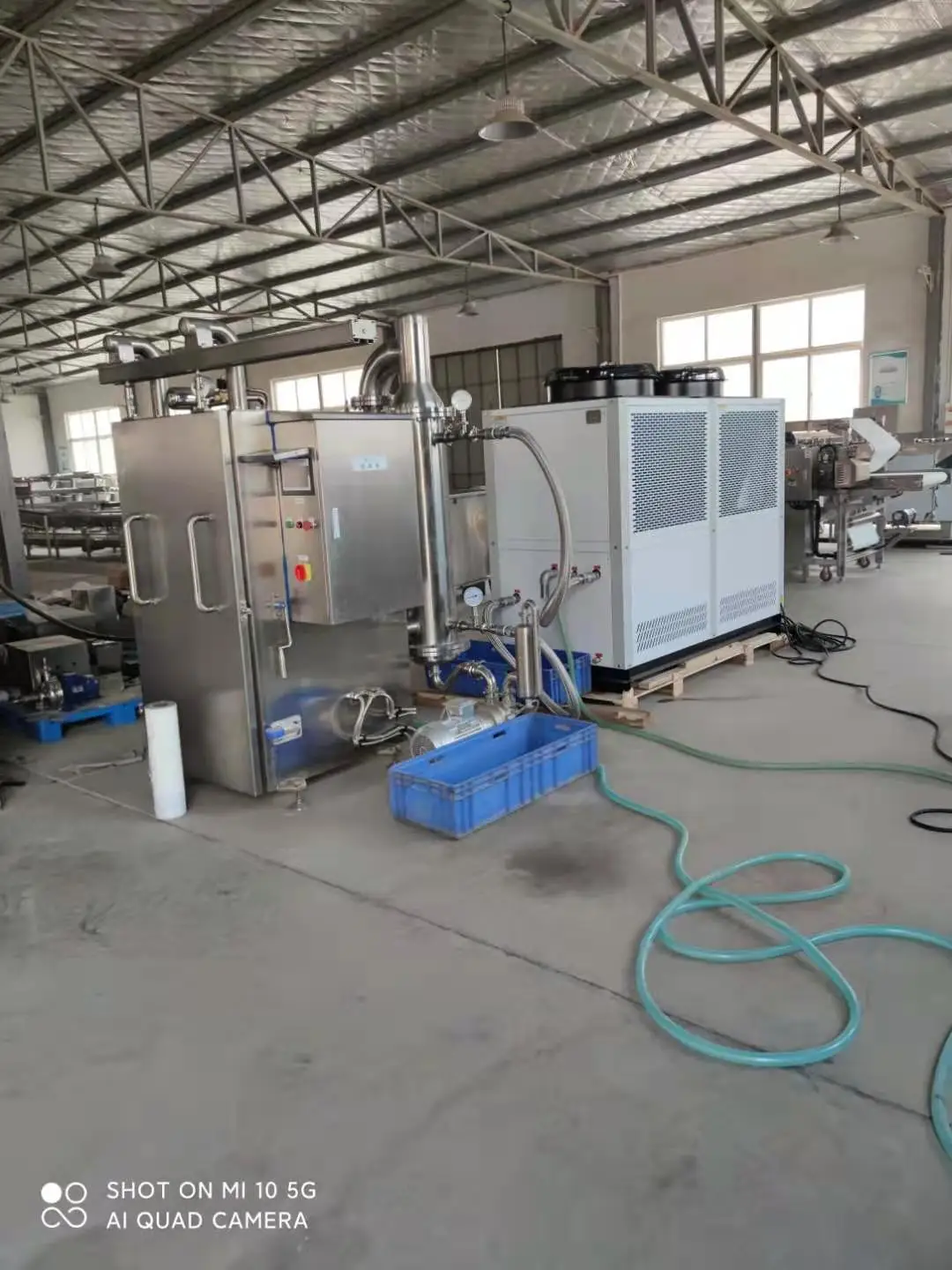

Application
Chiller Widely used in many different industries:

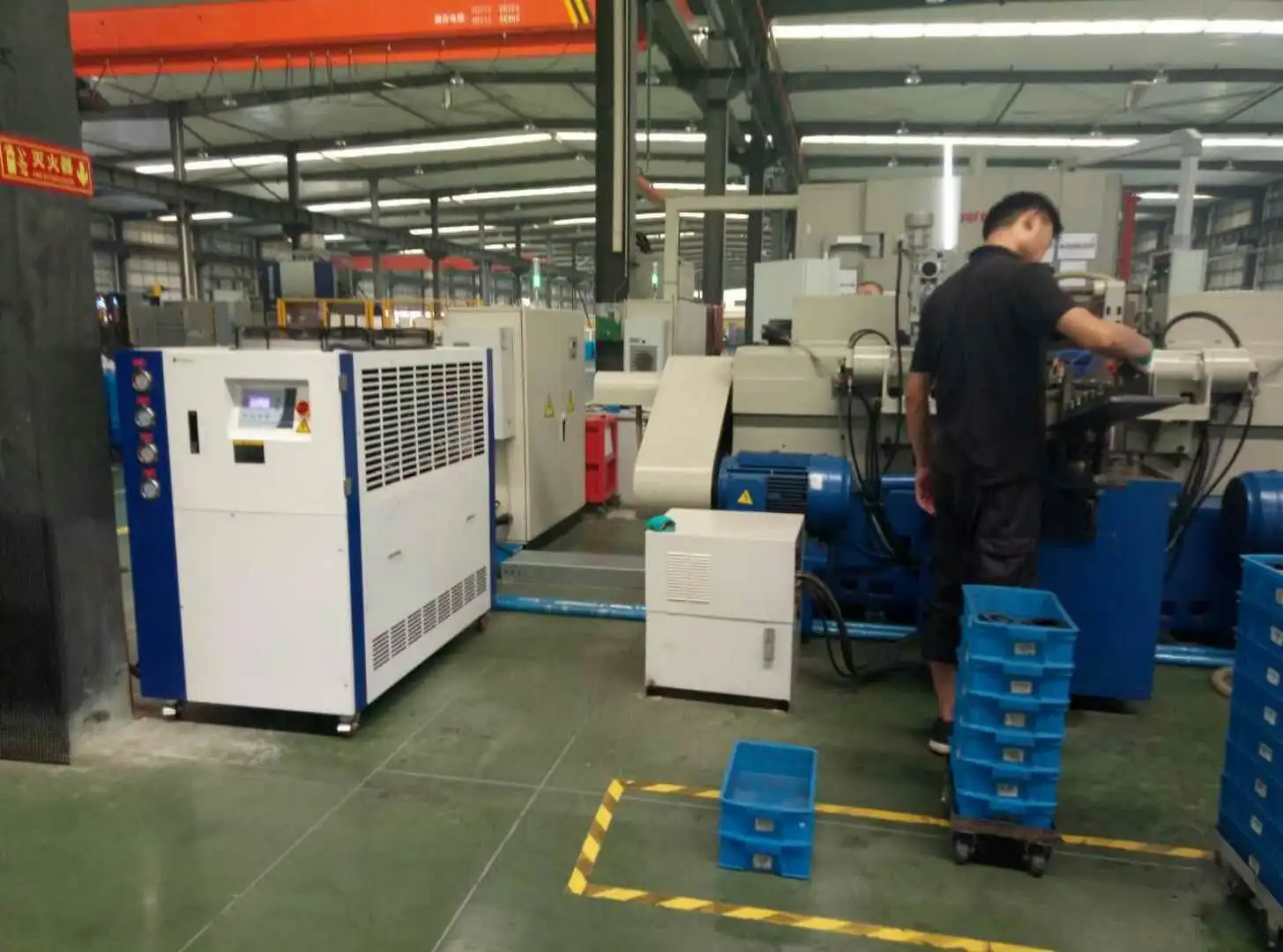

Water Chiller Price for Cooling Machine are widely used in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.
Certification
Packing & Delivery
Packing and delivery
Packaging : We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment
