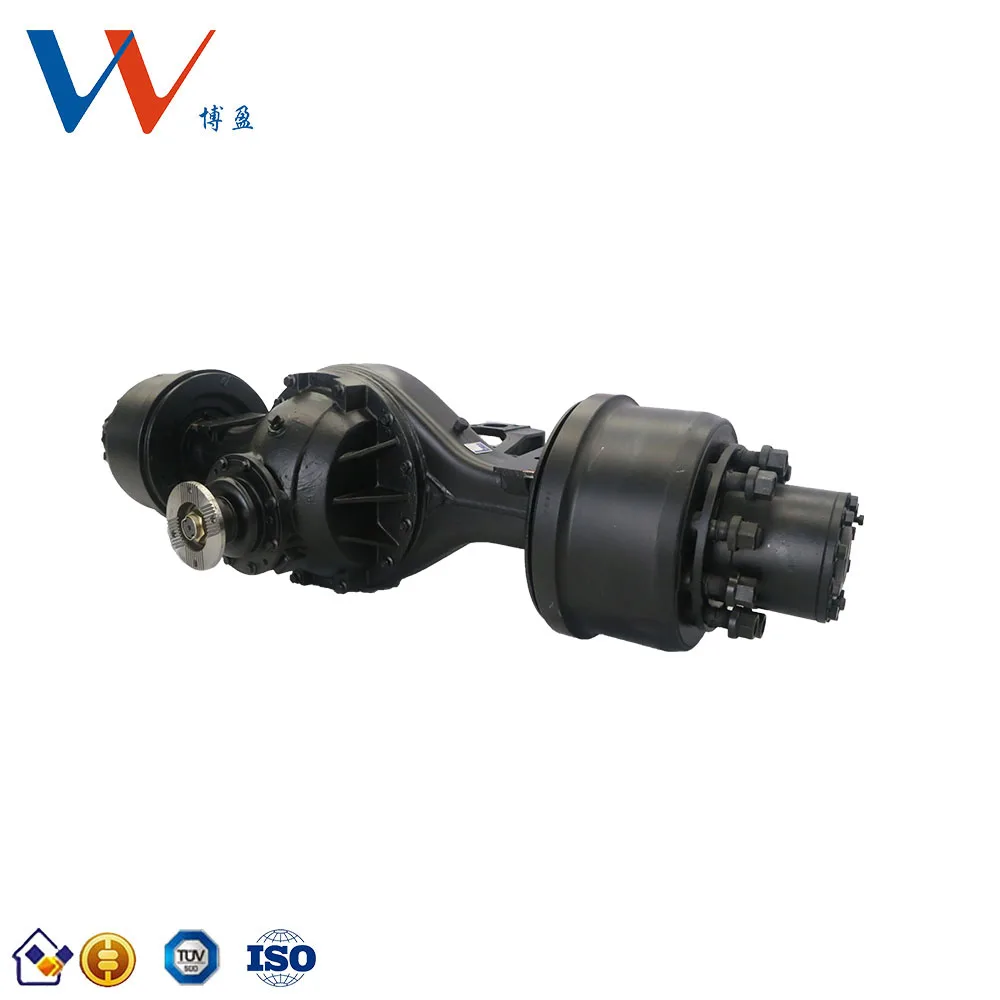

rear axles 10 bolt wheel hub trailer axle rear drive axle assy
- Category: >>>
- Supplier: Hubei Axle Co. Ltd. [Hubei China]Hubei
Share on (60725826757):
Product Overview
Description

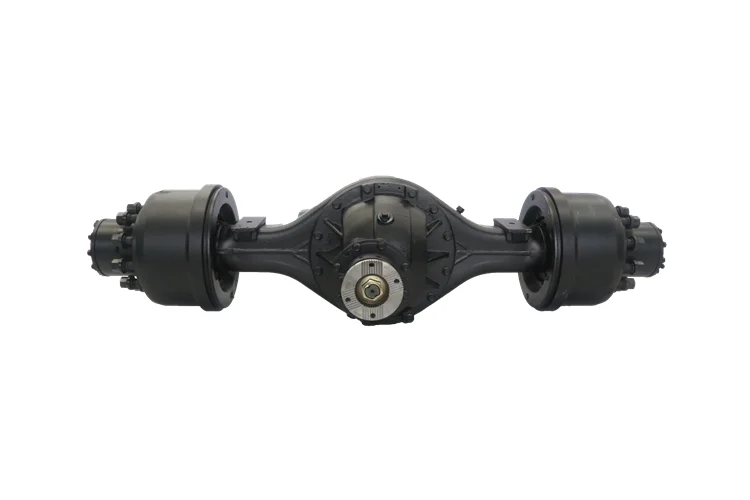

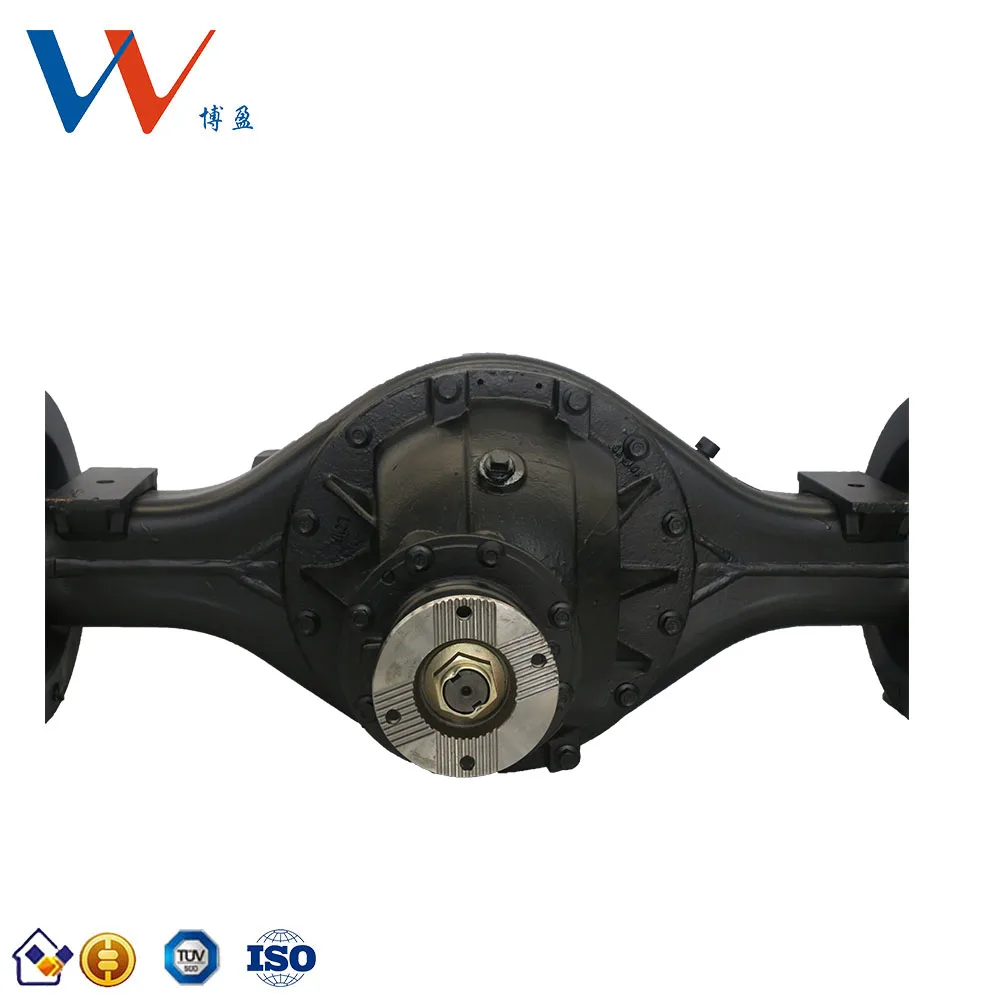

rear axles 10 bolt wheel hub trailer axle rear drive axle rear drive axle assy
Product Description
rear axles 10 bolt wheel hub trailer axle rear drive axle rear drive axle assy
| Item | Product Model | N.W(kg) | Axke Housing Specification | Wheel Track(mm) |
| HT457 Rear Axle | HT24L-029S2-4.44 | 740 | Press-welding:152×170(Reinforced design | 1860 |
| Left Spring Distance(mm) | Differential center Height H(mm) | Horizonal Offset( E)×Vertical Offset(F) | Brake type & specification(mm) | Wheel Bolts & Distribution Circle D (mm) |
| 1030×3°45′ | 443 | 45×44.45 | Air brake & s shape cam shaft /φ410×180(φ410×220),optional part 22.5 disc brake | 8×M22×1.5/φ275, 10×M22×1.5/φ285.75, 10×M22×1.5/φ335 |
| Rim pilot flange D(mm) | Optional Speed Ratio | Maximum Output Torque(N.M) | Performance Feature | |
| φ219.8, φ280.8 | 4.1/ 4.33/ 4.44/ 4.875/ 5.571/ 6.5/ 6.17/ 6.83 | 40000 | 1.strengthened Axle housing design with high load-bearing capacity; 2.Wheel rim pilot flange model is orientation and sphere location; 3.Wheel track, left spring distance can be modified flexibly | |
Rear Axle Assembly Application Sinotruck HOWO Truck, Dongfeng Truck
