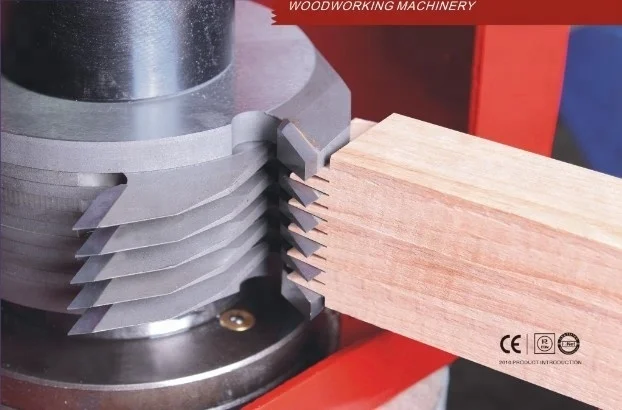

FJL150 Series Full Automatic Finger Jointer Line& Semi Automatic Finger Jointer Line
- Category: Finger Jointer >>>
- Supplier: Shanghai Fuma Woodworking Machinery & Equipment Co. Ltd.
Share on (60725841748):
Product Overview
Description

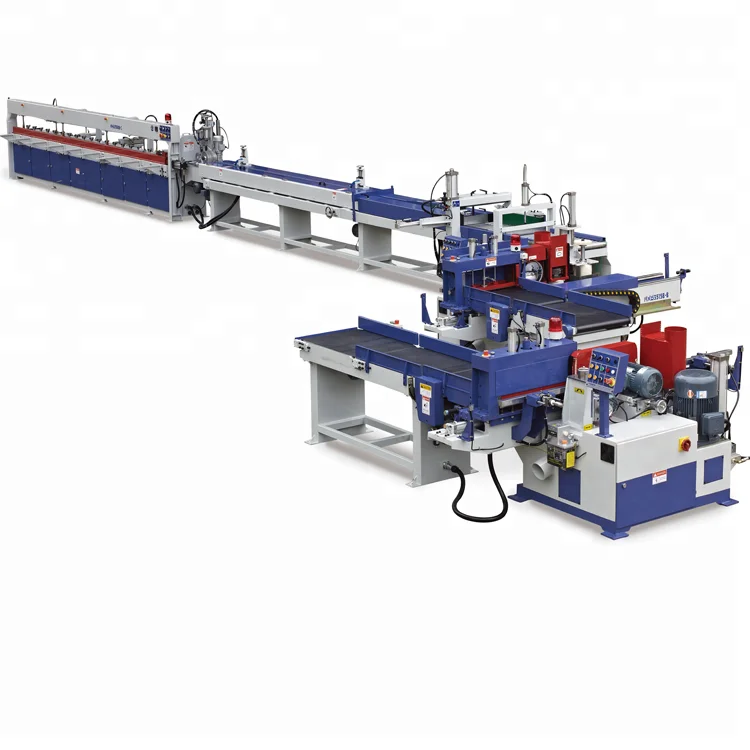

Full Automatic Finger Jointer Line

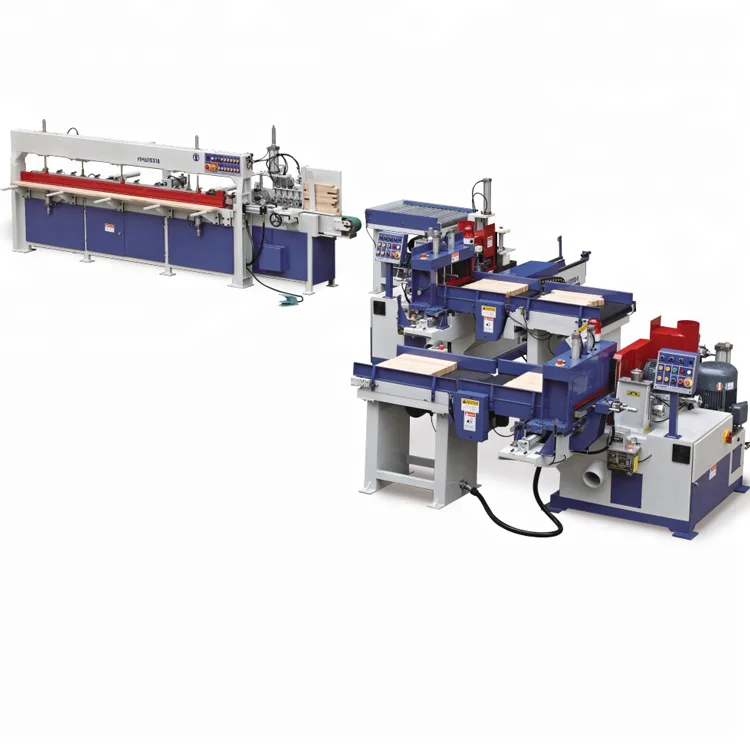

Semi-Automatic Finger Jointer Line
|

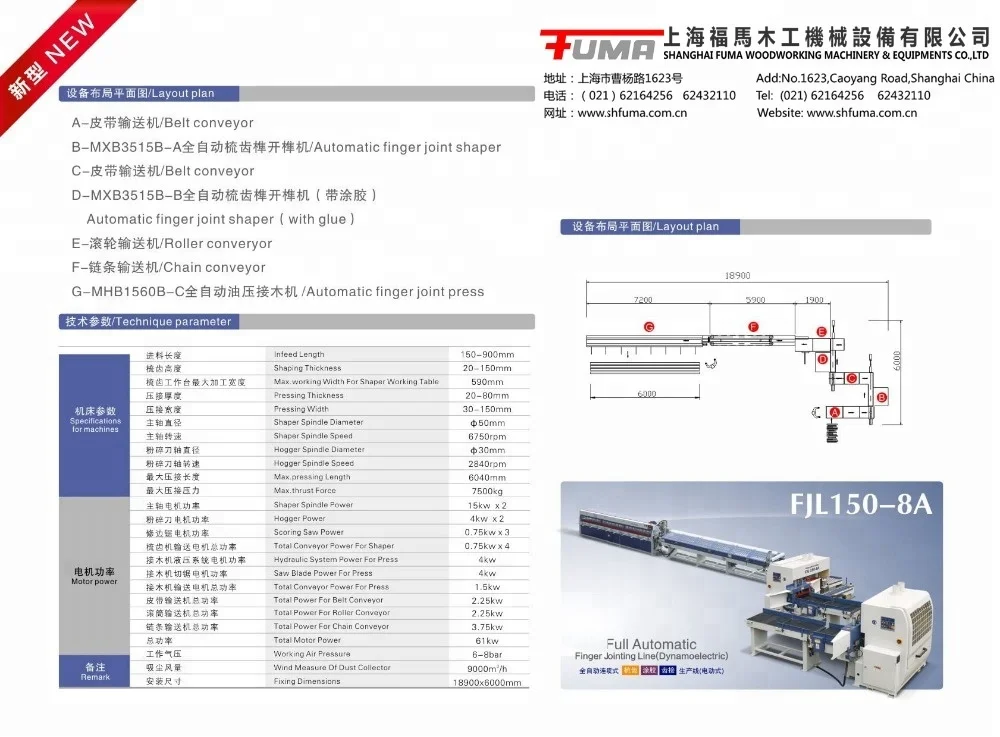

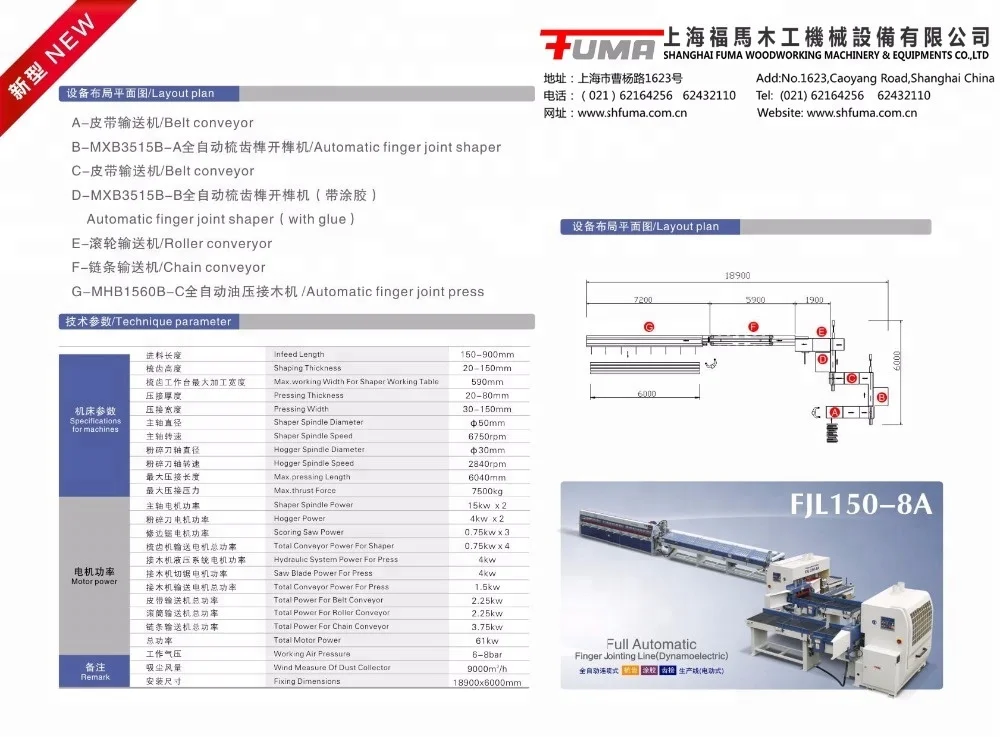

Specifications |
Model |
FJL150-8A |
|
Infeed length |
150-900mm |
|
|
Shaping thickness |
20-150mm |
|
|
Max. working width |
590mm |
|
|
Pressing thickness |
20-80mm |
|
|
Pressing width |
30-150mm |
|
|
Shaper spindle dia |
ø50mm |
|
|
Shaper spindle speed |
6750rpm |
|
|
Hogger spindle dia |
ø30mm |
|
|
Hogger spindle speed |
2840rpm |
|
|
Max. pressing length |
6040mm |
|
|
Max. thrust force |
7500kg |
|
|
Motor power |
Shaper spindle power |
15kw×2 |
|
Hogger power |
4kw×2 |
|
|
Total conveyor power for shaper |
0.75kw×3 |
|
|
Hydraulic system power for shaper |
0.75kw×2 |
|
|
Hydraulic system power for press |
4kw |
|
|
Saw blade power for press |
4kw |
|
|
Total conveyor power for press |
1.5kw |
|
|
Total power for belt conveyor |
1.5kw |
|
|
Total power for roller conveyor |
2.25kw |
|
|
Total power for chain conveyor |
3.75kw |
|
|
Total motor power |
58.75kw |
|
|
Remark |
Working air pressure |
6-8Bar |
|
Wind measure of dust collector |
9000m³/h |
|
|
Fixing dimensions |
18000×6000mm |
|

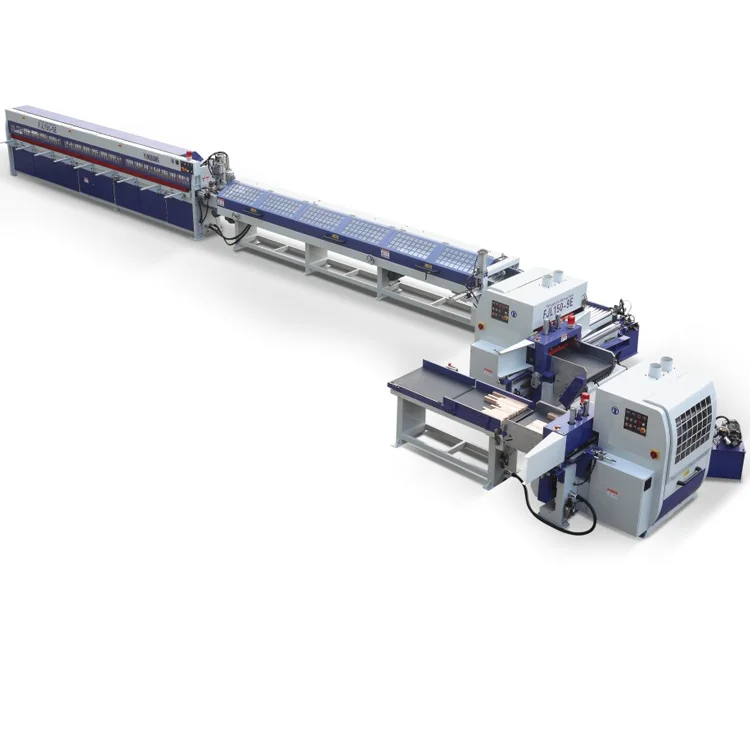

Specifications |
Model |
FJL150-9E |
|
Infeed length |
150-900mm |
|
|
Shaping thickness |
20-150mm |
|
|
Max. working width of shaper working table |
590mm |
|
|
Pressing thickness |
20-80mm |
|
|
Pressing width |
30-150mm |
|
|
Shaper spindle diameter |
ø50mm |
|
|
Shaper spindle speed |
6750rpm |
|
|
Hogger spindle diameter |
ø30mm |
|
|
Hogger spindle speed |
2840rpm |
|
|
Max. pressing length |
6040mm |
|
|
Max. thrust force |
7500kg |
|
|
Motor power |
Shaper spindle power |
15kw×2 |
|
Hogger power |
5.5kw×2 |
|
|
Total conveyor power for shaper |
0.75kw×2 |
|

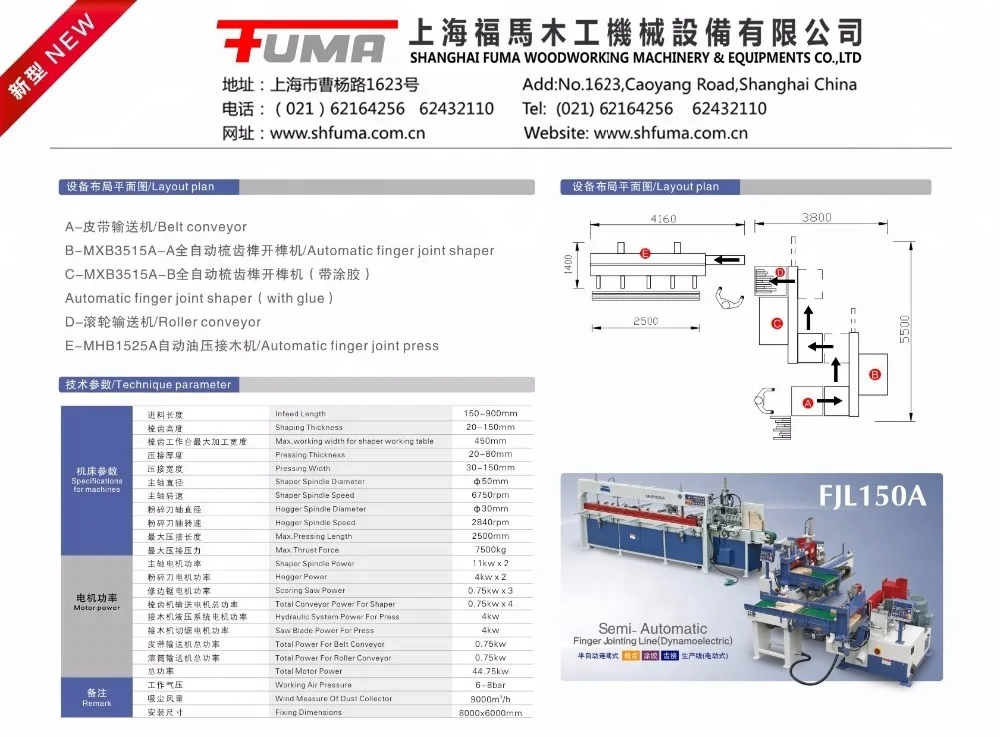

Technique parameter |
FJL150A |
|
|
Specifications |
Infeed length |
80-900mm |
|
|
Shaping thickness |
20-150mm |
|
|
Max. working width of shaper working table |
450mm |
|
|
Pressing thickness |
14-80mm |
|
|
Pressing width |
30-100mm |
|
|
Shaper spindle diameter |
ø50mm |
|
|
Shaper spindle speed |
6750rpm |
|
|
Hogger spindle diameter |
ø30mm |
|
|
Hogger spindle speed |
2840rpm |
|
|
Max. pressing length |
2500mm |
|
|
Max. thrust force |
7500kg |
