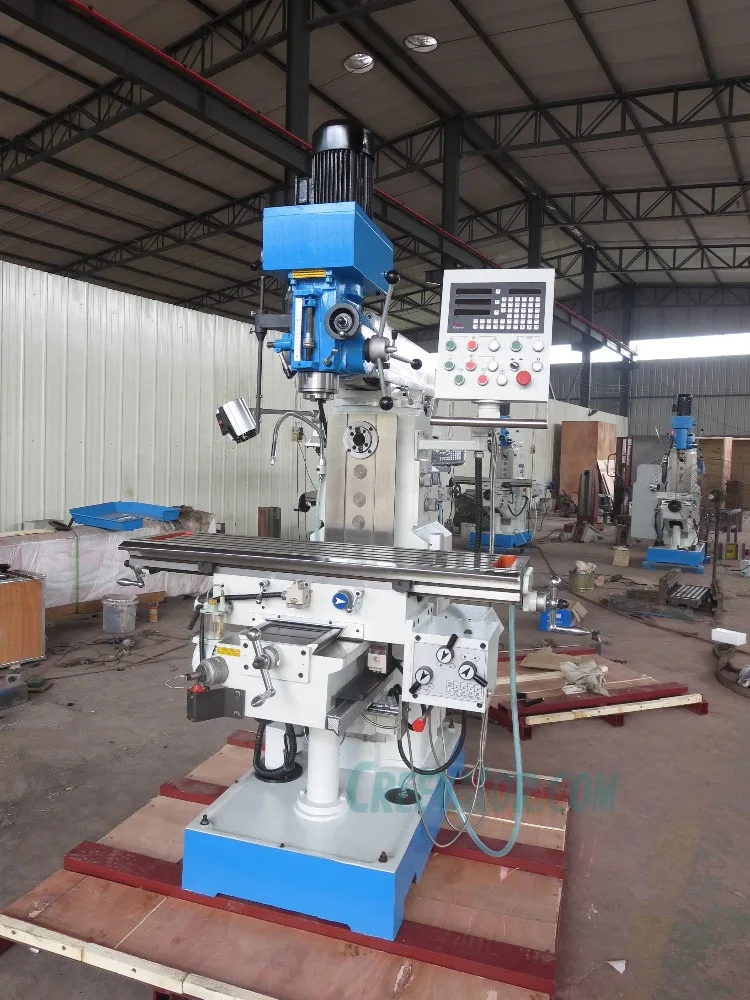

XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine
XZ6350ZB Metal Milling Dilling Machine

XZ6350ZB Metal Milling Dilling Machine

Share on (60725895474):


Price:

Quantity:


Product Overview

Description


Product Description

XZ6350ZB Vertical and Horizontal Drilling Milling Machine Features:

Milling machine（H/V）
Vertical milling spindle automatic feed
X/Y axis mechanical feed
Z axis motor lift
Vertical milling head rotate 45 °for right side and left side

The BIGEST difference of XZ6350ZB and ZX6350ZB:
\t
Model
\t
XZ6350ZB
\t
ZX6350ZB
\t
Table size
\t
1270x280mm
\t
1370x320mm
\t
Table travel
\t
750x300x380mm
\t
800x320x380mm
\t
Max weight of workpiece
\t
350kg
\t
360kg

Vertical Milling Head



XZ6350ZB Milling head can be rotaried 45° from left side to right side, make the machine have higher efficetive.

Worktable




XZ6350ZB Hardening treatment table is 1270*280mm, the machine have higher rigidity.

Three-axis Automatic Feed



XZ6350ZB with X, Y two axis mechanical automatic feeding, Z axis motor lift.

Lifiting Table




XZ6350ZB Lifiting table for a square guide, with good rigidity.

Parameter
\t
Item
\t
XZ6350ZB
\t
Spindle taper
\t
ISO40(V) ISO40(H)
\t
Max.drilling diameter
\t
50mm. 30mm
\t
Distance from spindle to table
\t
90-470mm
\t
Distance from horizontal spindle to table
\t
0-380mm
\t
Distance from spindle to column
\t
200-700mm
\t
Spindle speeds
\t
(8)90-2000r.p.m(V)(12)40-1300r.p.m(H)
\t
Spindle travel
\t
120mm
\t
Feeding of quill
\t
(3steps)0.04 0.08 0.15
\t
Max drilling capacity of auto-feeding
\t
14mm
\t
Head movement(left/right)
\t
45degrees
\t
Table size
\t
1270x280mm
\t
Table travel(horizontal/cross/vertical)
\t
750x300x380mm
\t
Feeding range of longitudinal cross travel
\t
(8)22-555mm/min
\t
X-axis rapid feed speed
\t
1080mm/min
\t
Z-axis rapid feed speed
\t
560mm/min
\t
Z-axis motor power
\t
750w
\t
Max weight of workpiece
\t
350kg
\t
T-slot number /width/distance
\t
3/14mm/70mm
\t
Horse power for main motor
\t
2.2KW/2.2KW
\t
X axis driving motor
\t
750W
\t
Overall dimension
\t
1700x1600x2300mm
\t
N.W./G.W.
\t
1660/1760kg
Detailed Images

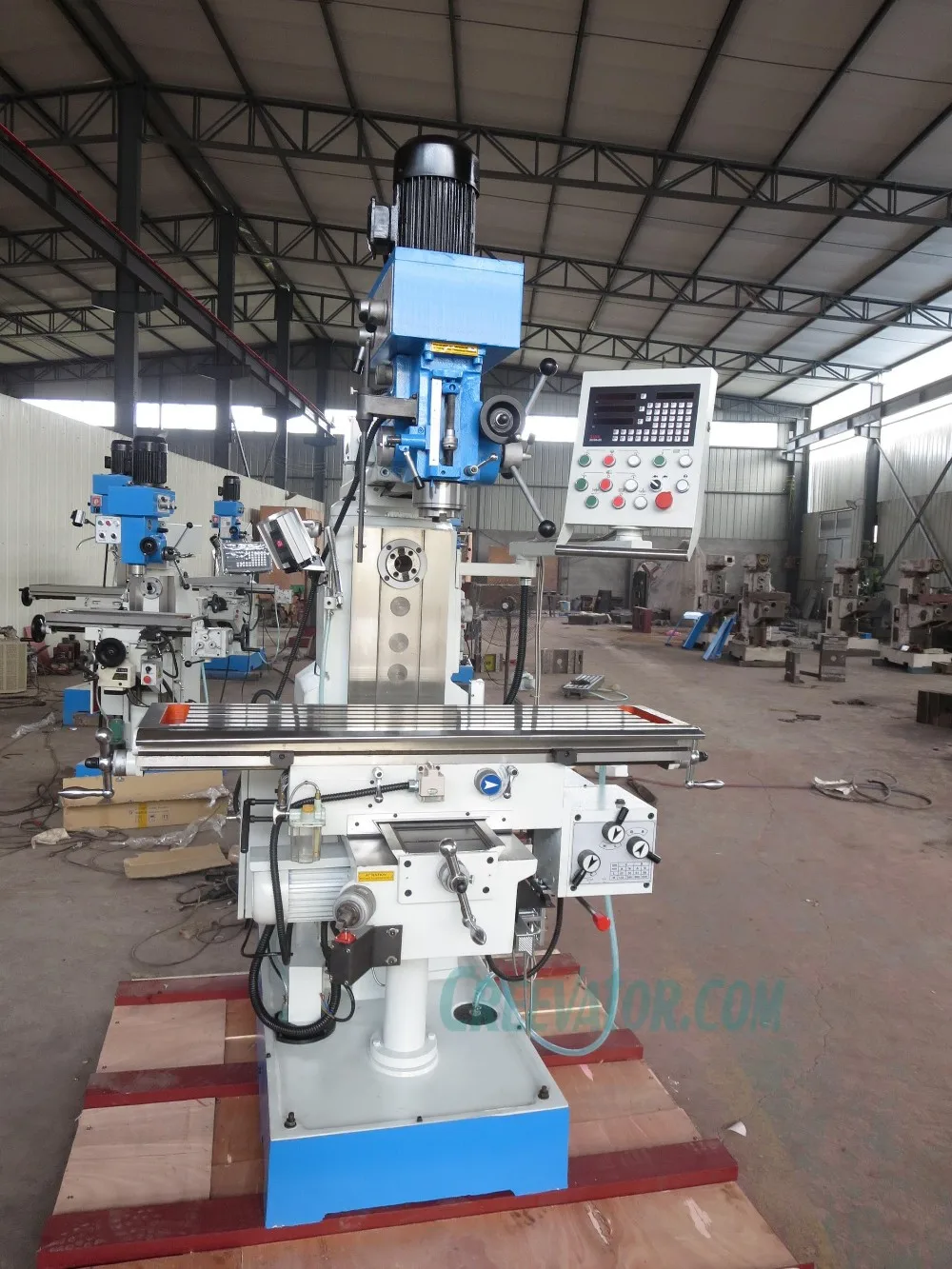

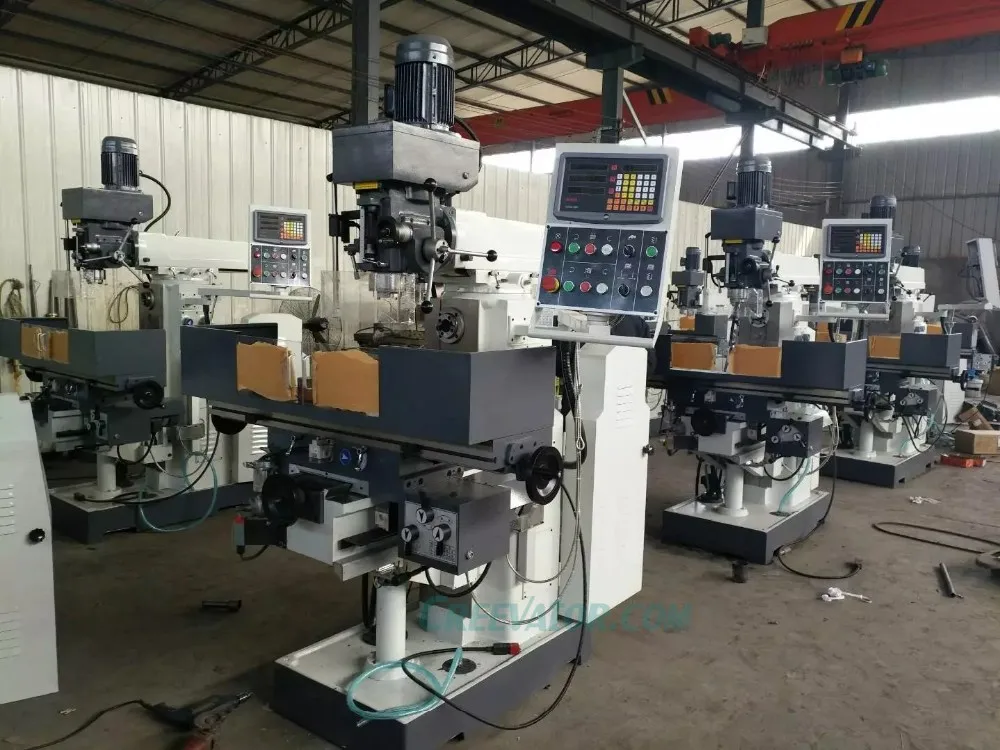

Exported to Mexico with CE certification

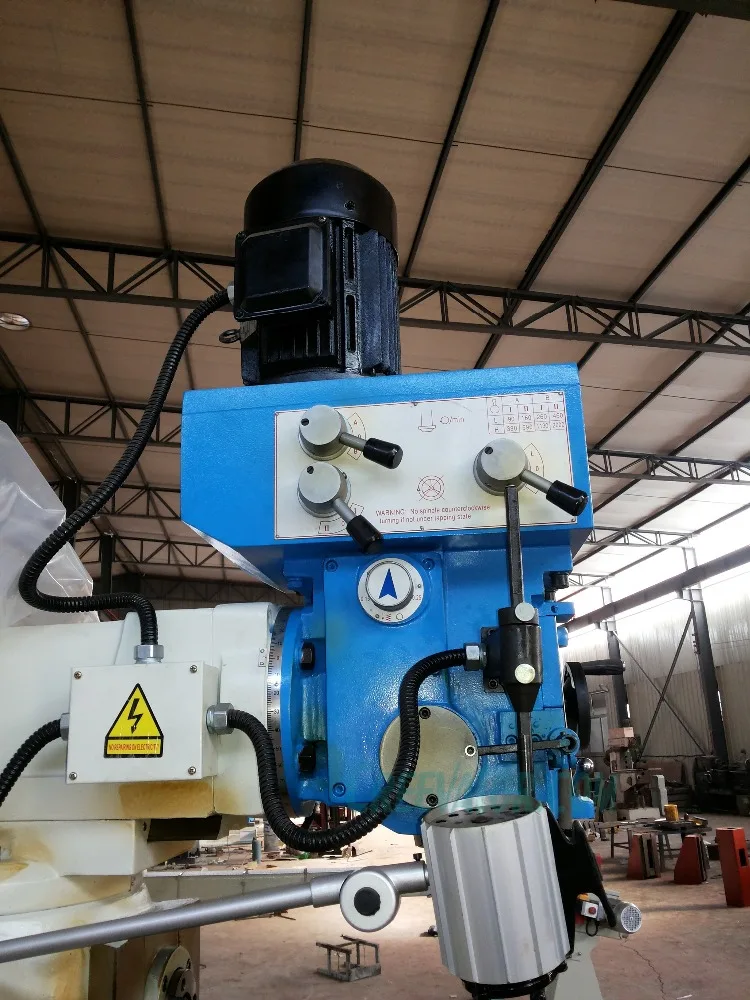

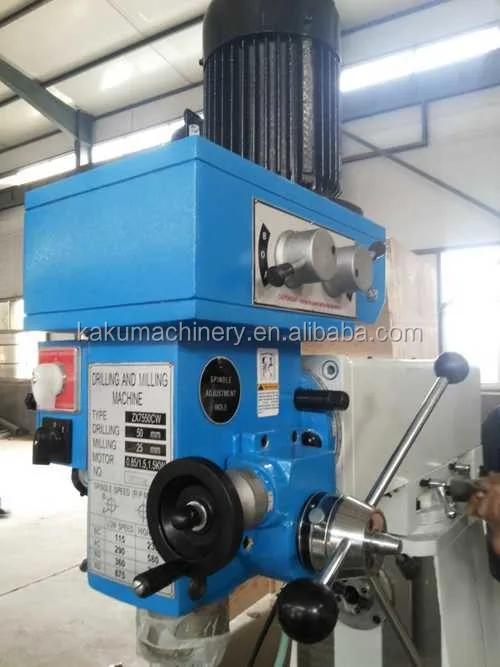

XZ6350ZB Milling Head

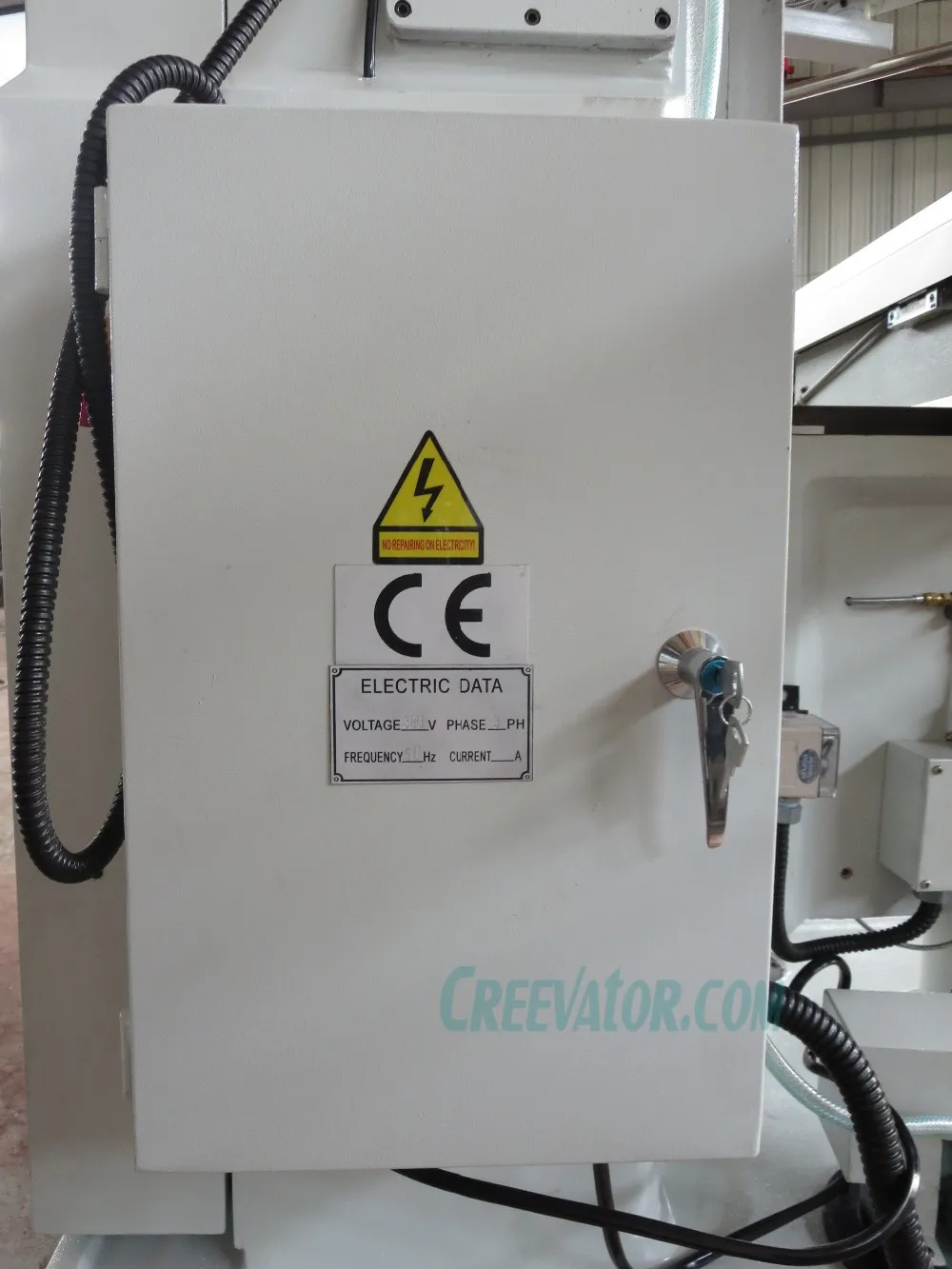

XZ6350ZB CE Certificate

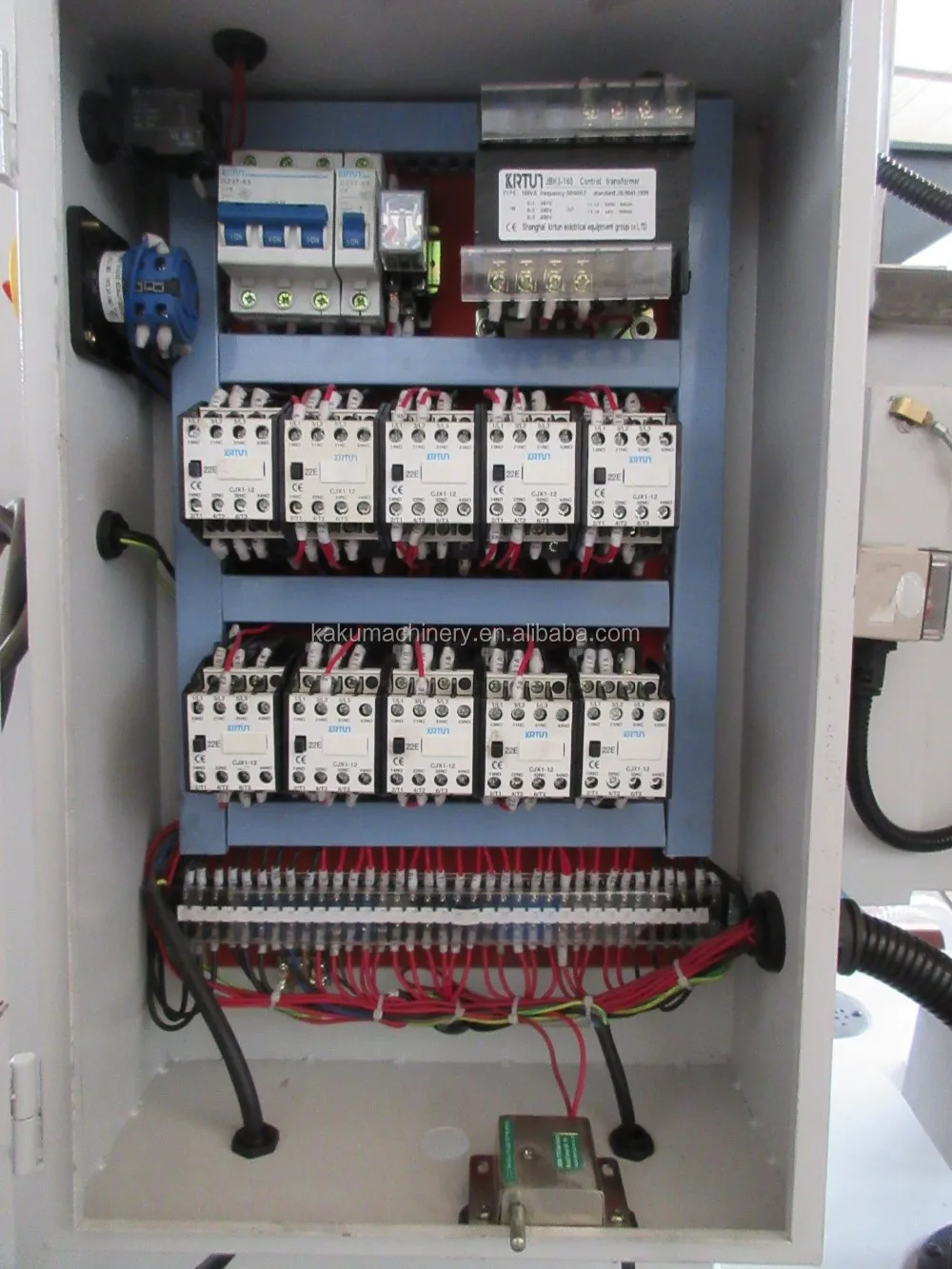

XZ6350ZB Electrical Box

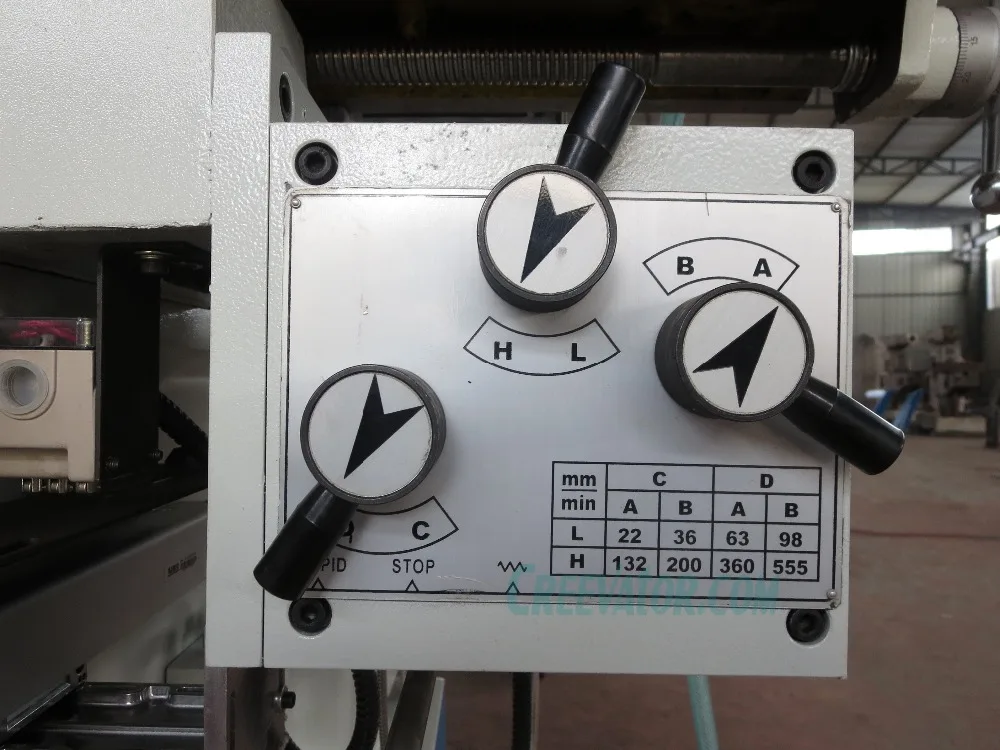

XZ6350ZB 3-axis Automatic Feed

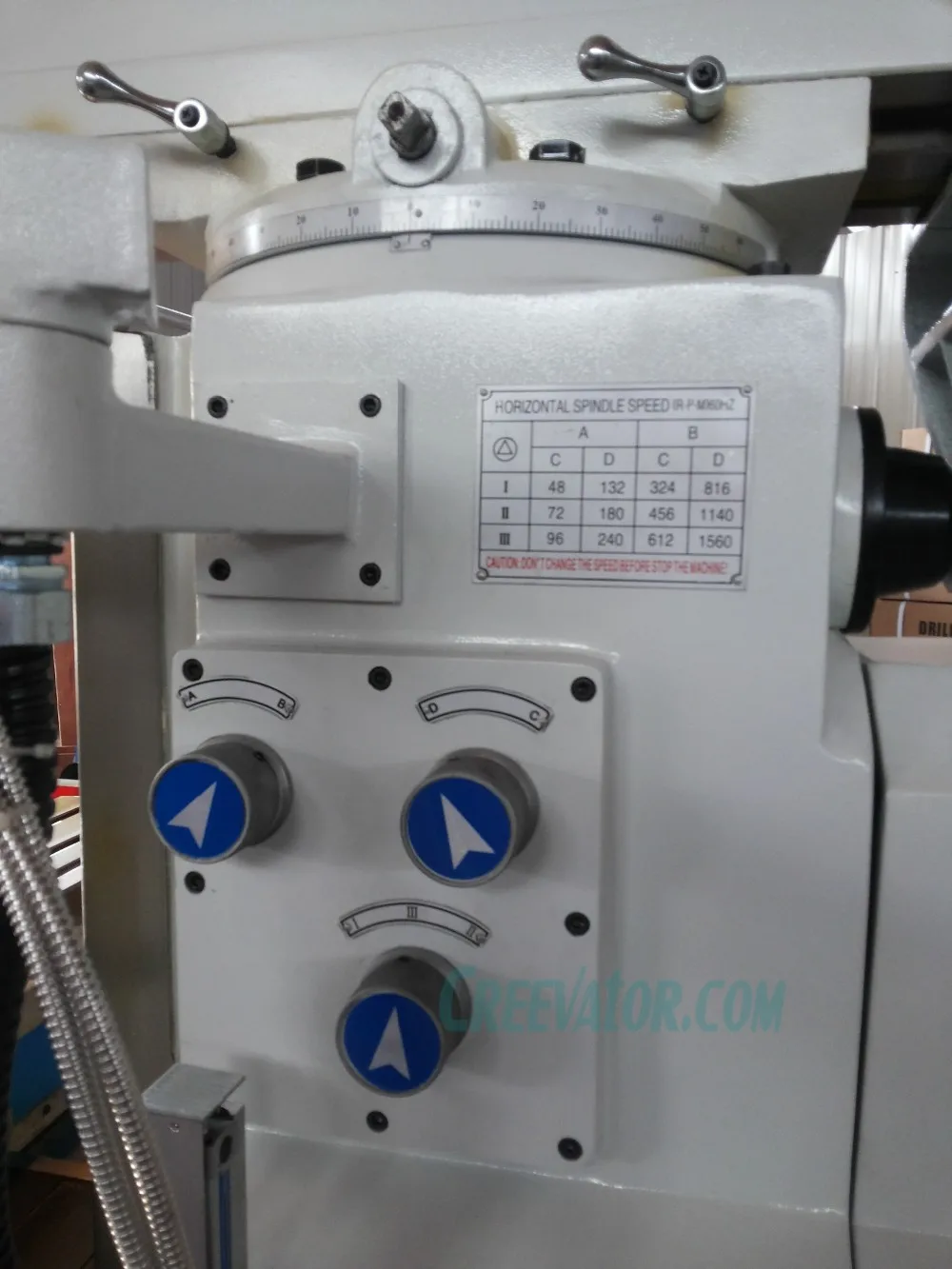

XZ6350ZB Adjusting Buton of Spindle speed

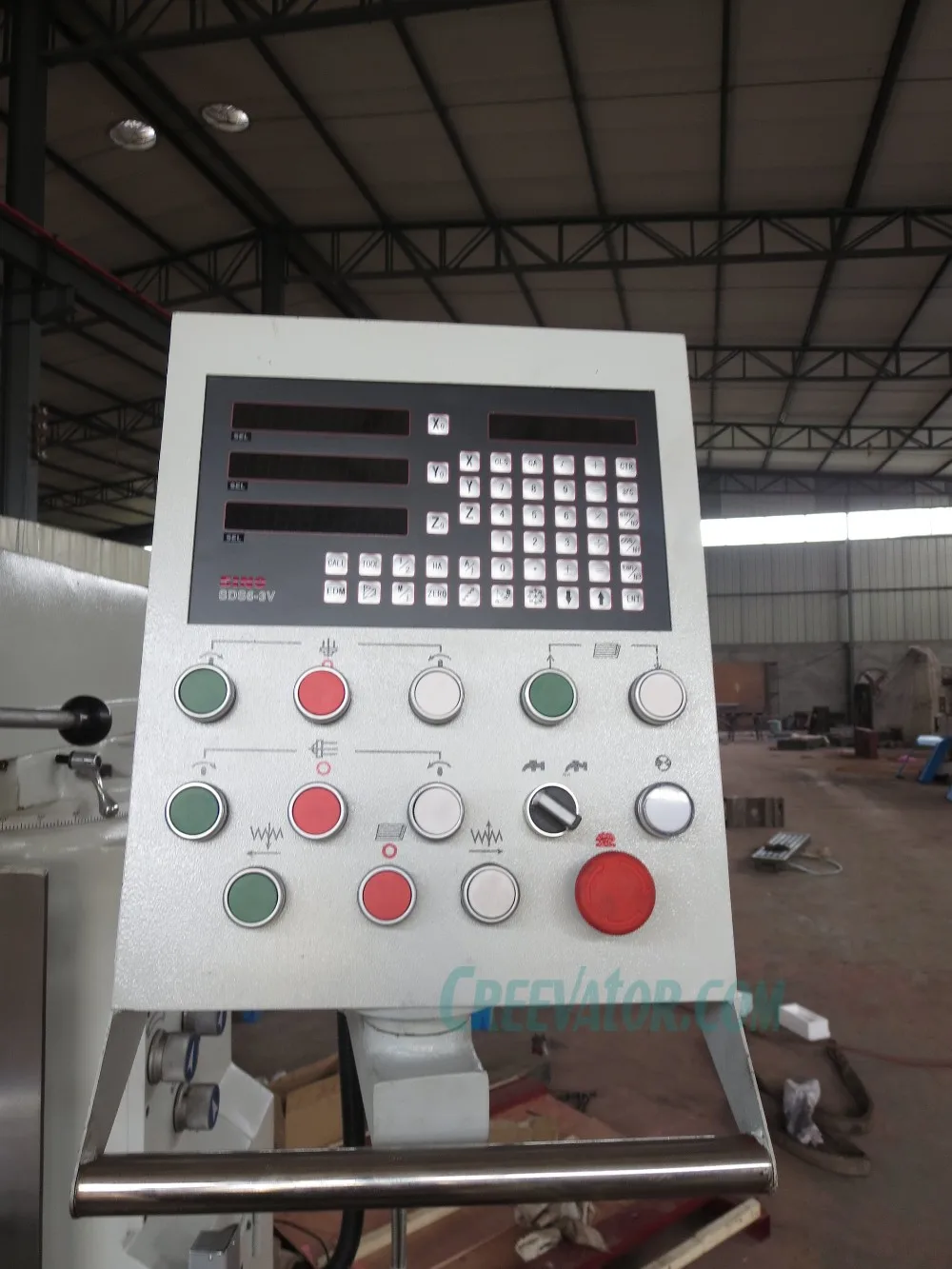

X, Y, Z-axis digital read out DRO. We use SINO or the same quality DRO.

Note: DRO is one of the optional accessories.

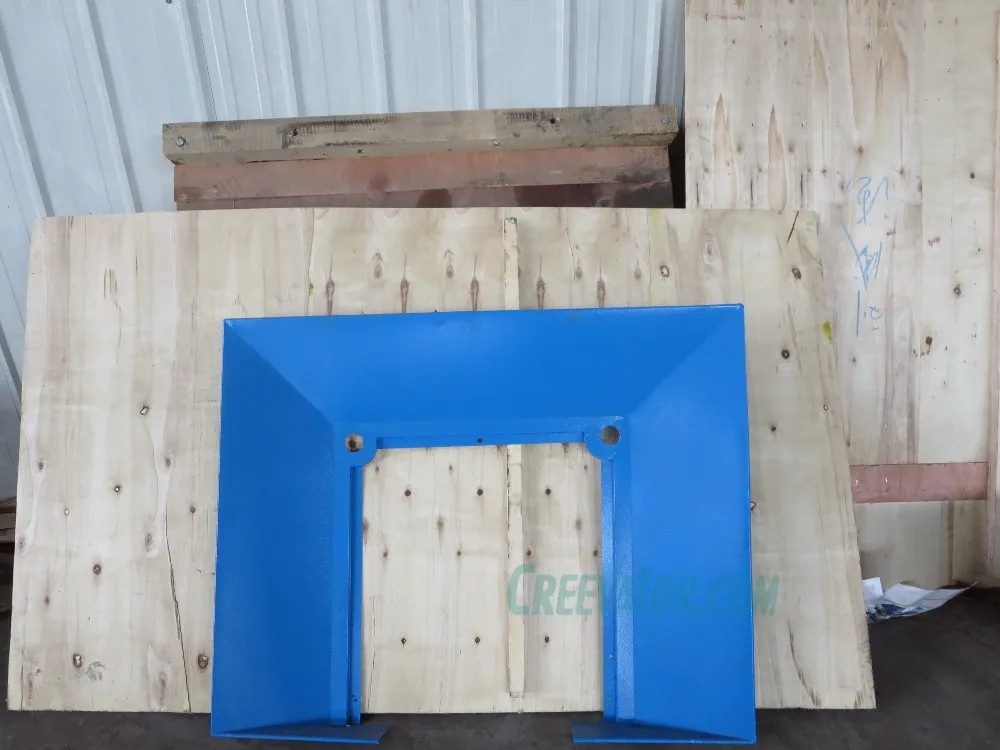

Sheet Metal of machine buttom guard

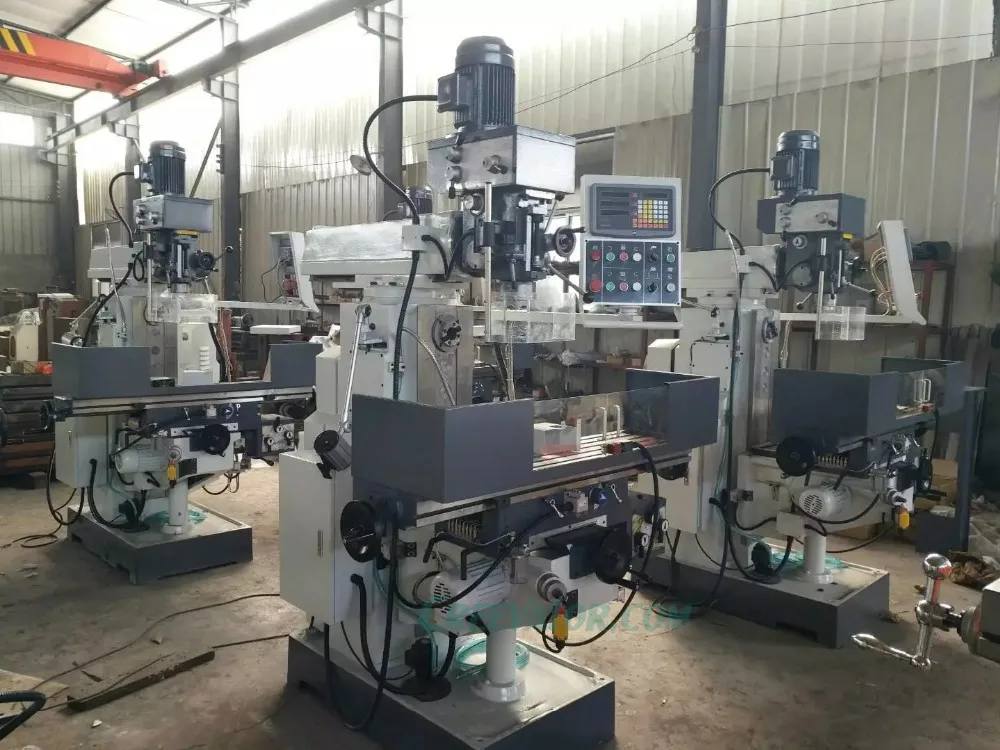

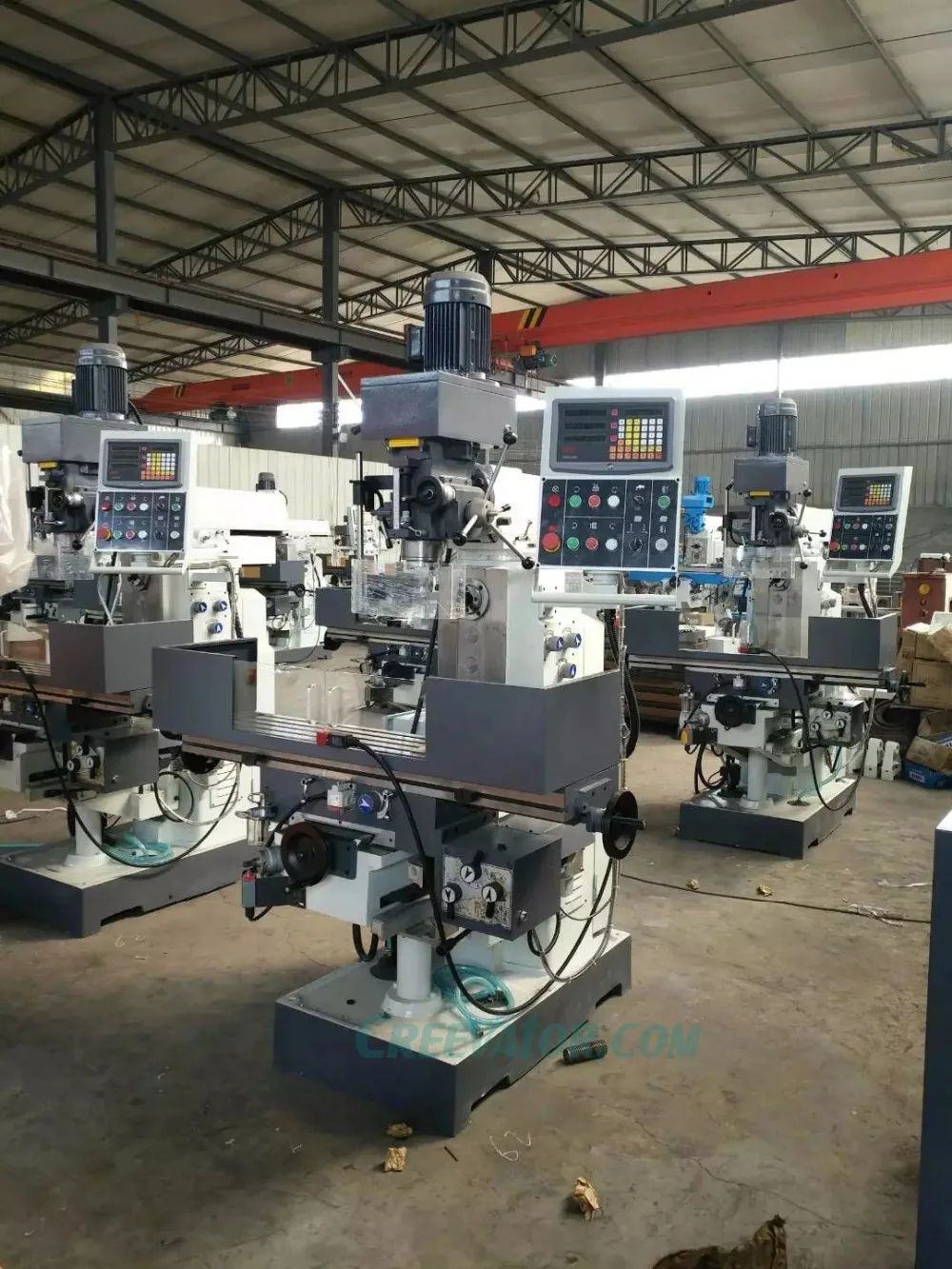

Exported to Poland wirh CE certification

Milling plugs (Optional)

58 sets clamping kits (Optional)

TS-series Rotary Table (Optional)

BS-1 Dividing Head (Optional)

Configurations

Standard accessories:

Drill chuck

Milling chuck

Reduction sleeve

Machine vice

Wrench

Ineer hexagpnal spanner

Cam lock

Wedge shifter

Spindle arbor

Horizontal drilling bolt

Horizontal drilling bolt

Operation manual

Certificate of inspection

Packing list

Optional accessories:
2-axis/ 3-axis DROM
58 sets of combination fixture
Rotary table
Dividing head

Why choose us
Packing & Delivery
\t
Packaging details
\t
Size
\t
1800*1700*2450mmmm
\t
Weight
\t
1760kg
\t
Packing Details
\t
The normal package is Fumigation-free plywood, if export to european countries, the machine have CE certificate. If the container is too bigger, we can use PE film for packing or pack it according to customers special request.
Our Service

Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical files service provided.

2.All of the questions will be replied within 24 hours

3.We counld provide OEM

4.Machine and Service Quality Double Assurance!
