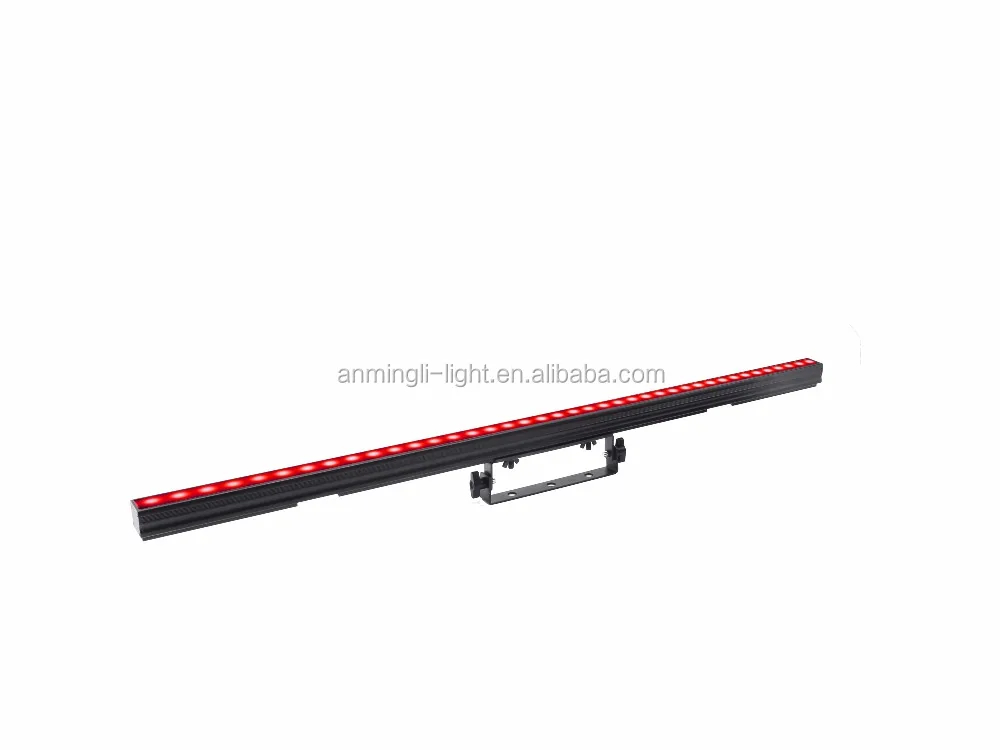

Anmingli LED RGB dj pixel light bar led support artnet klingnet and DMX control

Product Overview

Description

Anmingli LED RGB dj pixel light bar led support artnet klingnet and DMX control



Technical parameter



Model	AL-DC140
Control Protocol	DMX, Art-Net,Kling-Net
Art-Net Channels	120/8
Light Source	40 LEDs(tri-color) SMD 5050,50000 hours life expectancy
Pixels	40x1
Pixel Pitch	25mm
Viewing Angle	120°
Illuminance	1174 NITS(clear filter),828NITS(frosted filter)
Approvals	CE, RoHS
Controller (required)	Strip controller
IP Rating	IP20
Weight	4.4 lb (2kg)
Dimensions	39.4x1.4x4.6 in (1000x37x118mm)



Our commitment:



     -We only sell high quality products.



     -Factory sell directly,has price advantage.



     -We have perfect after-sales service team.





Advantage of the product:

• Quickly configure these slim, one-meter strips and link up to 16 in-lines with network cables or create vertical effects with new hardware linking system
• Easily control each using Art-Net  (3.0 compliant) or Arkaos Kling-Net
• Easily manage configuration and software updates with the network-based remote web server
• Works with Arkaos Media Master Express for a plug-n-play system that requires little training to operate. Strip controller is required for operation
•
• One-meter bar that sets up in minutes with minimal technical know-how
• Each bar houses 40 tri-colored SMD 5050 LEDs, and has a pixel pitch of 25 millimeters and 120-degree viewing angle

• Pixel mapping displays are achieved in minutes using multiple

• Control options-industry standard Art-net abd Arkaos Kling-net

Feedback from Customers:

























Our Prolight+Sound Guangzhou Exhibition:

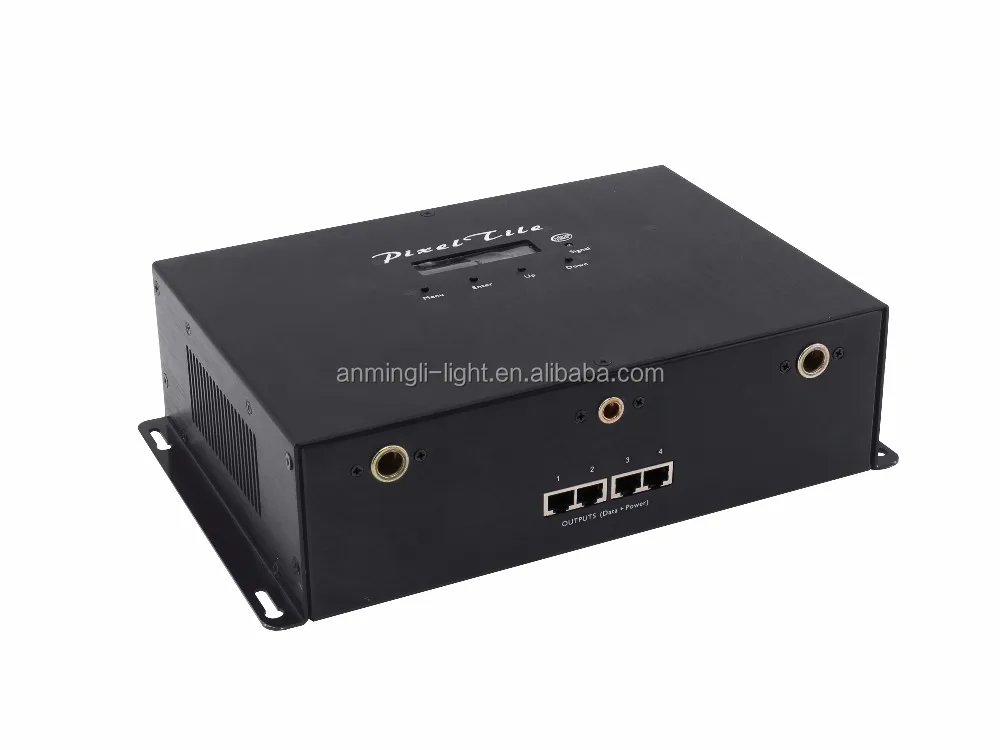

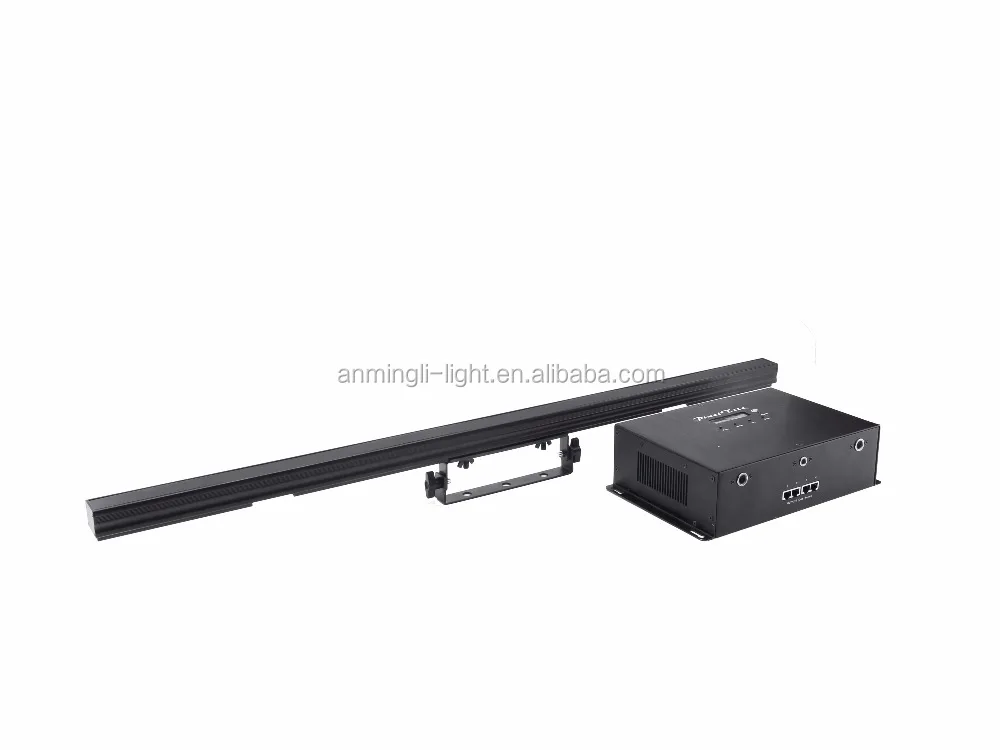

Connection & Controller:





• Slide System Concept.
• You could see the RJ45 port & Connect  to the Controller by the Cat-5 cable directly.
• Suppoting ArtNet and KlingNet Protocol.









• One controller can control 16 strips.





•  This is the diagram that how to set up Led Pixel Strip 1x40 configuration.



• You could design any programs you want by the professional software.







Three Lenses - Milky & Frosted & Clear:









Road Case For Packaging:











Payment &Shipping:



S4}7A~0XJ02FOHJLBFVNT3.jpg" width="499" height="440" style="vertical-align: middle;" ori-width="631" ori-height="525"/>





Our team:



1, Reply your inquiry in 24working hours.



2, Deliver the goods to our customers all over the world with speed and precision.



3, Provide our clients with favorable price and high quality goods.



4, To offer excellent service to our customers is our final goal.



About us:



    We are the professional manufacturer of making and selling the led matrix light,led  twinkling dance floor, led moving head light ,led par light and led curtain,etc product.We have nearly 10 years of experience in foreign trade in Guangzhou.We are able to provide the best prices,the highest quality and the superior service.





    Anmingli Stage Lighting was established by a talented and creative group of LED Light Engineers. Our collective experience in lighting and its design has given us unique insight to the needs and technical challenges of professional lighting.
